Modelo 3D Starfish Helping Hands por Hanselcj no Printables

Descrição

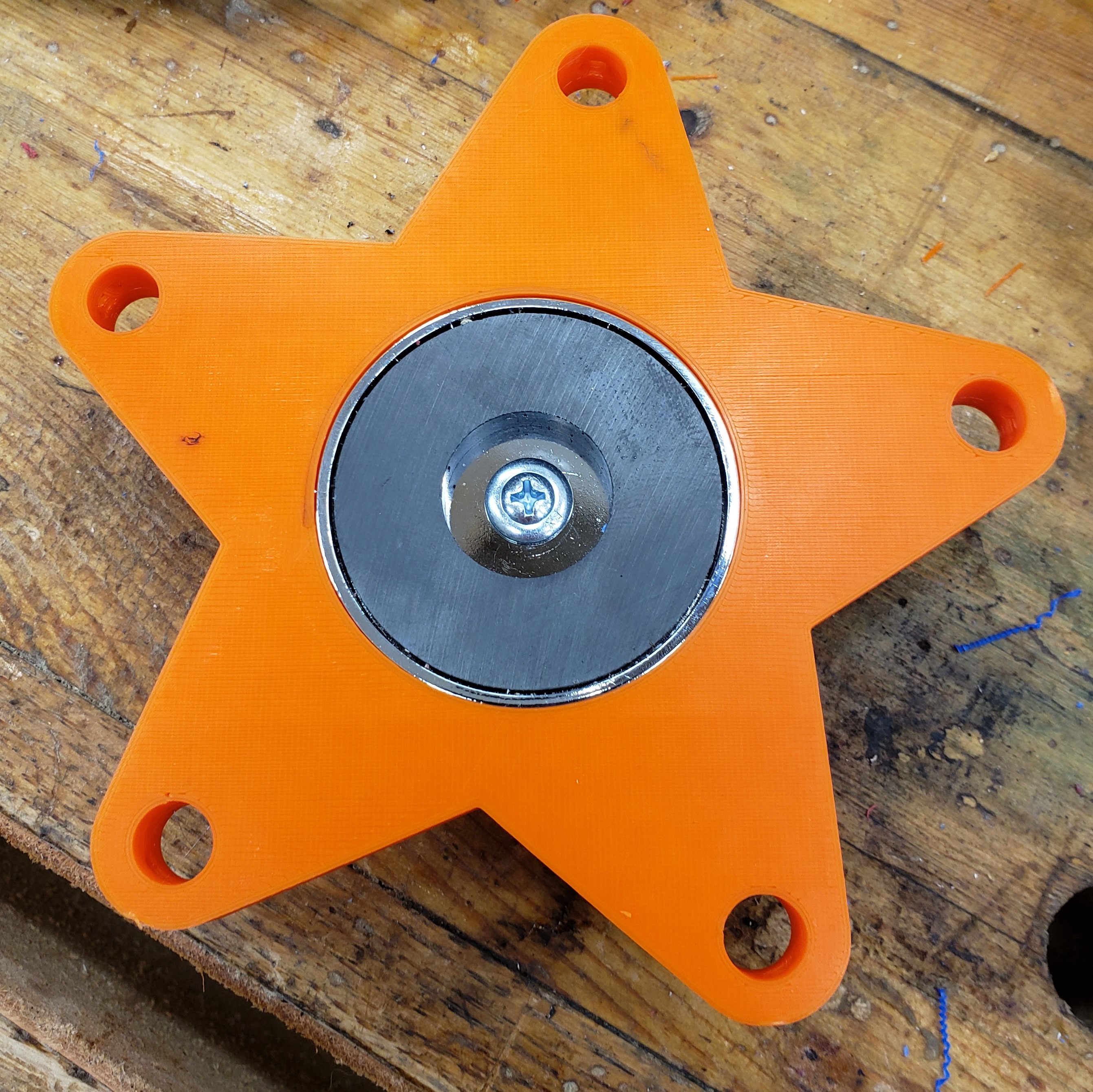

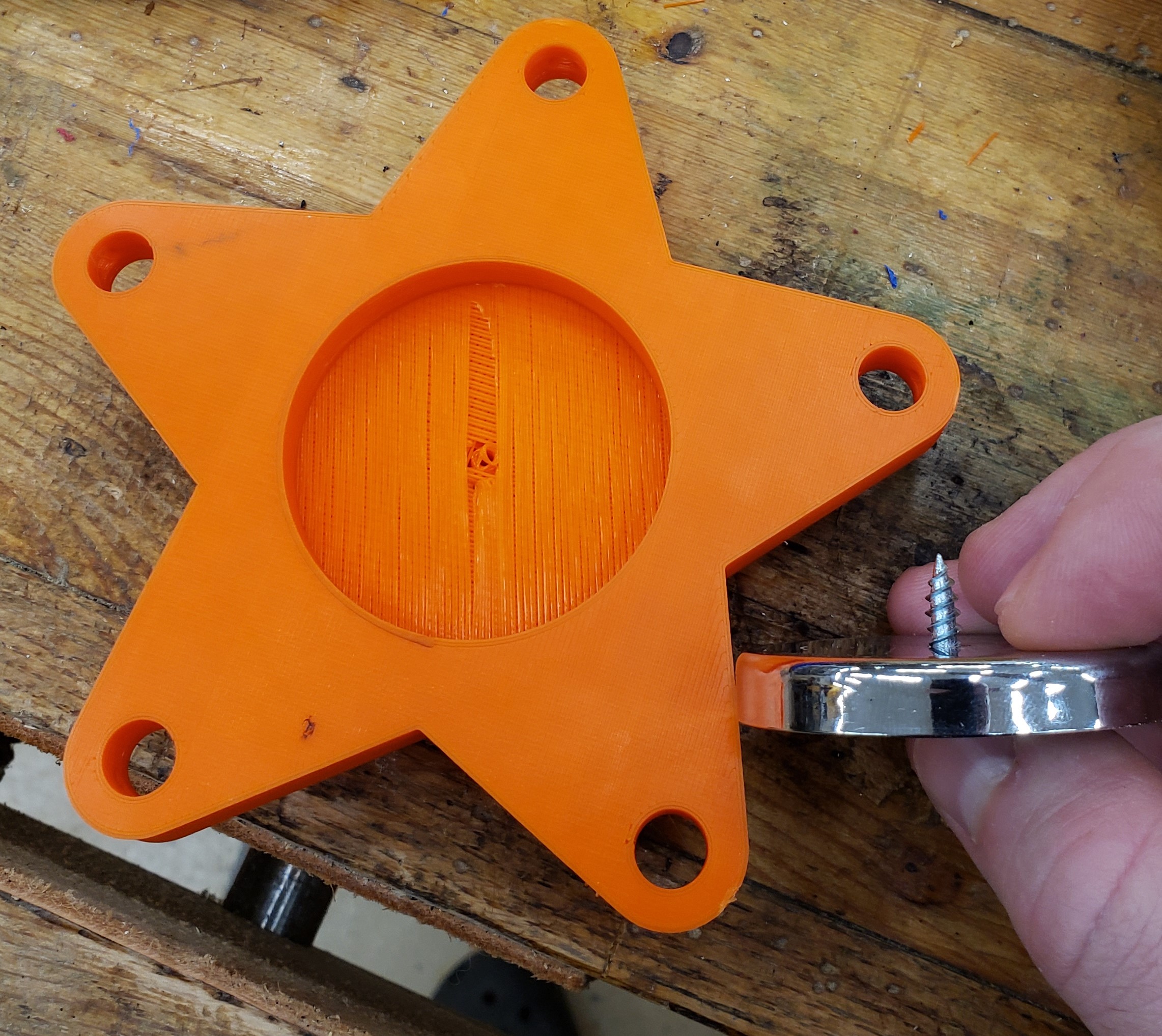

Whenever I need to do some soldering, I have Patrick Starfish helping me out. The adjustable hose I picked up seems to have a narrower fitting than most, so I made my own version of a base. The pipe fitting just slips in place, but a short number 6 wood screw and glue hold it permanently. I stole the magnet idea from Fogl on thingiverse.

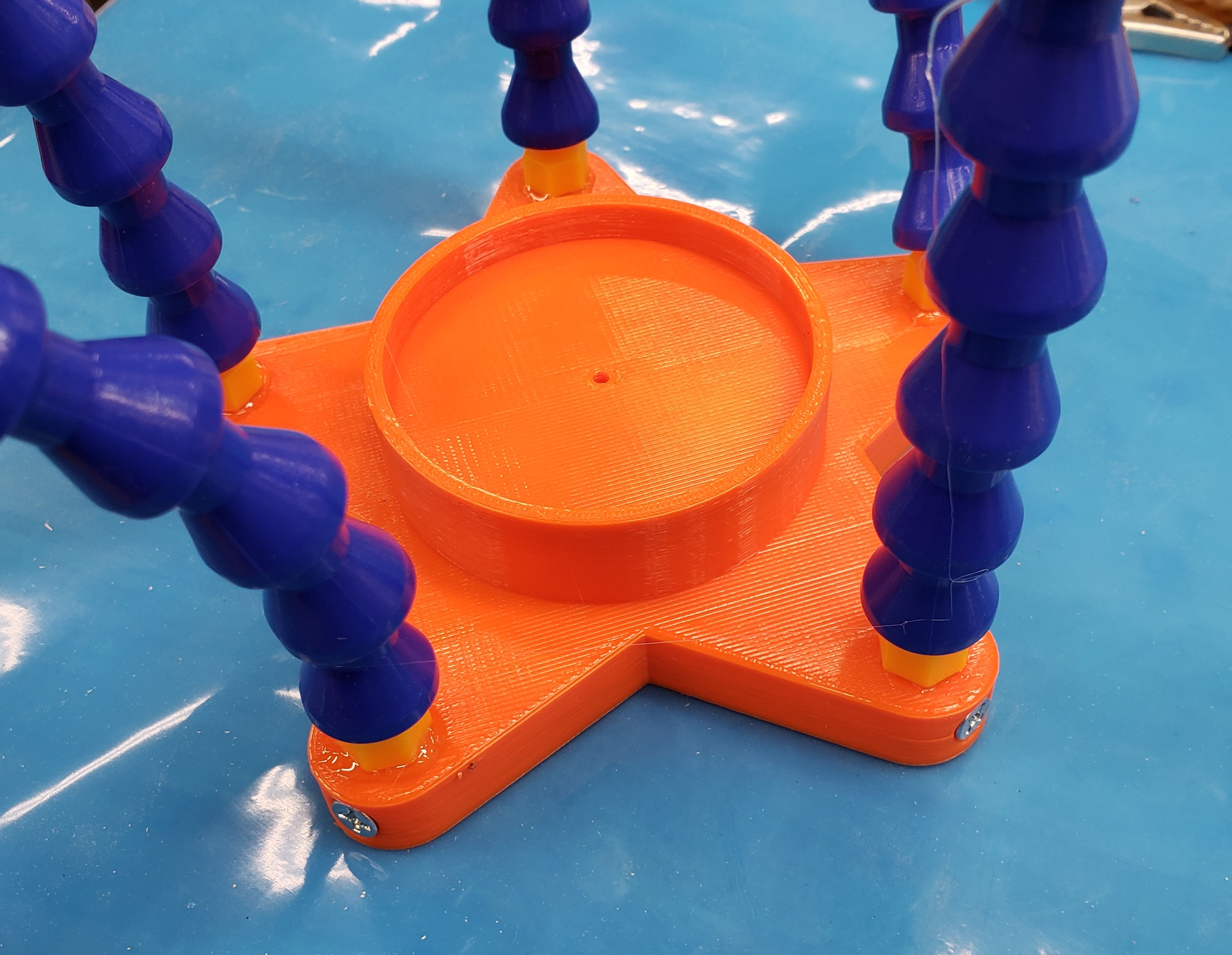

To secure the clips, I pushed them into the blue line joints, then drilled and screwed sideways with a 1/2" number 4 screw. They were pretty secure before the screw.

Coolant Line: [https://www.amazon.com/dp/B07K7MGQRJ/ref=cm_sw_em_r_mt_dp_yB-3FbQVQ5WGZ?_encoding=UTF8&psc=1](https://www.amazon.com/dp/B07K7MGQRJ/ref=cm_sw_em_r_mt_dp_yB-3FbQVQ5WGZ?_encoding=UTF8&psc=1)

Clips: [https://www.amazon.com/dp/B072FJQ7BG/ref=cm_sw_em_r_mt_dp_wB-3FbV7RC1C8?_encoding=UTF8&psc=1](https://www.amazon.com/dp/B072FJQ7BG/ref=cm_sw_em_r_mt_dp_wB-3FbV7RC1C8?_encoding=UTF8&psc=1)

Magnet: [https://www.homedepot.com/p/Master-Magnet-25-lb-Round-Base-Pull-Magnets-96324/203613132](https://www.homedepot.com/p/Master-Magnet-25-lb-Round-Base-Pull-Magnets-96324/203613132)

Check out more on my blog post:
[https://kiltedcraftworks.com/2020/12/21/soldering-helping-hands/(opens](https://kiltedcraftworks.com/2020/12/21/soldering-helping-hands/(opens) in a new tab)

Printables

Starfish Helping Hands

Publicado em 21 de dez de 2020

46
Curtidas
145
Downloads
2
Impressões
Categoria Electronics
Tags
soldering helpinghand
Licença Creative Commons — Attribution
Arquivos (1)
starfish-helping-hands-base.stl 139.9 KB
