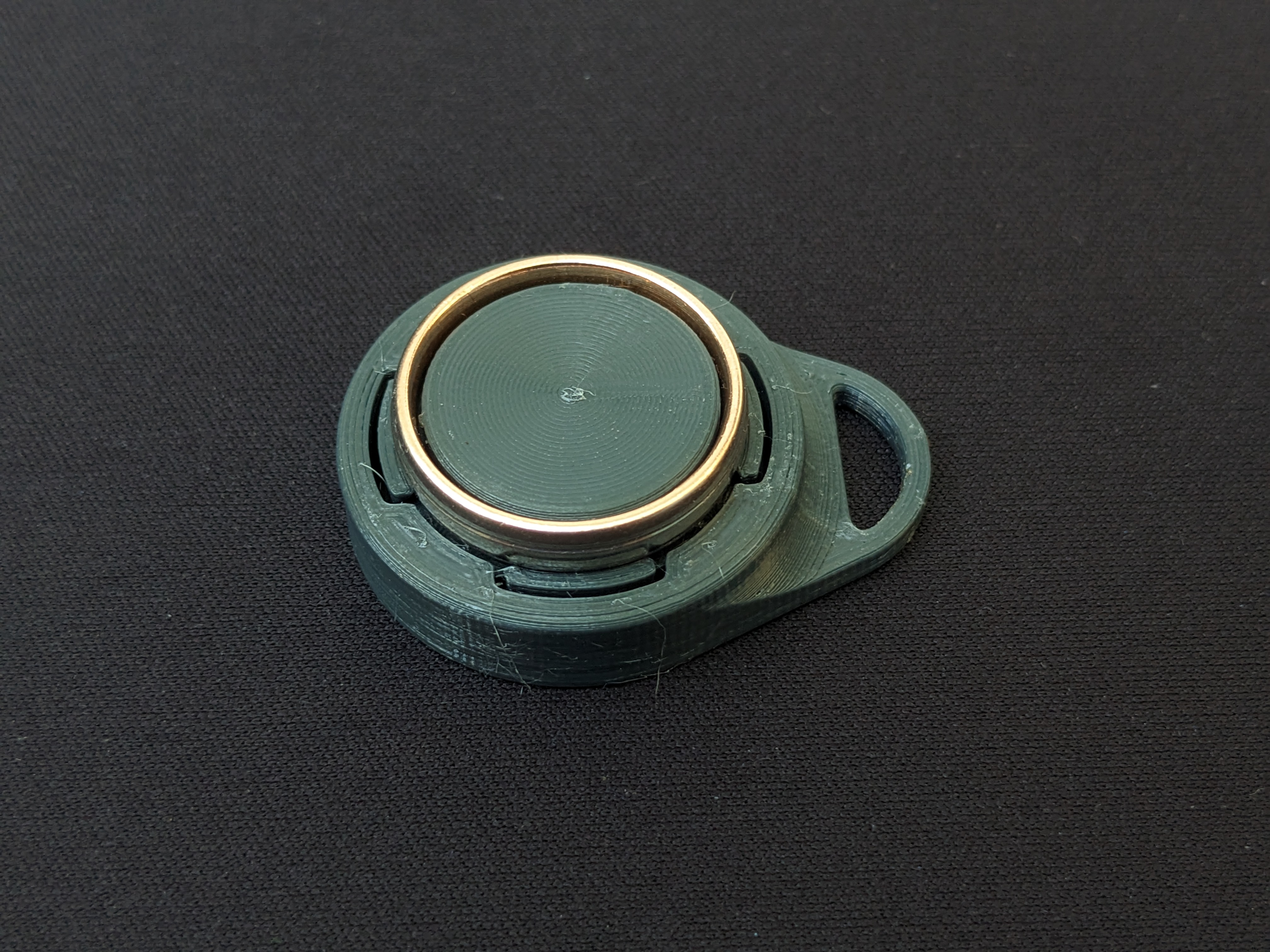

If you have a job or do sports where you are not allowed to wear a ring, this holder is for you.

Since every ring is different, I have designed the model so that everyone can easily customize the model.

Customize model:

There are two different Fusion 360 files. One for straight or concave rings and one for convex rings.

You can edit the dimension of the ring in Fusion 360, then the ring holder adjusts automatically.

• Right click on the first sketch at the bottom of the timeline.
  Select “edit sketch”.
• Now double click on the appropriate dimensions to adjust the dimensions. If you want the ring to be smaller than the existing model, start with the smallest dimension, otherwise with the largest.
  You can delet dimensions and add new ones. Just make shure, that the lines of the sketch are black. Blue lines can be moved.
• Klick on “FINISH SKETCH”
• Now select “Ring holder” in the Browser section.
• Then “File” => “3D Print”
• After that you can save the STL file and slice it.

Print settings:

Material: PETG
Infill: 20%
Layer height: 0,15 mm
Support: no
