Version 0.1 - 27.Mai.2023

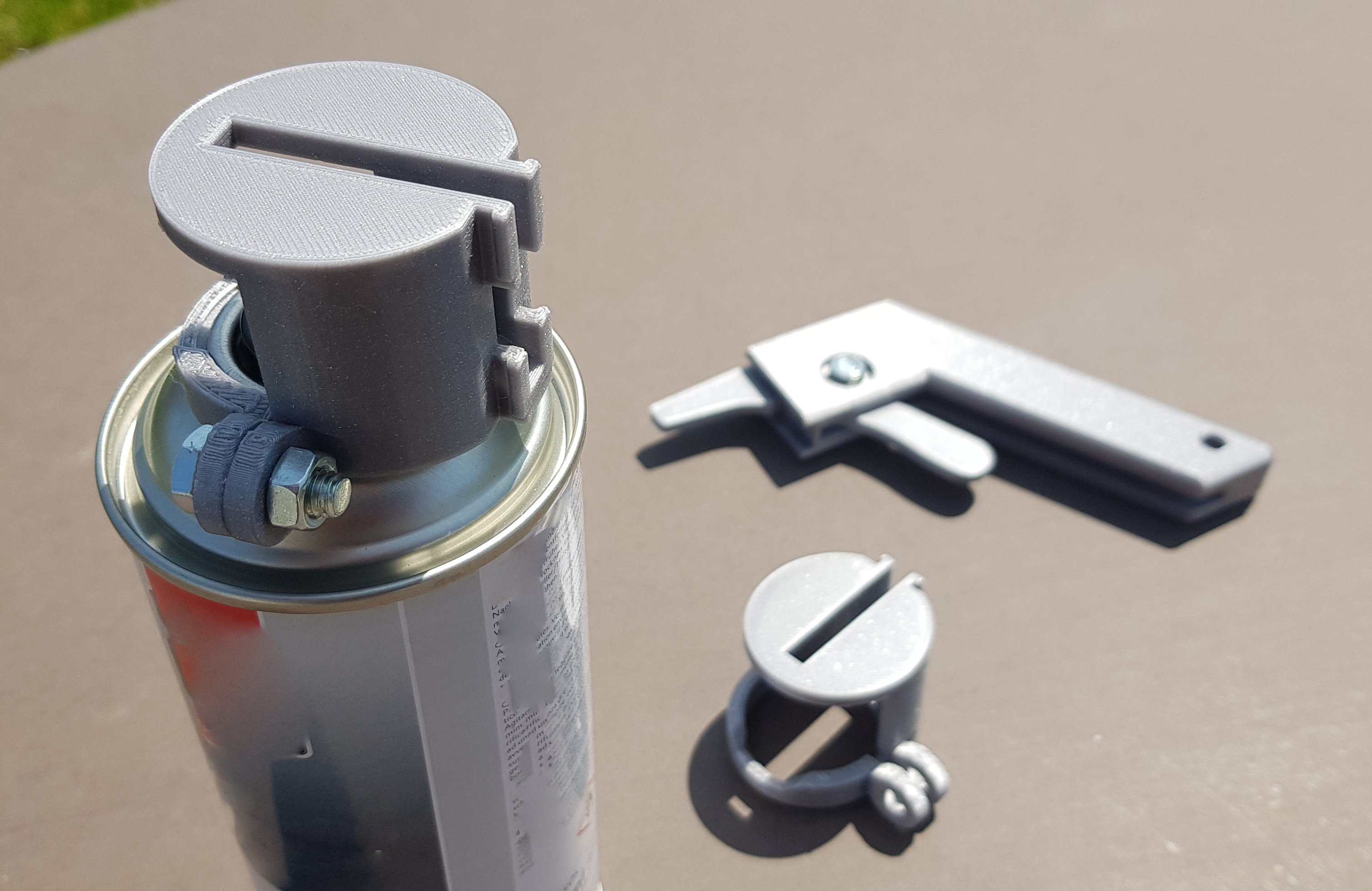

The main feature of this remix is a rail mechanism that lets you change the can-holder-heads without removing the trigger. It works with small and regular spray paint cans. This has also the advantage that you can print multiple heads without the grip, if they got damaged or full of paint.

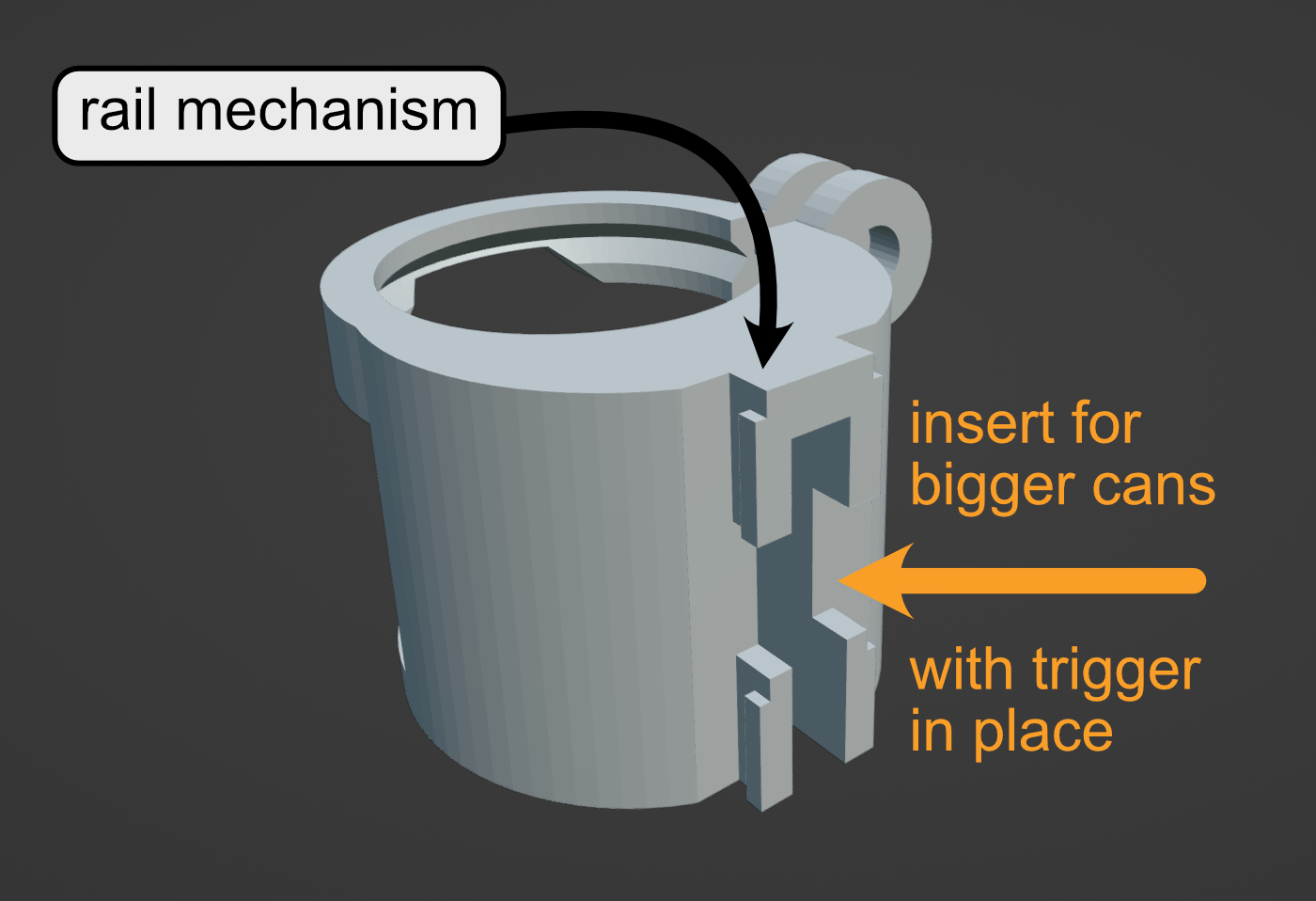

For bigger cans you can insert the grip half way into the rail mechanism, for smaller cans you can slide it in from the bottom. (see images)

(Disadvantage) The mechanism is not intended to spray upside down or shaking the can heavily while holding the grip, because the head can slip out the rail upwards.

Its also remixed to

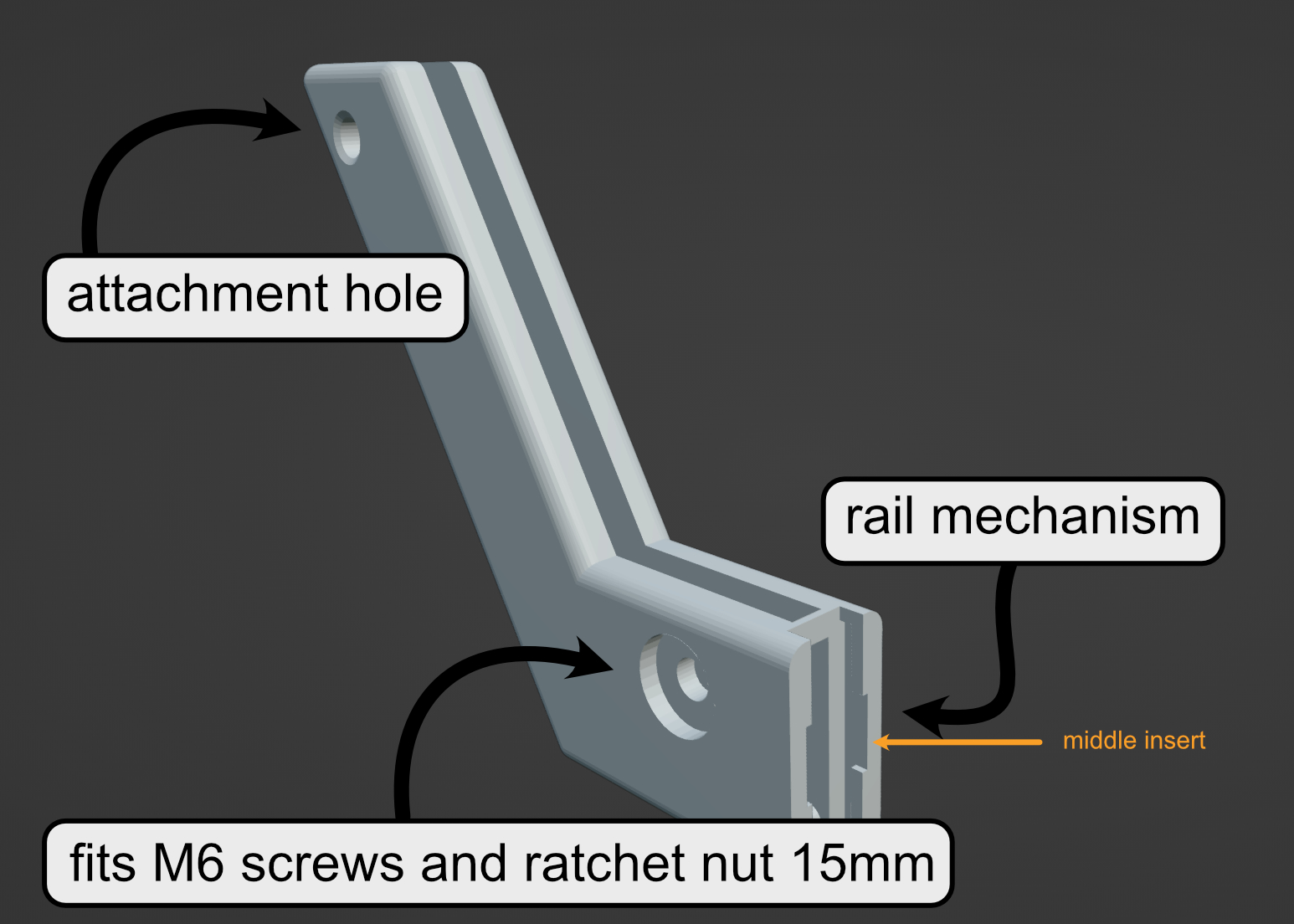

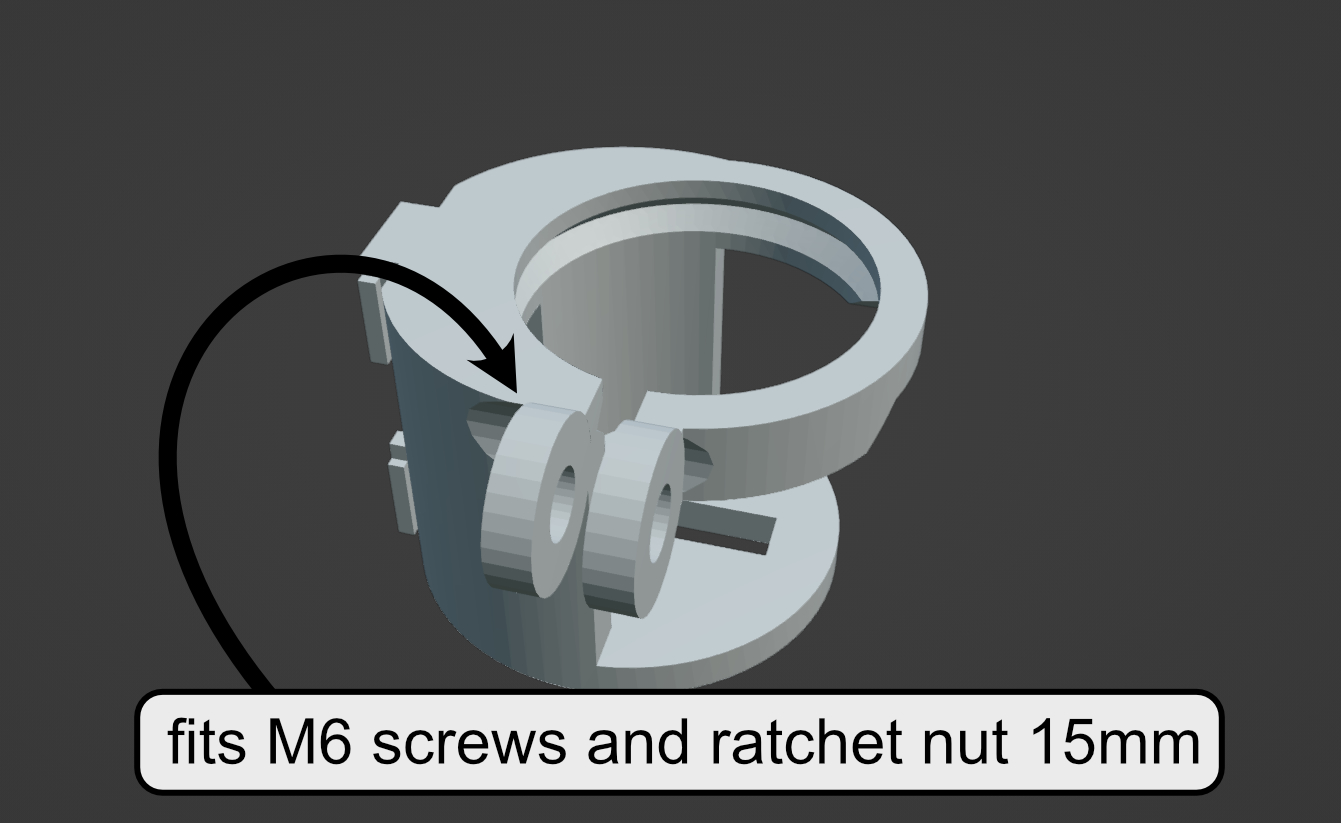

• fit M6 screws and a ratchet nut (15 mm diameter).

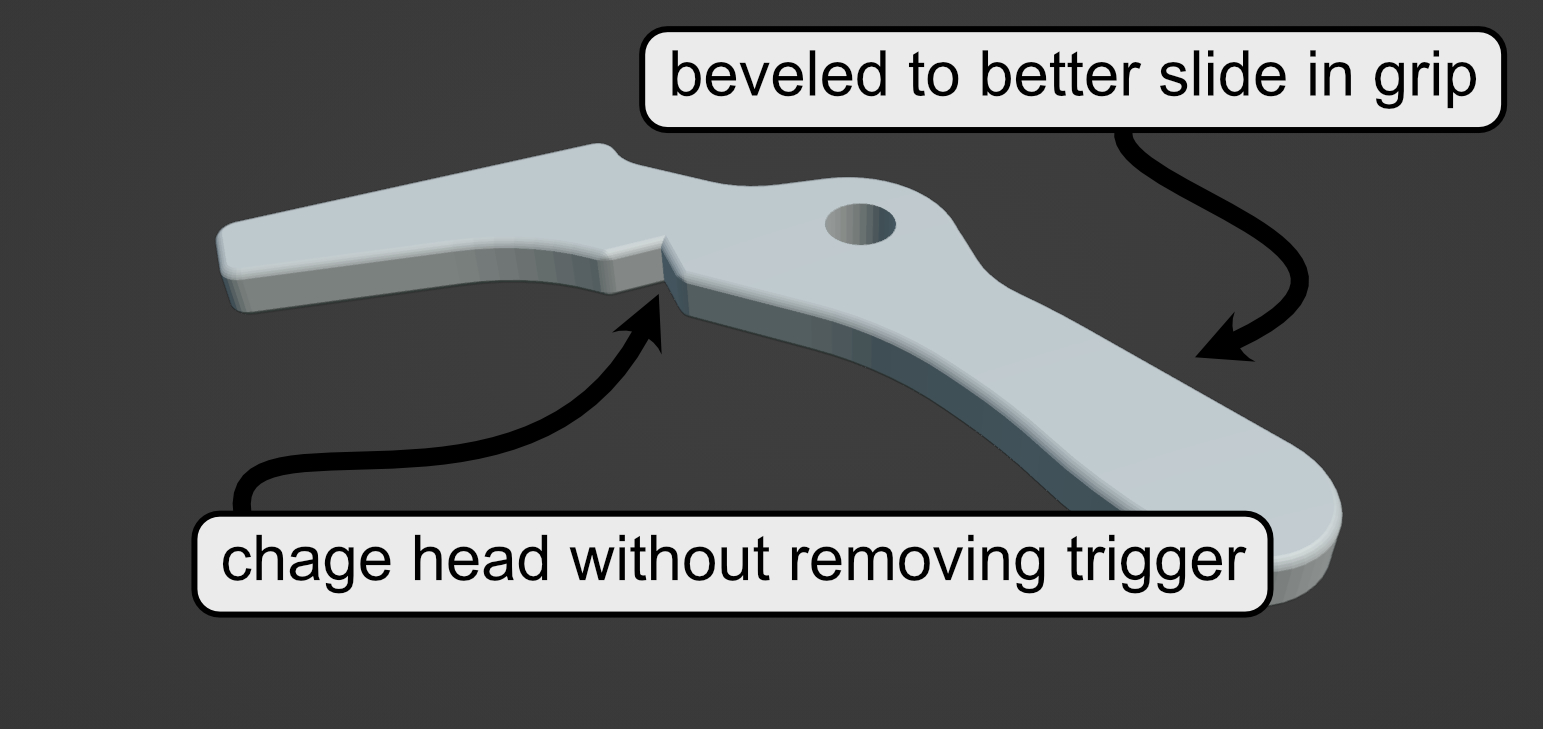

• beveled trigger so it slides better into the grip
• hole at lower grip to fix a string or similar attachment

Print Settings

• Printer: Prusa i3 MKs+
• Nozzle: 0.4 (Default)
• Filament: PLA
• Infill: Gyro 15%, Print Rail Mechanism and Can-Colder-Bracket solid (100% infill) with a modifier cube in Prusa Slicer (see images)
