Modelo 3D Gridfinity - Dial Indicator Holder por gniticxe no Printables

Descrição

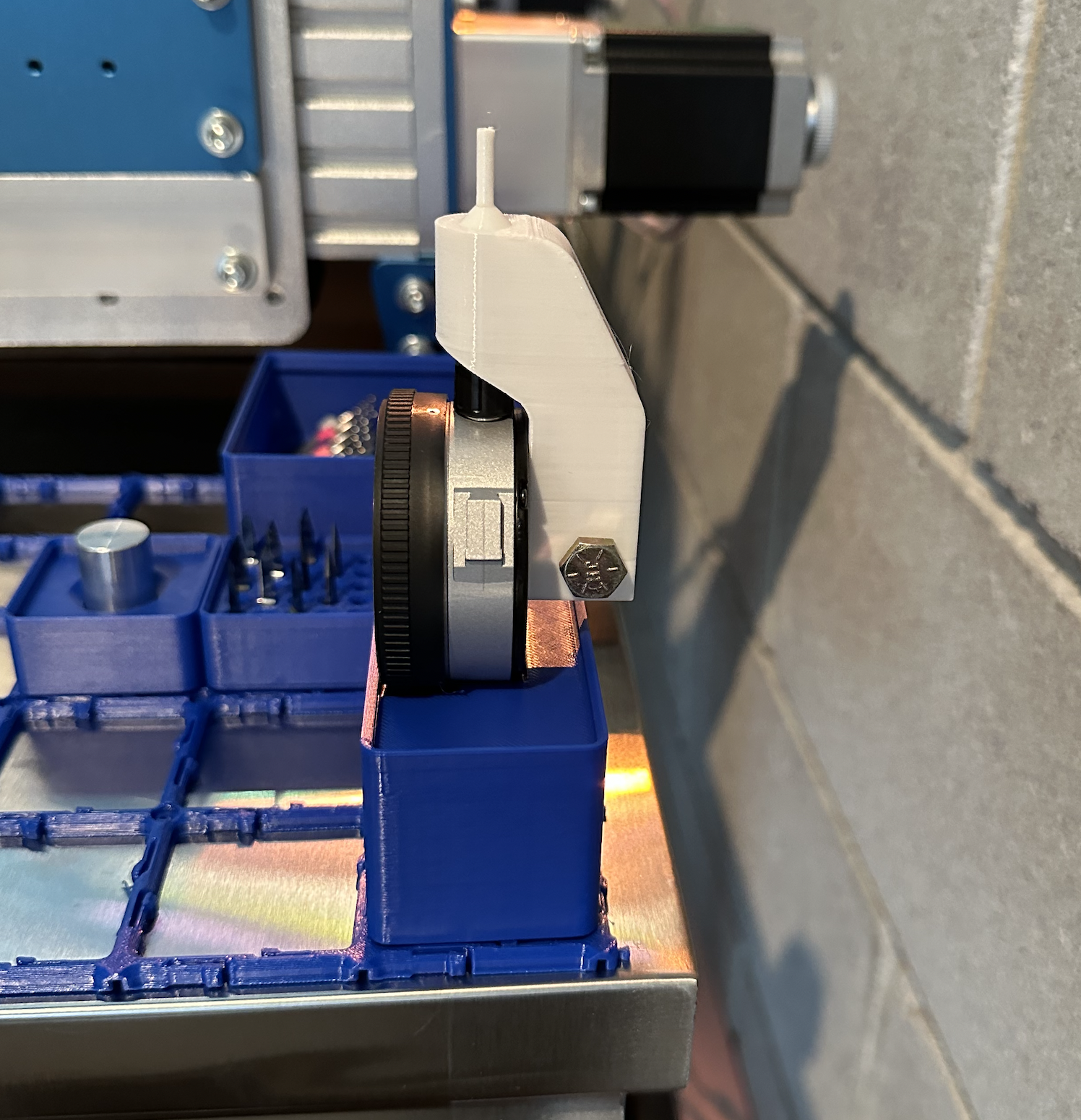

Yet another specific gridfinity part.  This is a 1x2x6 (42mm tall) holder with orientation feature for a dial indicator.  The white part is not in the model.  It's a spindle adapter for the indicator.

Note that if you're a gridfinity purist, you may not appreciate that the attachment knob hangs out the back.  It's OK for me since there's room at the back.  It could be fully contained in a grid in a 2x2 version.  Comment if you'd like to see that version made.

Printables

Gridfinity - Dial Indicator Holder

Publicado em 31 de jul de 2024

6
Curtidas
26
Downloads
Categoria Organizers
Licença BSD License
Arquivos (4)
1x2x6-dial-indicator-96CB.stl 1.2 MB
1x2x6-dial-indicator-96CB.step 3 MB
1x2x6-dial-indicator.stl 299.3 KB
1x2x6-dial-indicator.step 2.9 MB
