Modelo 3D DIN mounted switch box por TheIgorMC no Printables

Descrição

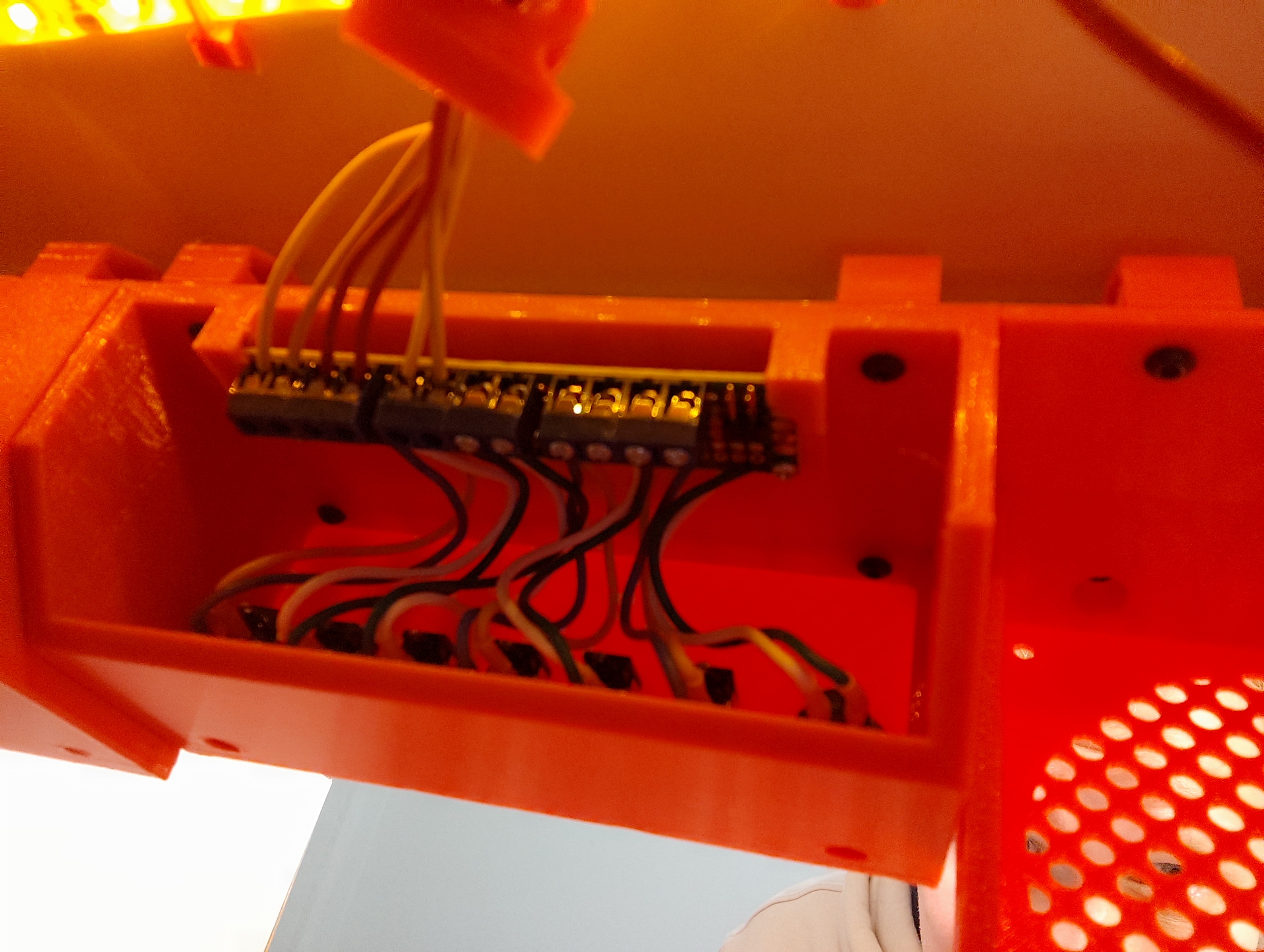

Simple box made to mount my switches on a DIN rail, using @Bryan_81523 's DIN clips and remixing them. 6 toggle switches (diameter 6mm) and a pushbutton (diameter 10mm) can be mounted.

I used the first three for lights and a fume extractor fan, planning to use the other three for a small monitor and a raspberry pi, with the yellow button acting as a power button.

There is plenty of space for labels to be printed and placed on top of the swithces to remember what they do.

This is part of my home lab, of which You will see some more uploads soon.

Printables

DIN mounted switch box

Publicado em 17 de mai de 2023

11
Curtidas
48
Downloads
Categoria Electronics
Tags
din dinrail
Licença Creative Commons — Attribution
Arquivos (4)
Clip_M3.3mf 54.6 KB
Clip_Insert.3mf 52.4 KB
Switchcase Front.3mf 25.1 KB
Switchcase Body.3mf 20.5 KB
