This is now a more detailed description of my smart christmas light arch. This time with a different led cover which is more dezent (original from [https://www.thingiverse.com/thing:1188098](https://www.thingiverse.com/thing:1188098))

Material required:
6 5mm warm white leds
About 8m wires in two different colors

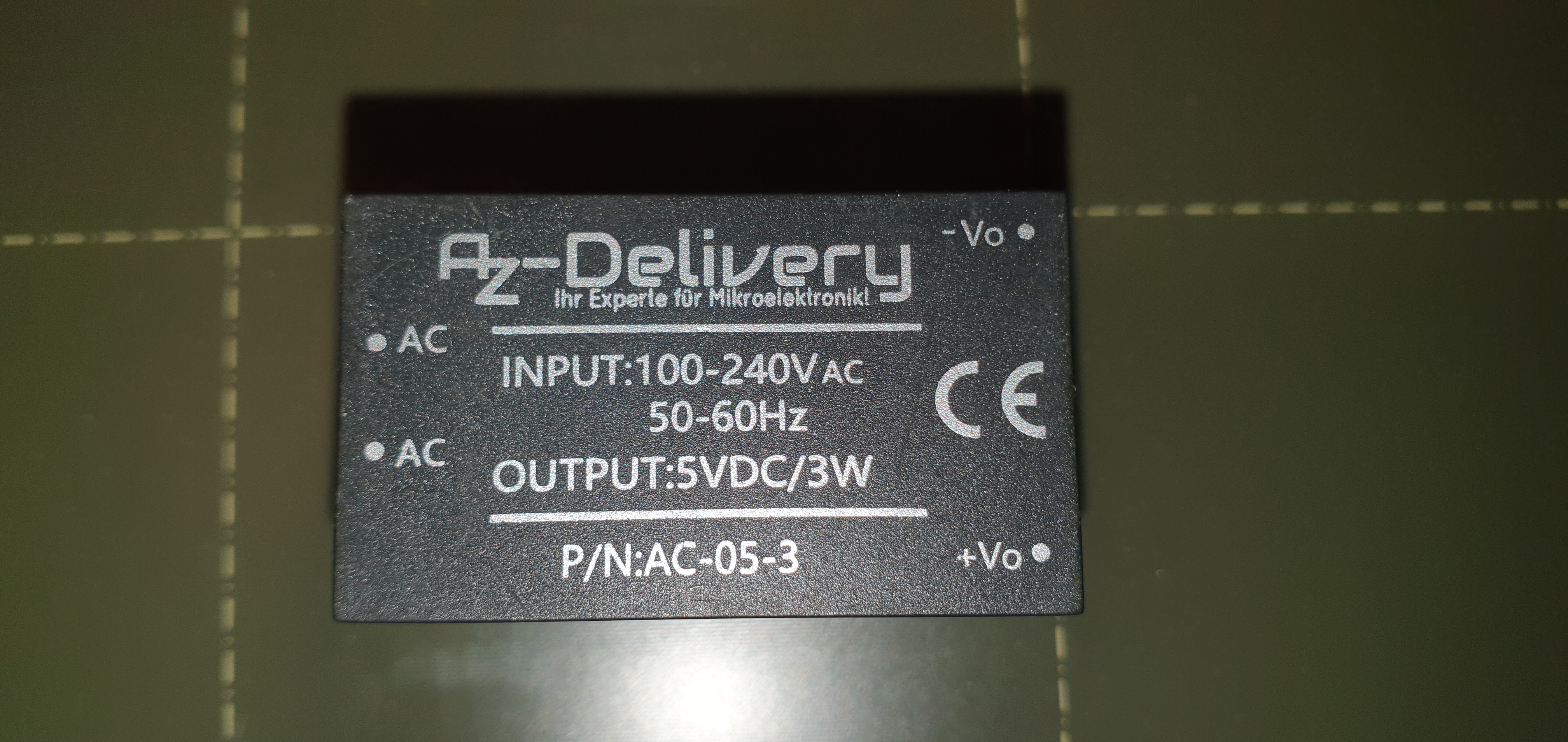

A mini power supply module from mains to 5V
6 180 Ohm resistors if you connect the Leds to 5V or
6 27 Ohm resistors if you connect the Leds to an esp8266 for example.
8 3x20mm Wood screws
1 * Wemos D1 Mini Microcontroller board

Instructions:

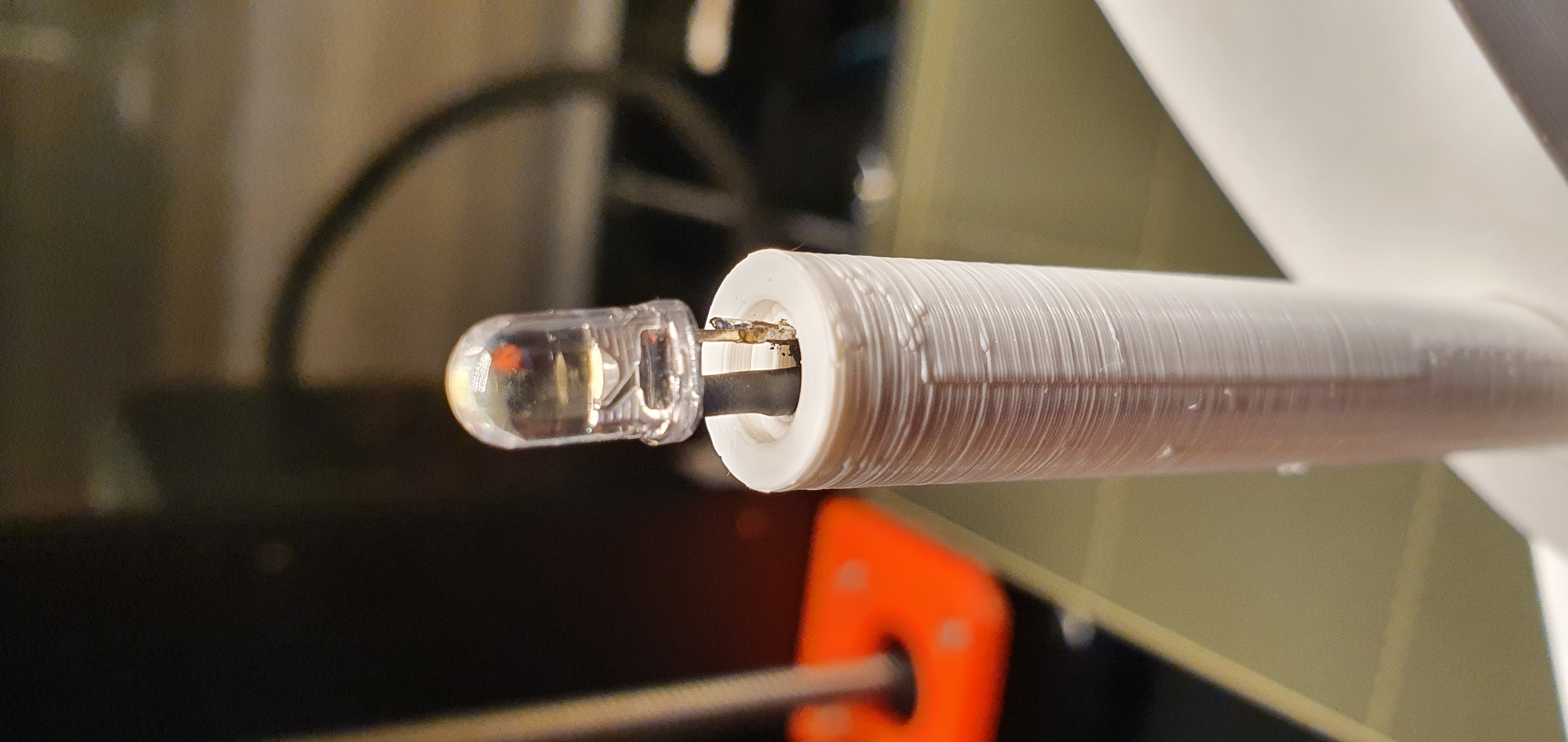

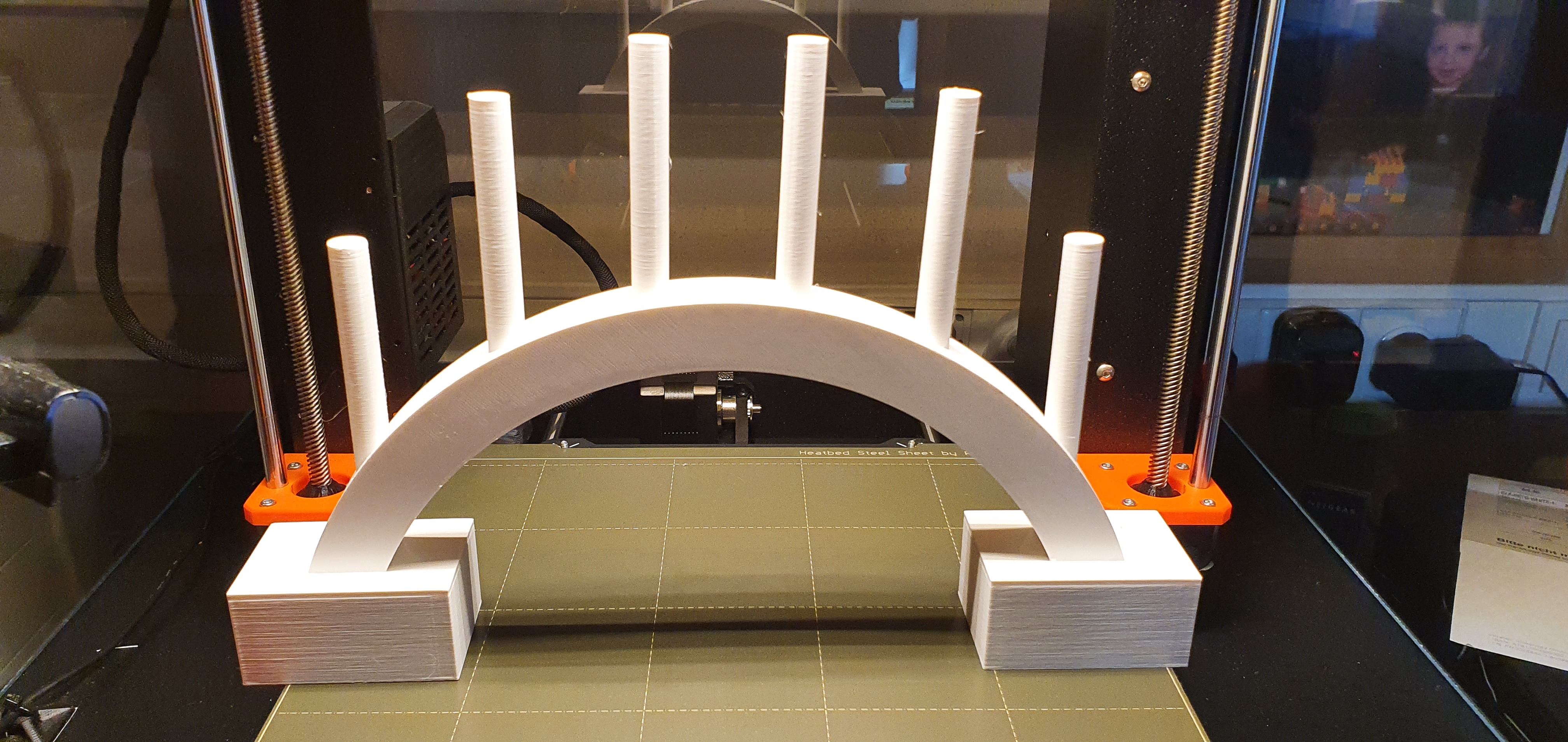

First you glue the bow onto the sockets, and the candles with the bigger round whole into bow (so that the sunken part is on top). It is made to carry the led with the whole for the pins.

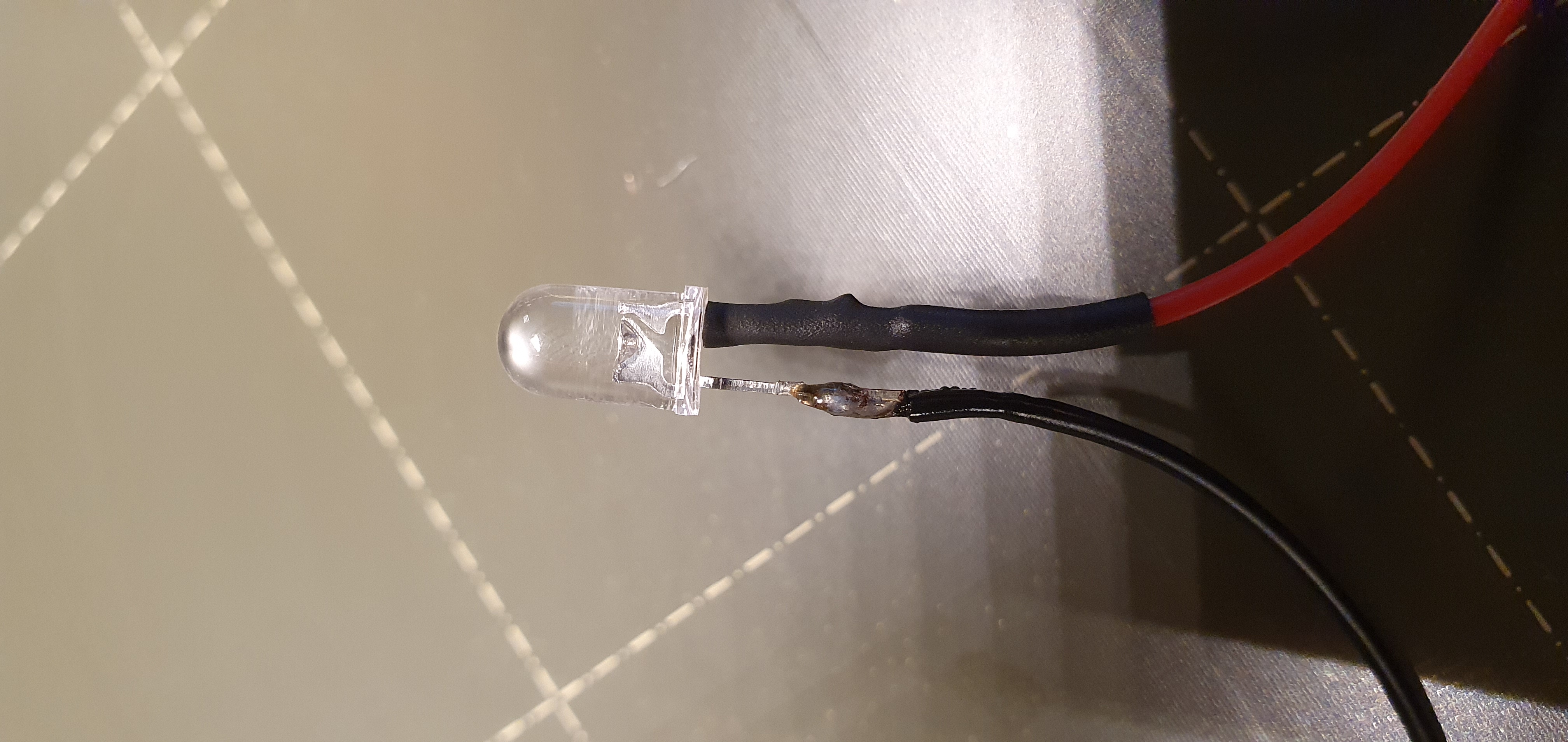

Meanwhile you can solder the wires to the leds inserting a resistor in one of the wires. I isolated the connection between the red cable with the longer pin (anode) and connected the resistor to that pin.

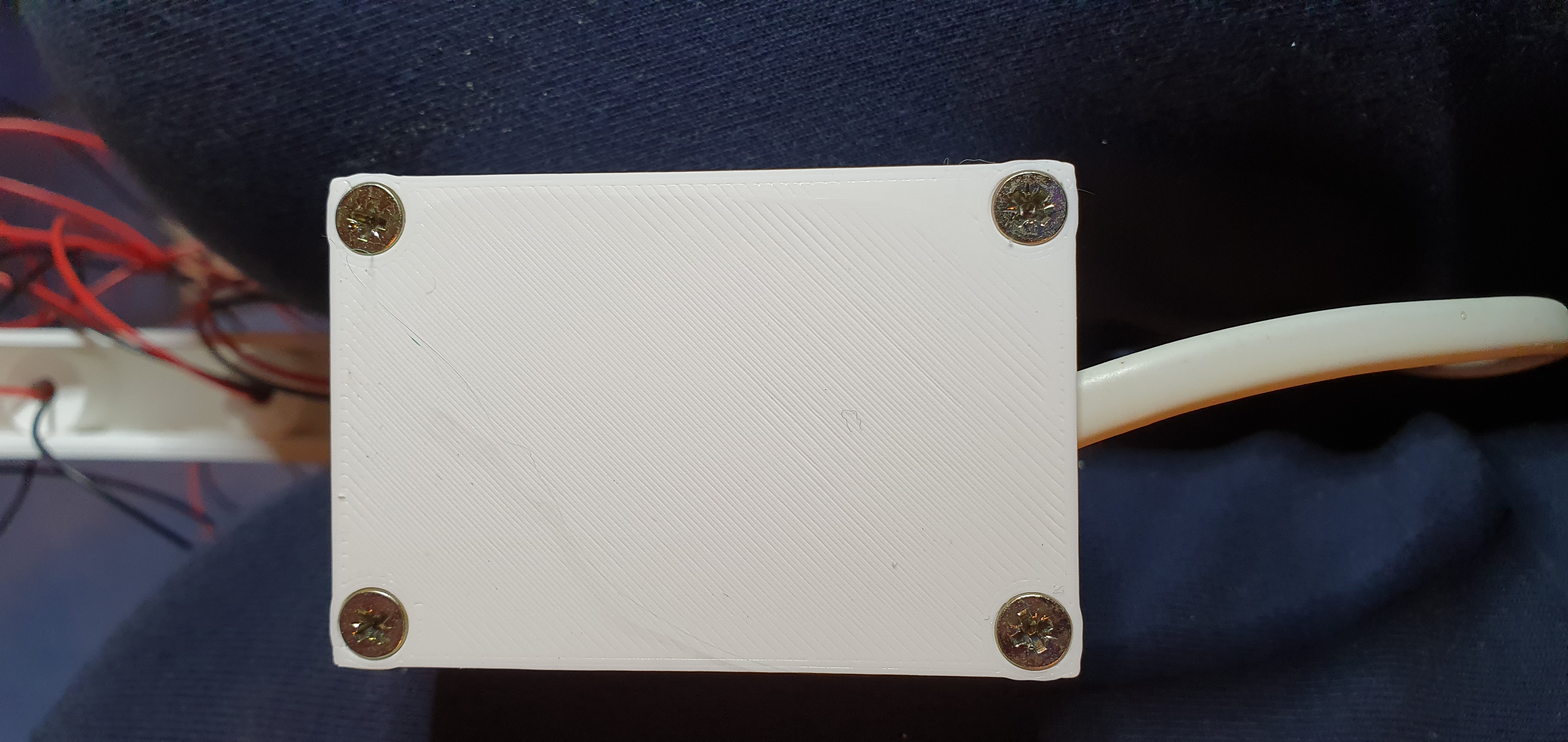

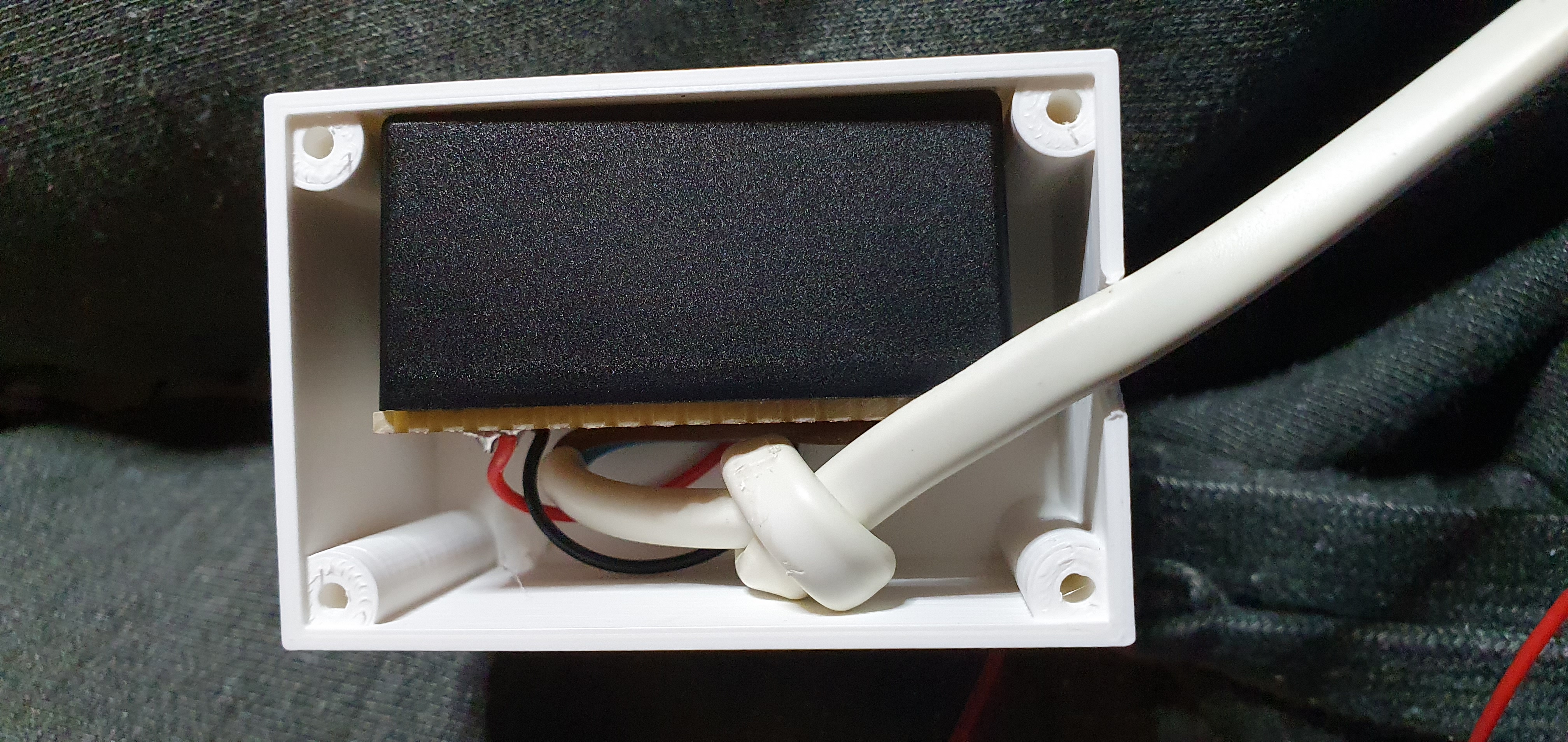

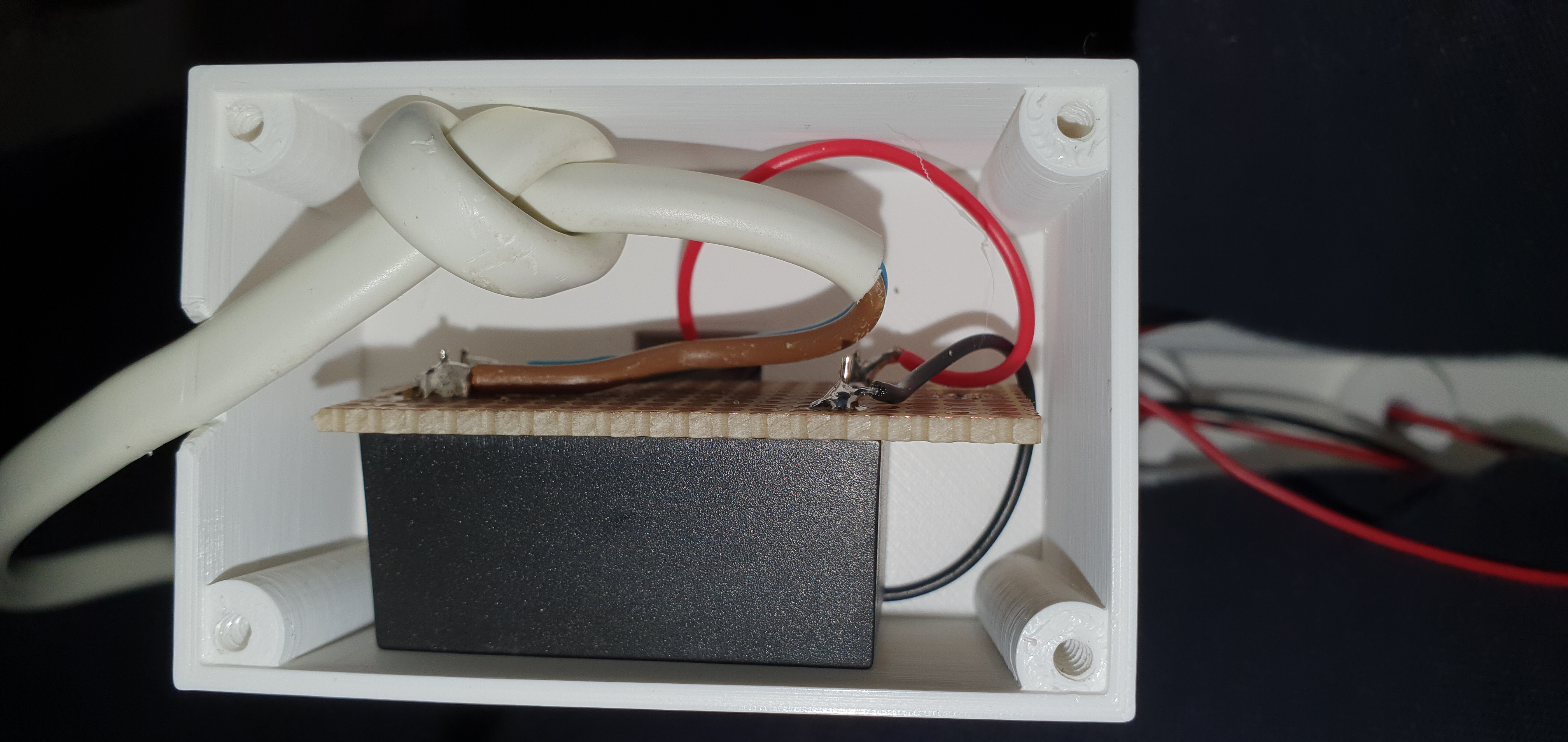

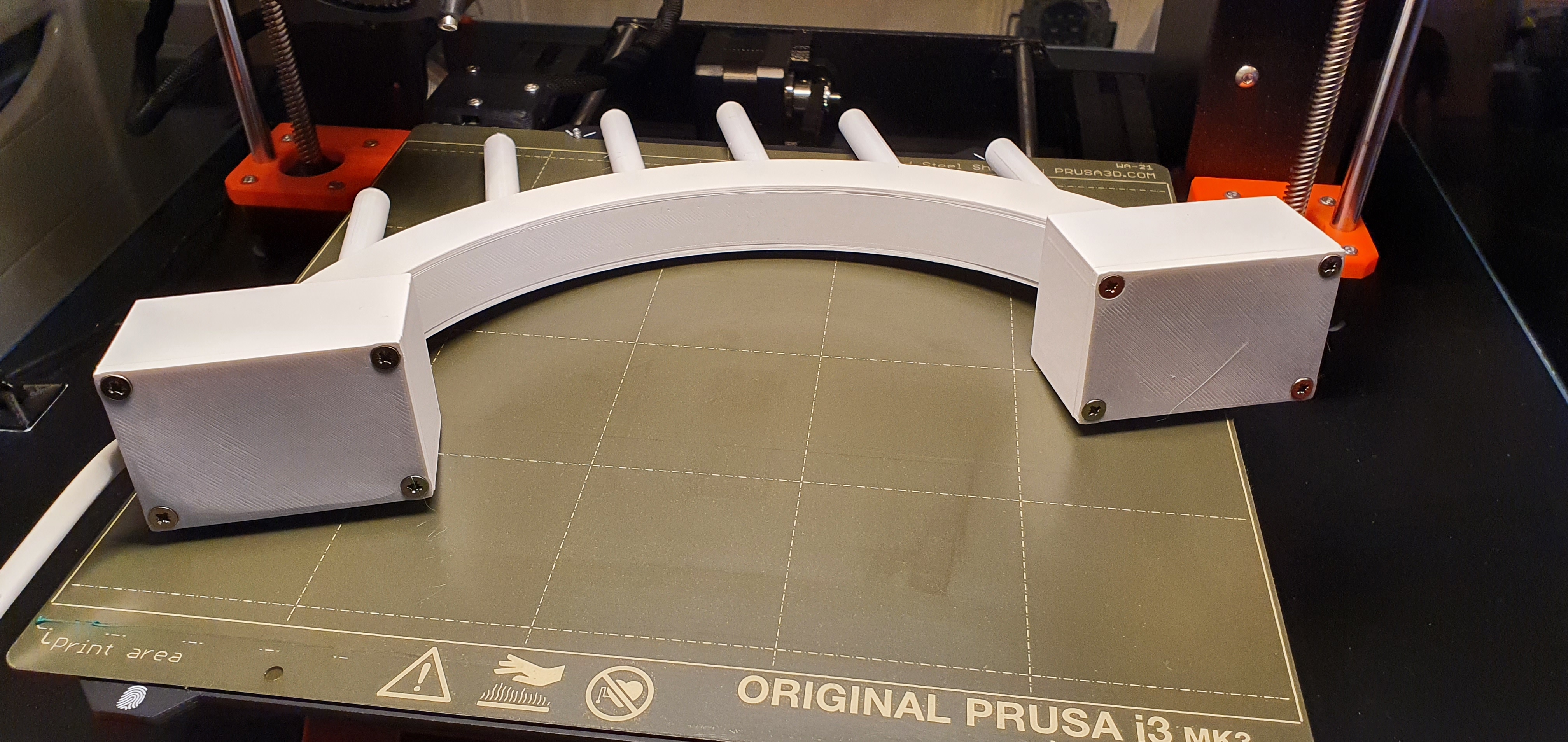

If you don't use home automation you can connect all leds to the power supply module. The power supply module should be placed into the socket with a small opening on one side which is for the power cable.

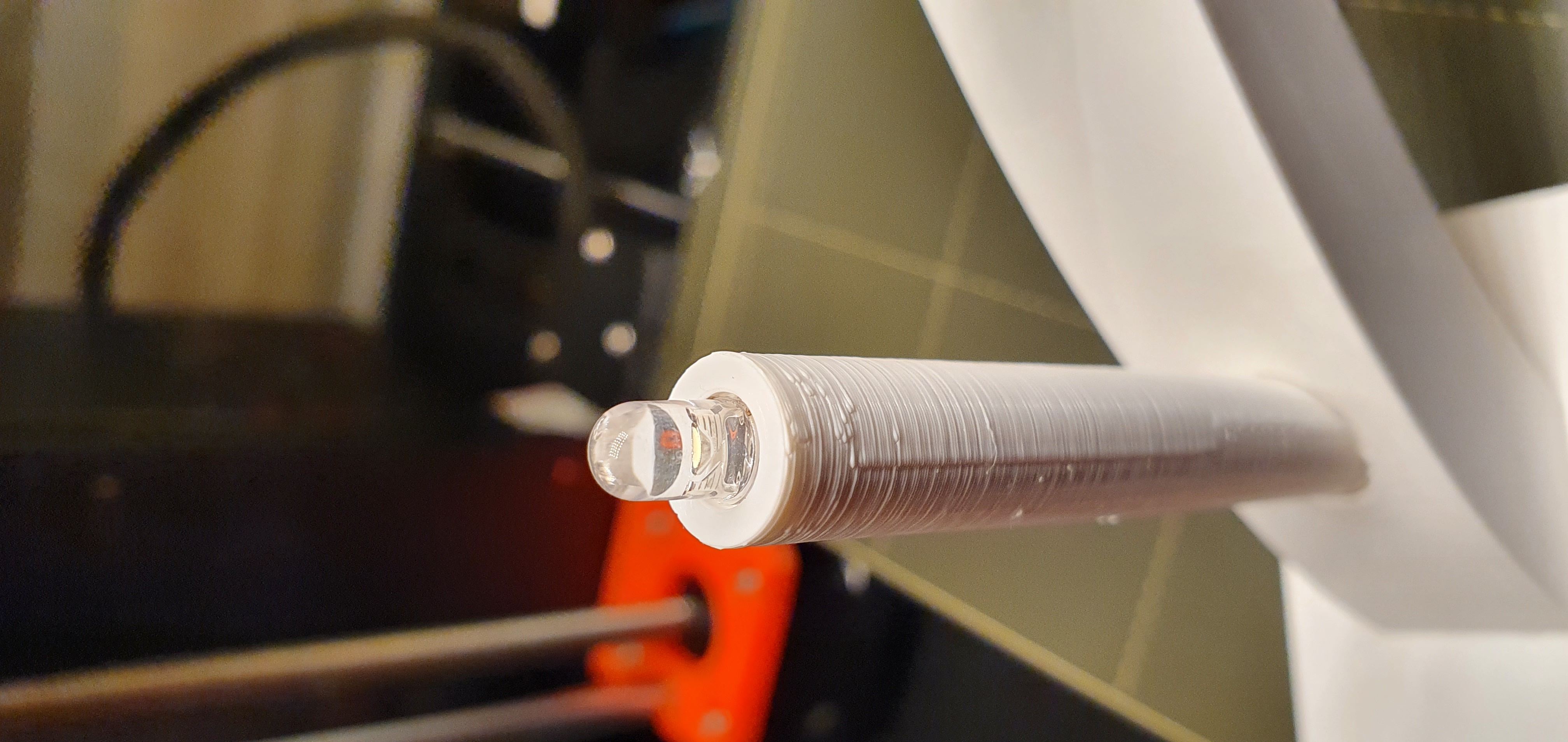

After a short test of each led I fix each with a drop of super glue.

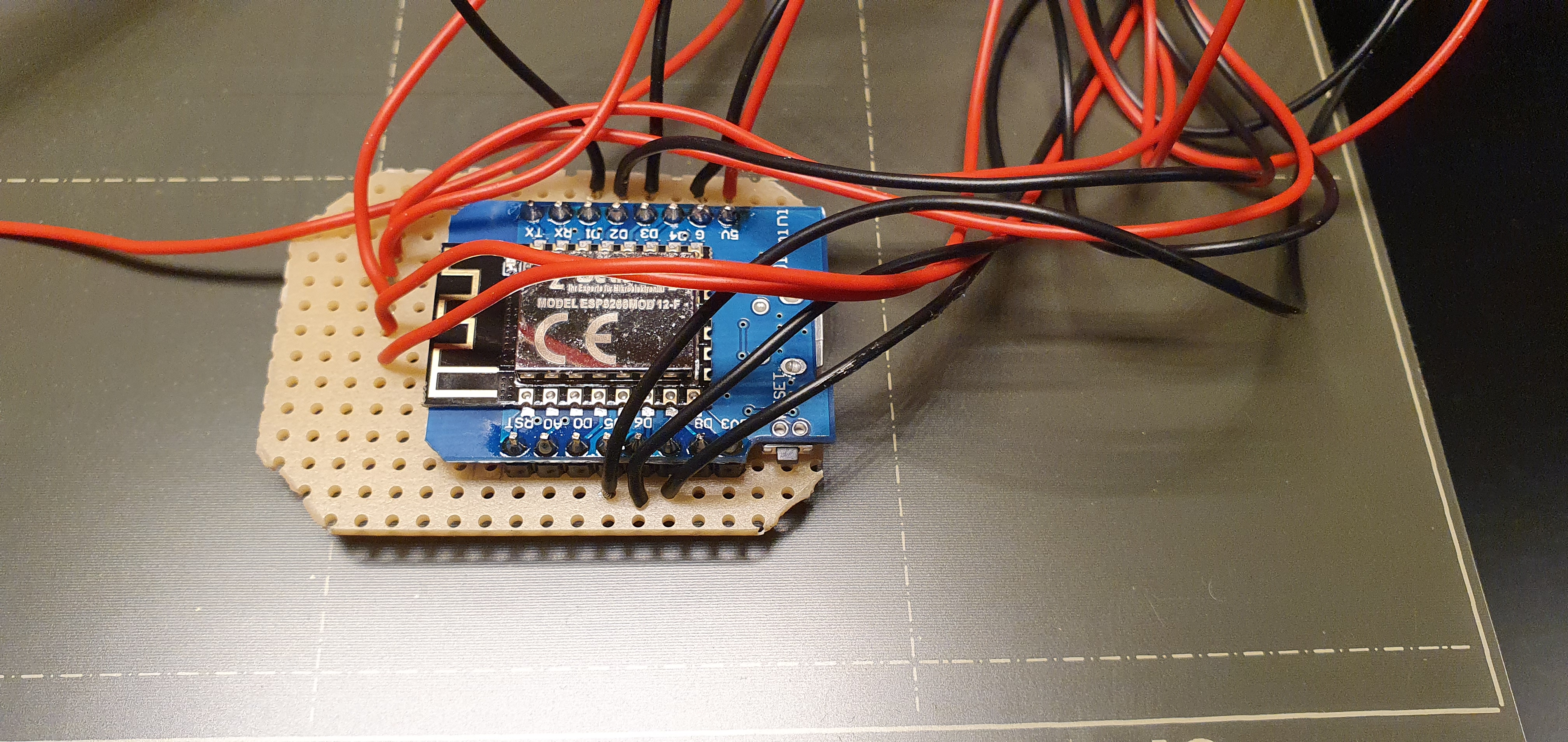

The Leds are connected to the pins D1, D2, D3, D5, D6 and D7
with a corresponding firmware and home automation system you can now control each single Led (I used Esp-Home and Home-Assistant).

Print instructions

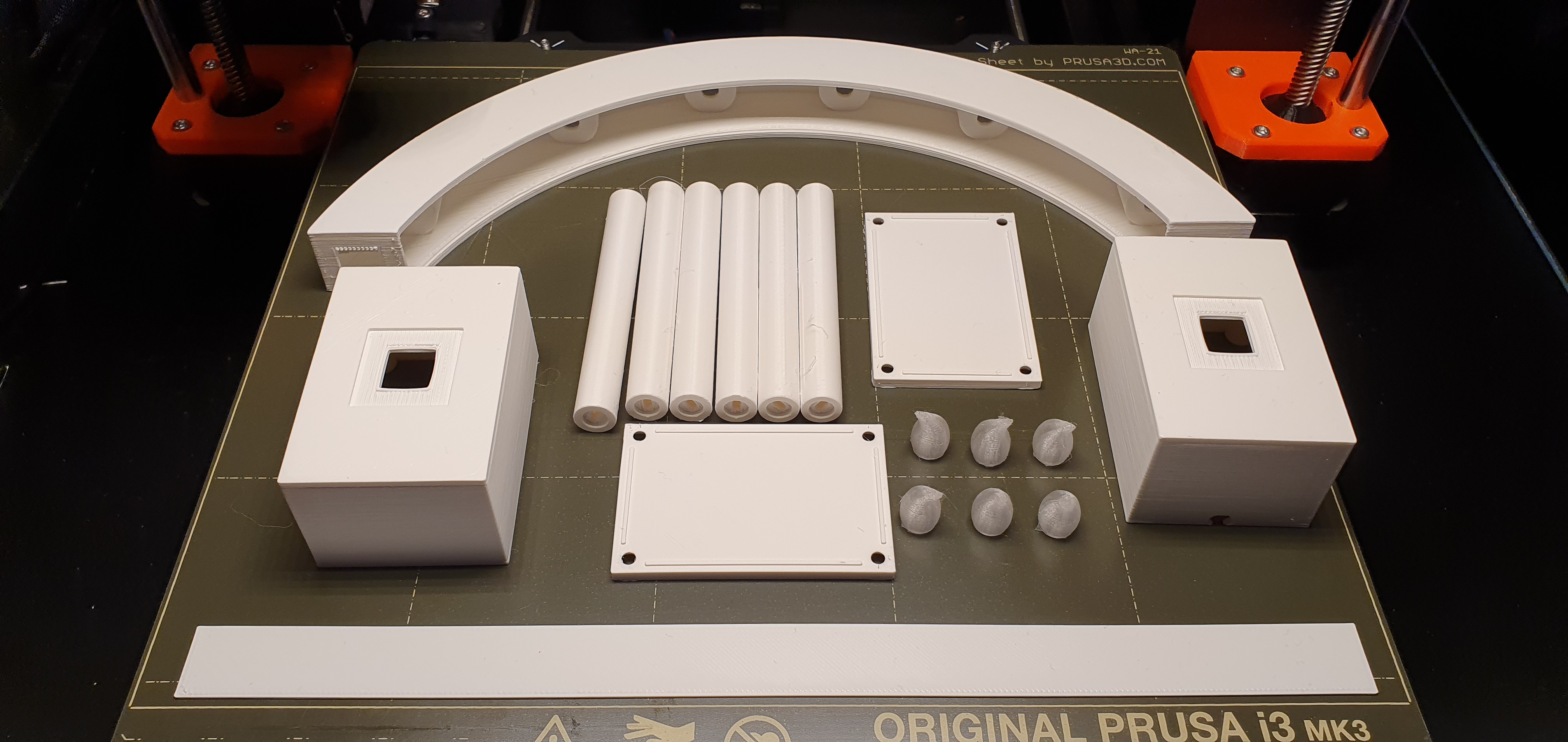

Everything is printed in PLA with 0.15mm layer height.

The bow is printed with supports everywhere while the candles and sockets are printed with supports from the build plate only.
The other models do not need supports but might require rafts to be more stable.

The led covers are printed with transparent PLA, while all the other parts are white PLA.
