Modelo 3D KAPLA sized test prints por eSeL no Printables

Descrição

All those test prints and filament swatches - what do you do with them?

Make something sustainable out of your test prints!

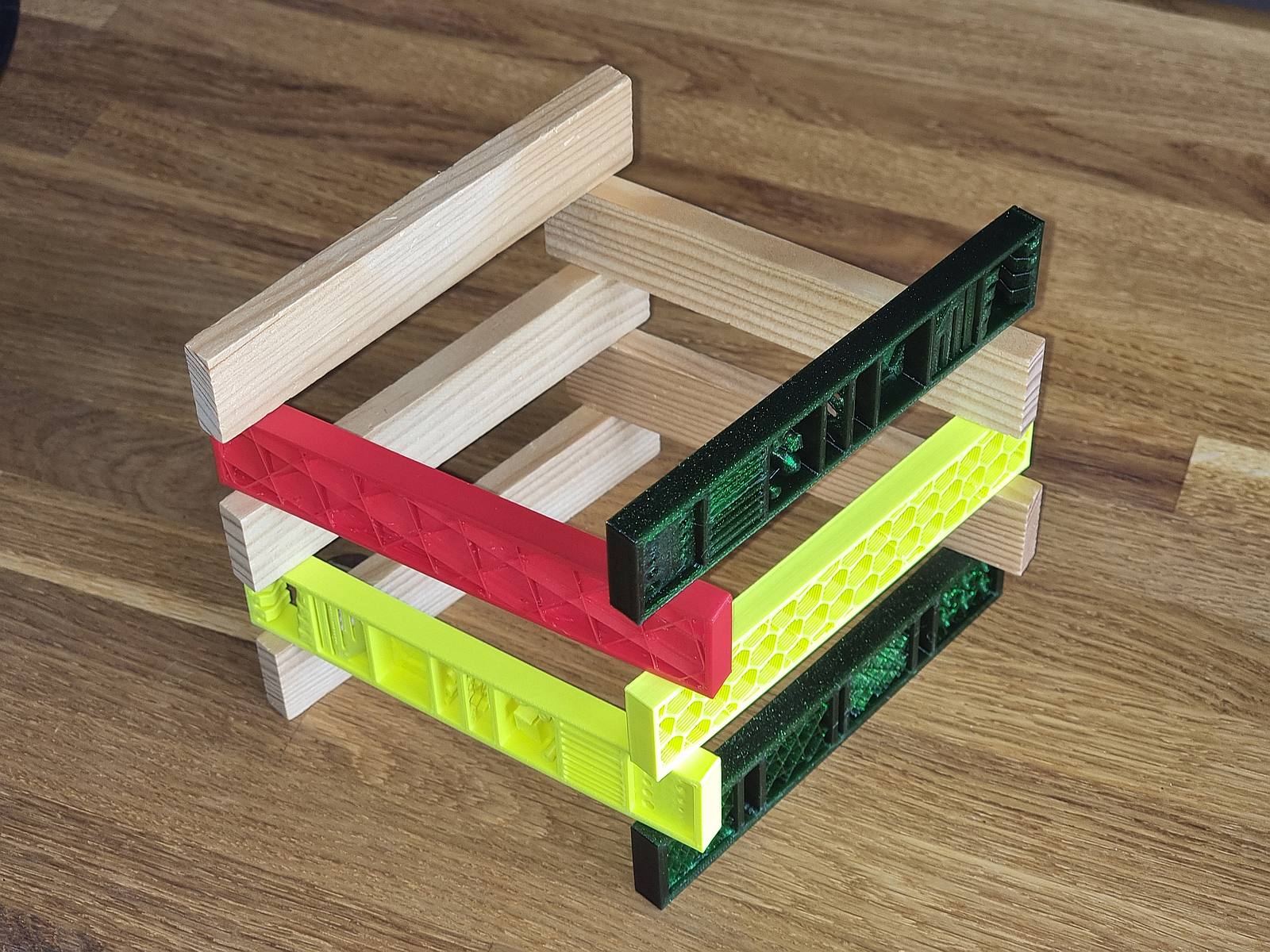

With the KAPLA-sized test prints and filament swatches you can combine them with your wooden bricks or use them on their own.

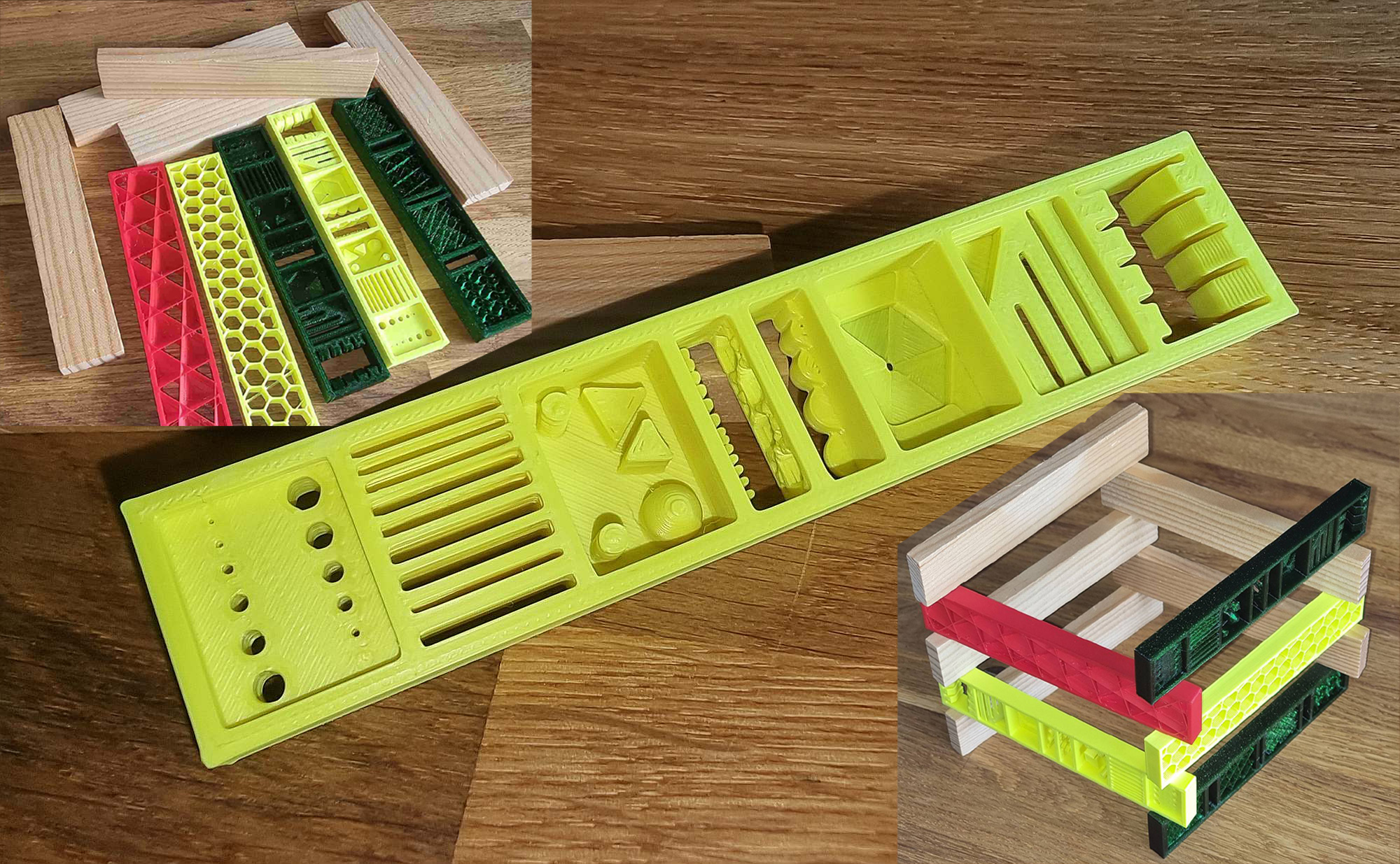

brick_PrinterTest:

This is a list of all the included tests:

  • Overall dimensions (117.5mm x 23.4mm x 7.8mm)
  • Small holes (0.8mm to 3mm)
  • Thin walls (0.3mm to 2mm)
  • Stringing
  • Sharp corners
  • Small gaps (0.1mm to 0.6mm)
  • Horizontal holes
  • Transparency (0.2mm to 2.4mm)
  • Bridging (5mm to ~20mm)
  • Overhangs
  • Surfaces

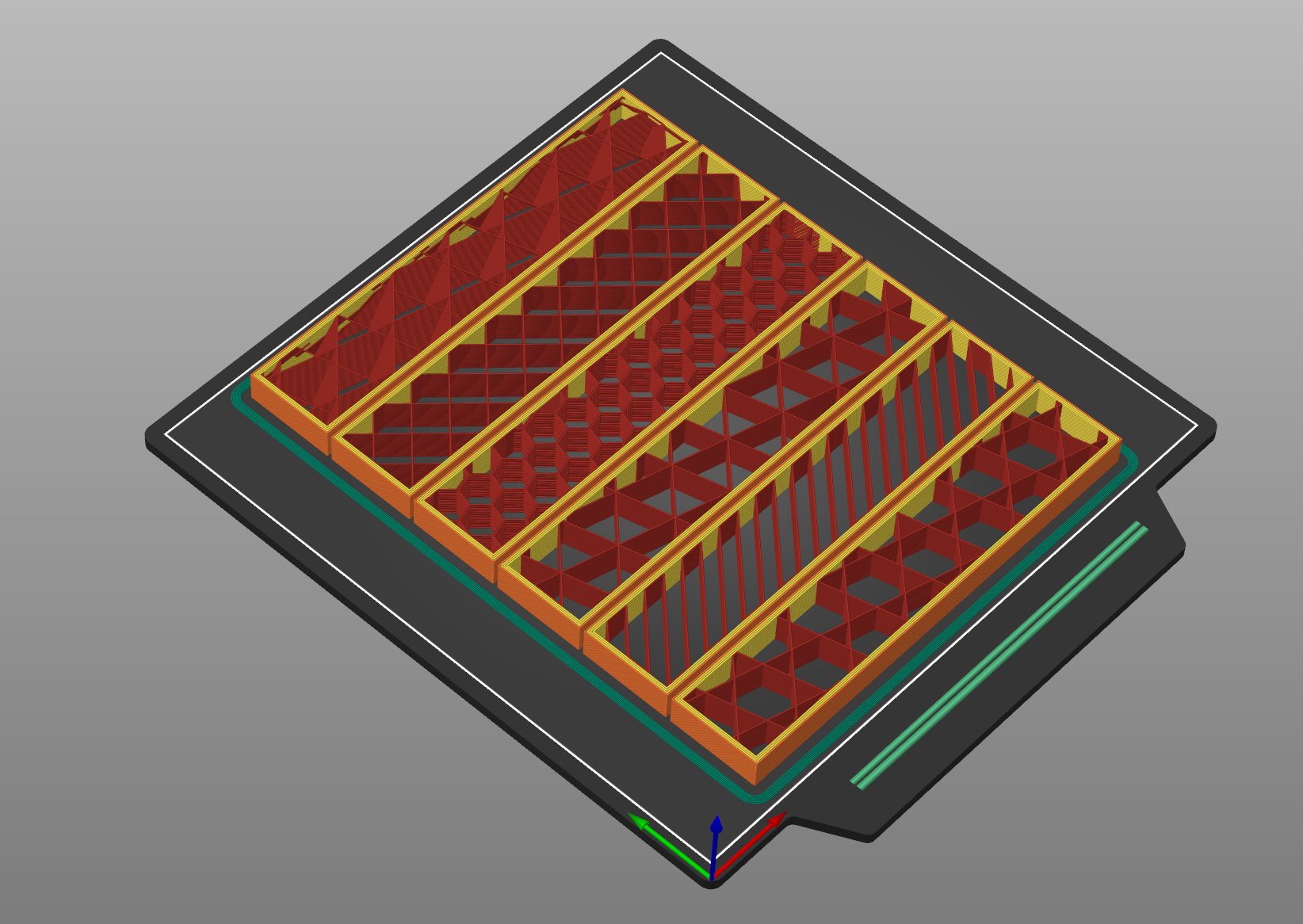

basic_brick as infill swatch:

Select zero top and zero bottom layers and you will get nice infill swatches.
Choose the number of perimeters according to your taste!

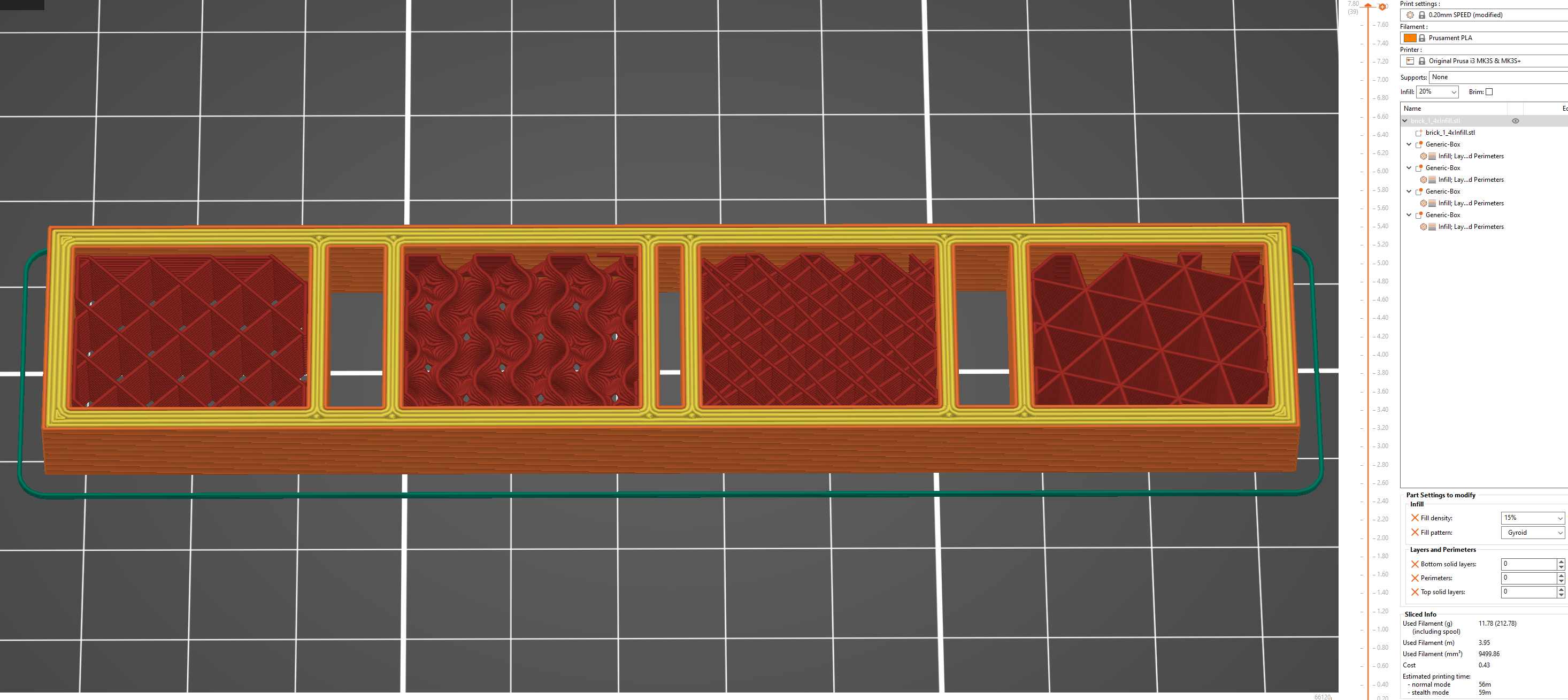

brick_4x_Infill_with_modifier:

Take the .3mf file and open it with PrusaSlicer.
Include 4 different infills in one print.
Four modifiers are already prepared!

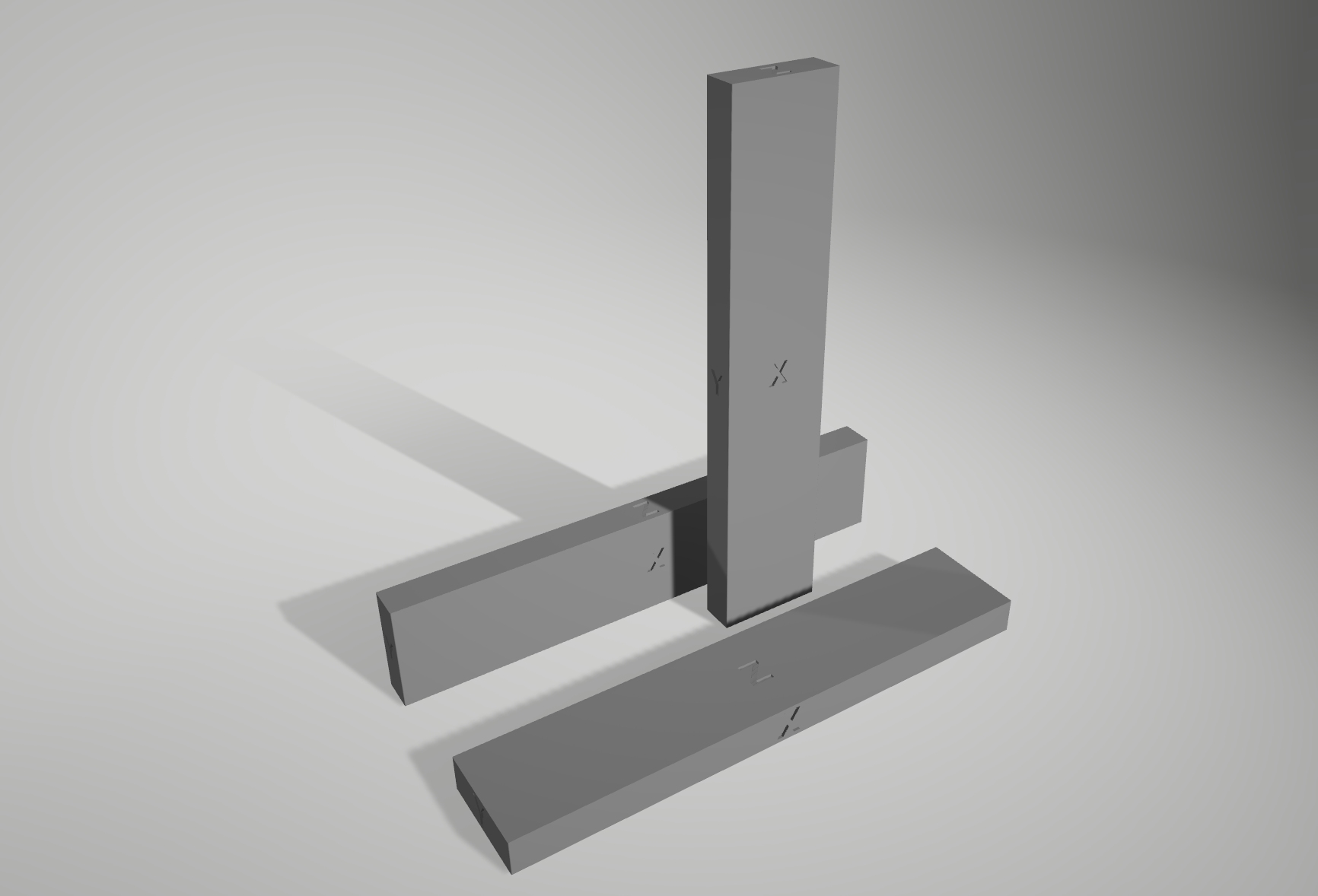

brick_xyz:

Better sized alternative to the standard xyz-cubes.

Printables

KAPLA sized test prints

Publicado em 19 de mai de 2023

17
Curtidas
91
Downloads
2
Impressões
Categoria Test Models
Tags
reuse printer test calibration benchy xyzcube infill swatch testprint nosupport printercalibration filamentswatch infillsample sustainability kapla
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (5)
brick_PrinterTest.stl 297.7 KB
basic_brick.stl 38.9 KB
brick_4x_Infill_with_modifier.3mf 43.7 KB
brick_4x_Infill.stl 45 KB
brick_xyz.stl 656.7 KB
