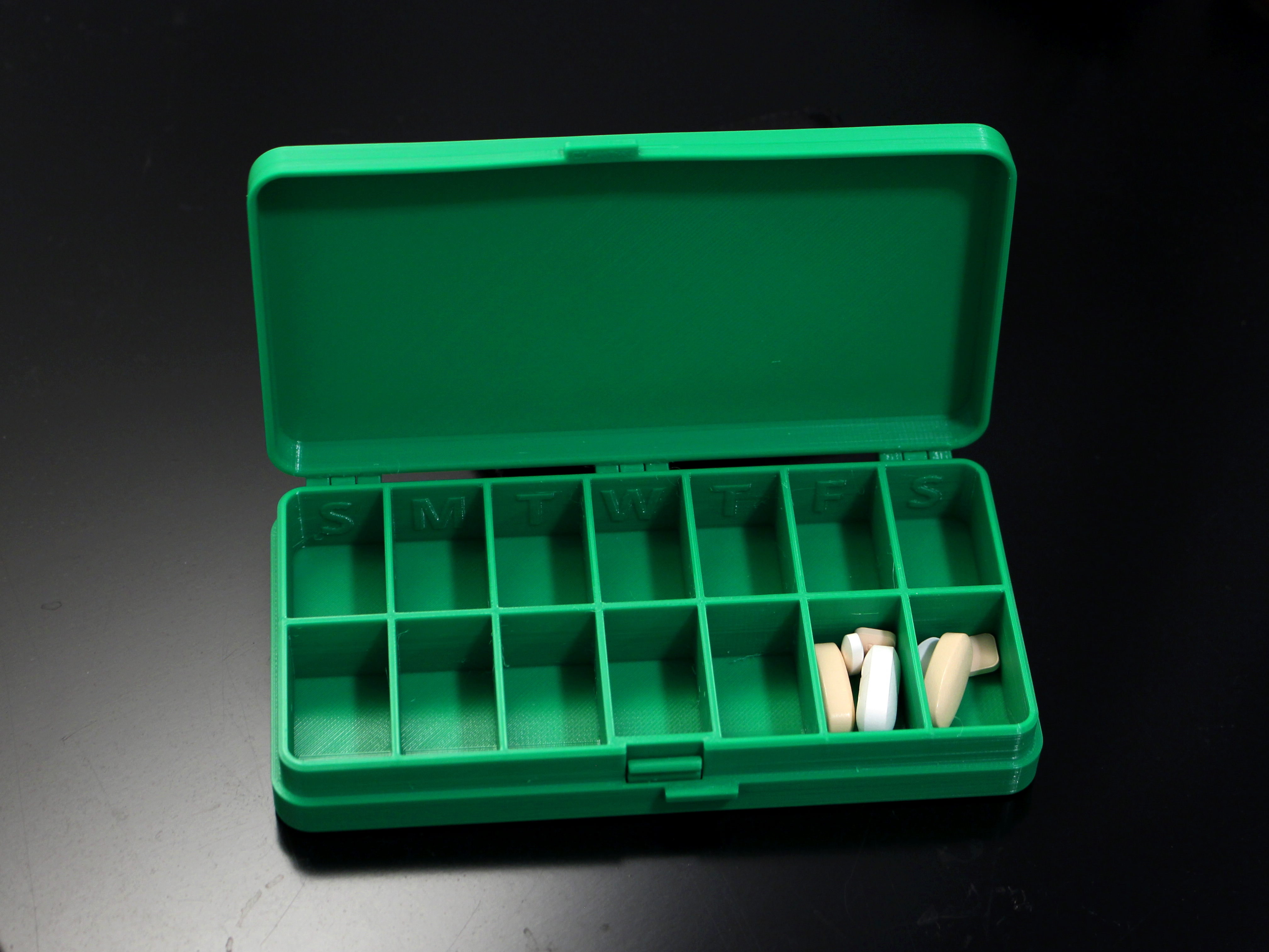

This is a larger version of my original compact pillbox. It also has an extra hinge in the middle. It doesn't feel much bigger in the hand, but the capacity of each compartment is also twice as large.

For printing instructions, please look at the description for the original print. (There are more detailed instructions for the multi-material/single-extruder version on Thingiverse.)

This box measures 20 x 140 x 70 mm (78.5 mm, including the hinges/latch). Each of the 14 compartments measures (W x H x D) 18.4 x 16.5 x 30.6 mm.

If you want a smaller version, check out my compact weekly pill box.

I have also now added a multi-material MMU version as a 3mf file. The only difference is that the pill portion is thicker, which will fill any gaps in the first layer with the same color.

This is also available on Thingiverse.

Print instructions

I recommend PETG, since that's what I designed the hinges and latch for.
