Magnetic peg solitare

I happen to have a lot of 3mm (diameter) x 2mm (height) magnets so I figured I'd use em'. If you have slightly different magnet size, you could start by printing the Peg-Game-Peg and scale it until the magnet fits on the peg, then you could scale it properly for everything else to fit.

Here is a link to the 3x2mm magnets [https://www.amazon.com/MEALOS-Magnets-3mmx2mm-Miniatures-Storage/dp/B08NZTN426/ref=sr_1_1_sspa?crid=S59LII60ALFK&keywords=3x2mm%2Bmagnets&qid=1675142665&sprefix=3x2mm%2Bm%2Caps%2C160&sr=8-1-spons&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUFMSVpSTFY1QU1SRTgmZW5jcnlwdGVkSWQ9QTAwNzk1NjEzOUhBRkFFTUQ4WVkmZW5jcnlwdGVkQWRJZD1BMDM4Mjc3MjE2VzFPNTEwRVFRTVEmd2lkZ2V0TmFtZT1zcF9hdGYmYWN0aW9uPWNsaWNrUmVkaXJlY3QmZG9Ob3RMb2dDbGljaz10cnVl&th=1](https://www.amazon.com/MEALOS-Magnets-3mmx2mm-Miniatures-Storage/dp/B08NZTN426/ref=sr_1_1_sspa?crid=S59LII60ALFK&keywords=3x2mm%2Bmagnets&qid=1675142665&sprefix=3x2mm%2Bm%2Caps%2C160&sr=8-1-spons&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUFMSVpSTFY1QU1SRTgmZW5jcnlwdGVkSWQ9QTAwNzk1NjEzOUhBRkFFTUQ4WVkmZW5jcnlwdGVkQWRJZD1BMDM4Mjc3MjE2VzFPNTEwRVFRTVEmd2lkZ2V0TmFtZT1zcF9hdGYmYWN0aW9uPWNsaWNrUmVkaXJlY3QmZG9Ob3RMb2dDbGljaz10cnVl&th=1)

Hope y'all enjoy the print

Materials

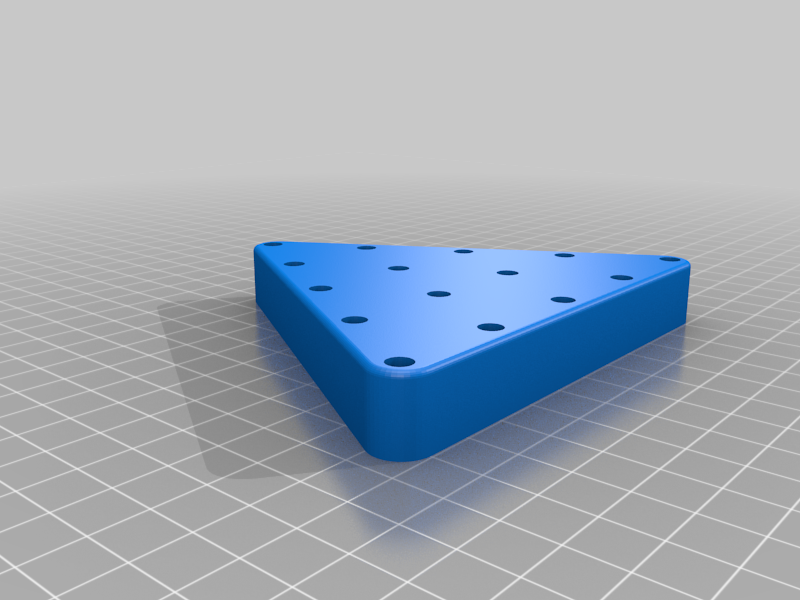

• One Peg-Game base

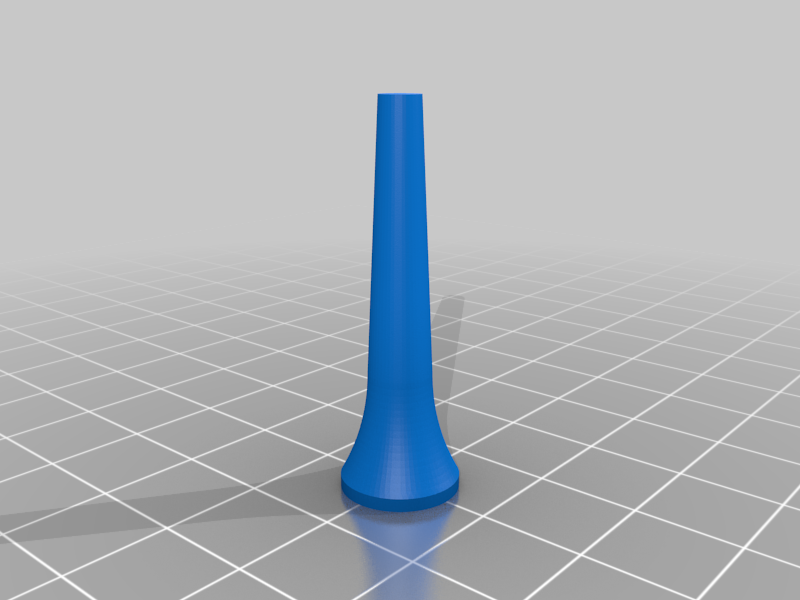

• 15 Peg-Game-Pegs, (one extra for glueing)
• Super glue
• 29 3mm x 2mm magnets

Pictures go along with instructions after the thing files

Magnetizing the triangle instructions

1- All of these magnet packs come with big magnets, they are usually marked on one side. I like to mark it with a darker marker so it is more visible. Just make sure one side is marked and you can identify it

2- Place a magnet on the opposite end of the one you marked. Placing it on the same end will just rub off the marker.

3- Stand the triangle on its side and grab another magnet. Place the big magnet behind the hole you want to place the new magnet, then place the new magnet in front of the hole then let go and let the magnet catch on to the magnet on the bottom.

4- Lean the big magnet at a slight angle to get your nail on top of the small magnet.

5- Hold the small magnet down with your thumb and slide the big magnet off.

6- Repeat this 15 times for each of the holes

7- Take your extra peg and place a drop of glue on the end

8- Push the drop of superglue into the hole and twist around to spread the superglue inside the hole. Do this 15 times

Magnetizing the Pegs

1- Place a magnet on the opposite end of the one you marked.

2- Stand up the peg and put a small drop of super glue on the top (do not use your previous glueing peg)

3- Take the magnet and place it on top of the super-glued peg, making sure it is the right way.

4- Do this 14 times

5- You may want to sand some excess glue on the sides after drying

Wait at least a few hours before use. I waited overnight

Print Settings

Printer Brand:

Prusa

Printer:

Supports:

Yes

Infill:

Filament: Prusament PLA and PETG Blue and Whie

Notes:

Category: Games
