LED light for 3D printer

I designed this to fot standard prusa frame. It fits with led strip on aluminum , you can find those on ebay or banggood . it plugs straight in to the 12V power supply and you can use jsut super glue , the frame will act as a heatsink so the LED will go on full brightnes and will be super cool wich is very good for it life.

you can buy it here or similar one this fits just right : [http://www.banggood.com/6W-76led-COB-LED-Chip-520mA-WhiteWarm-White-For-DIY-DC-12V-p-960210.html?rmmds=myorder](http://www.banggood.com/6W-76led-COB-LED-Chip-520mA-WhiteWarm-White-For-DIY-DC-12V-p-960210.html?rmmds=myorder)

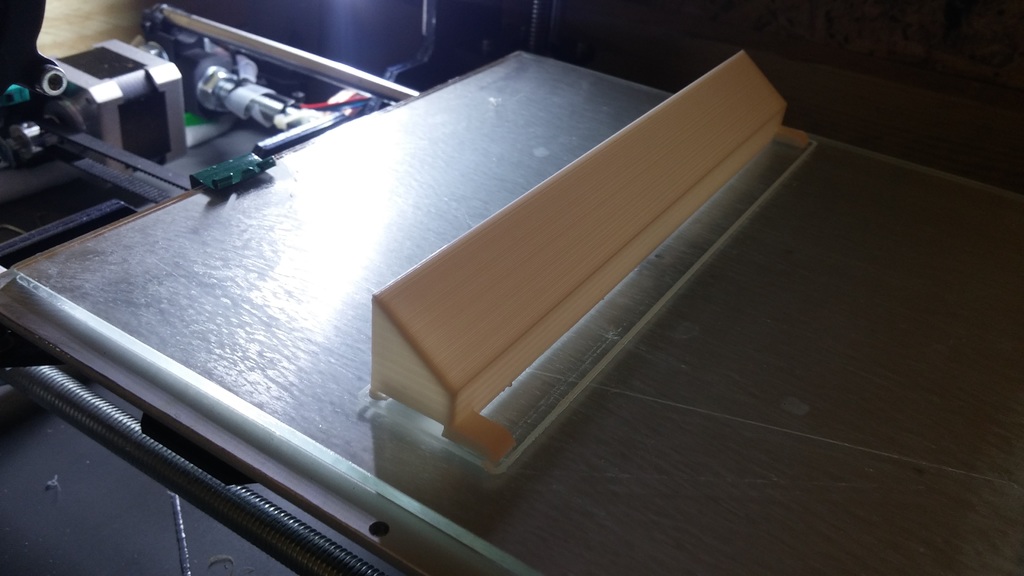

Print Settings

Printer Brand:

RepRap

Printer:

Prusa i3

Rafts:

Doesn't Matter

Supports:

Resolution:

0.2

Infill:

25%

Notes:

ABS or PLA , doesnt matter

Post-Printing

ASSEMBLY

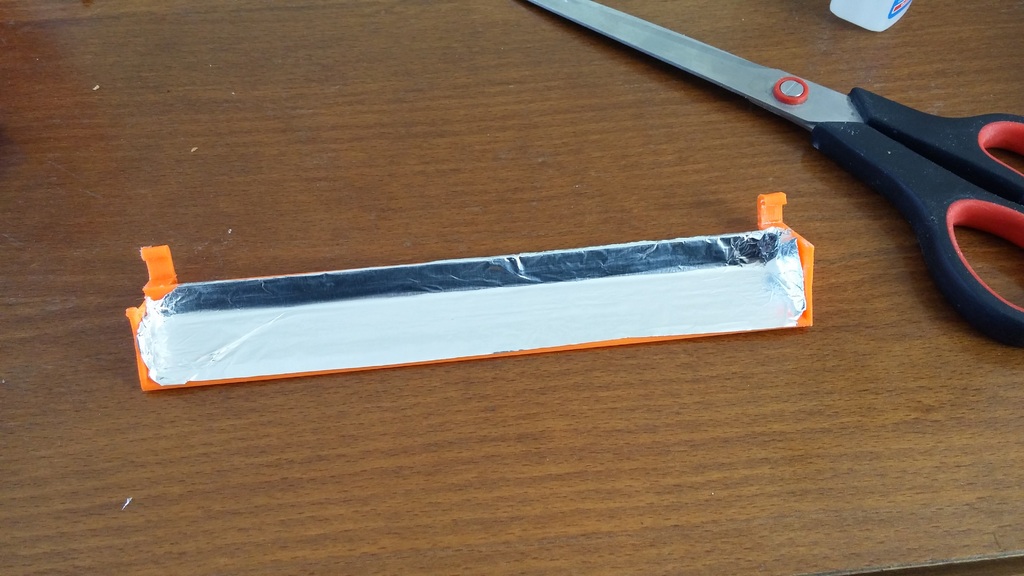

You can print it separated for easier printing wich is "rozdeleny" file . then you just glue it with acetone or CA glue. but acetone is better if it is ABS . then glue in piece of aluminum foil but shiny side up so it reflects more light.
