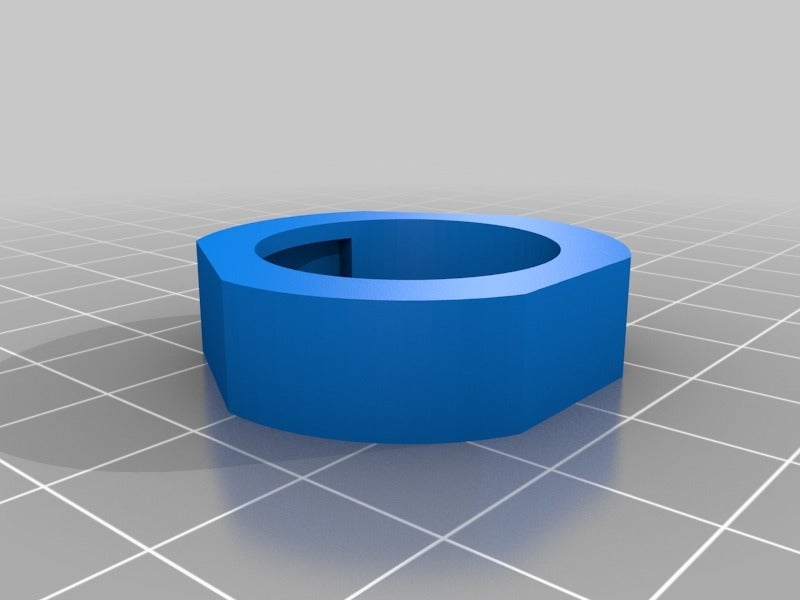

Simple addition to a cheap laser pointer that makes turning it on accidentally less likely. Instead of pressing a button the user has to turn the switch to engage the laser, this also allows the user to leave the device turned on without holding the button.
The laser pointer I designed for has a round case with a diameter of 23mm and a round button of about 5.5mm diameter, this is a generic Chinese green pointer powered by 18650 lithium cell.

Print instructions

Category: Parts Summary

Simple addition to a cheap laser pointer that makes turning it on accidentally less likely. Instead of pressing a button the user has to turn the switch to engage the laser, this also allows the user to leave the device turned on without holding the button.
The laser pointer I designed for has a round case with a diameter of 23mm and a round button of about 5.5mm diameter, this is a generic Chinese green pointer powered by 18650 lithium cell.

Print Settings

Printer: Custom FDM printer

Rafts: No

Supports: Yes

Resolution: 0.1mm

Infill: 20%
