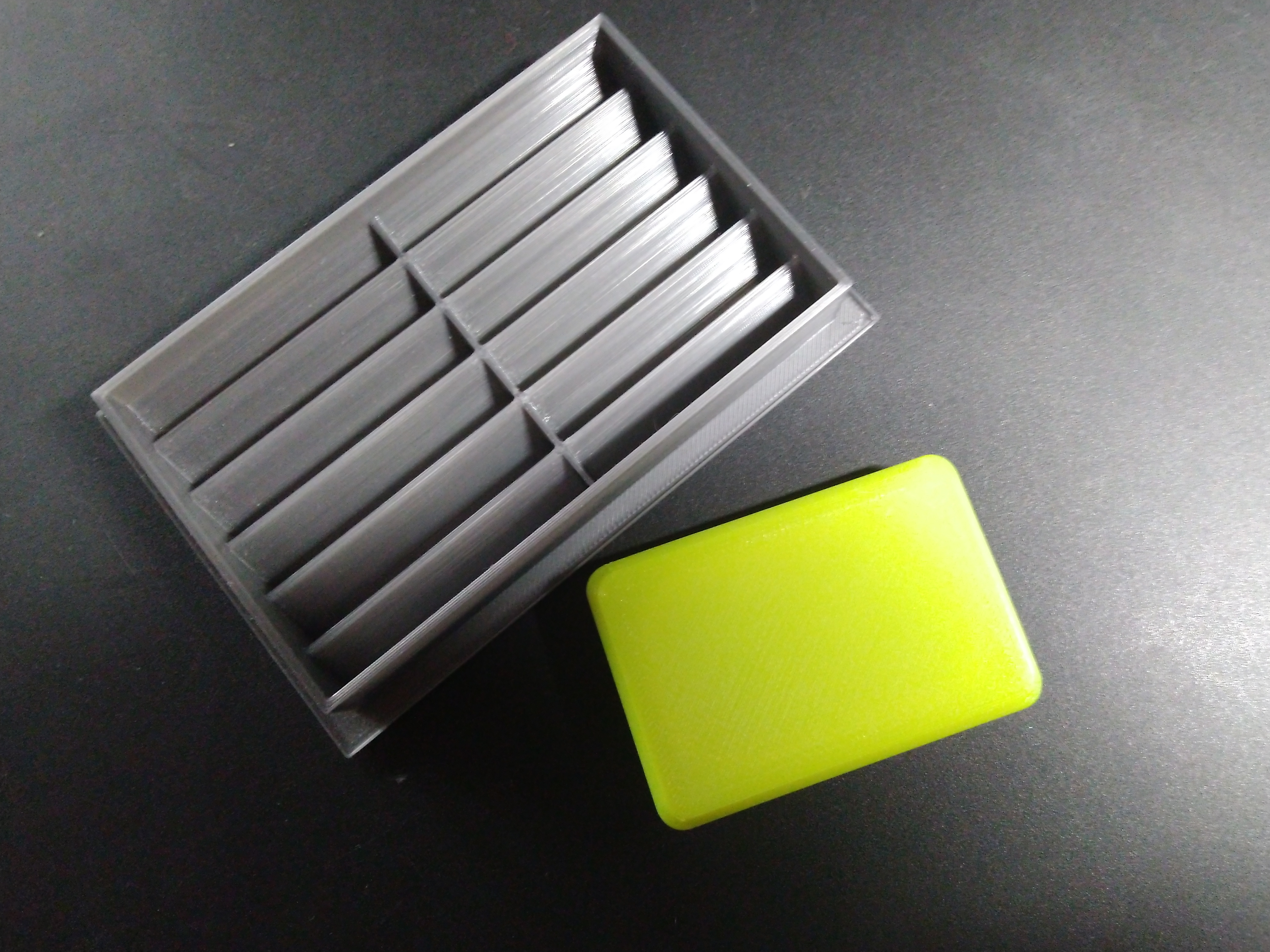

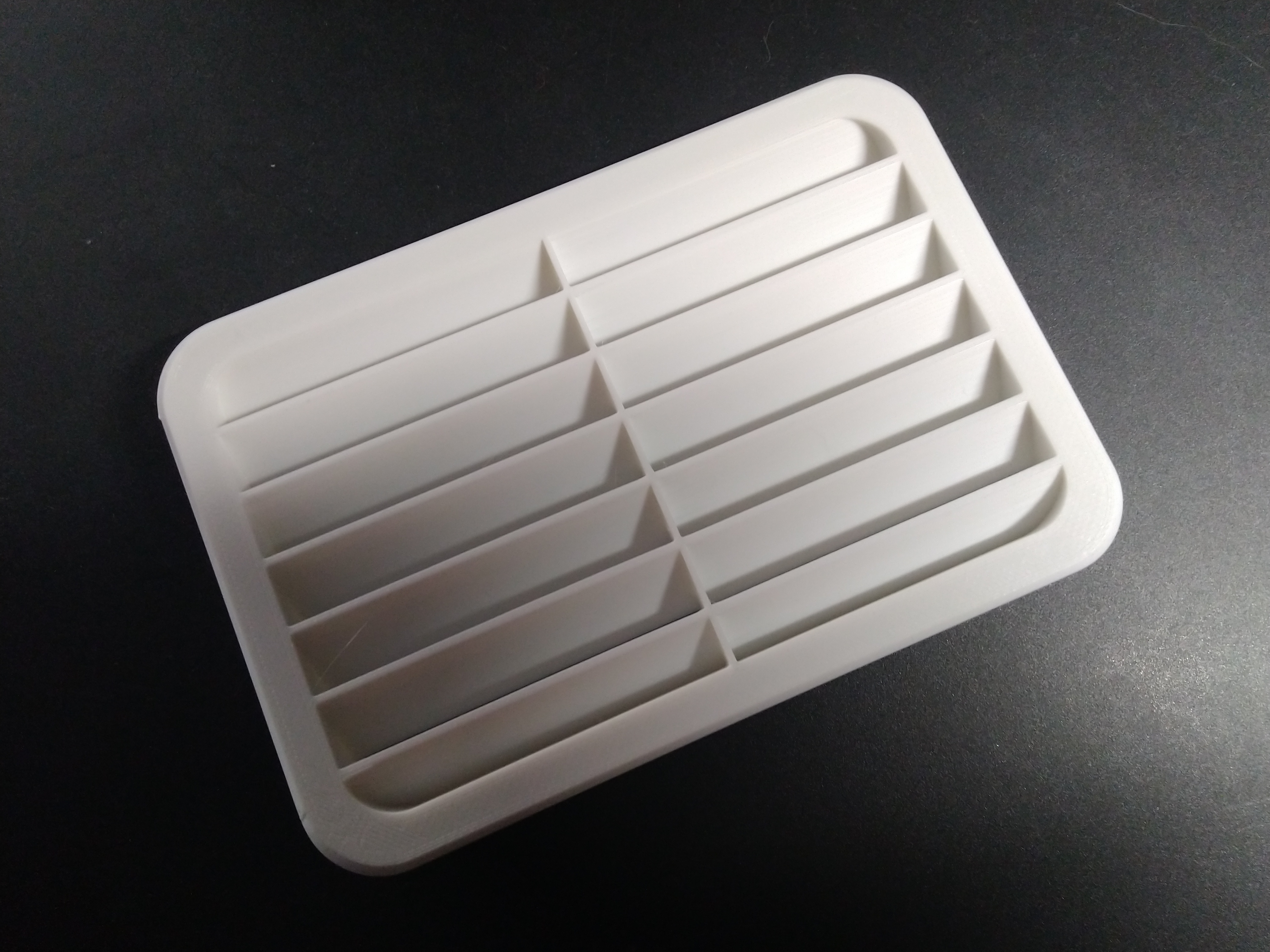

This is a set of customizable air vent covers that you can make with OpenSCAD. They have a rectangular shape and don’t need any supports to print.

Note that the .stl files in this set have some features in common:

The wall and fin thicknesses are 1.5mm and 1mm, respectively.
The tube and plate radiuses are 6mm and 10mm, respectively.
The sizes are 0.2mm smaller than the actual dimensions to allow some space for fitting.

You can adjust the parameters in the .scad file to suit your needs. There are no prebaked offsets in the .scad file, so I suggest you change the size of the dimensions by subtracting 0.2mm from the desired length (e.g., use 99.8mm for a 100mm height/width). This may vary depending on your printer calibration.

You can also make a solid plug by setting the finAngle variable to 0.

Here is a list of values that can be changed in the .scad file:

`tubeX`	tube width
`tubeY`	tube height
`tubeH`	how far tube goes into a hole ;)
`tubeR`	tube rounded corners radius (0 for sharp corners)
`plateX`	plate width
`plateY`	plate height
`plateR`	plate rounded corners radius (0 for sharp corners)
`finH`	grid fins height
`finAngle`	grid fins angle (creates a solid plate if set to 0)
`finAmount`	grid fins amount
`gridDividers`	amount of grid fin dividers to support long fins (0 for no dividers)
`tubeWallT`	wall thickness of tube part
`gridWallT`	grid fins wall thickness
`plateT`	plate thickness

There is also a small lip on the plate's outer edge for better fitment. You can adjust its parameters as well:

plateLipH - lip height
plateLipT - lip thickness

You can remove the lip (or any other part) by commenting out the corresponding module call, like lip();.
