Descrição

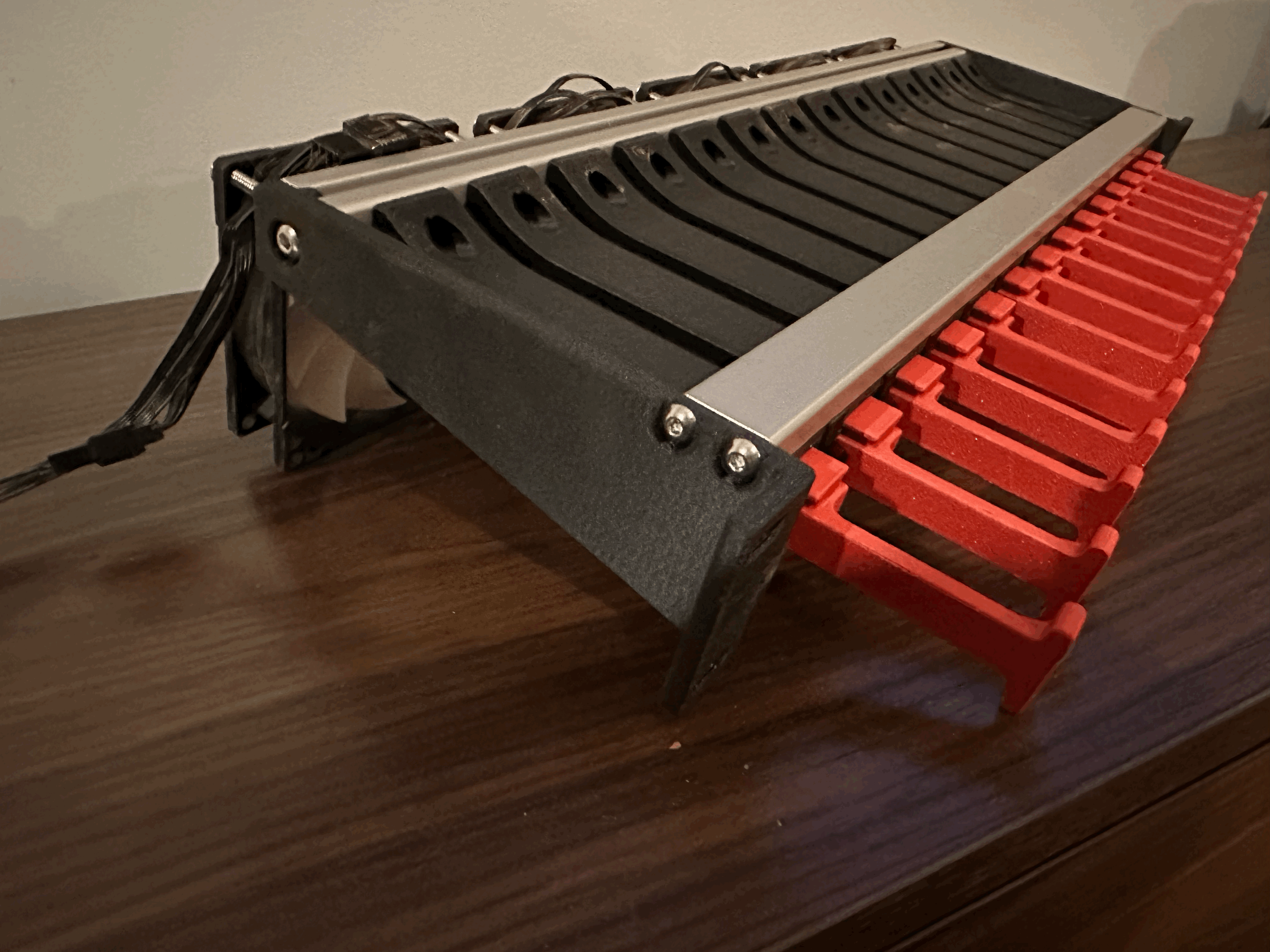

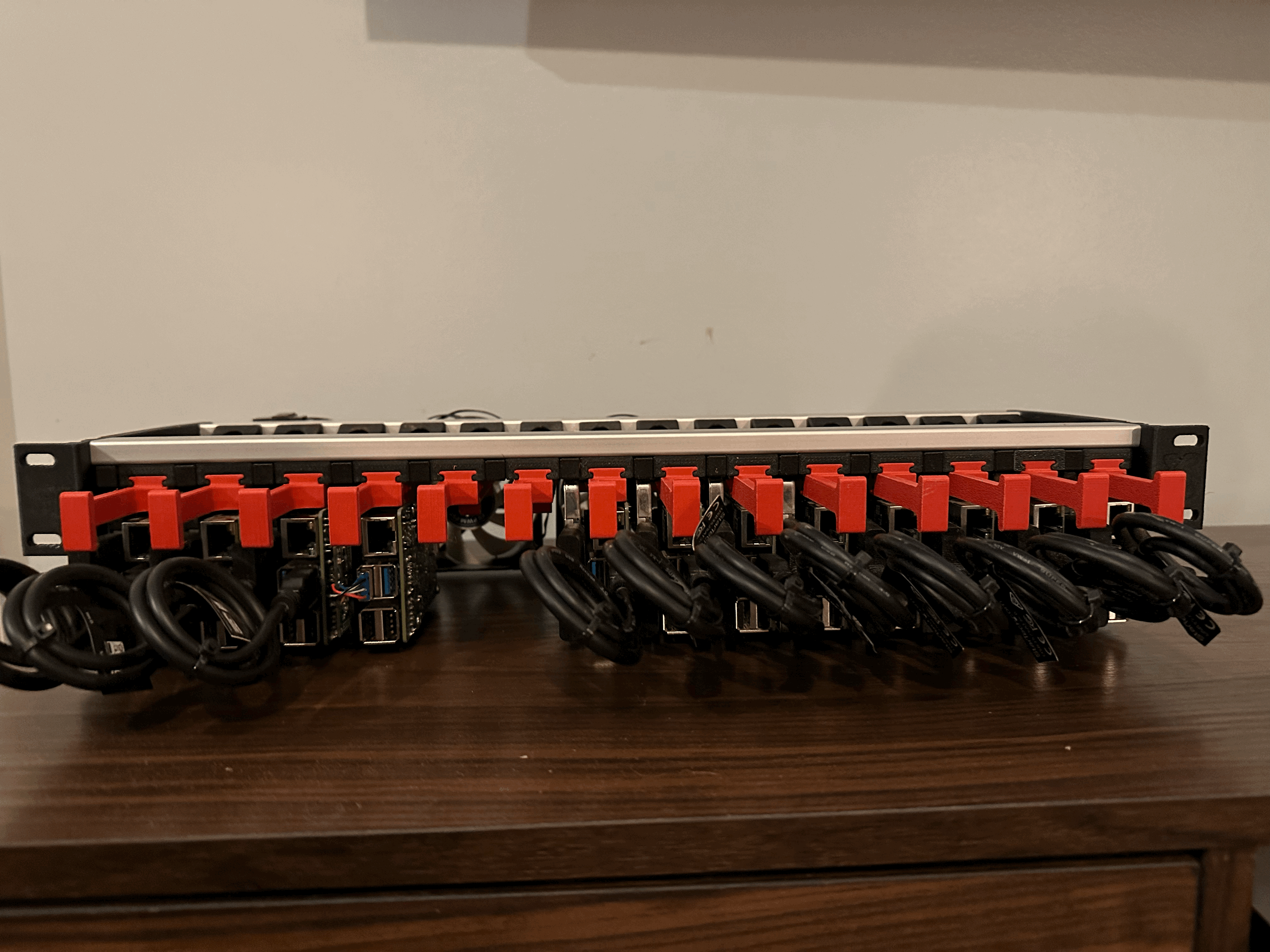

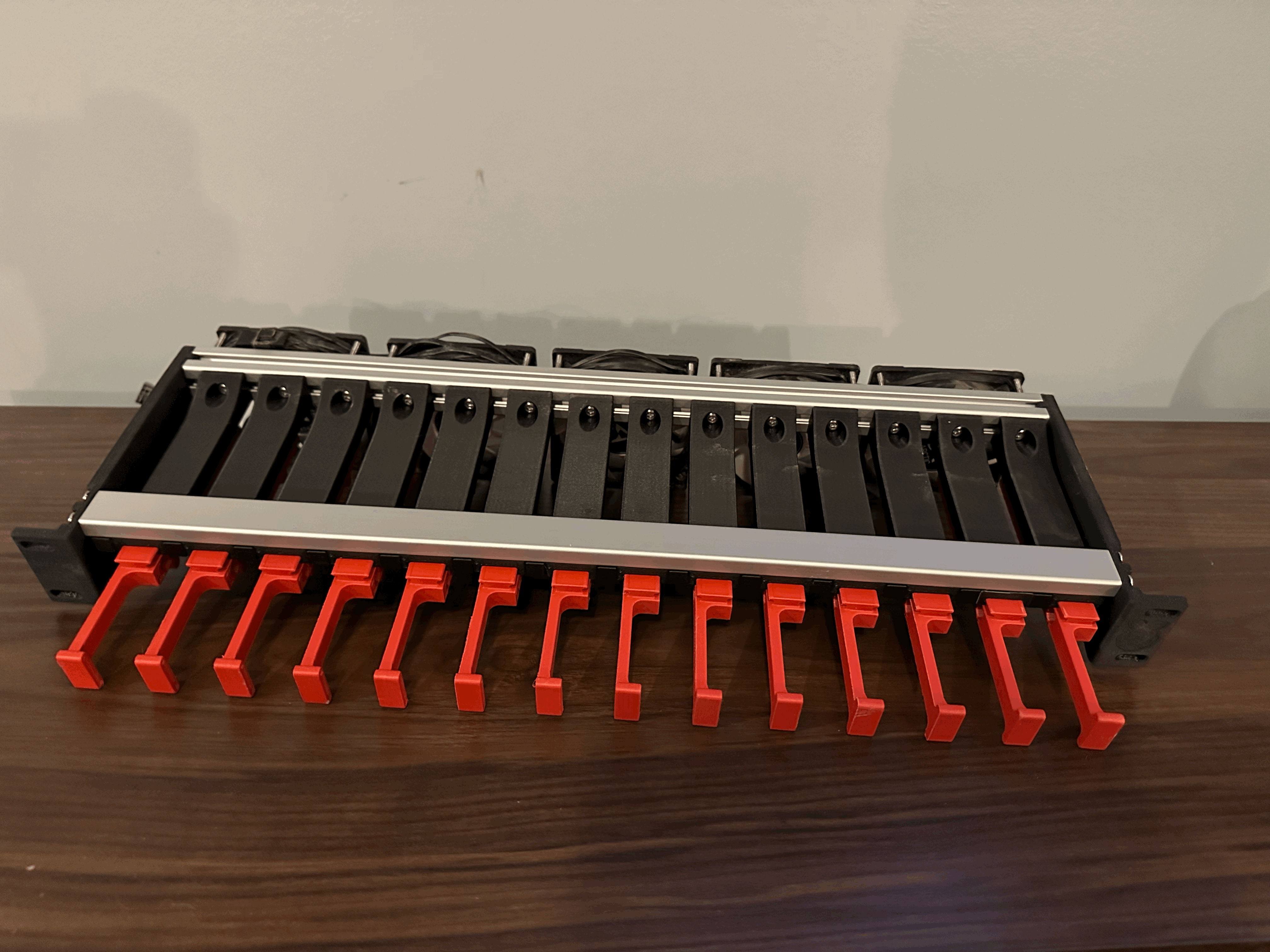

I got tired of my Pi rack sagging so I redesigned it from the ground up, using aluminum extrusions as the base structure. The design is modular allowing you to use horizontal or vertical bases (or both) with whatever spacing you want.
Fits 0 - 18 Pi 4s. Hardware recommendations below are for 14 Pi 4s with SSDs.
Hardware:
- 1x 435mm 20 x 20mm extrusion (5mm channel)
- 1x 435mm 10 x 20mm extrusion (5mm channel)
- 28x M5 T-slot nut (5mm channel)
- 28x M5 x 6mm button head screws
- 10x M4 T-slot nut (5mm channel)
- 10x M4 x 30mm button head screws
- 2x M5 x 8mm button head screws
- 4x M4 x 8mm button head screws
- 5x 80mm Fans
Tools:
- Metric M3-M8 tap and wrench set
- Metric ball end allen wrench set
Updates:
- Added STEP files
- Changed the extrusion lengths to the exact dimensions
Inspired by Raspberry Pi Server Mark III by Uptime Labs.
54
Curtidas
108
Downloads
2
Impressões
Categoria
Computers
Tags
pi
rack
Licença
Creative Commons — Attribution — Noncommercial
Arquivos (21)
2U-Base.stl
621.5 KB
SSD-Spacer.stl
319.4 KB
2U-Base.3mf
219.3 KB
1U-Base.stl
1.1 MB
1U-Base.3mf
284.8 KB
R-Ear.stl
2.1 MB
L-Ear.stl
1.8 MB
Rack_Ears.3mf
1 MB
T-handle_Tray.stl
2.2 MB
Slim_T-handle_Tray.stl
902.2 KB
SSD-Bracket.stl
653 KB
SSD-Spacer.stl
130 KB
Tray.3mf
995.4 KB
Vertical Base.step
81.2 KB
8mm Spacer.step
240.6 KB
SSD Support.step
140.6 KB
Slim Tray.step
236.2 KB
Horizontal Base.step
235.7 KB
Tray.step
1.4 MB
Right Ear.step
1.5 MB
Left Ear.step
1.9 MB
