Descrição

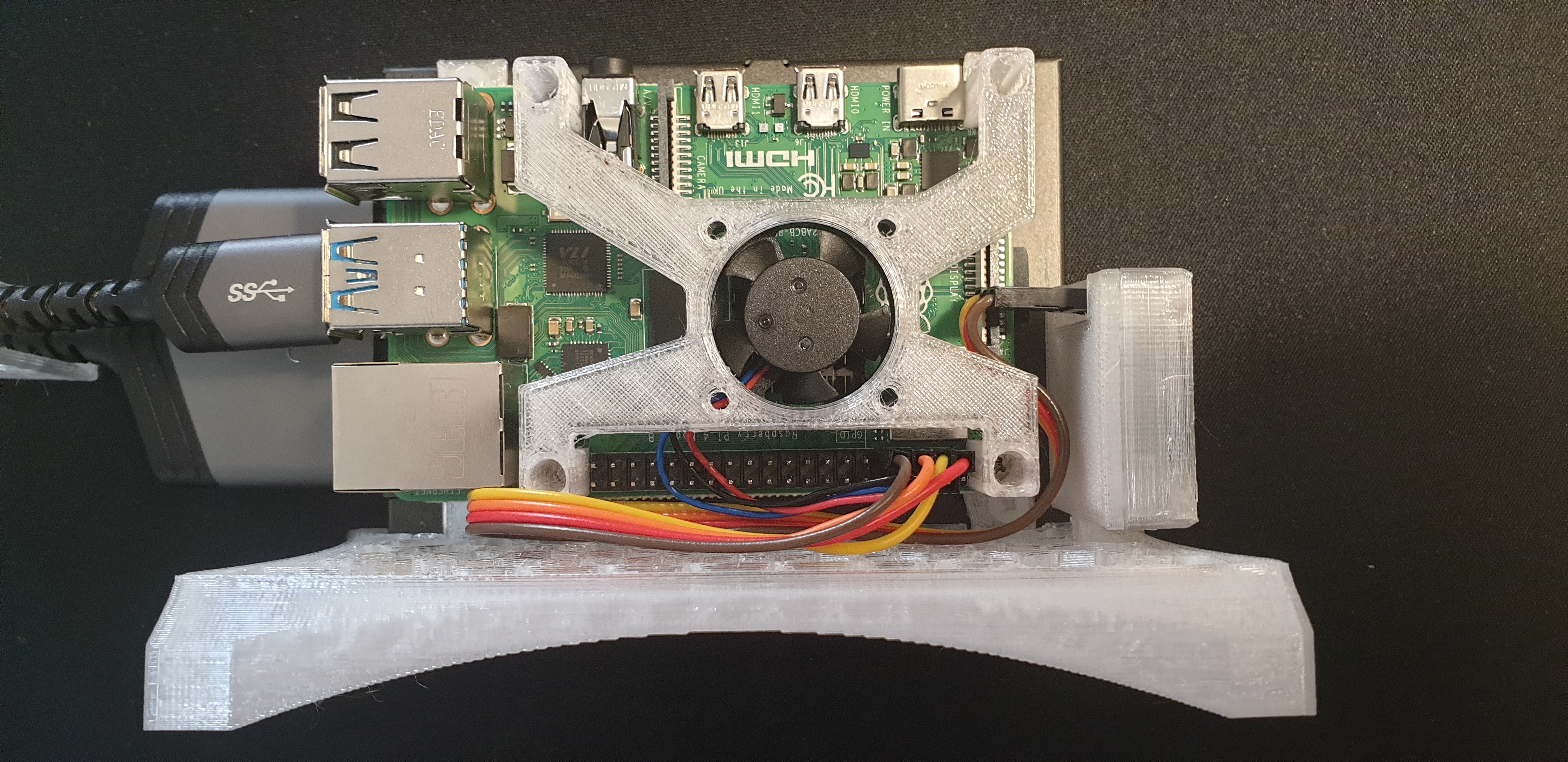

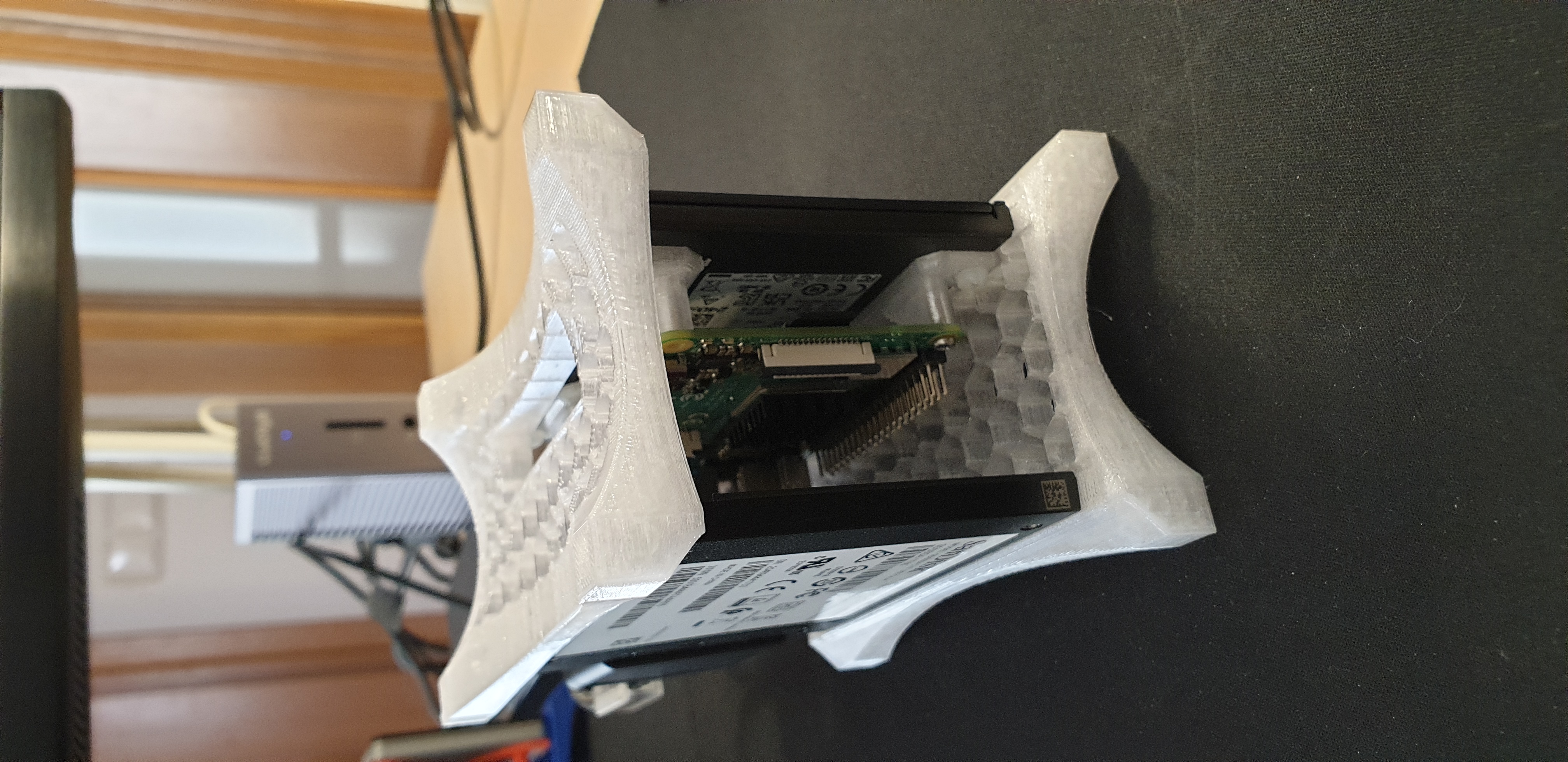

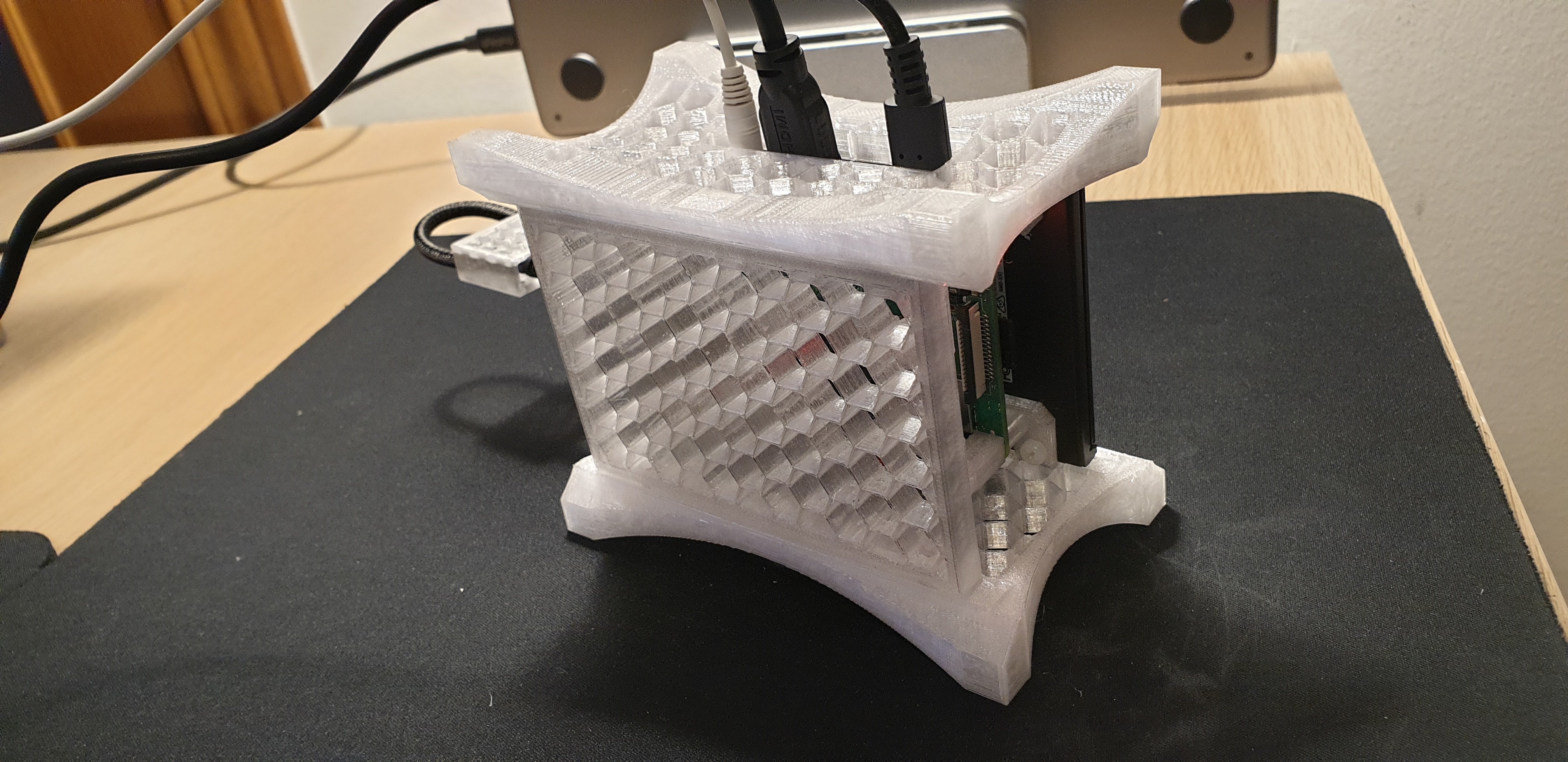

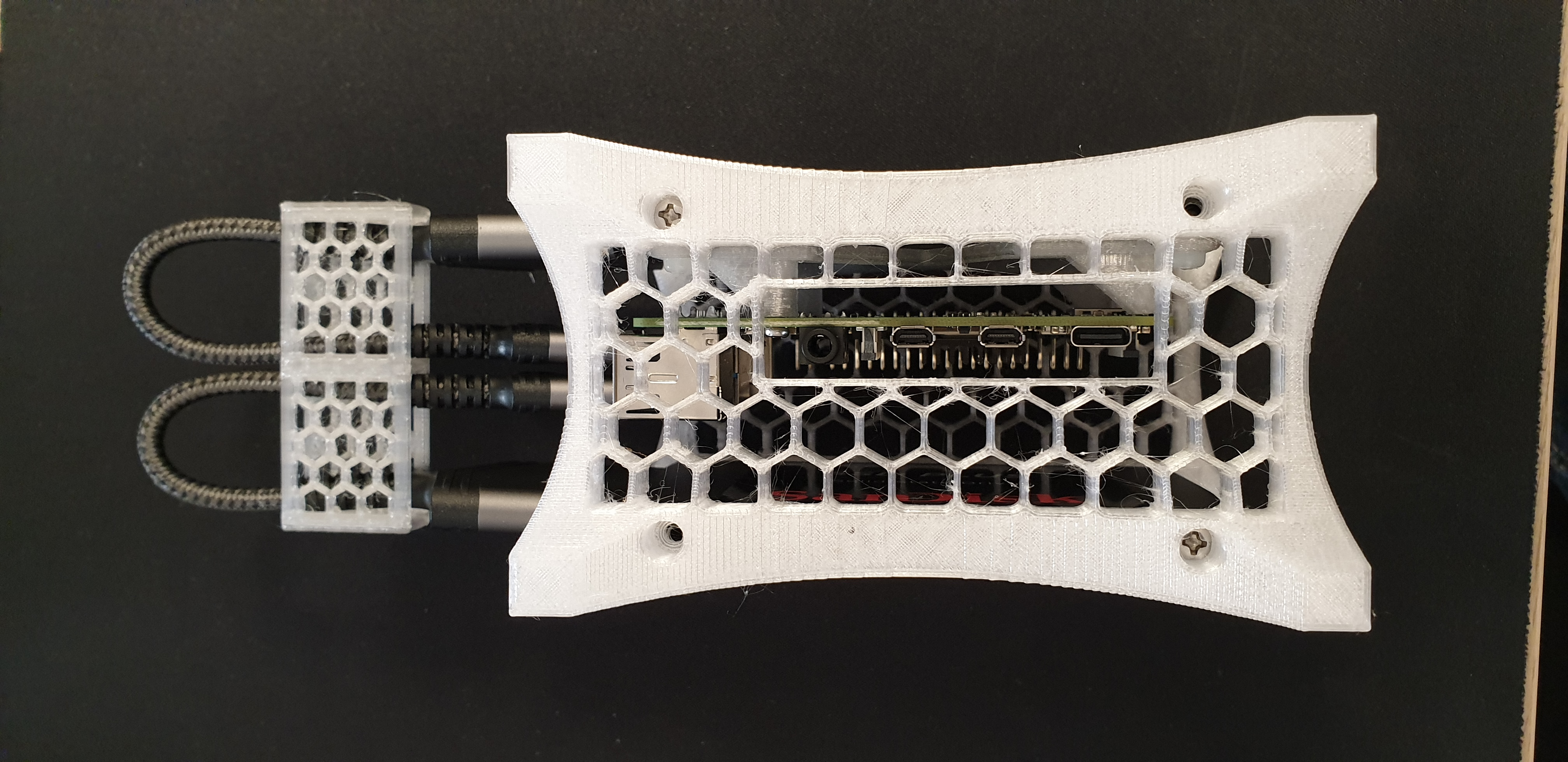

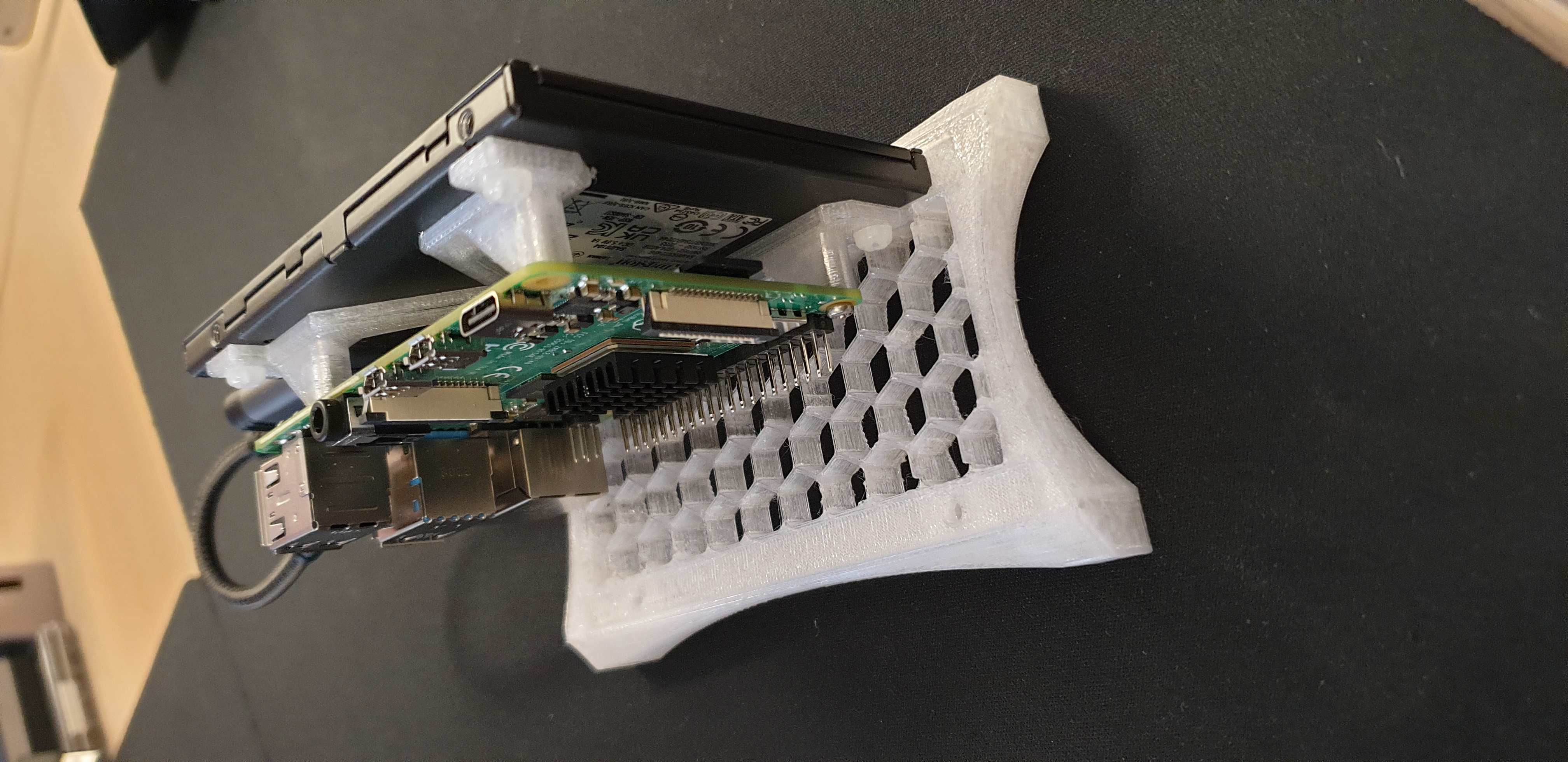

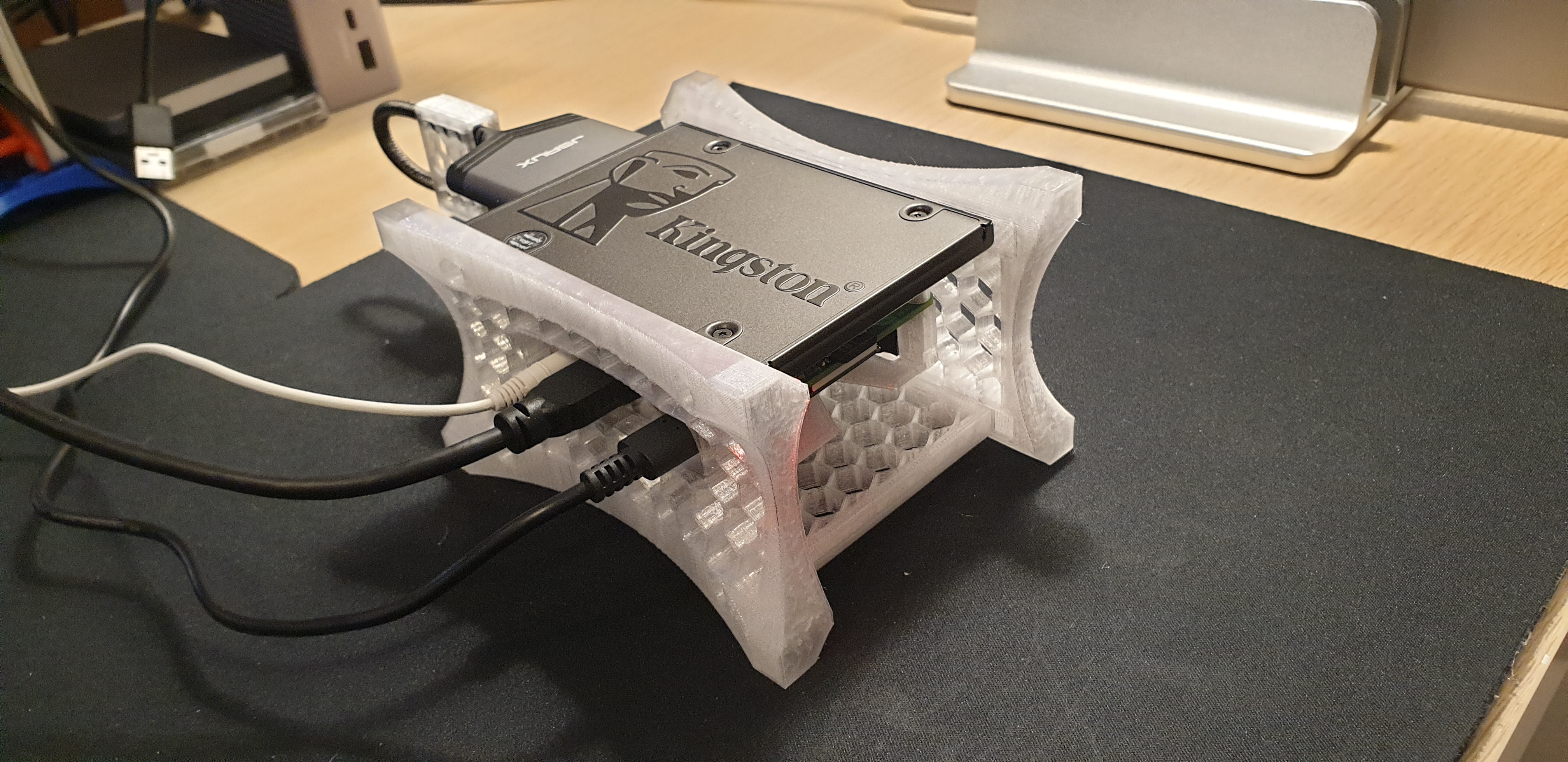

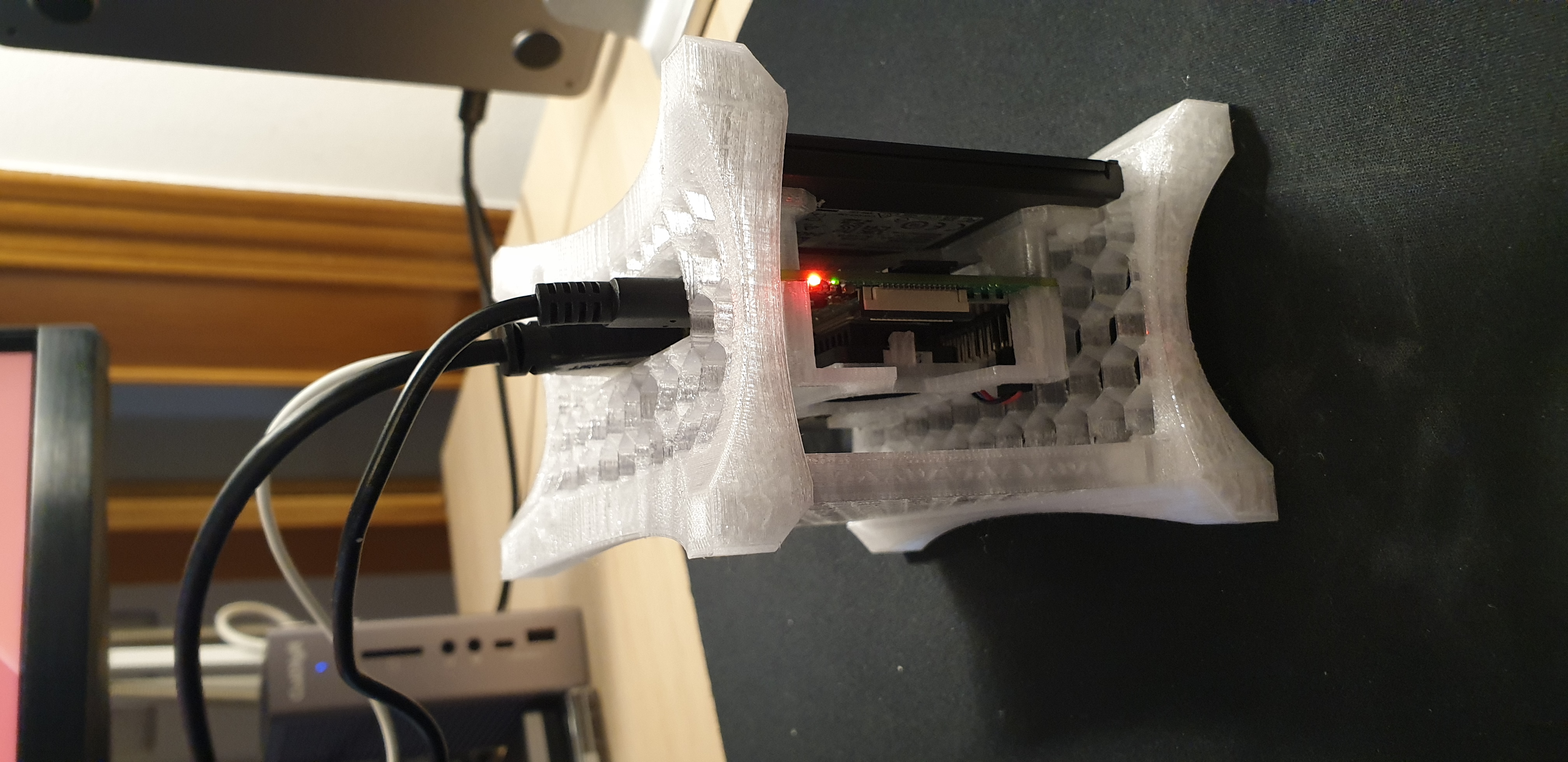

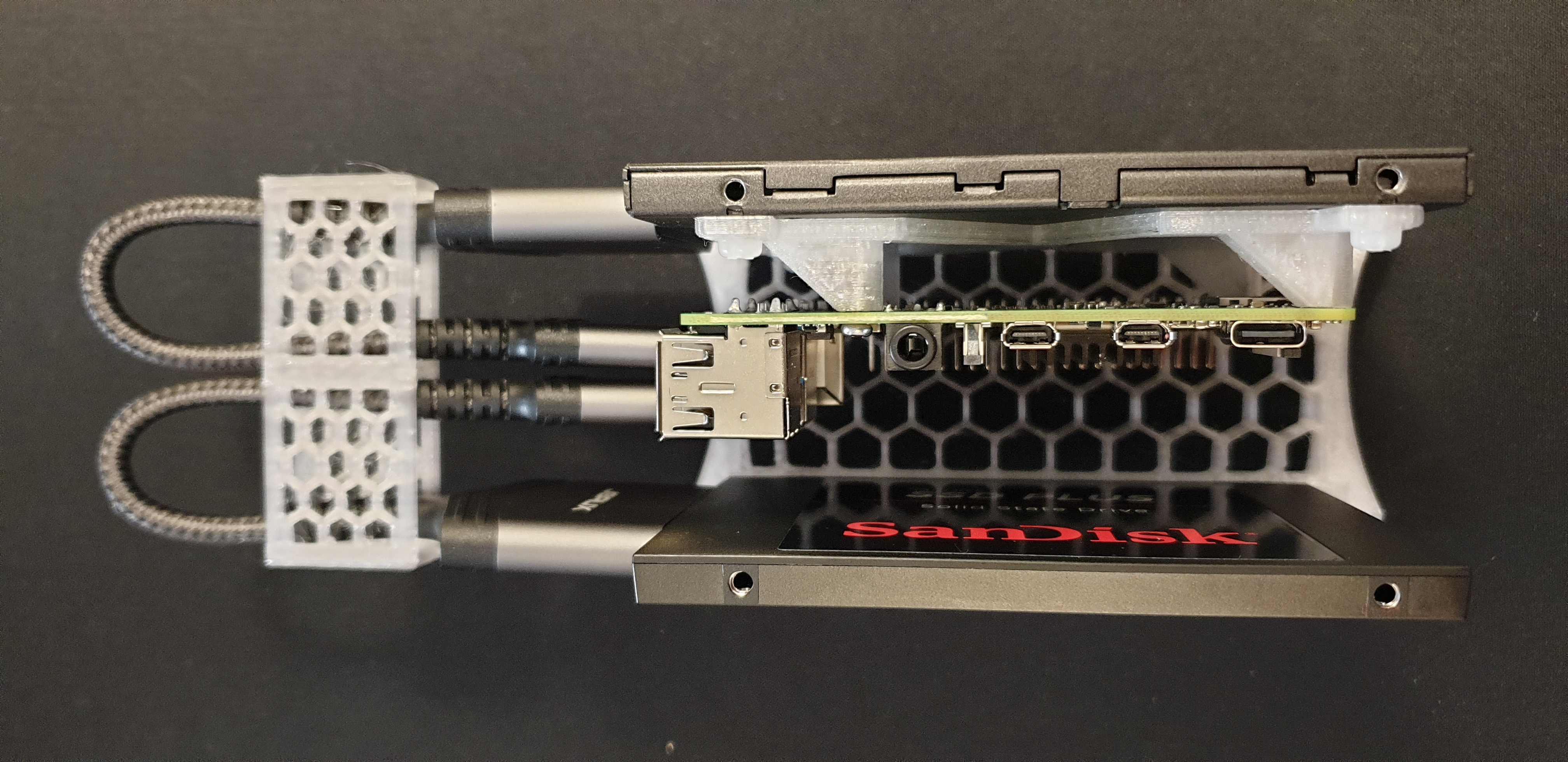

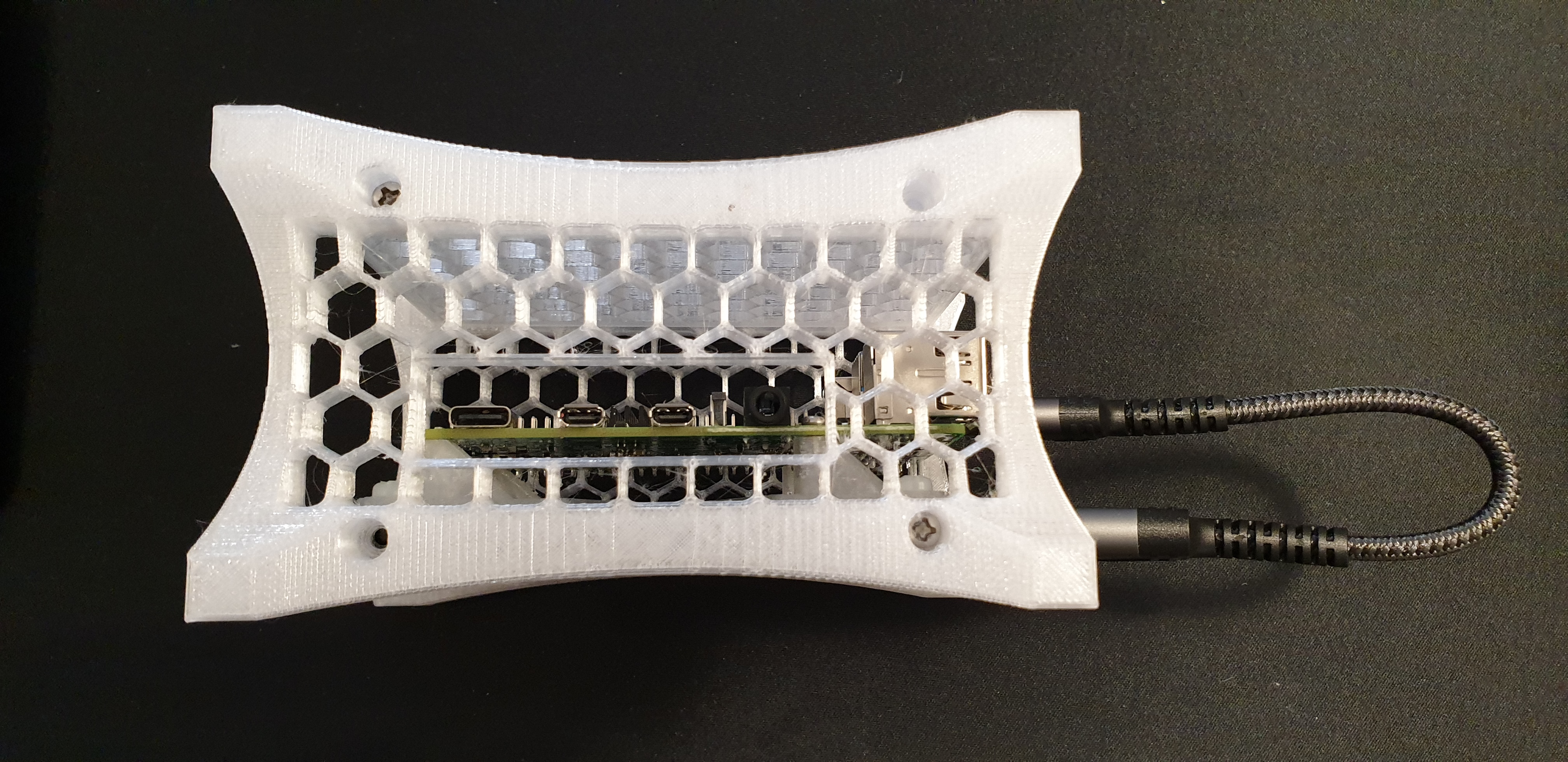

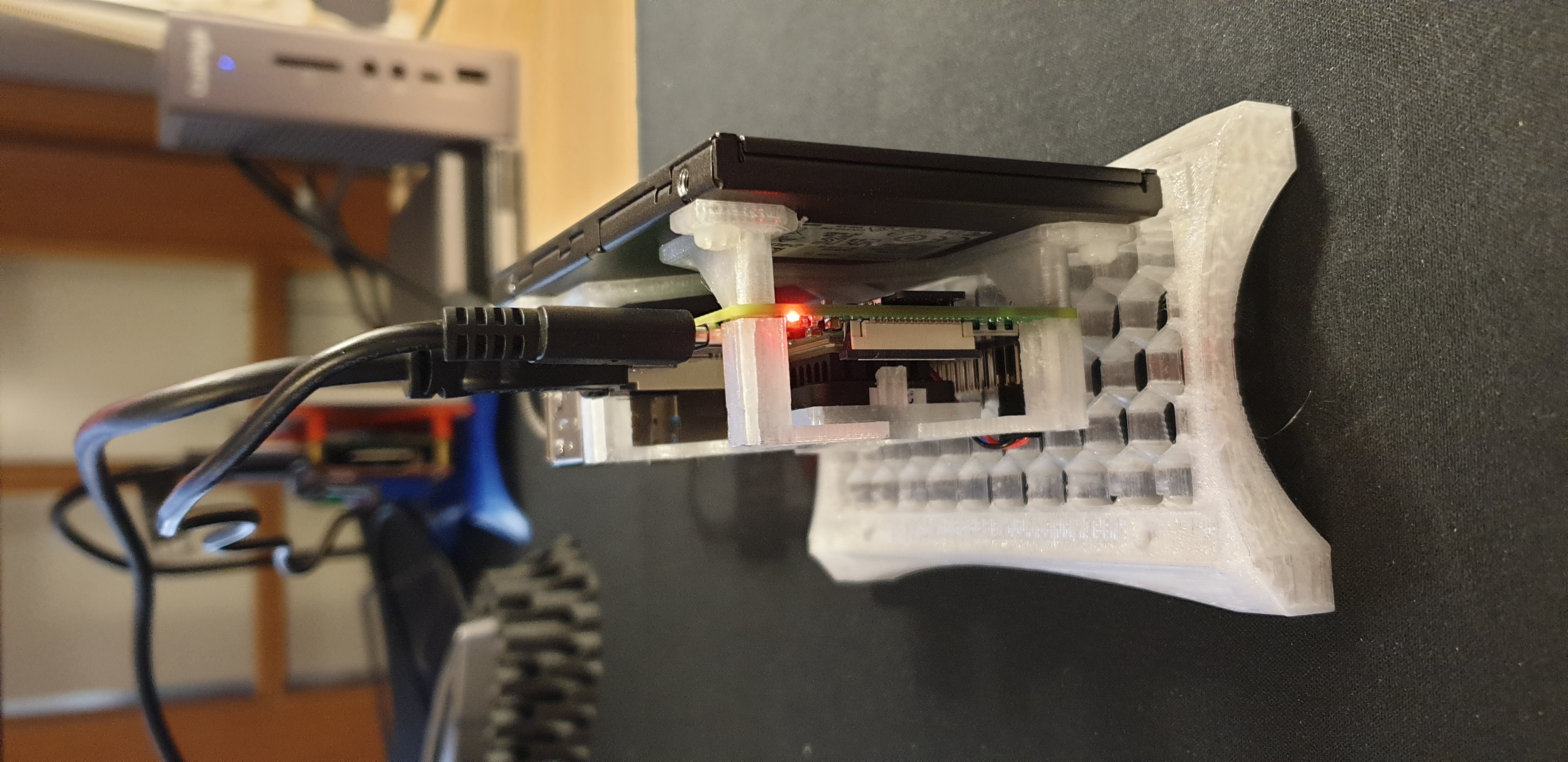

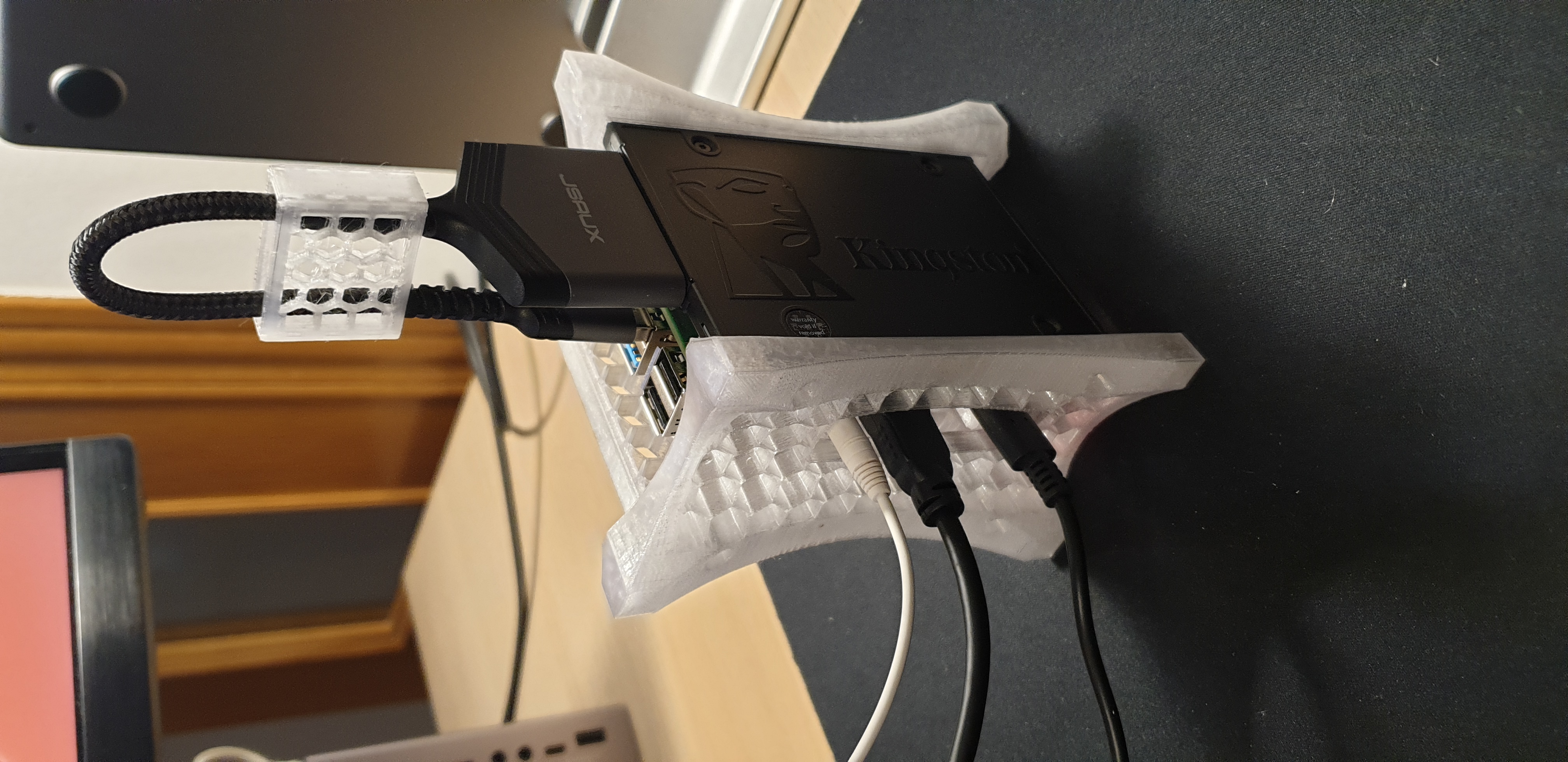

Raspberry Pi modular case supports up to 2 SATA SSD disks and a fan. This is modular because you could use a simple implementation with 1 SATA SSD disk and only the couple to the SATA SSD disk or you could use 2 disks, an OLED 128x64 display and the full frame around.
Printing Instruction
- Use PETG preferably

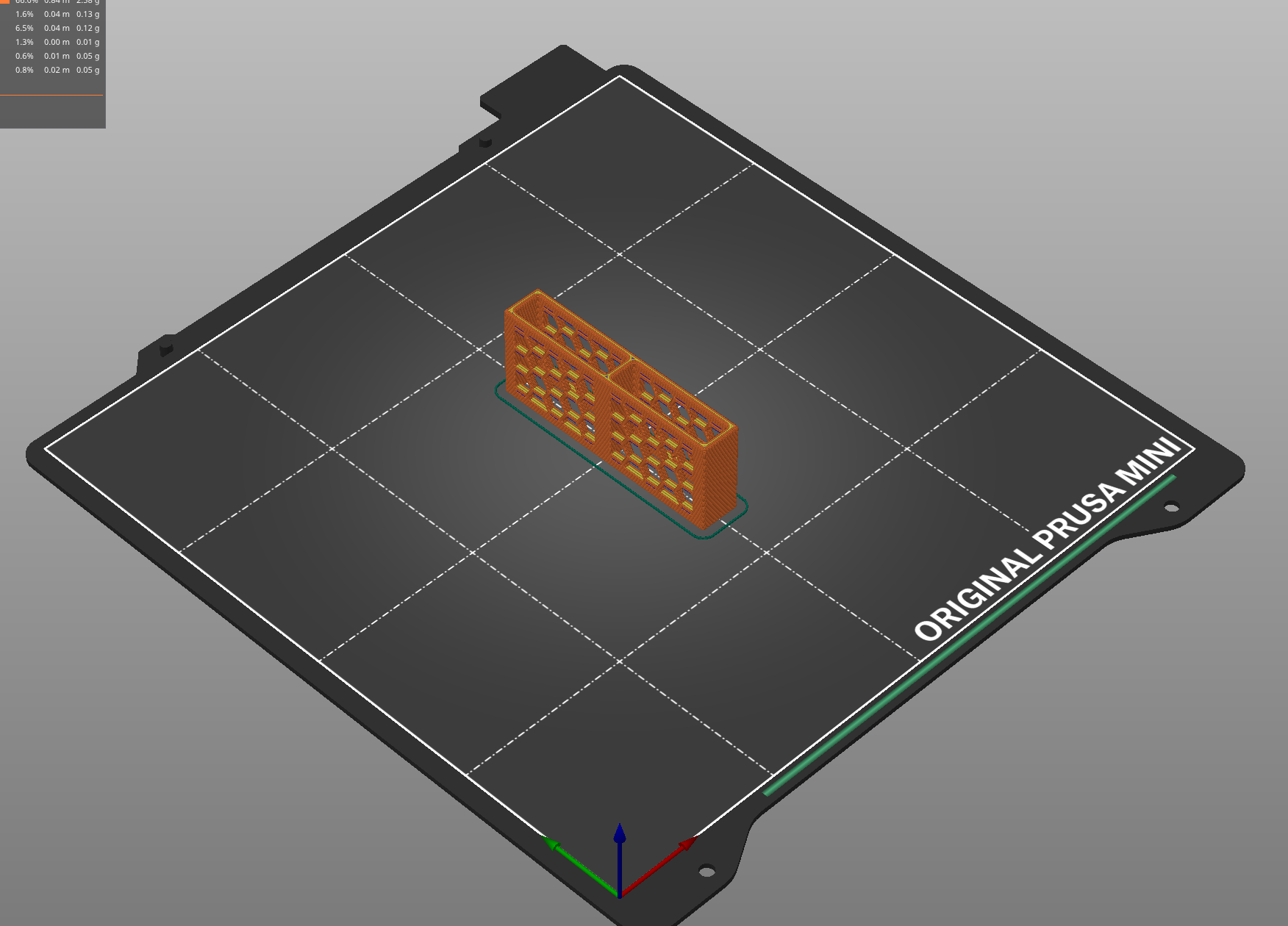

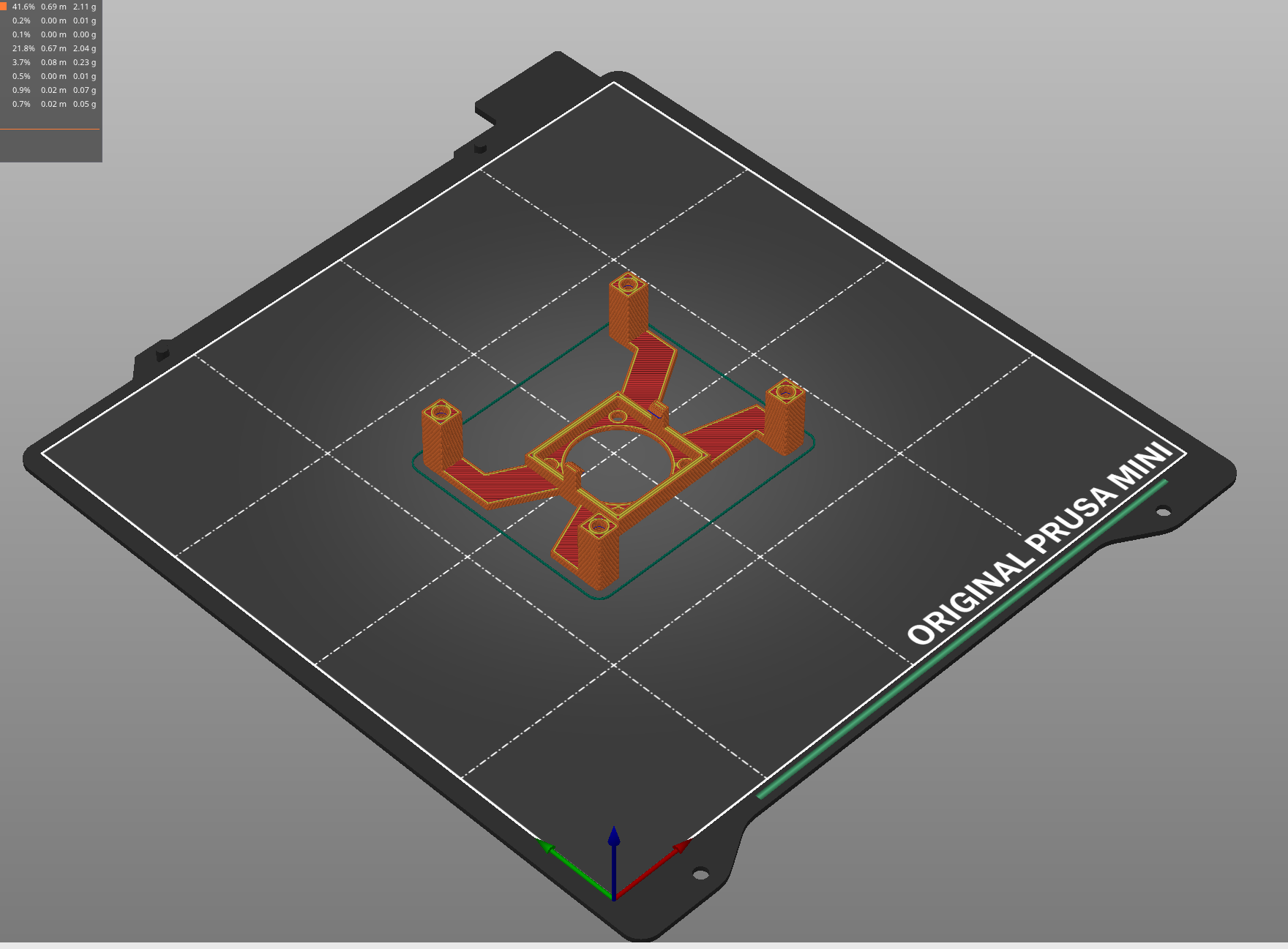

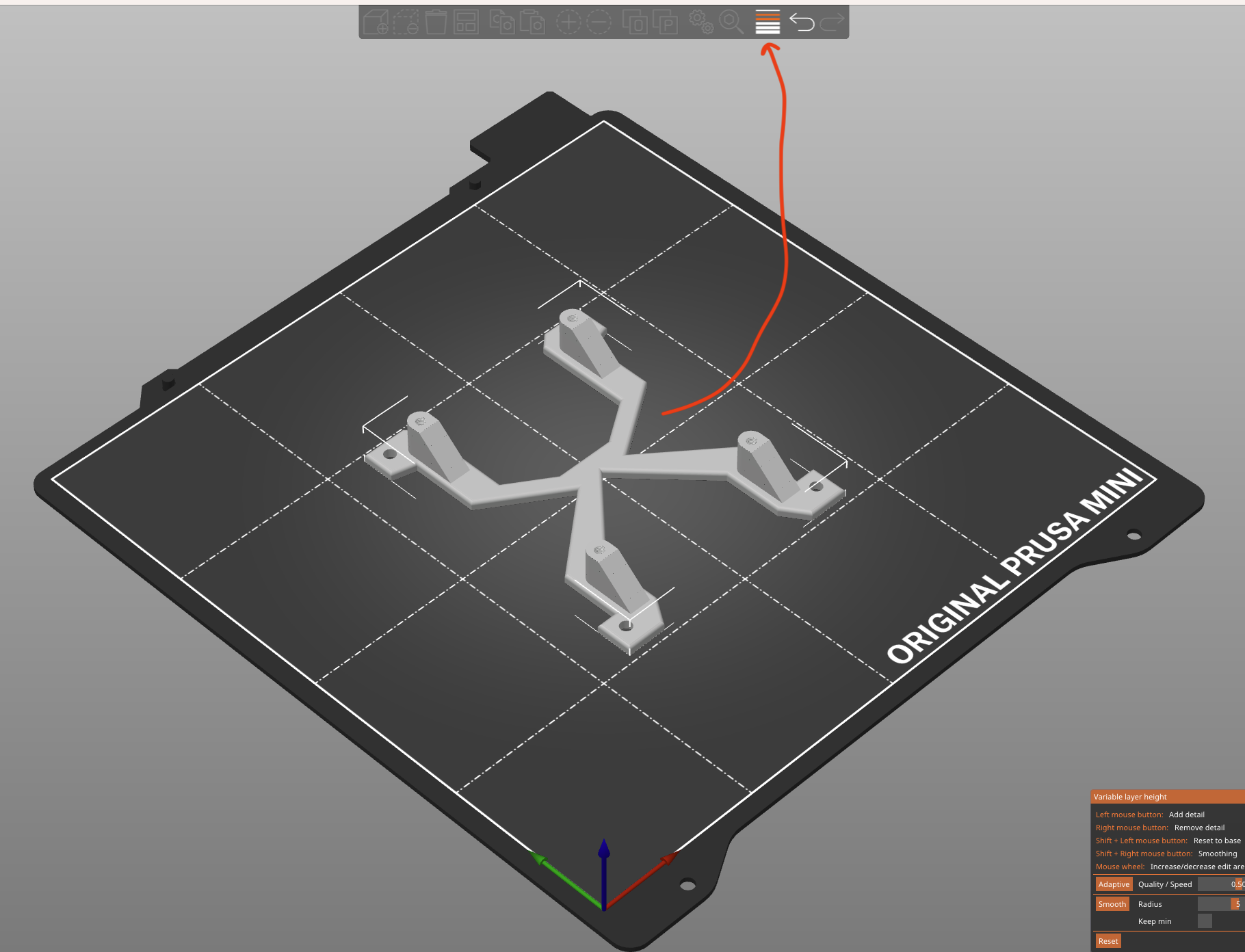

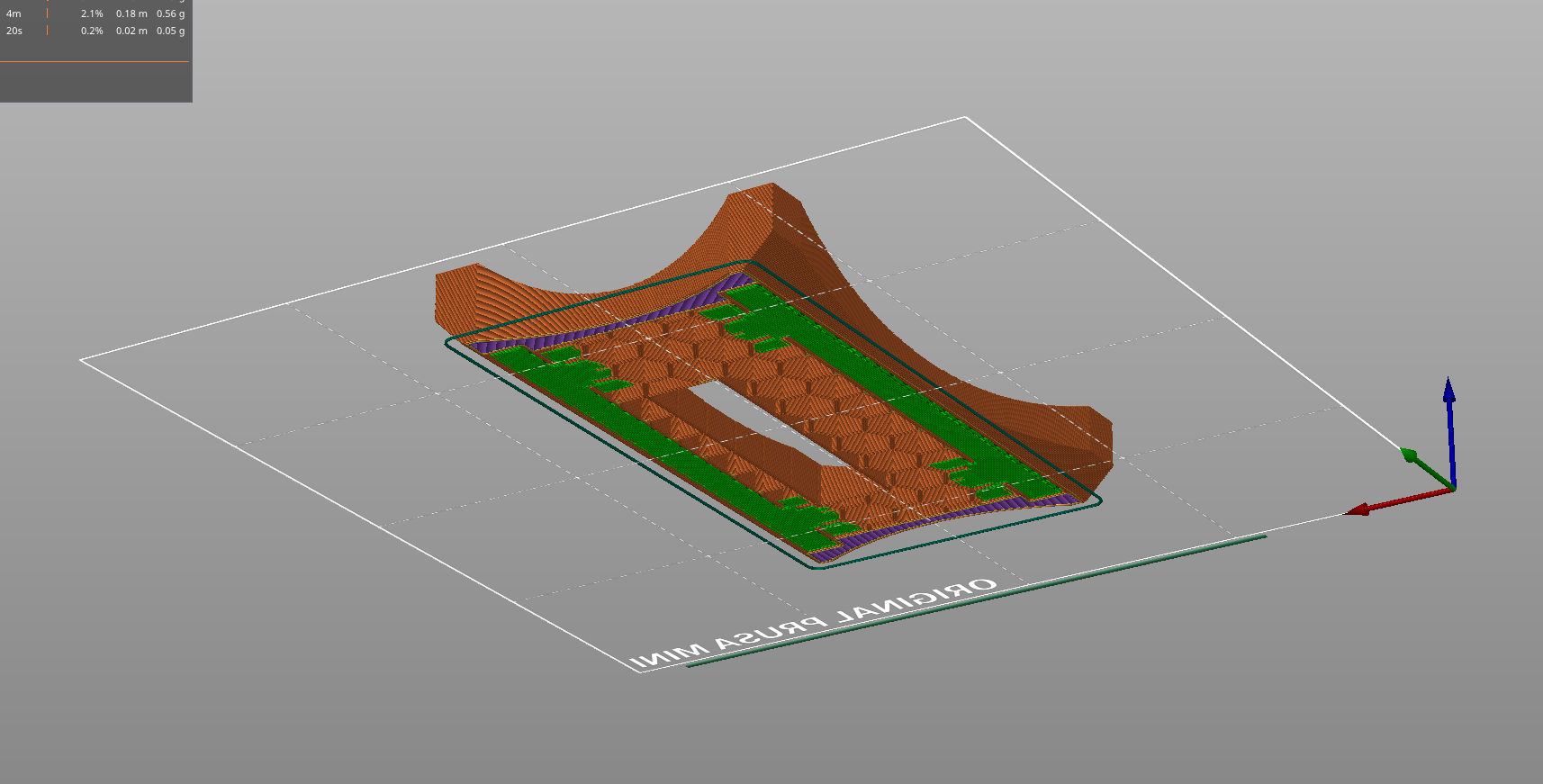

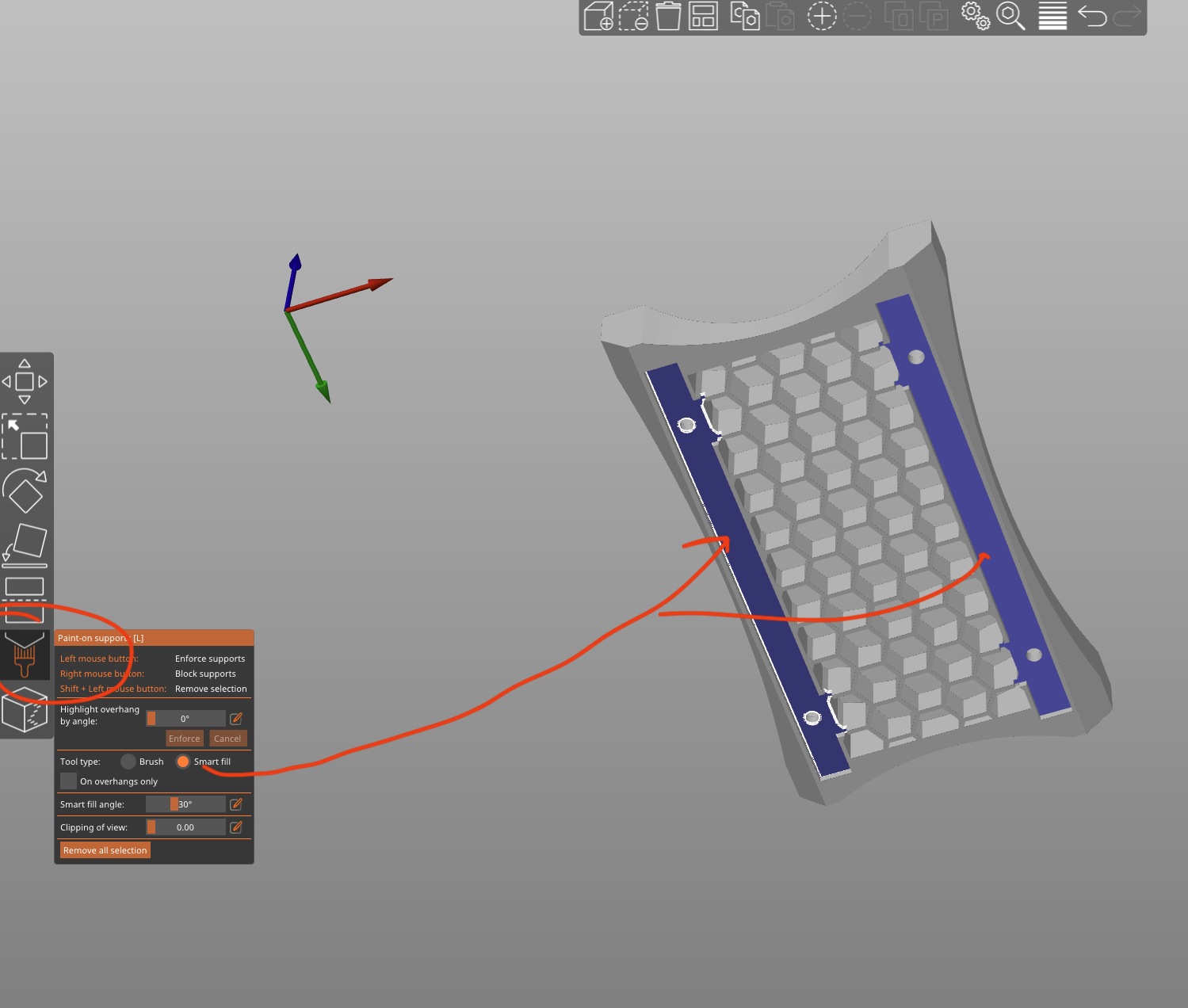

- Use support for the SATA SSD pocket only using the intelligent Prusa slicer option
Assembly Materials & Instructions
- I'm using this SATA SSD cable - Amazon.es
- M3 screws for SATA SSDs
- M2.5 for Raspberry Pi screws - I'm using nylon screws - Amazon.es

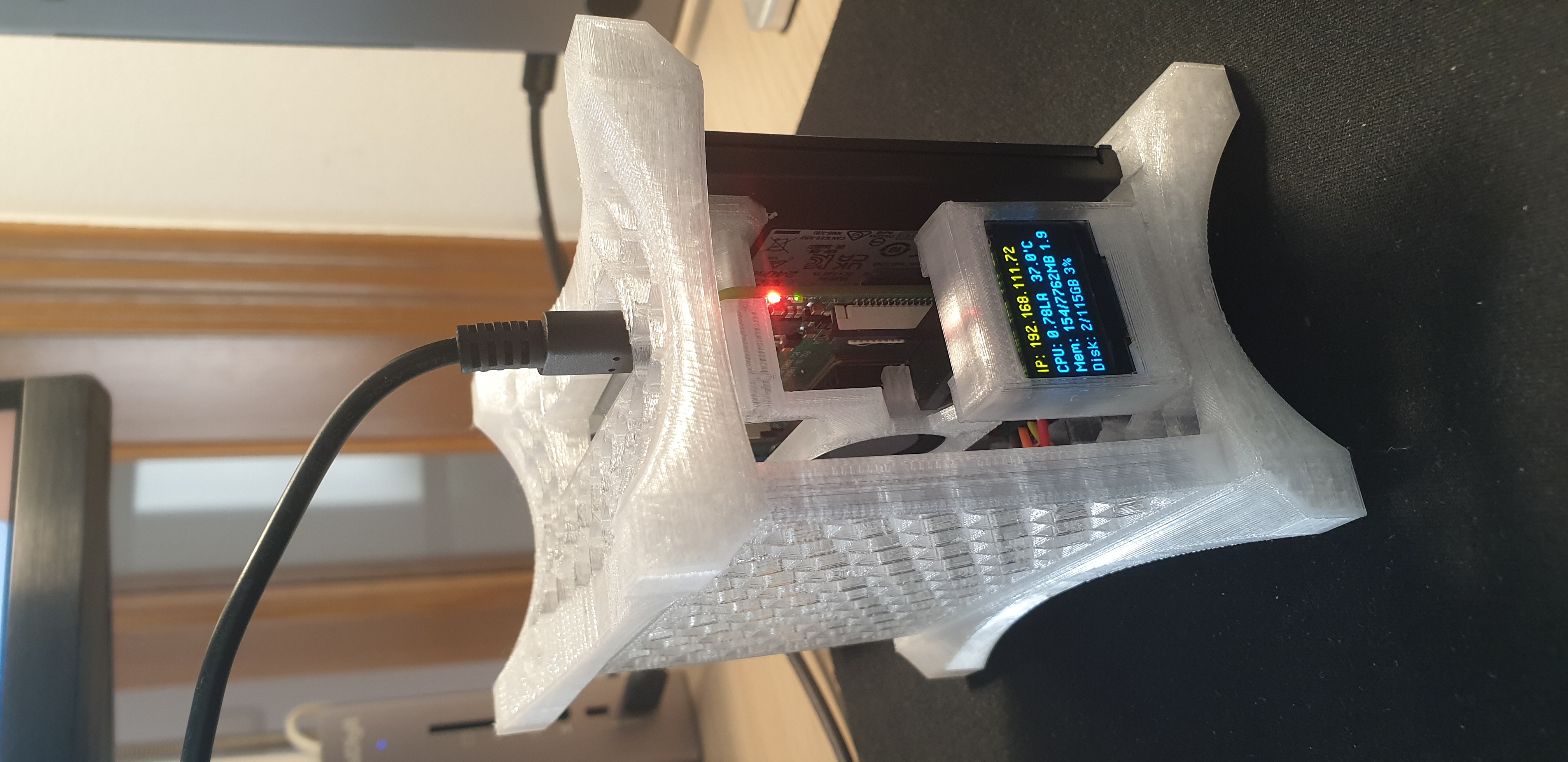

- OLED 128x64 display - Amazon.es
- Raspberry Pi 4 Case Fan - www.raspberrypi.com
- screw gently to avoid damaging the coupling between the hard drive and the raspberry pi
Printables
Raspberry Pi 4b SATA SSD modular frame case
Publicado em 23 de abr de 2023
10
Curtidas
41
Downloads
Categoria
Computers
Tags
case
modular
raspberrypi
raspberrypicase
raspberrypi4
Licença
GNU General Public License v3.0
Arquivos (11)
rpi-ssd-modular-case-rpi-4b-fan-mount.stl
401.9 KB
rpi-ssd-modular-case-double-ssd-base.stl
342.7 KB
rpi-ssd-modular-case-double-ssd-connector-base.stl
353.8 KB

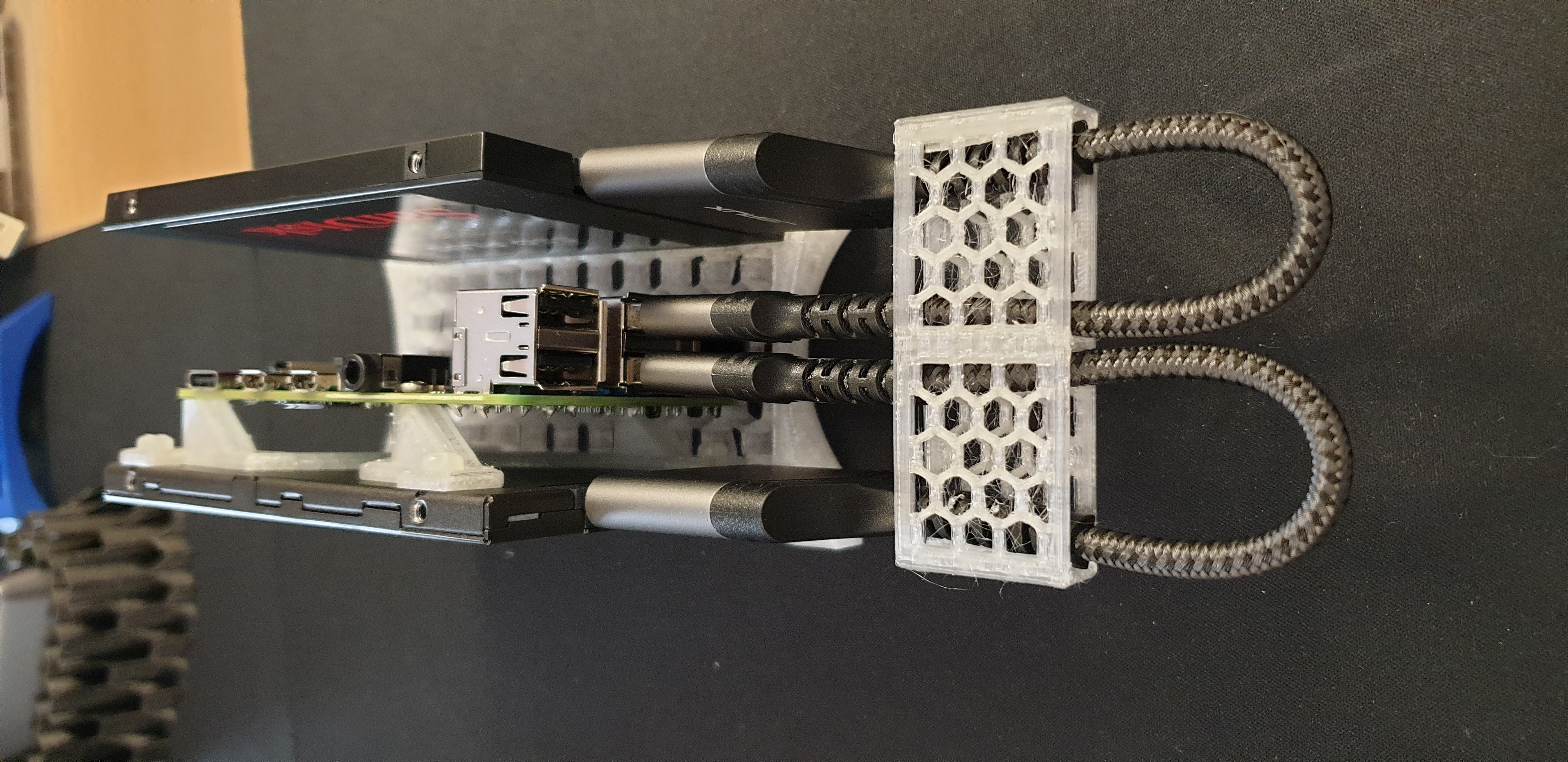

rpi-ssd-modular-case-cable-gripper.stl
1.3 MB
rpi-ssd-modular-case-ssd-replacement-curved.stl
2.5 MB
rpi-ssd-modular-case-ssd-replacement-plane.stl
2.4 MB
rpi-ssd-modular-case-rpi4b-coupling.stl
3.2 MB
rpi-ssd-modular-case-cable-gripper-double.stl
2.2 MB
rpi-ssd-modular-case-oled-128x64-mountoled-128x64-mount-leg.stl
7.2 KB
rpi-ssd-modular-case-oled-128x64-mountoled-128x64-mount-body.stl
116.9 KB
rpi-ssd-modular-case-oled-128x64-mountoled-128x64-mount-body.3mf
41.5 KB
