Descrição
A basic Gridfinity parametric container done in Fusion 360. Slightly modified from the original design for better printability with a 0.4 mm nozzle size and a layer height of 0.2 mm.
Update
Some preconfigured models were added in height increments of 3U ranging from 1x1x3 to 4x4x9. For other sizes just configure your own through Fusion 360.
Configuration
Open the file in Fusion360 and adjust the size as needed.

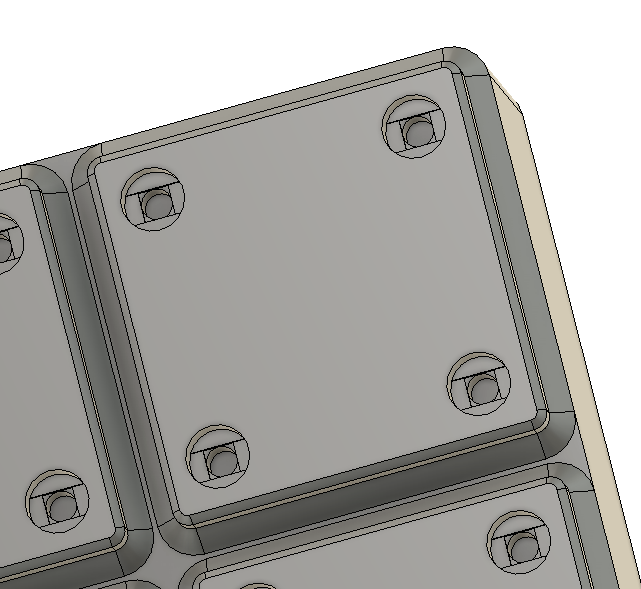

By default the magnet hole diameter is tighter than the standard 6.5 mm of the Gridfinity design as I found this to fit better. The depth has also been changed from the default 2.4 mm.
Fusion 360 Error
If you design a 1x1 container the file will throw an error but the output should still be generated just fine. This is due to a pattern that no longer can be applied. If there is a way to suppress this let me know in the comments.
Notes
Made with the personal version of Autodesk Fusion 360 therefore non commercial only.
Source file included.
Gridfinity Parametric Container Fusion360
Publicado em 26 de abr de 2023
