Hello Everyone

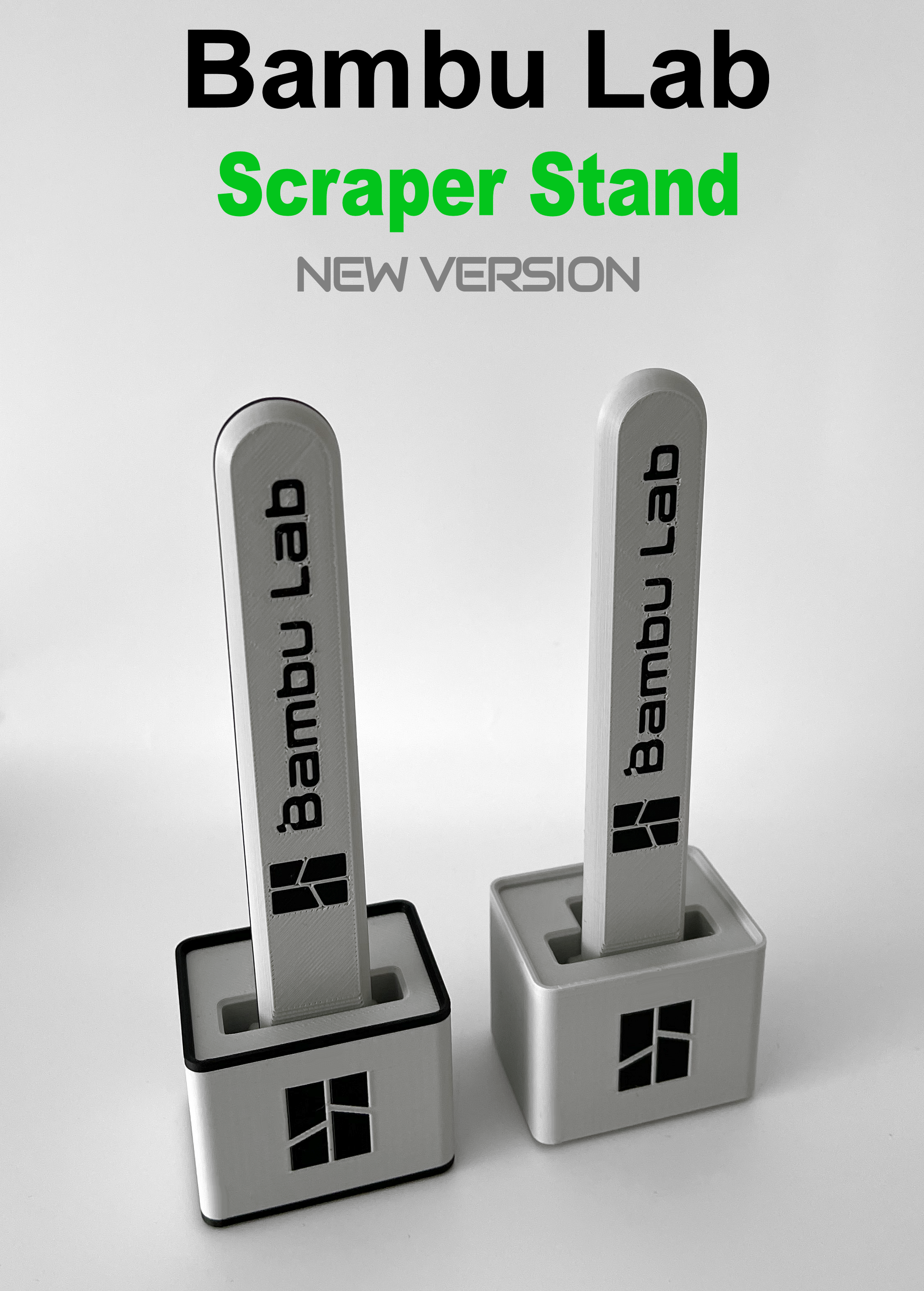

I am sharing the New Bambu Lab Scraper Stand of my design. I decided to design it from scratch because the original one annoyed me because its construction is unstable. When standing next to a working printer, it moves around the entire table from vibrations and is also easy to overturn. The new version is devoid of the above disadvantages and additionally at the bottom there is space for 4 non-slip silicone pad with a maximum diameter of 8mm. The height of the silicon pad I used is 1.5 - 2.5mm. You can buy them in any large DIY store or furniture accessories store for about 1.50 euros for 50 pieces. Their use is not mandatory. You can download individual files for printing or a ready-made colorful .3mf project containing all versions and change only the colors of the filaments.


When you complete the project, please share a photo and a comment. Thank you and have a nice day.


Updated  22.04.2023 :

• I added slim versions for each version


Feel free to download and print my latest version of Bambu Lab Scraper from the link below :
[https://www.printables.com/pl/model/453705-bambu-lab-scraper-double-sided-logo](https://www.printables.com/pl/model/453705-bambu-lab-scraper-double-sided-logo)

IMPORTANT - READ:
The internal dimensions of the Scraper Stand are 100% identical to the original. Print it from the same material as the scraper if you already have one so that the material shrinkage is the same. Please take this into account before printing.


Version 1 - Standard and Slim

• Double sided large logo
• Two dimensions : Standard 52x39.8x40 and Slim 52x35.8x40

Version 2 - Standard and Slim

• Double sided small logo
• Two dimensions : Standard 52x39.8x40 and Slim 52x35.8x40

Version 3 - Standard and Slim

• Double sided protruding logo - Version designed for printing in one color
• Two dimensions : Standard 52x39.8x40 and Slim 52x35.8x40

Version 4 - Standard and Slim

• No logo
• Two dimensions : Standard 52x39.8x40 and Slim 52x35.8x40


Characteristics :

• Stable construction
• Space for 4 non-slip silicone pad with a maximum diameter of 8mm
• Fits the original Bambu Lab Scraper
• Features the Bambu Lab logo on both sides
• Four versions of the stand (large logo, small logo, protruding logo for single color printing, no logo)
• Two dimensions - Standard and Slim


How to print ? :

• Material : Any
• Layer Height : 0.2mm
• Wall Loops : 2
• Bottom Layers : 3
• Top Layers : 4
• Infill : 20% (I print with 50% infill because I want it to be heavy and massive)
• Support : No
• Brim : No
