Descrição

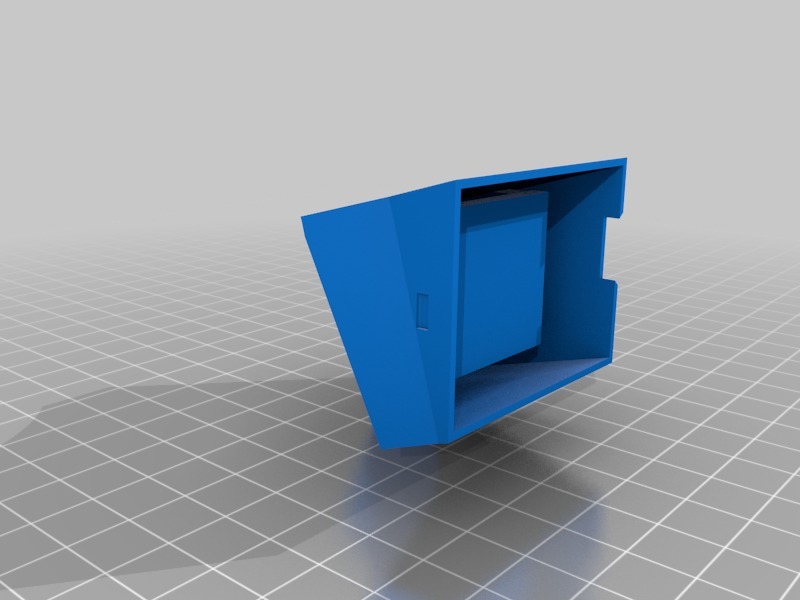

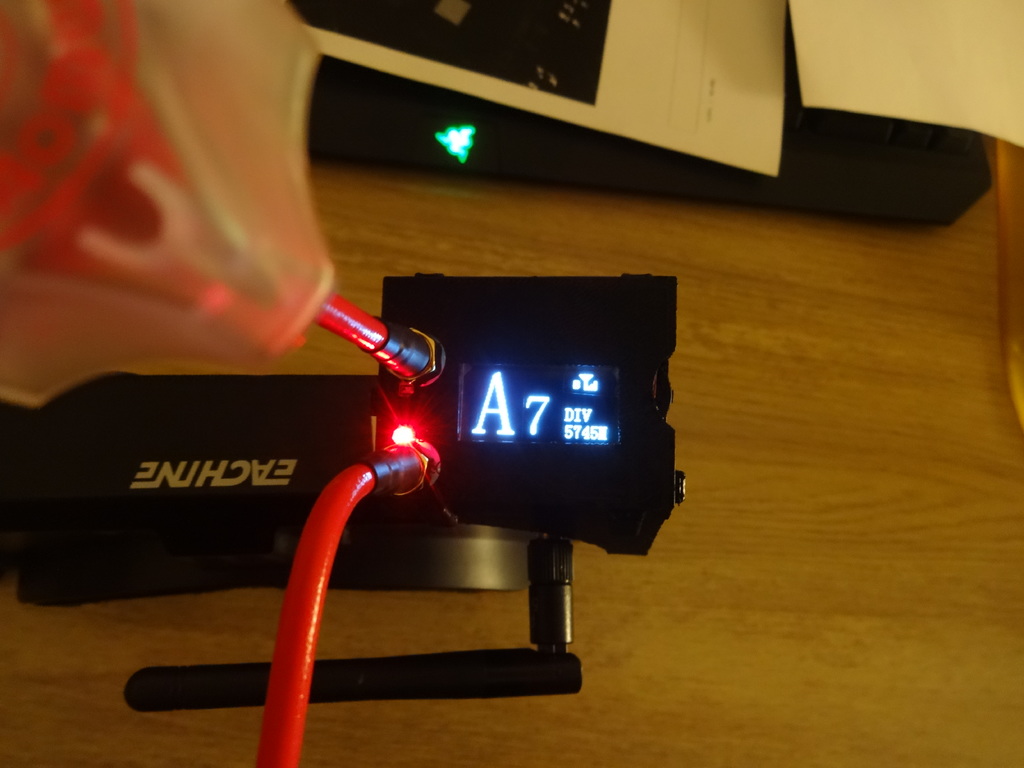

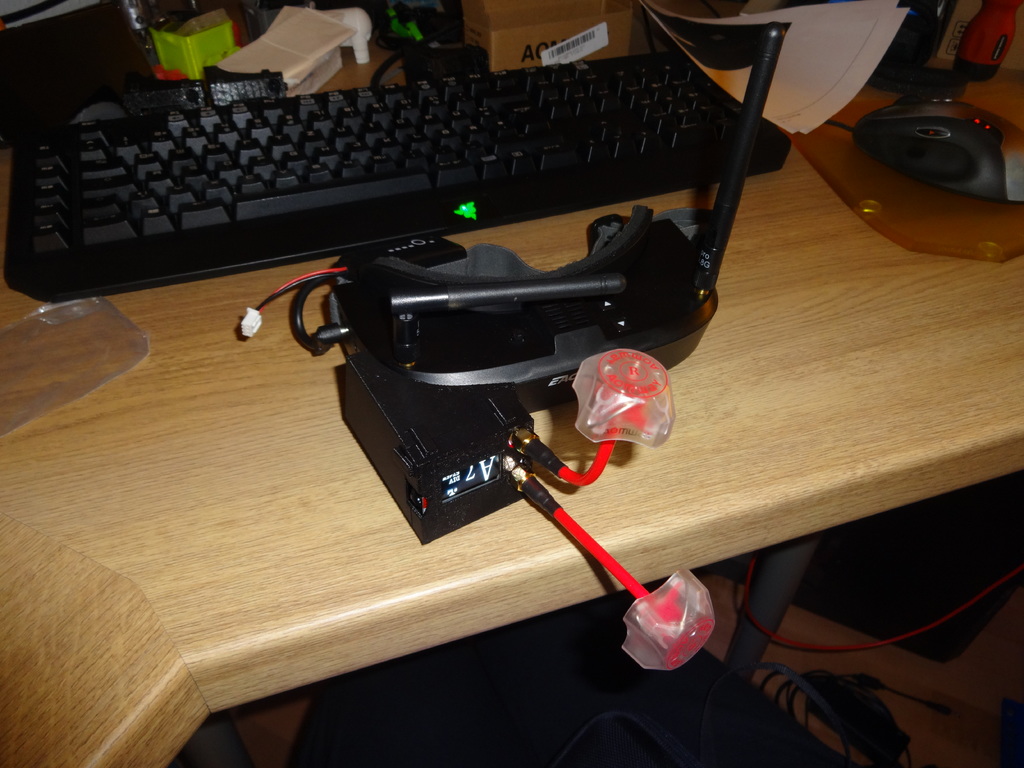

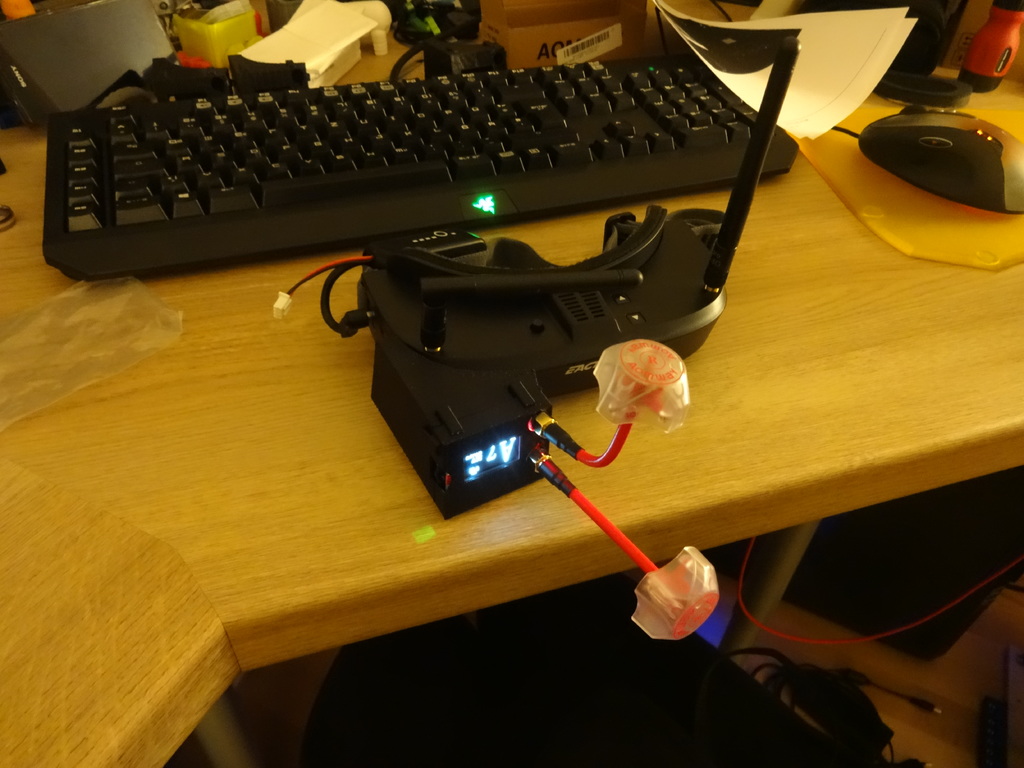

Here's my Eachine Pro58 Receiver Case for the Eachine EV100.
I was inspired to do this because of the mod video of "Drone Mesh", thanks man for the nice mod vid, how to solder in the receiver. Worked great for me. [https://youtu.be/n79b-z6n_Dk](https://youtu.be/n79b-z6n_Dk)

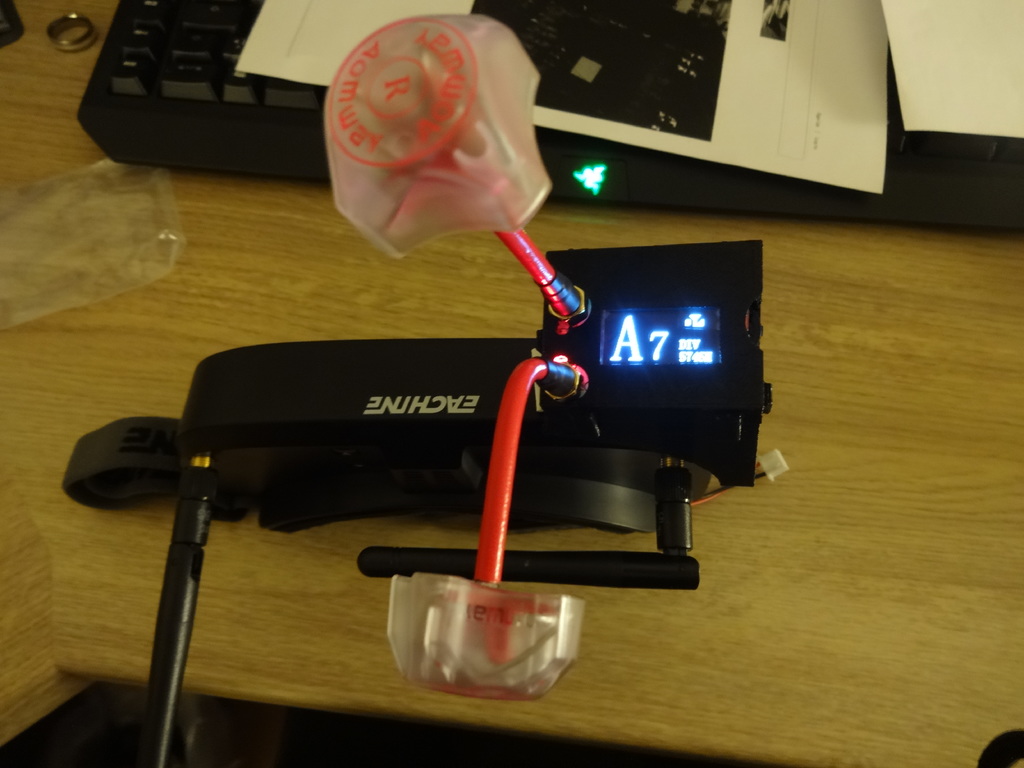

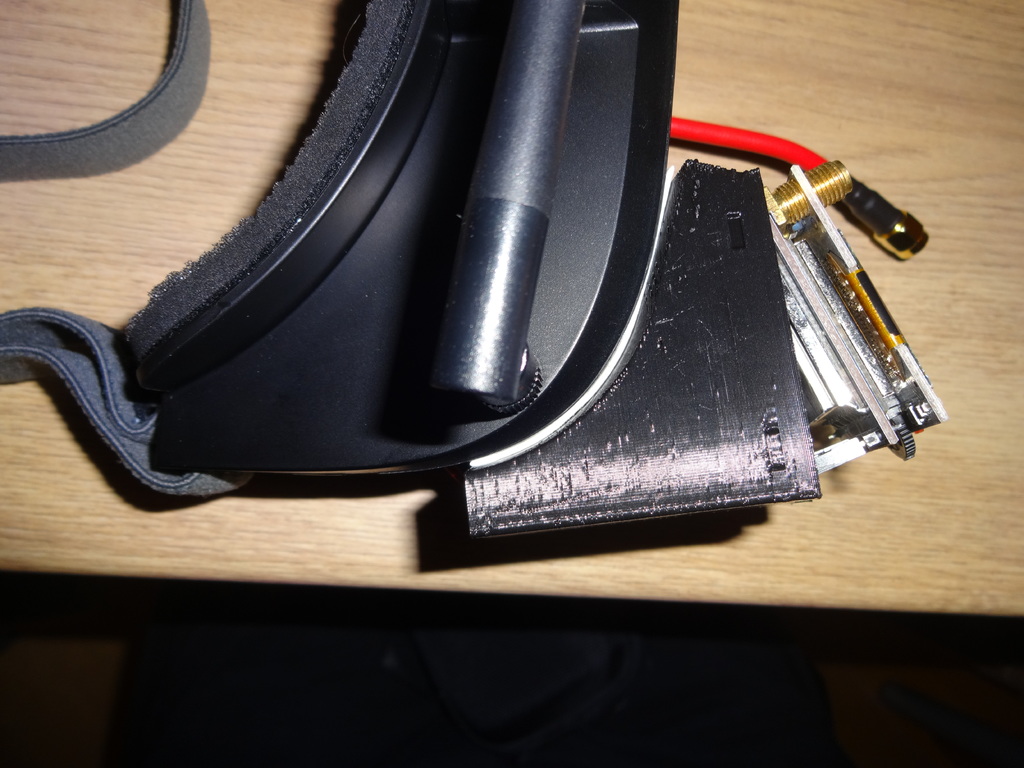

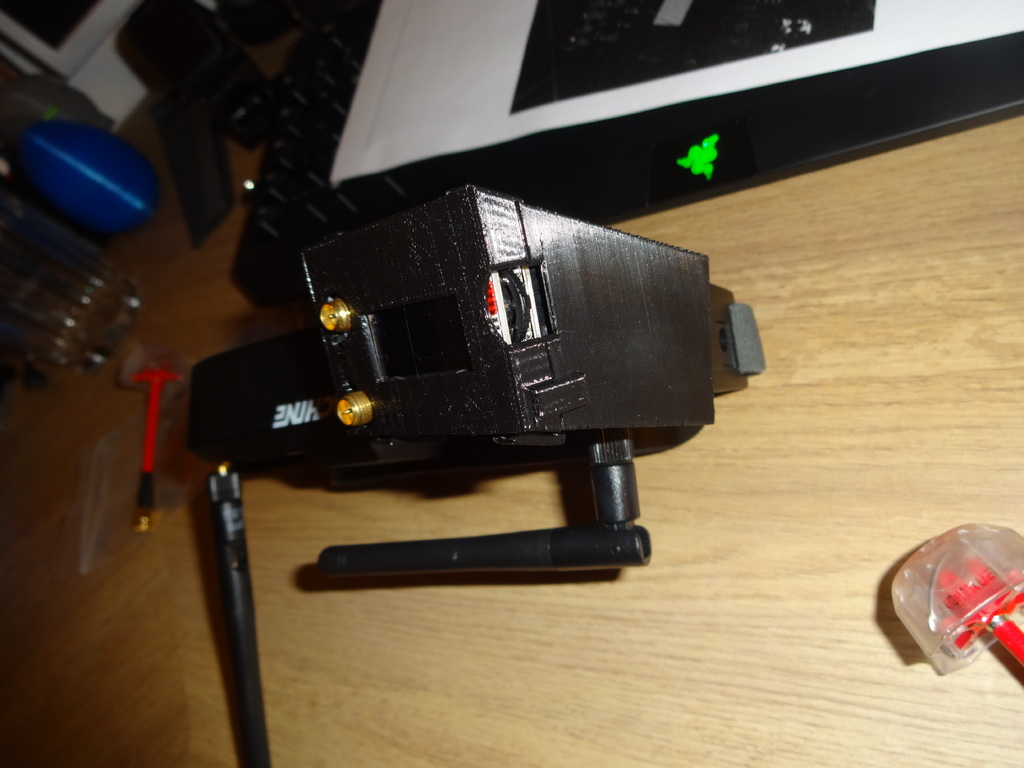

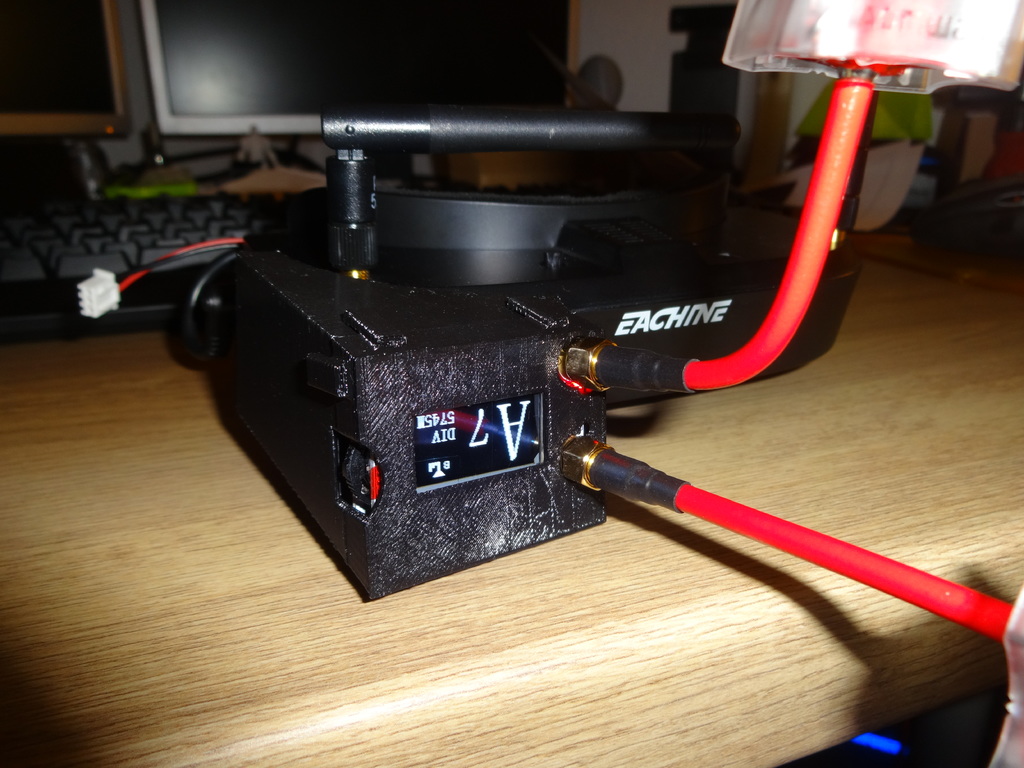

The receiver is upside down but for me it doesn't matter and so you can control it from the right side and the cables can be attached easier.

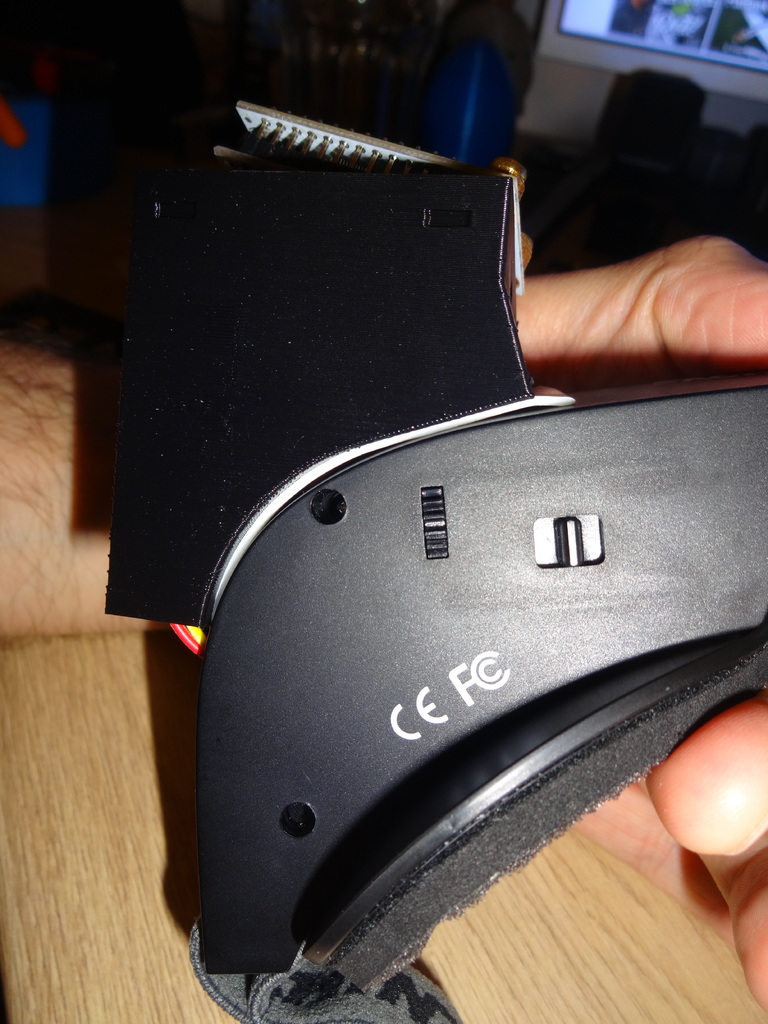

I fixed the case with Tesa Powerbond Ultra Strong, which seem to do the job.

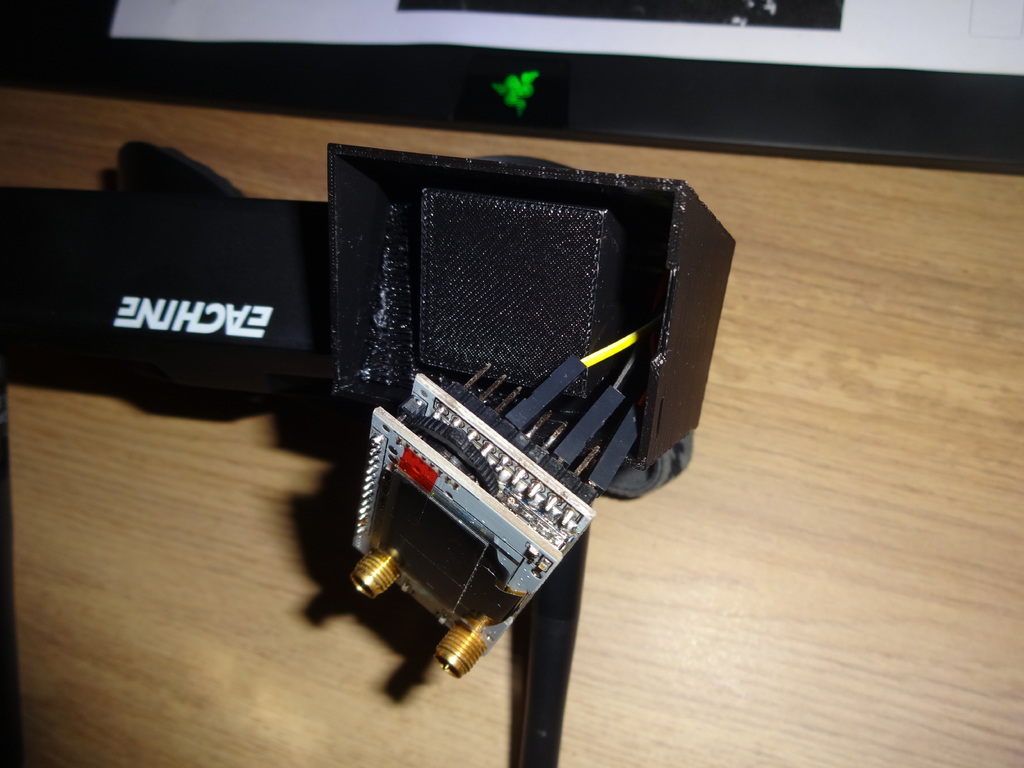

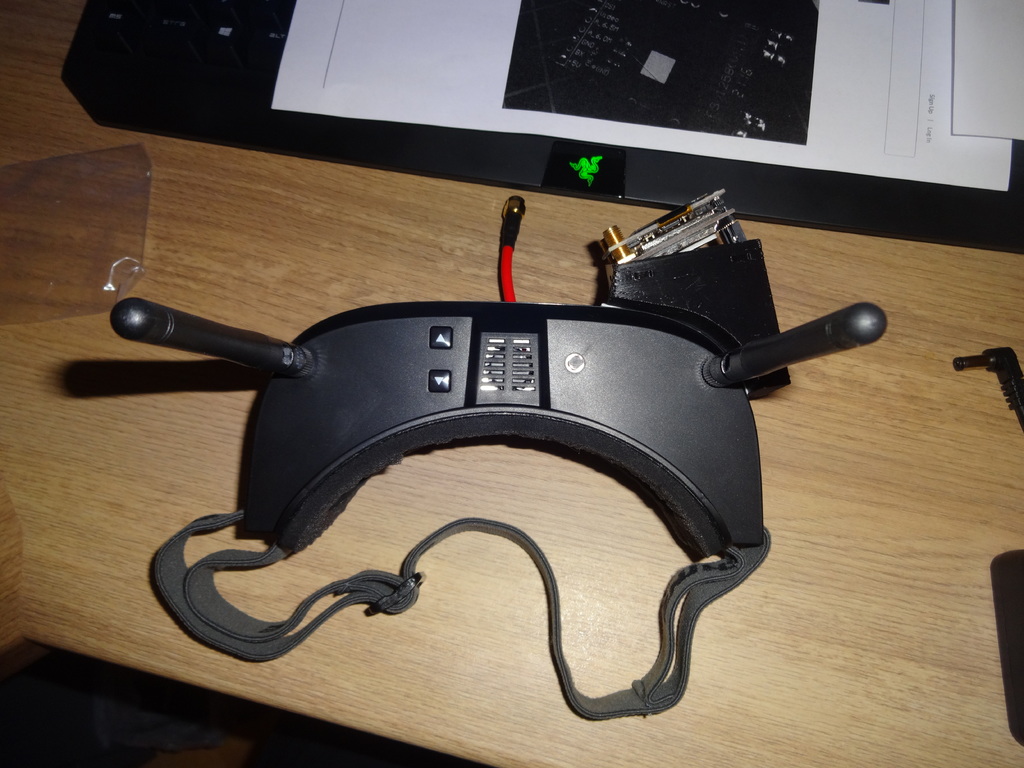

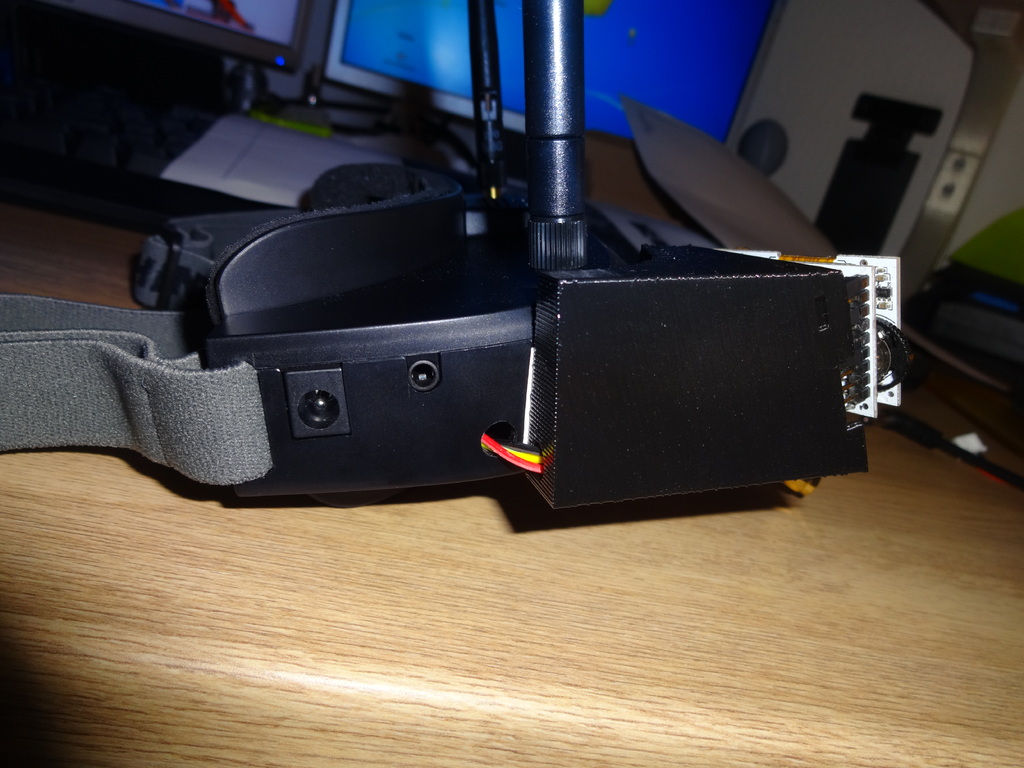

I only drilled a hole to get the cables from the FPV google into the receiver case.

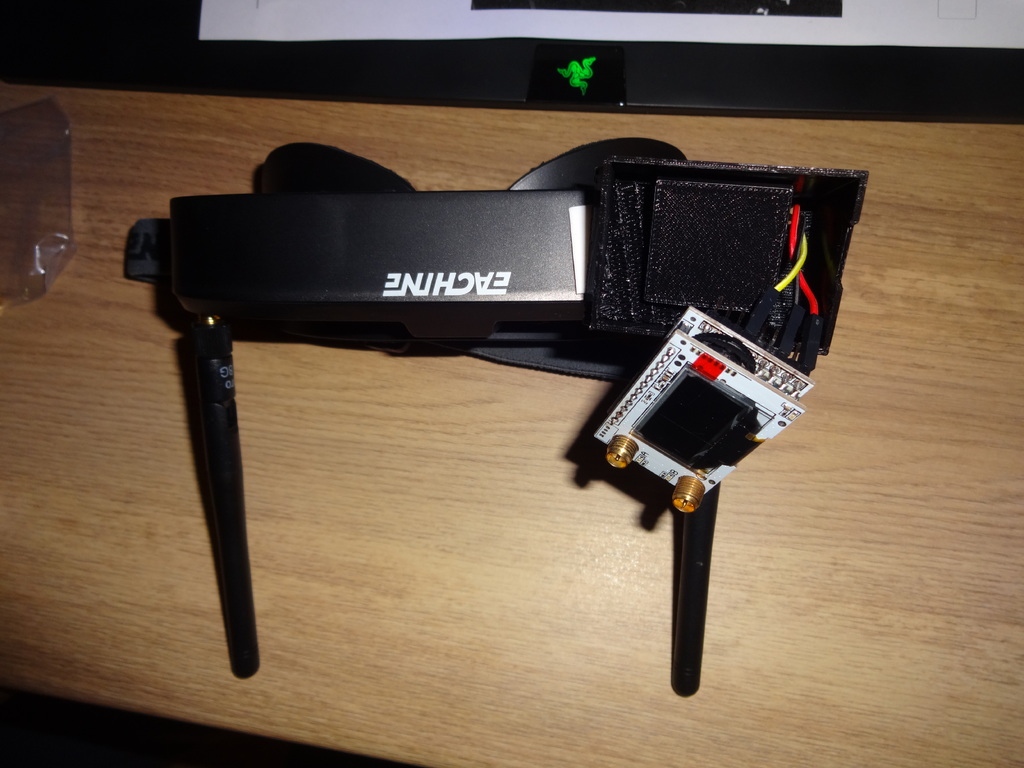

You have to be sure that your cables are long enough to get connected to the receiver.

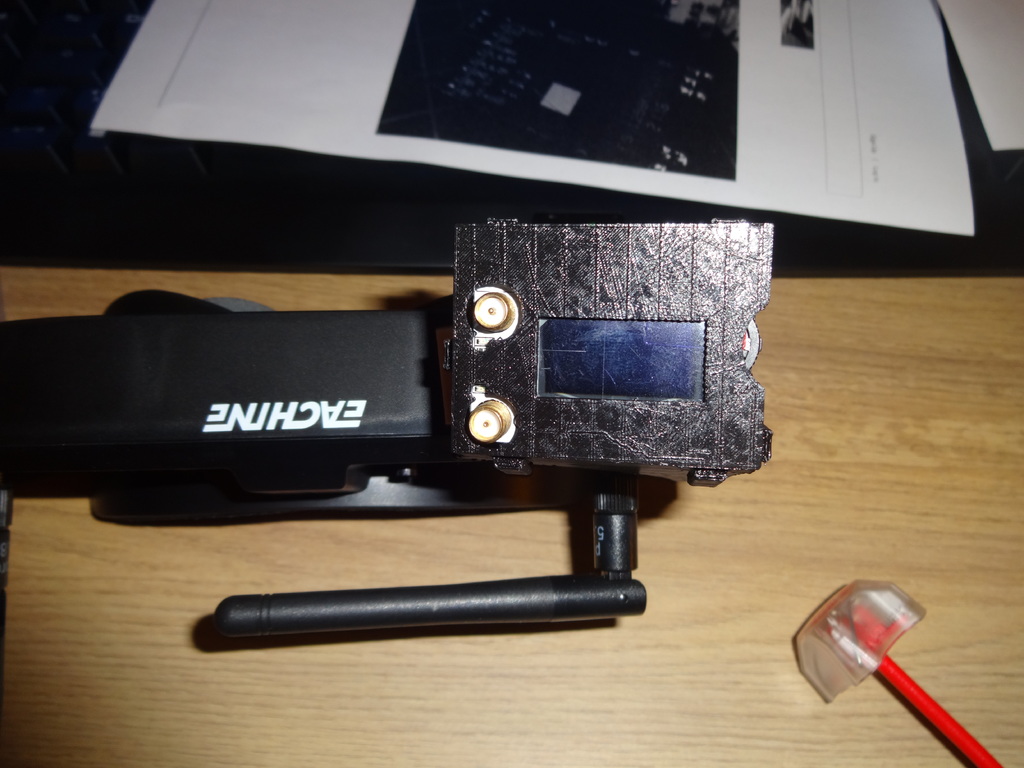

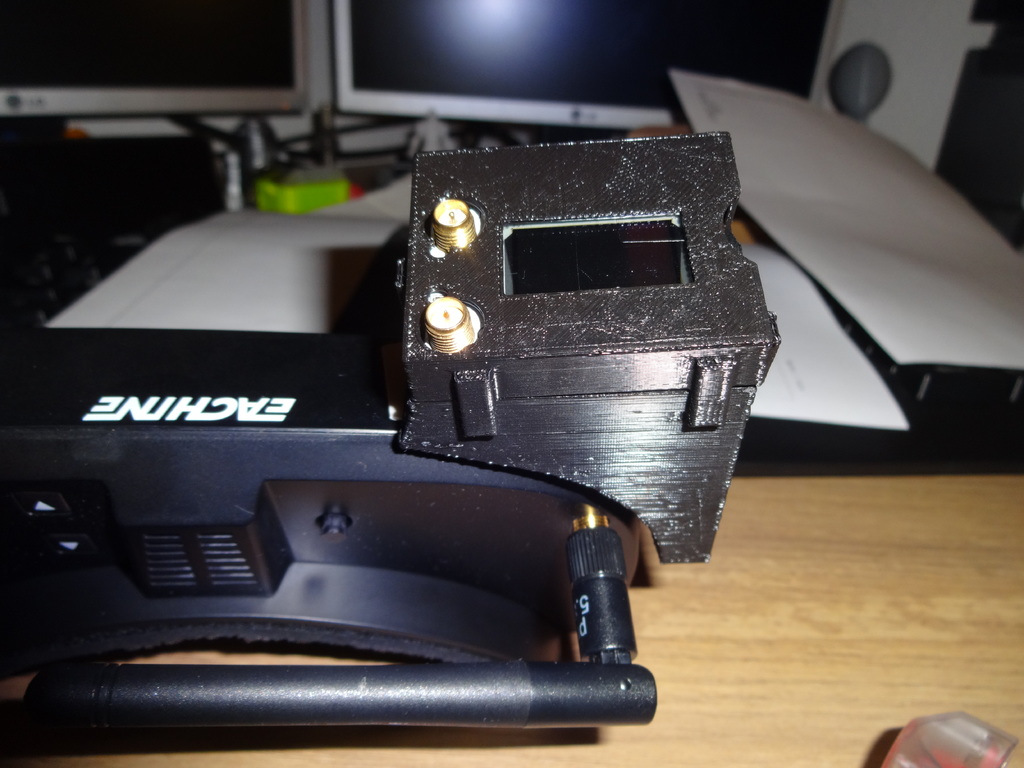

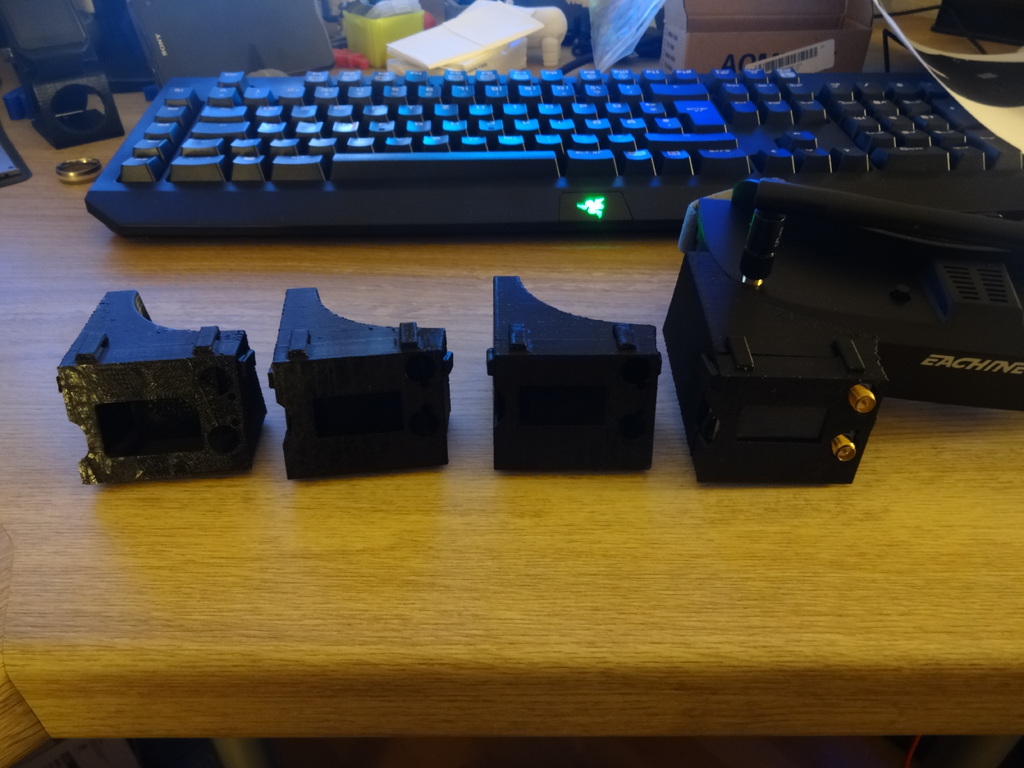

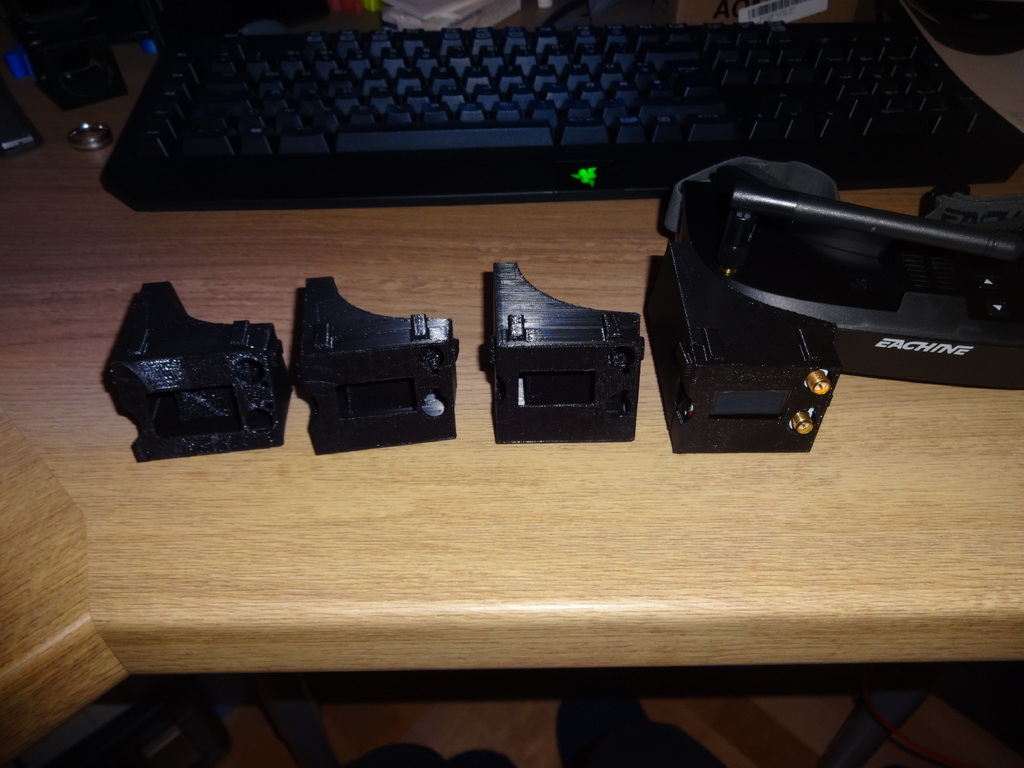

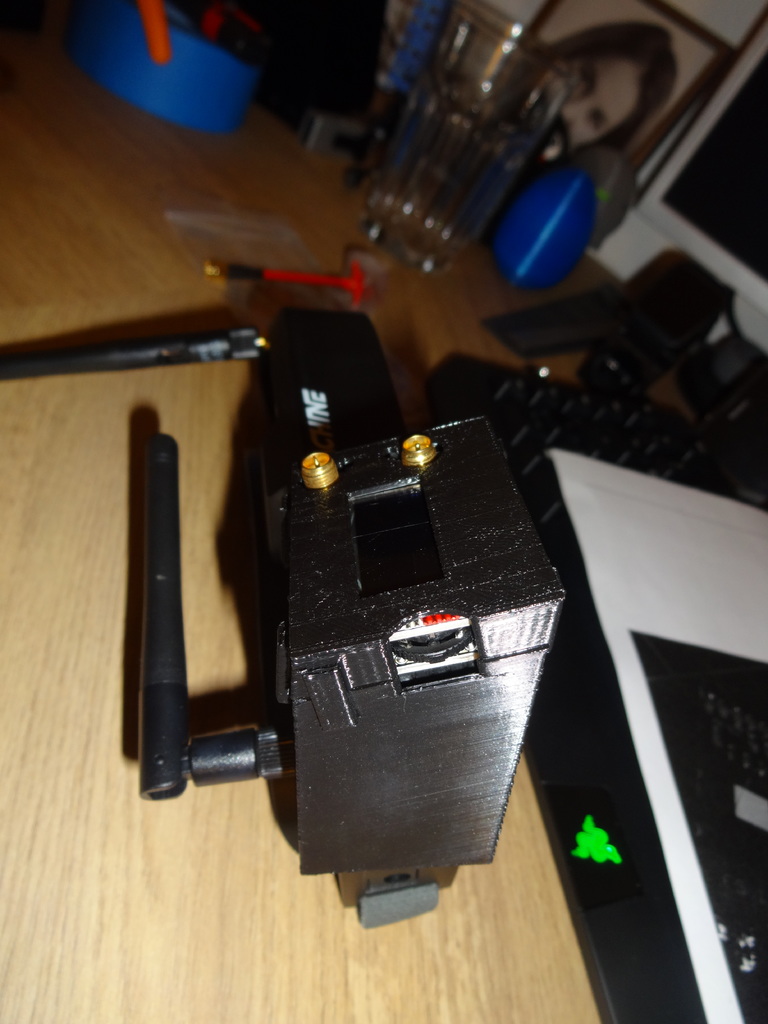

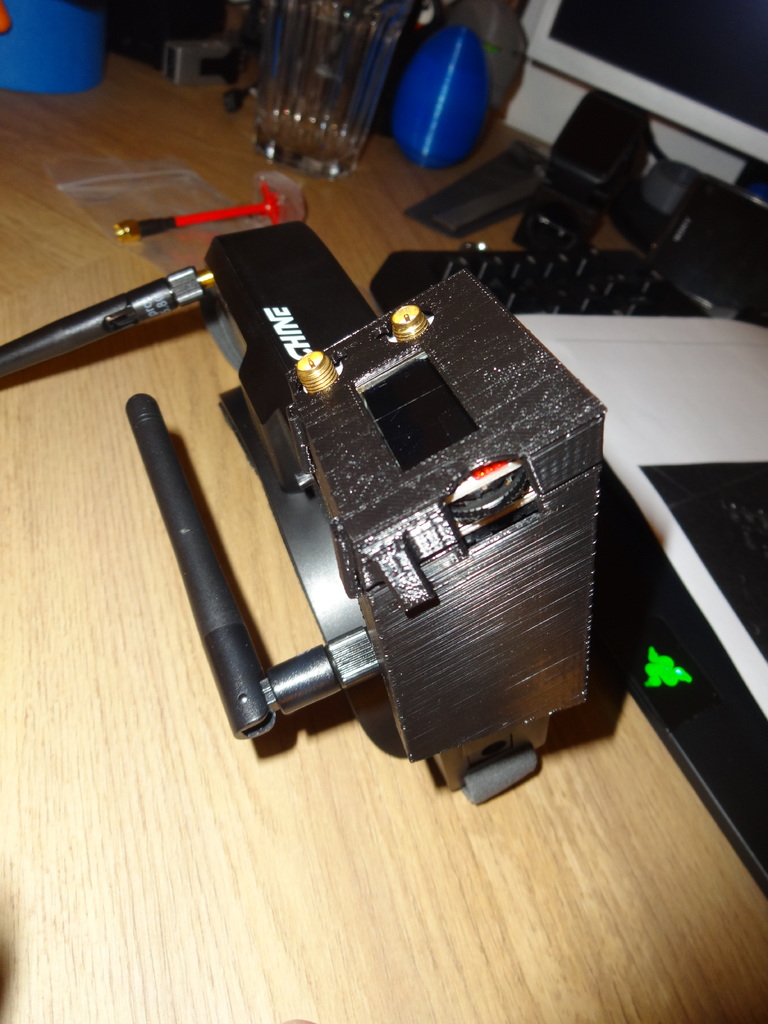

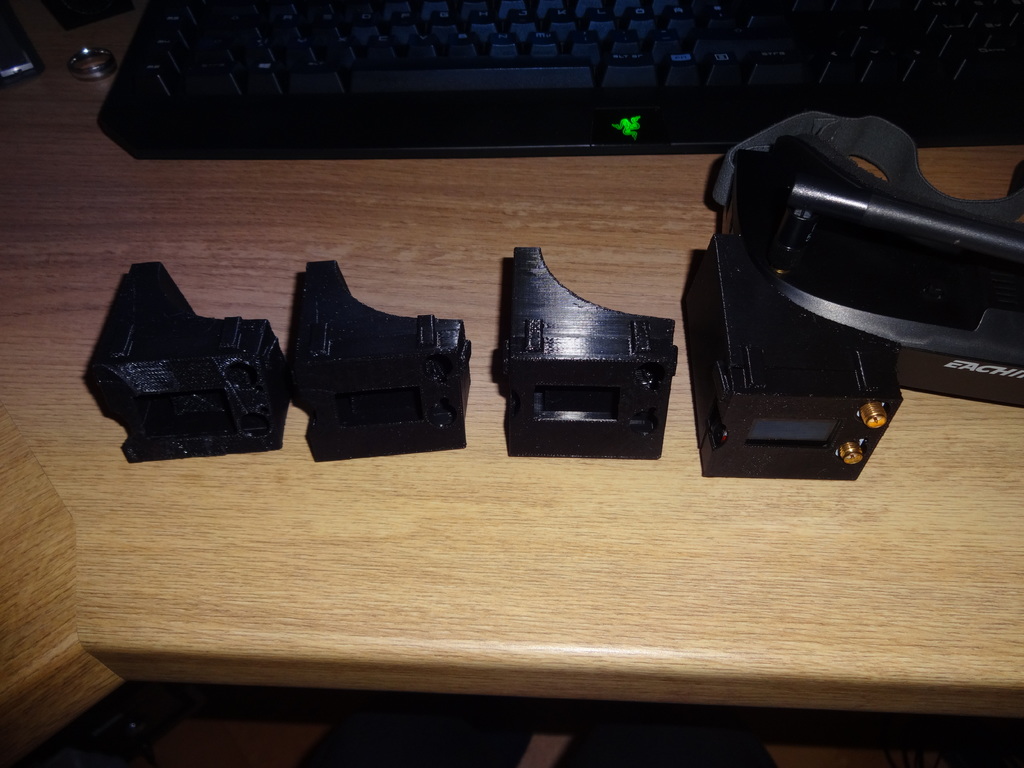

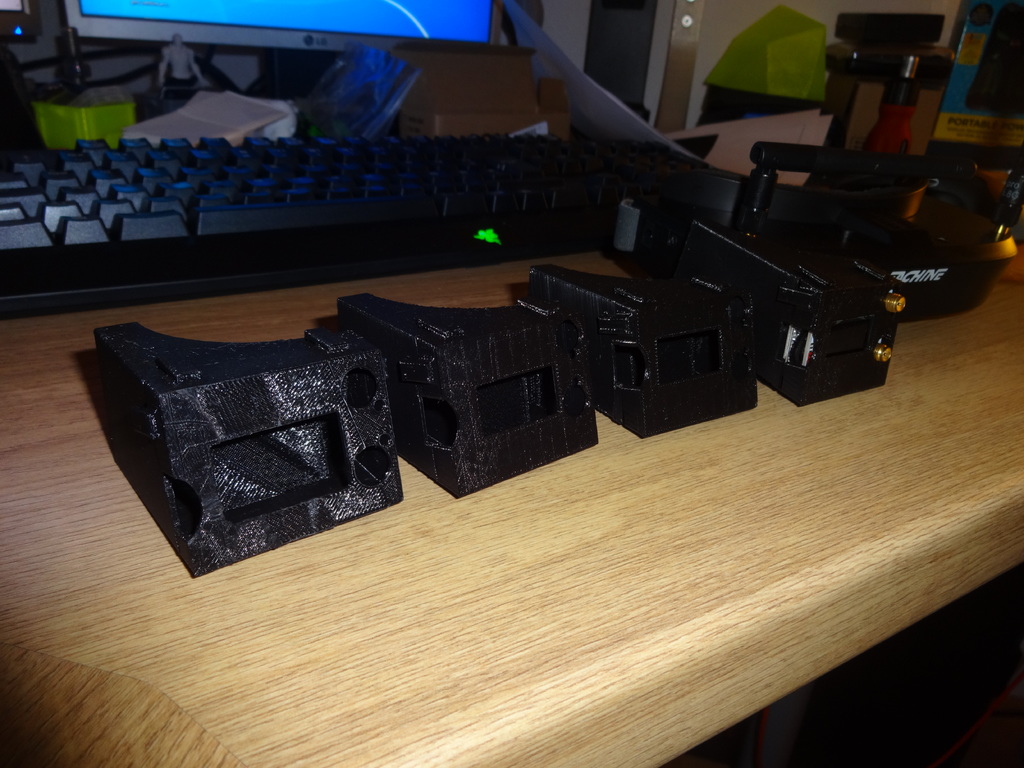

It took me 6 iterations to get the curve of the google good enough and to have the holes at the right position for the antenna and control wheel.
Hope you like it.
Print Settings
Printer:
Cetus 3D
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
0.2 mm
Infill:
100 %
Notes:

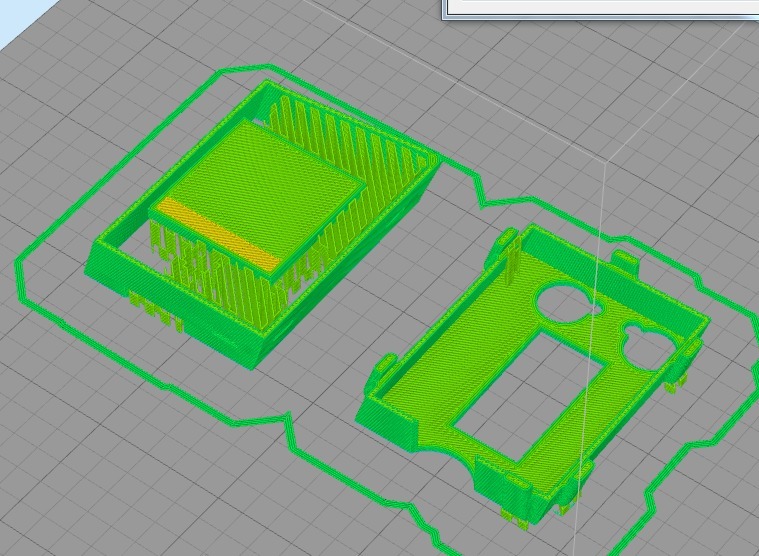

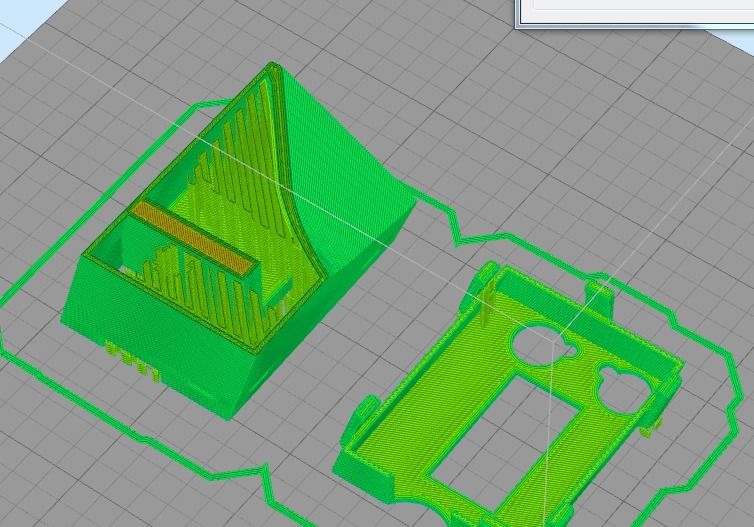

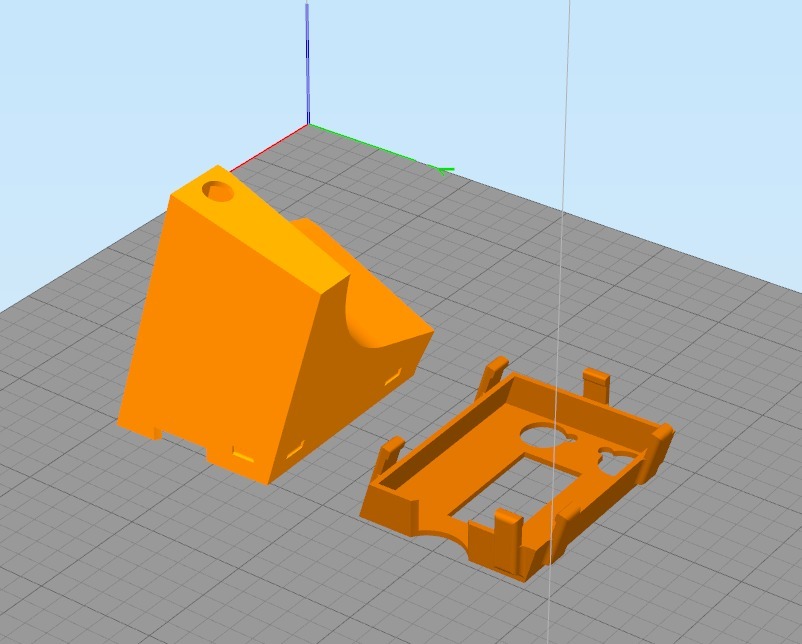

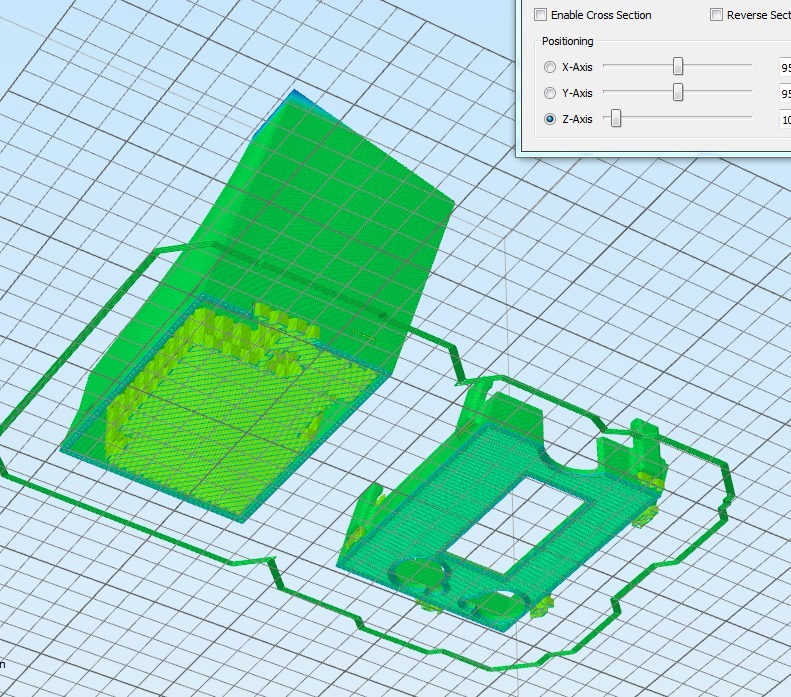

You only need support for the back of the case. Look at the pictures from the slicer.
Category: R/C Vehicles
