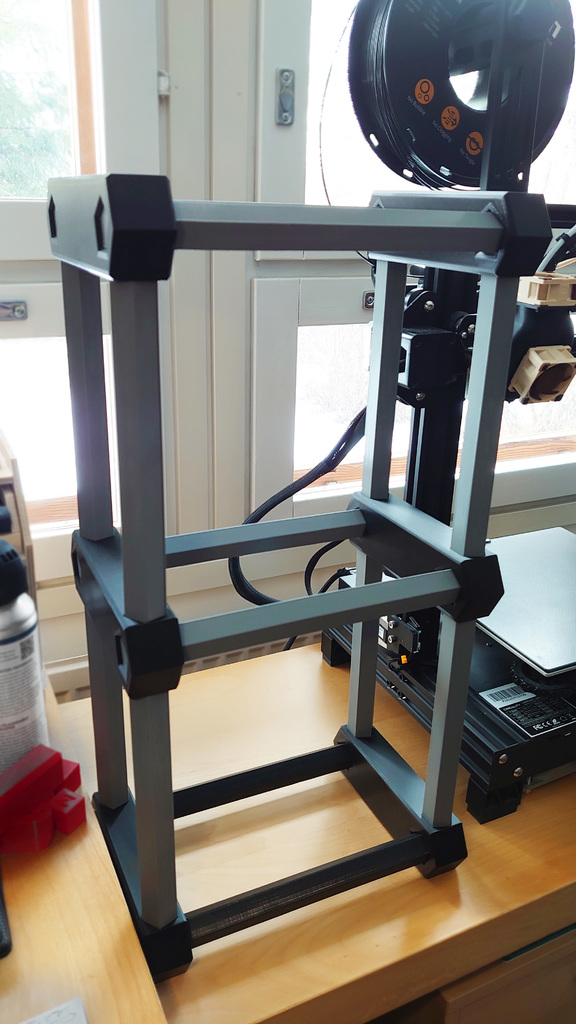

This is a fully printaple modular spool rack that can be extended upwards or sideways simply by printing more pieces as much as needed!

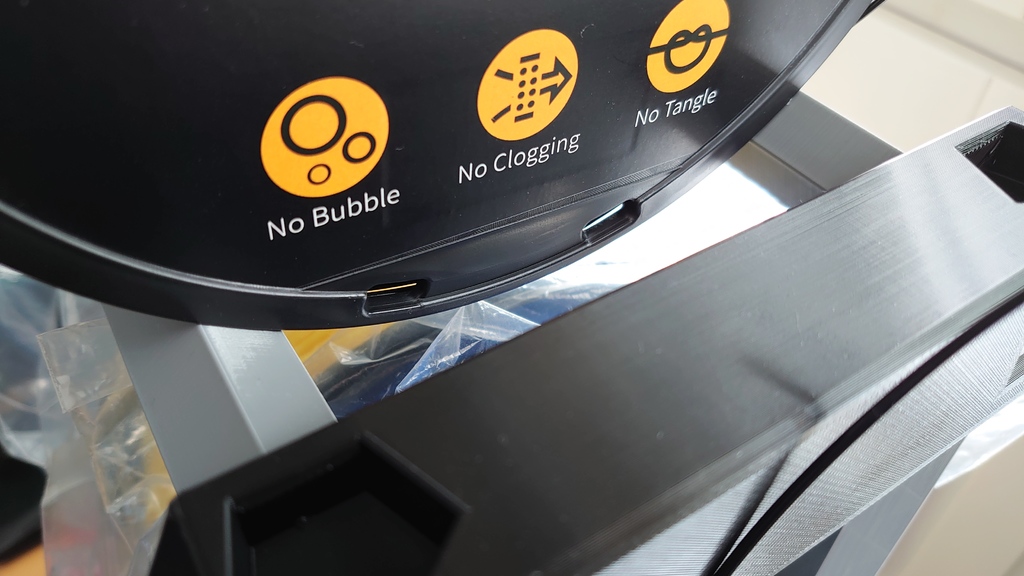

The spools sit nicely and can be taken in and out with ease.

Print Settings

Rafts:

Doesn't Matter

Supports:

No

Resolution:

0,2

Infill:

10% or more

Filament: Giantarm Any hard plastic


Notes:

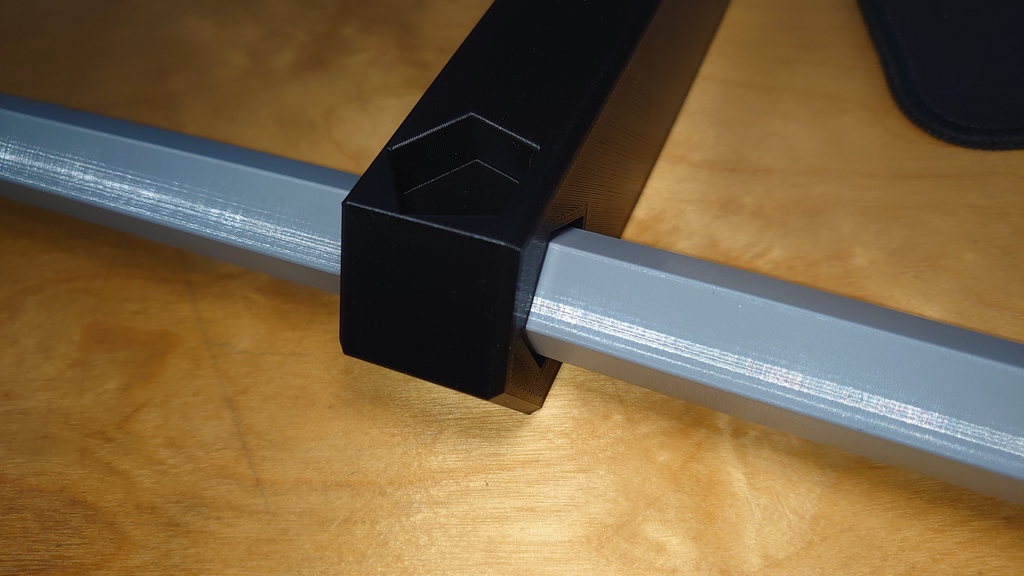

To keep the structure rigid the fitment of the poles is really snug, therefore any imperfection (for example "elephants foot") of the print might make the assembly of the parts quite hard so minor adjustments of the print or printer settings might be needed.

* If the assemly appears to be challenging the poles with chamfer should be easier to install.

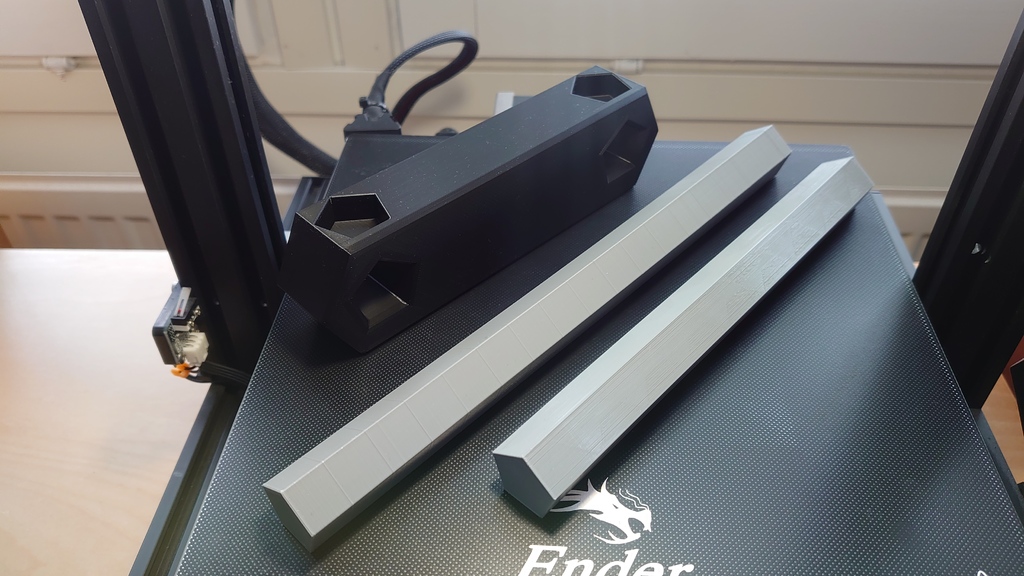

Print the frame parts so that the through holes are touching bed and the side polygons pointing upwards.

Edit 22.06.2023:
Added a frame file with notch to divide poles.
