This is remix of [https://www.thingiverse.com/thing:2999383](https://www.thingiverse.com/thing:2999383)

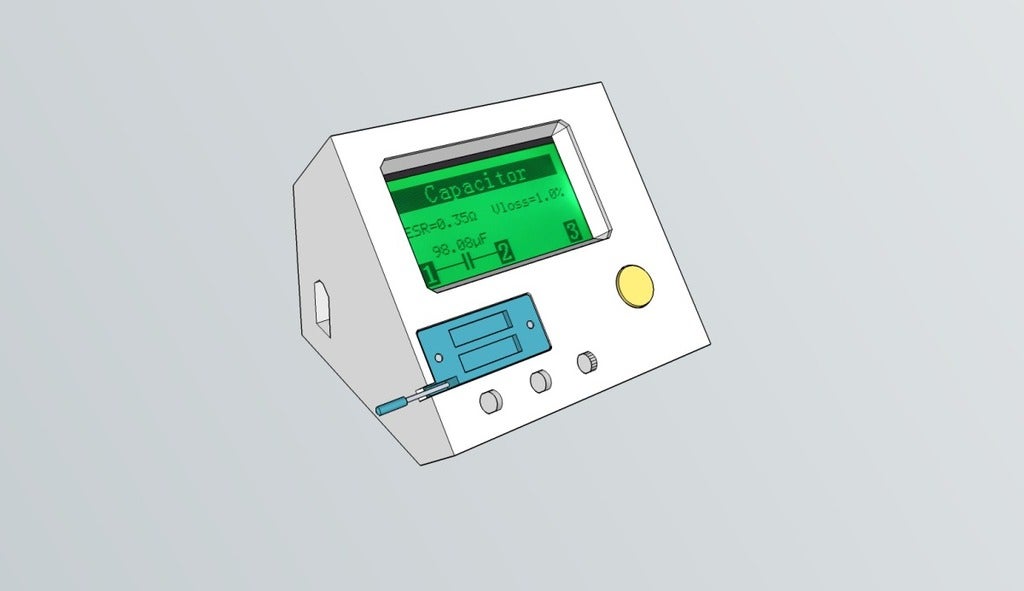

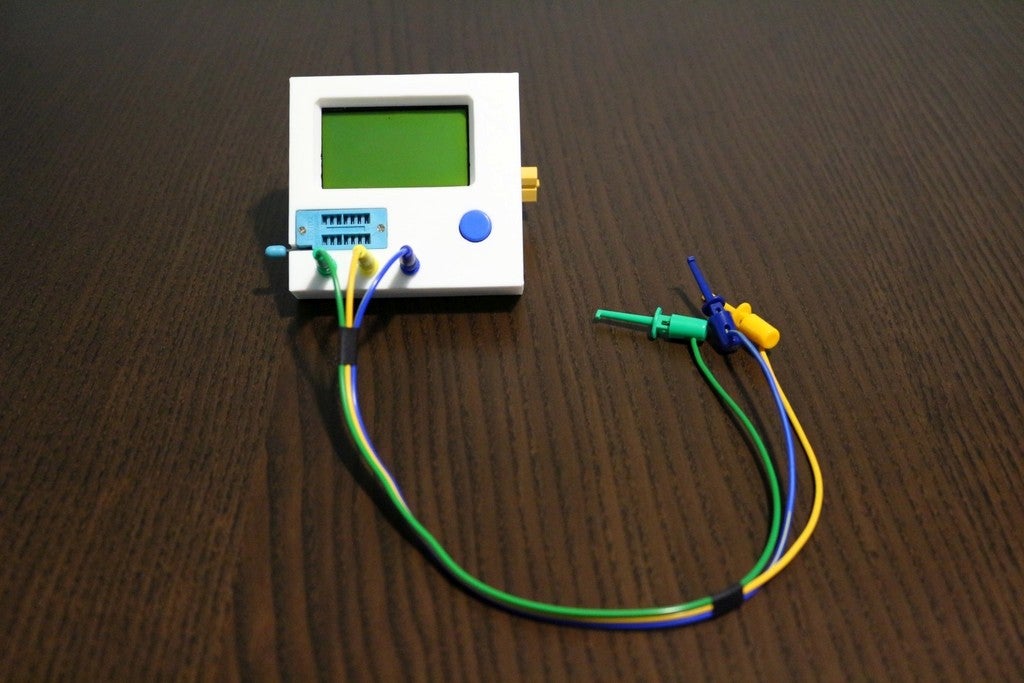

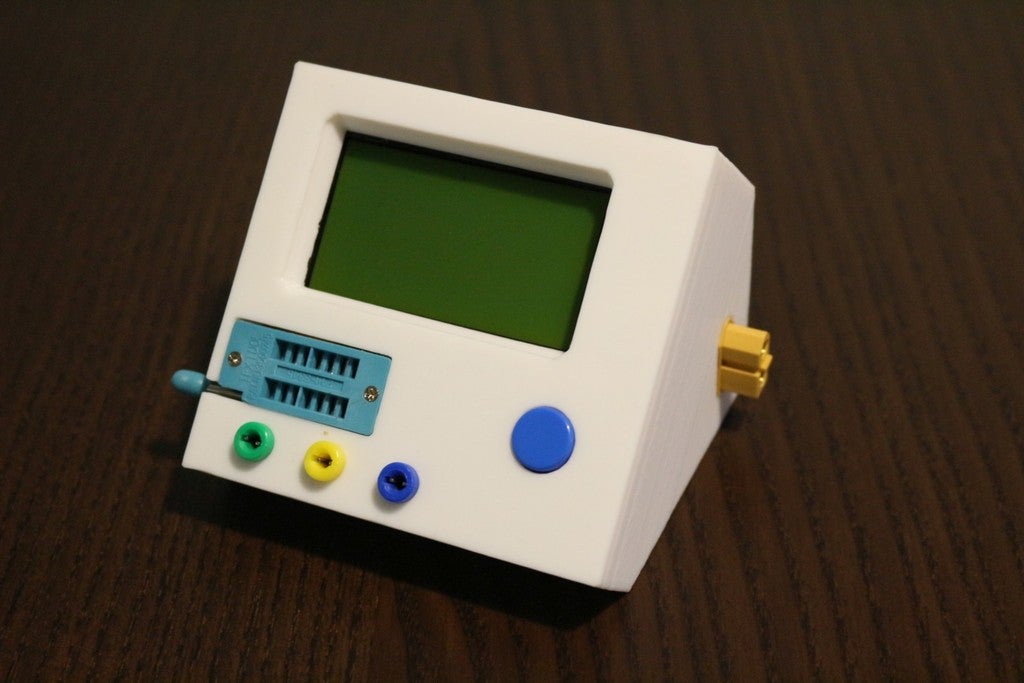

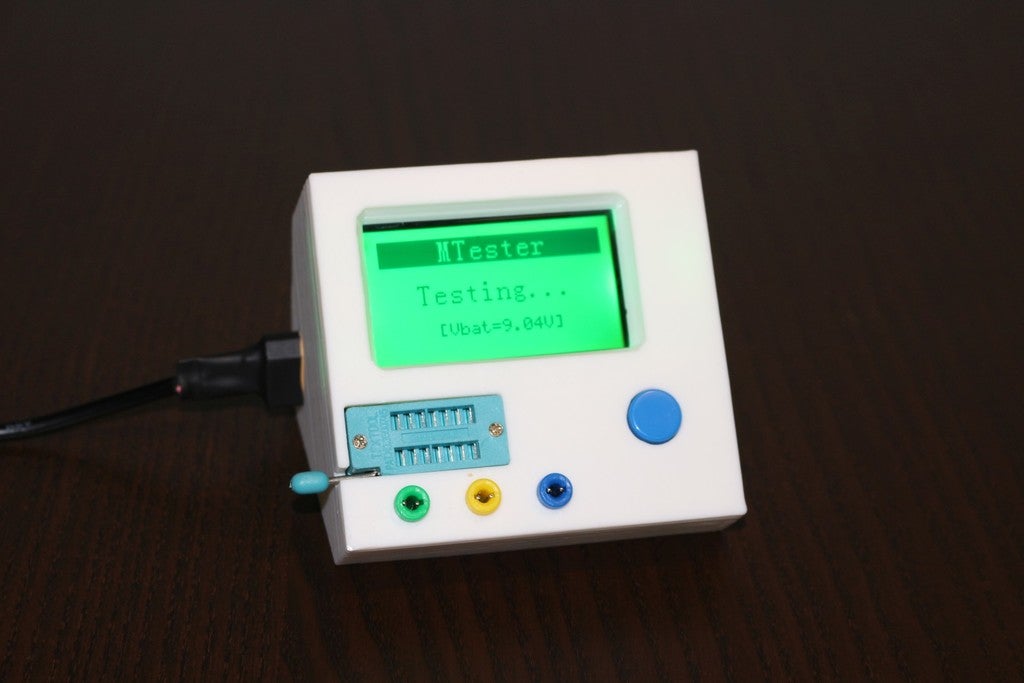

LCR tester model: LCR T4 (PCB dimension: 60mm x 72.6mm)

BoM:
1x LCR T4 tester PCB
4x 2.5x6mm screws (for PCB)
1x XT60 connector male
1x XT60 connector female
1x Vigan 24.102.4 - 2 mm diameter panel-mount socket GREEN (or similar type for 6 mm holes)
1x Vigan 24.102.3 - 2 mm diameter panel-mount socket YELLOW (or similar type for 6 mm
1x Vigan 24.102.5 - 2 mm diameter panel-mount socket BLUE (or similar type for 6 mm holes)

Optional
1x 78L09 voltage regulator
1x 100nF capacitor

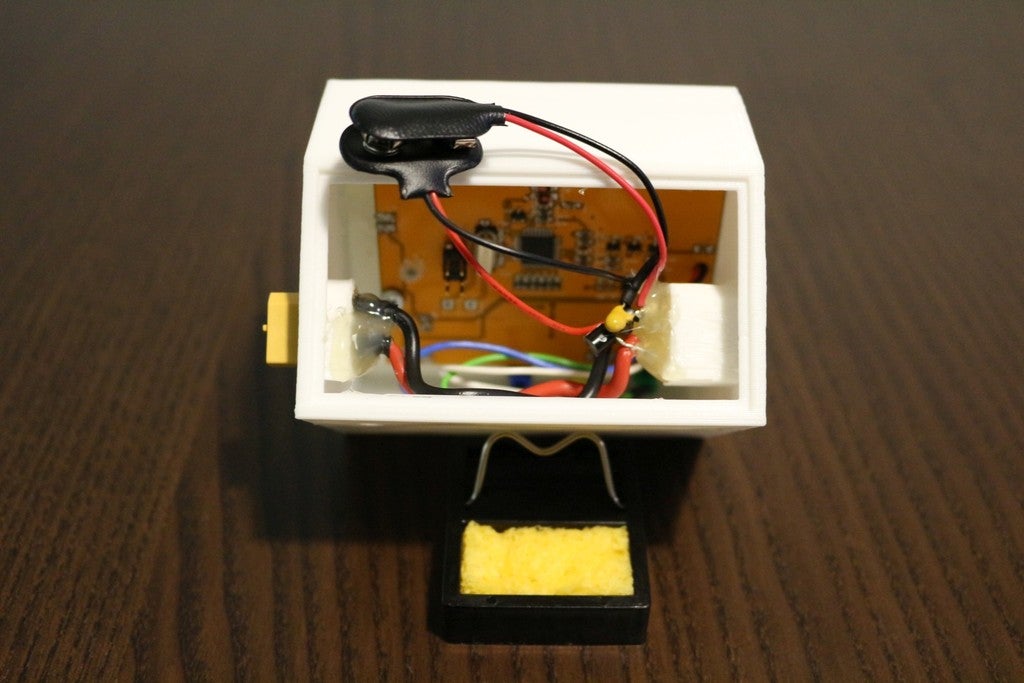

1x 9V battery clip

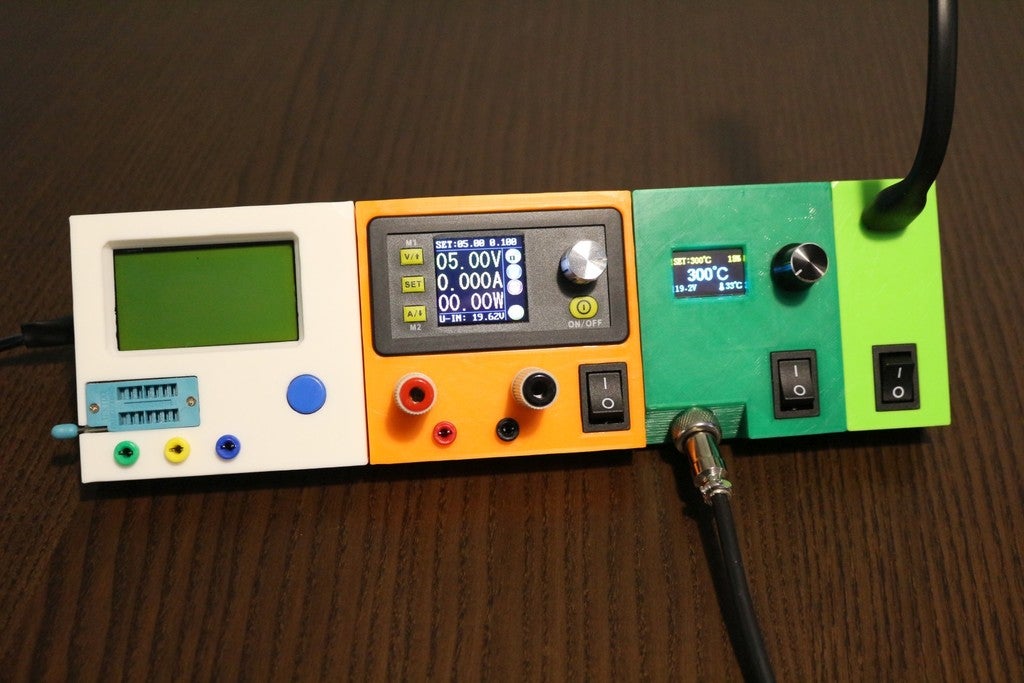

Other modules:
Tiny e-Lab T12 OLED soldering station
Tiny e-Lab Power supply

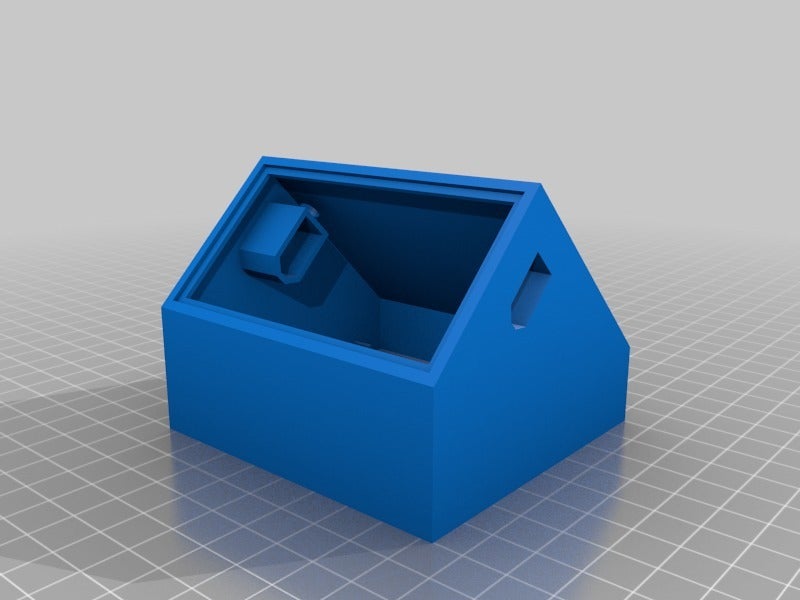

Print instructions

Rafts: No

Supports: Yes

Resolution: 0.3

Infill: 25%

Filament: Gembird PLA White
