Gridfinity box/container generator. This is an ongoing project, with new features and box types being added over time. Right now it can make:

• Simple containers of any dimension.
• Containers with a hole/insert/bore to house an item.

Options include:

• Holes in the base for a magnet or screw, either in the corners or all over.
• Alternately, a slide-in magnet hole in the corners of the boxes.
• A stacking lip atop the walls.
• Dividers, count and height independant of the gridfinity dimensions.

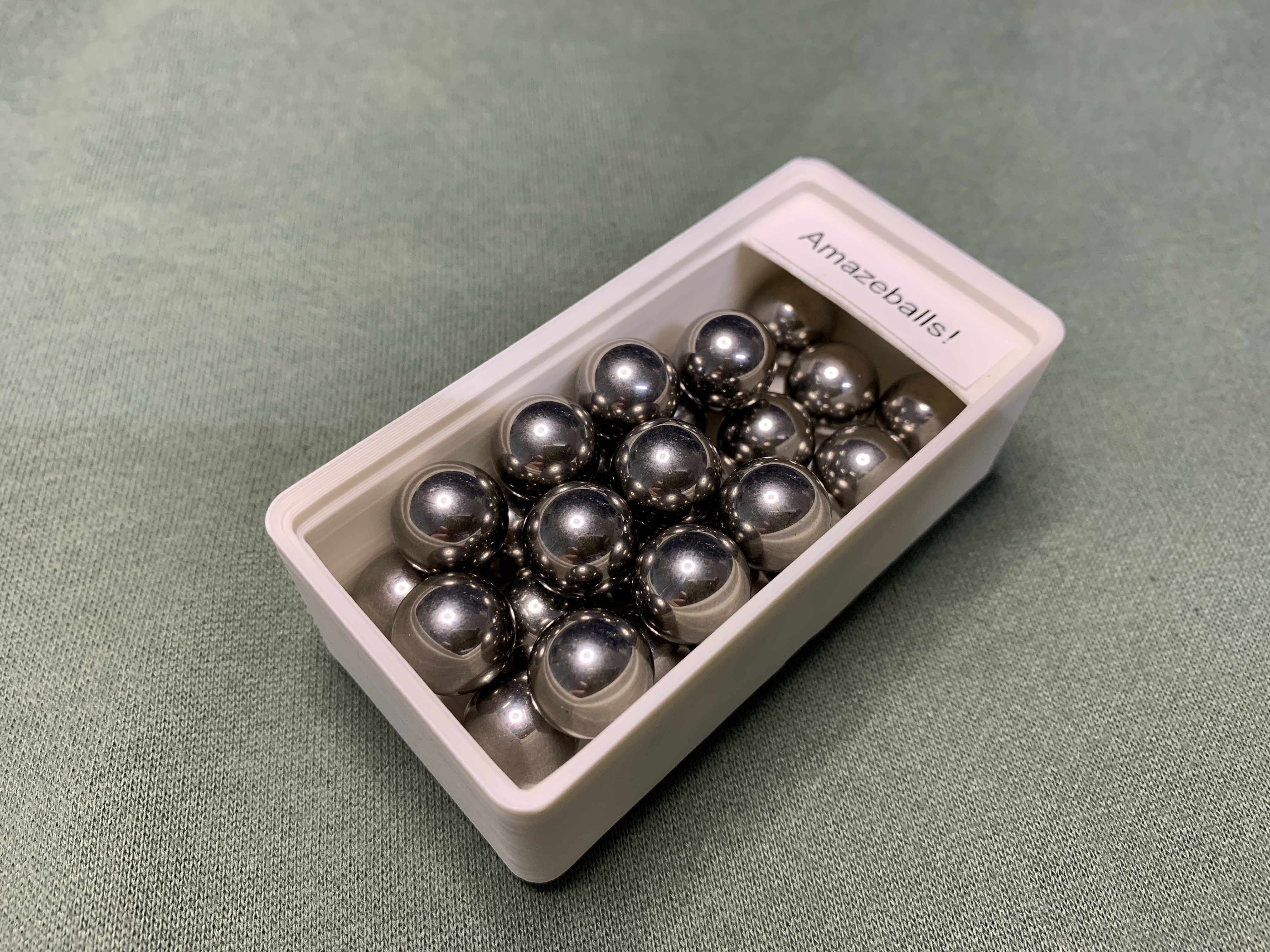

• Labelling tabs

See a list of proposed features. Requests are happily accepted.

The project is being shared at GitHub. You can grab this project here, or from GitHub.

Current and past releases will always be available. Printables.com will have the latest release. Semantic versioning will be used; if you wrote custom code against v1.0, you can update to any v1.x, but updating to v2.0 will likely require a rewrite.

Detailed documentation is at the GitHub site, starting with the README.md. There's some documentation embedded in the scad files, too, which will be enough in many cases.

I'd like to acknowledge an existing OpenSCAD generator by Jamie. This project is not a remix of that, but rather a “clean-room” implementation. The specifications and base-plate that was used for testing dimensions are here.
