Simple Caliper mount inspired by [https://www.thingiverse.com/thing:3691708](https://www.thingiverse.com/thing:3691708) from agryson.

Should fit a wide range of calipers, but if yours doesn't fit you can adjust the uploaded Fusion 360 file.

It's designed to mount on a peg board with 15mm spacing.

I used M3 brass inserts to screw it in from the back of the peg board.
[M3x4mmx4mm]:

And to make your caliper stick without wiggeling you can insert magnets from the back of the mount.
There are holes for different magnet diameters. Ø8mm Ø10mm Ø12.8mm

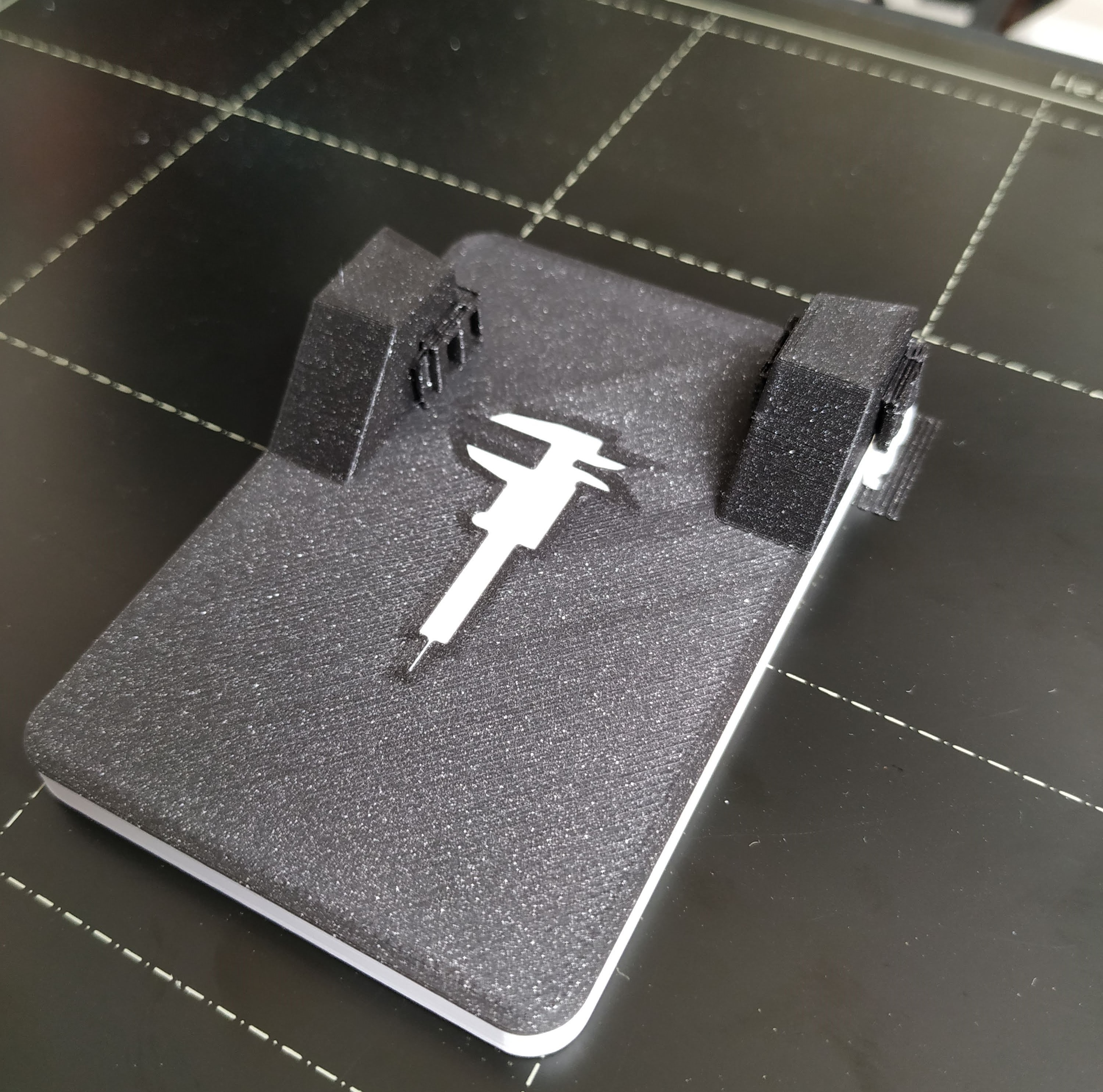

I recommend printing the part with multiple colors with the filament swap technique. If you don't know how its done: [https://blog.prusaprinters.org/color-print/](https://blog.prusaprinters.org/color-print/)

Please share your prints ;)

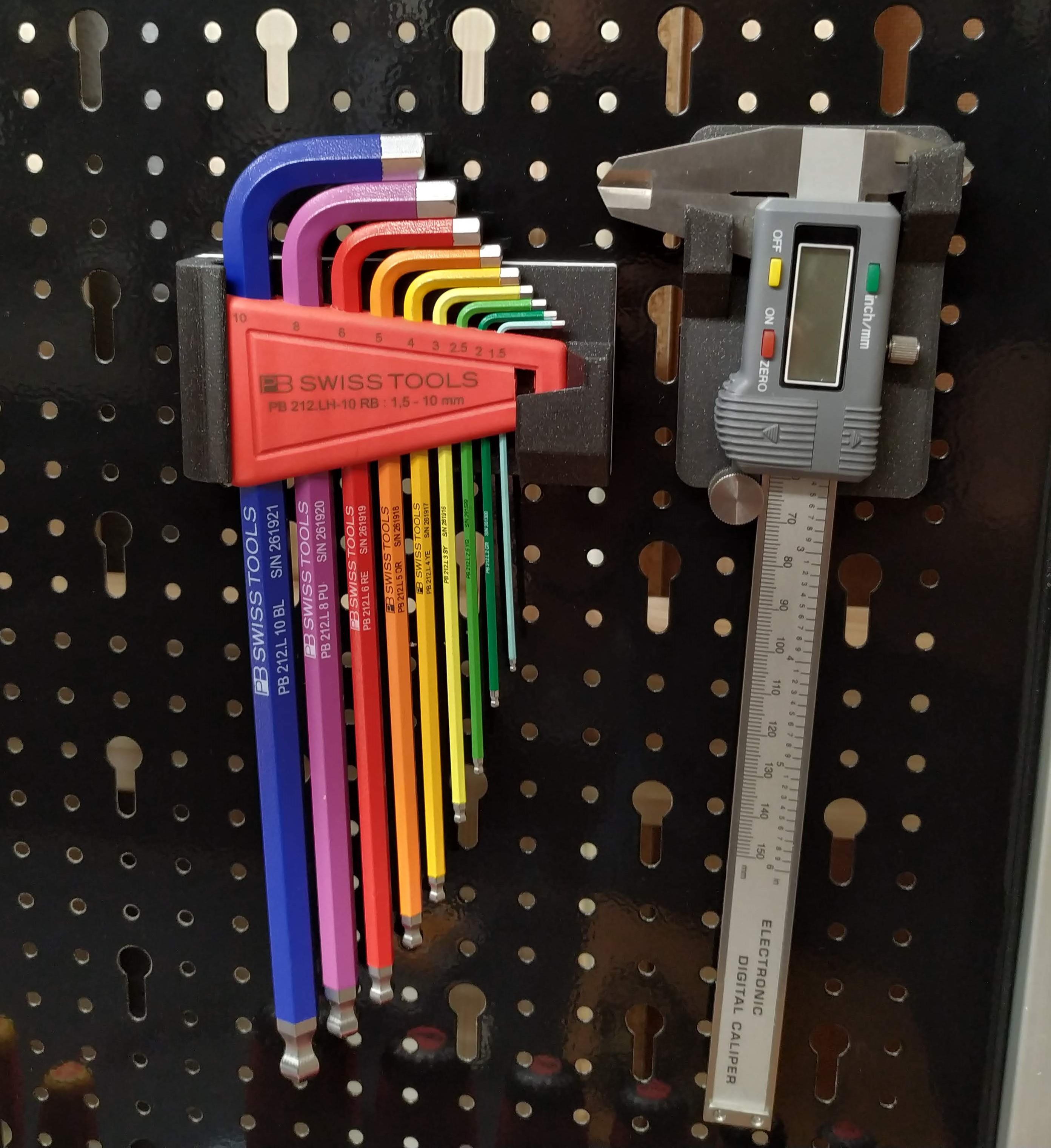

The inbus tool mount you see on the last picture is also designed by me:
[https://www.prusaprinters.org/prints/14517-pb-swiss-tools-inbus-set-mount](https://www.prusaprinters.org/prints/14517-pb-swiss-tools-inbus-set-mount)

Edit V1.1
Added a version with 3mm countersunk holes to mount it to a wall

Print instructions

Make sure to enable supports on the hooks!
