Modelo 3D Windows Locker por B Dudu no Printables

Descrição

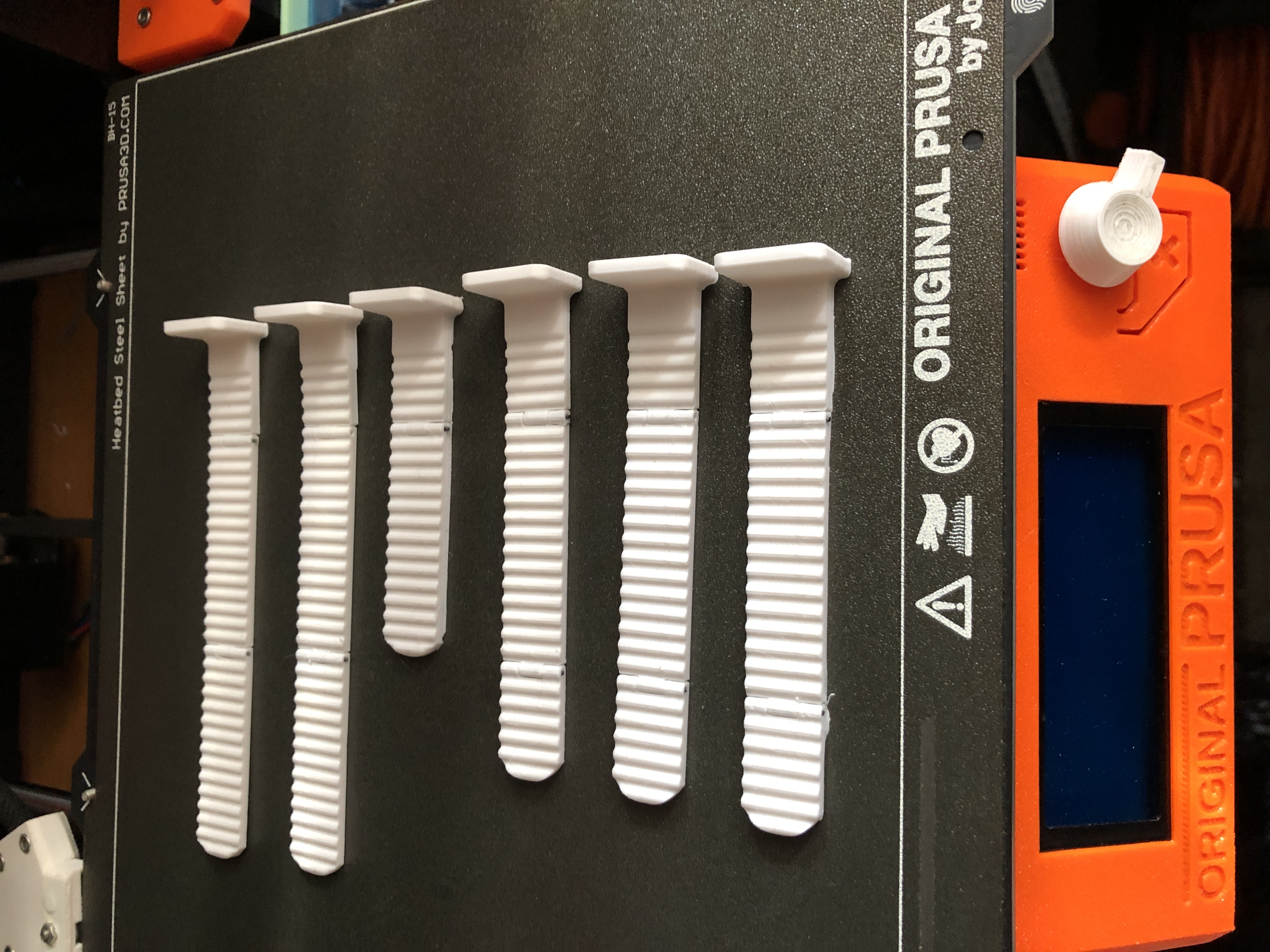

Here is a small assembly that allows keeping opened a window with a closure type handle PVC espagnolette. 7x7mm maneuvering shaft and screw fixing between 43 mm axles.

The idea is to move the handle block to slide the opening along the ribbon, then lock again to block the opening.

A 1/4 turn rotation of the handle locks or unblocks the ribbon thanks to the eccentric, which slides the bolt.





CAUTION: This system does not guarantee tamper-proof blocking. Well, or the opposite, it is designed to be forced and reusable later.

Printables

Windows Locker

Publicado em 8 de abr de 2023

18
Curtidas
51
Downloads
1
Impressões
Categoria Accessories
Tags
window lock
Licença Creative Commons — Public Domain
Arquivos (9)
window locker.f3d 311.2 KB
Excentric.stl 65.6 KB
holder.stl 198.5 KB
bolt.stl 175.3 KB
Ribbon_flex.stl 1.9 MB
Mail S long.stl 203.3 KB
Mail E.stl 208.4 KB
Mail long.stl 239 KB
Mail long end.stl 488 KB
