Descrição
I have created an even better version 2 of this filter which is backwards compatible with the V1 hole placement. Check it out here: [https://www.printables.com/model/788572-ultimate-3d-printer-enclosure-filter-v2](https://www.printables.com/model/788572-ultimate-3d-printer-enclosure-filter-v2)

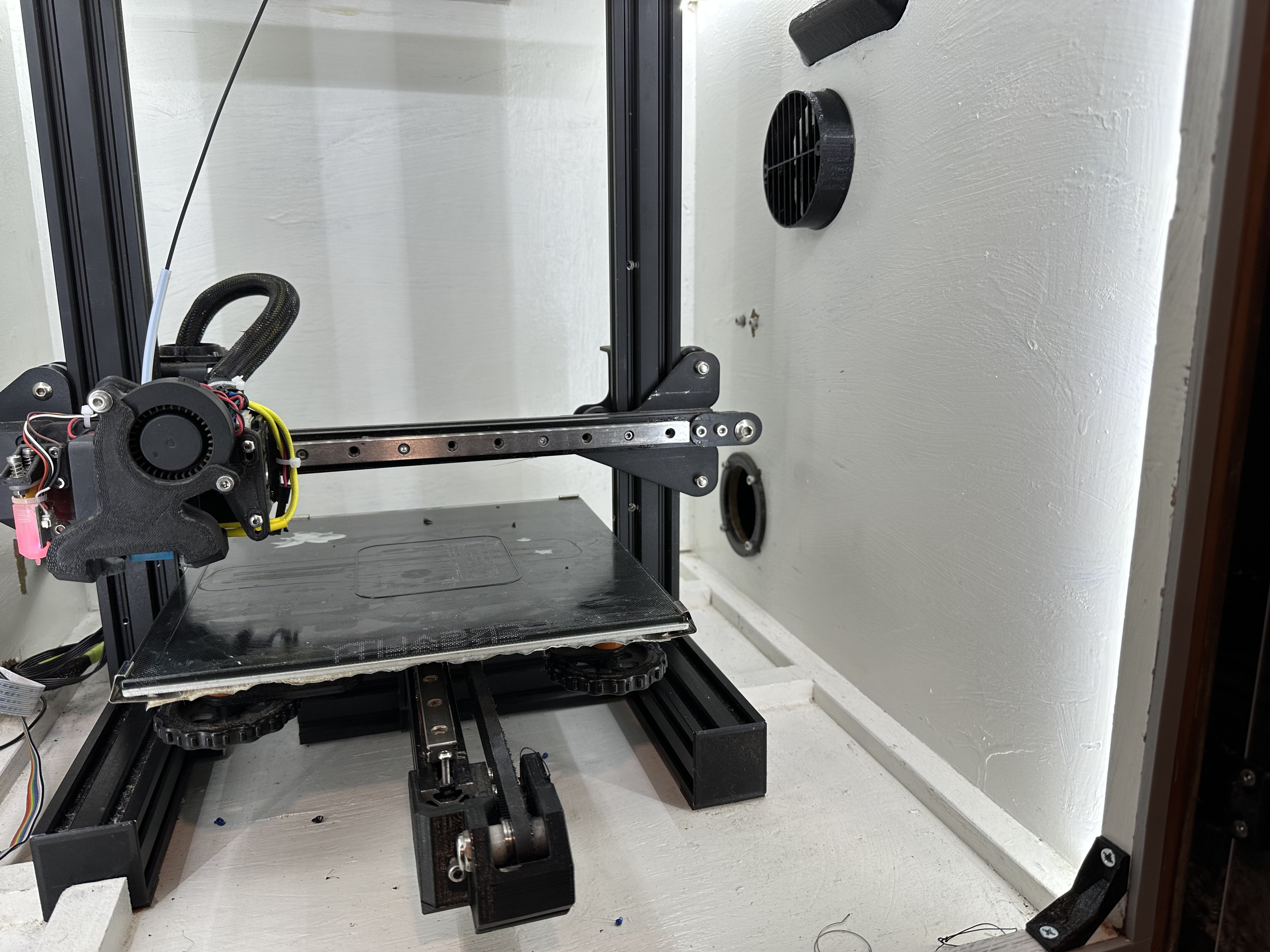

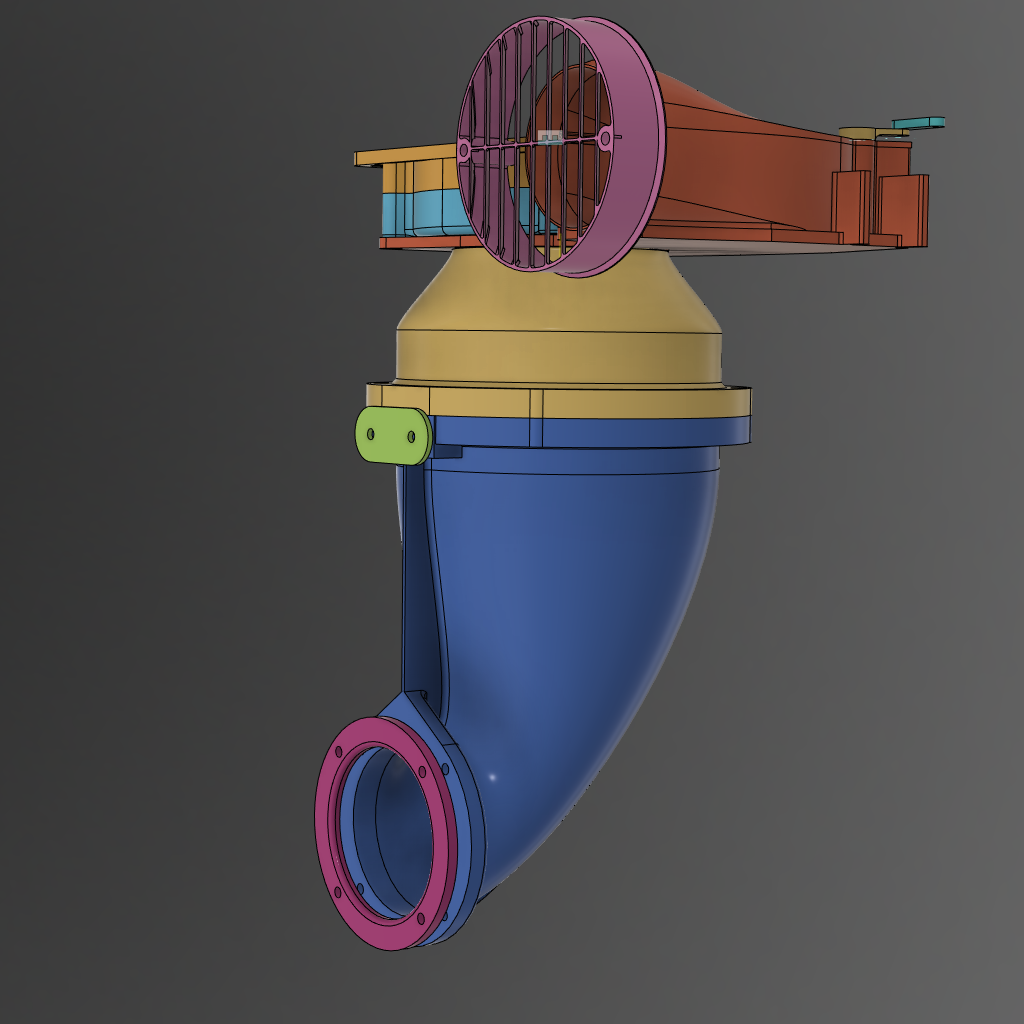

I wanted to build a filter for my 3d printer enclosure that allowed for a large activated charcoal chamber, negative pressure to ensure an toxic VOC's would not be able to escape, and I wanted to integrate it eventually with the enclosure's temperature control.
I printed all of my parts out of PETG. Material choice is based on the temperature your enclosure will reach.
Items needed to build this filter:
- 120mm Blower Style Fan [https://www.amazon.com/dp/B08Q3Q2354?ref=ppx_yo2ov_dt_b_product_details&th=1](https://www.amazon.com/dp/B08Q3Q2354?ref=ppx_yo2ov_dt_b_product_details&th=1)
- Hoover Vacuum HEPA Filter (Hoover 440003905) [https://www.amazon.com/dp/B09PNF6VY3?psc=1&ref=ppx_yo2ov_dt_b_product_details](https://www.amazon.com/dp/B09PNF6VY3?psc=1&ref=ppx_yo2ov_dt_b_product_details)
- Activated Charcoal [https://www.amazon.com/dp/B0002566WO?psc=1&ref=ppx_yo2ov_dt_b_product_details](https://www.amazon.com/dp/B0002566WO?psc=1&ref=ppx_yo2ov_dt_b_product_details)
- Heatset Threaded Inserts M4x15mm [https://www.amazon.com/Hilitchi-250-Pcs-Threaded-Embedment-Assortment/dp/B0784VYCYY/ref=sr_1_6?qid=1680896503&refinements=p_n_material_browse%3A17548933011&s=industrial&sr=1-6](https://www.amazon.com/Hilitchi-250-Pcs-Threaded-Embedment-Assortment/dp/B0784VYCYY/ref=sr_1_6?qid=1680896503&refinements=p_n_material_browse%3A17548933011&s=industrial&sr=1-6)
- Assorted M2/M3/M4/M5 Fasteners
- (Optional) SG90 or MG90 hobby servo to control the diverter valve. (This is if you want to use Octoprint or an Arduino to control the diverter valve. I haven't implemented this yet on my own setup).
Note: The top of the duct must be super glued onto the bottom half. This allows the top of the duct to be printed vertically without supports
Printables
3D Printer Enclosure Air Filter
Publicado em 9 de set de 2024
132
Curtidas
339
Downloads
1
Impressões
Categoria
Accessories
Licença
Creative Commons — Public Domain
Arquivos (27)
Enclosure Filter_Shop Infrastructure v97_Air Intake_1_Cover_1_Body1.stl
35.4 KB
Enclosure Filter_Shop Infrastructure v97_Filter Adaptor_1_Arm (1)_1_Body1.stl
64.5 KB
Enclosure Filter_Shop Infrastructure v97_Filter Adaptor_1_Servo Arm (2)_1_Body1.stl
24.9 KB
Enclosure Filter_Shop Infrastructure v97_FilterHousing_1_Sealing Ring.stl
89.5 KB
Enclosure Filter_Shop Infrastructure v97_Inlet_1_Body2.stl
292 KB
Enclosure Filter_Shop Infrastructure v97_Filter Adaptor_1_Body25.stl
59.3 KB
Enclosure Filter_Shop Infrastructure v97_Filter Adaptor_1_Flap_1_Body1.stl
69.5 KB
Enclosure Filter_Shop Infrastructure v97_Filter Adaptor_1_Body24.stl
1.5 MB
Enclosure Filter_Shop Infrastructure v97_Exhaust_1_Body1.stl
992.2 KB
Enclosure Filter_Shop Infrastructure v97_FilterHousing_1_Main Body.stl
4.2 MB
Enclosure Filter_Shop Infrastructure v97_Filter Adaptor_1_Body21.stl
2.2 MB
Enclosure Filter_Shop Infrastructure v97_Air Intake_1_Body3.stl
9.1 MB
Enclosure Filter_Shop Infrastructure v97_FilterHousing_1_Diffuser Entry Vane.stl
4.4 MB
Enclosure Air Filter.step
4.8 MB
Enclosure Filter_Shop Infrastructure v92_FilterHousing_1_Sealing Ring.3mf
24.2 KB
Enclosure Filter_Shop Infrastructure v92_Inlet_1_Body2.3mf
84.4 KB
Enclosure Filter_Shop Infrastructure v92_Air Intake_1_Cover_1_Body1.3mf
10 KB
Enclosure Filter_Shop Infrastructure v92_Exhaust_1_Body1.3mf
305.5 KB
Enclosure Filter_Shop Infrastructure v92_Filter Adaptor_1_Arm (1)_1_Body1.3mf
18.6 KB
Enclosure Filter_Shop Infrastructure v92_Filter Adaptor_1_Body25.3mf
16.5 KB
Enclosure Filter_Shop Infrastructure v92_Filter Adaptor_1_Flap_1_Body1.3mf
16.8 KB
Enclosure Filter_Shop Infrastructure v92_Filter Adaptor_1_Servo Arm (2)_1_Body1.3mf
7.5 KB
Enclosure Filter_Shop Infrastructure v92_Filter Adaptor_1_Body24.3mf
526.6 KB
Enclosure Filter_Shop Infrastructure v92_Filter Adaptor_1_Body21.3mf
775.7 KB
Enclosure Filter_Shop Infrastructure v92_FilterHousing_1_Diffuser Entry Vane_1_Diffuser Entry Vane.3mf
1.4 MB
Enclosure Filter_Shop Infrastructure v92_FilterHousing_1_Main Body.3mf
1.3 MB
Enclosure Filter_Shop Infrastructure v92_Air Intake_1_Body3.3mf
3.3 MB
