13APR2023 - updated with new connectors with better tolerance to make it easier to remove and reconfigure the setups.  First set of connectors were really tight tolerances and virtually impossible to remove without breaking the divider walls

07APR2023 - added 3 new connectors to minimize space lost

1. T-connector
2. Straight Through Connector
3. Corner Connector

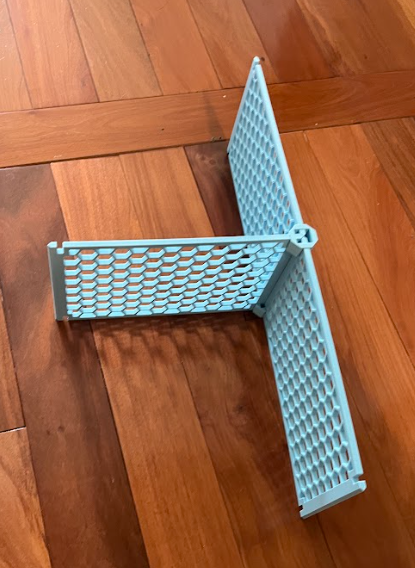

This is remix of a modular drawer divider I saw on cults3d.

This drawer organizer is designed to be modular so that you can print it to meet your drawer sizes and heights.  the default size of the divider is: 225mm length x 139mm depth x 5mm height.  It comes with a 4 way connector for people to be able to divide their drawers as needed.

you can print this with 0.3mm layer heights, it will go much faster and still do the job.  I started printing them in 0.2mm, but switched it to 0.3 to cut time by 2 hours per print.

I have also included the Fusion 360 file which allows you to adjust the length and depth as needed.  I have not been able to find a way to parameterize the honeycomb structure.  if you do adjust the length and depth, you will need to delete the last two extrudes and do them again:

1. under “Sketches” click on “Click this to extrude”
   1. highlight the mesh surface inside the wall sides
   2. extrude -10mm
2. click the top of your freshly extruded mesh
   1. click extrude a second time and then click the top of the exterior wall to cut down to the top of it
3. you have now modified the model to meet your wall sizes

If anyone does have a better way to do parametrics for the mesh, i've googled and am relatively new to Fusion 360 so I've done the best I can through youtube, but would love to learn the right way to parameterize so the extrusions work properly as well.
