Descrição

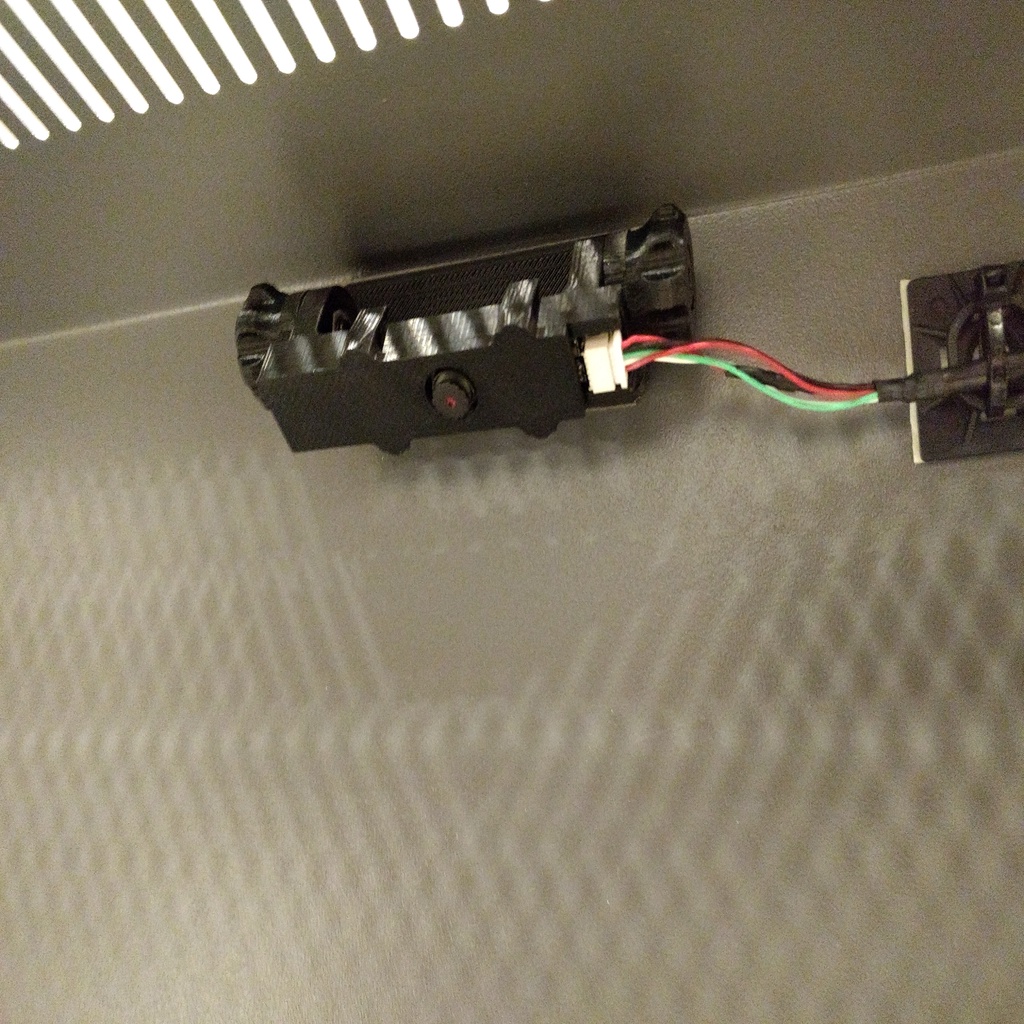

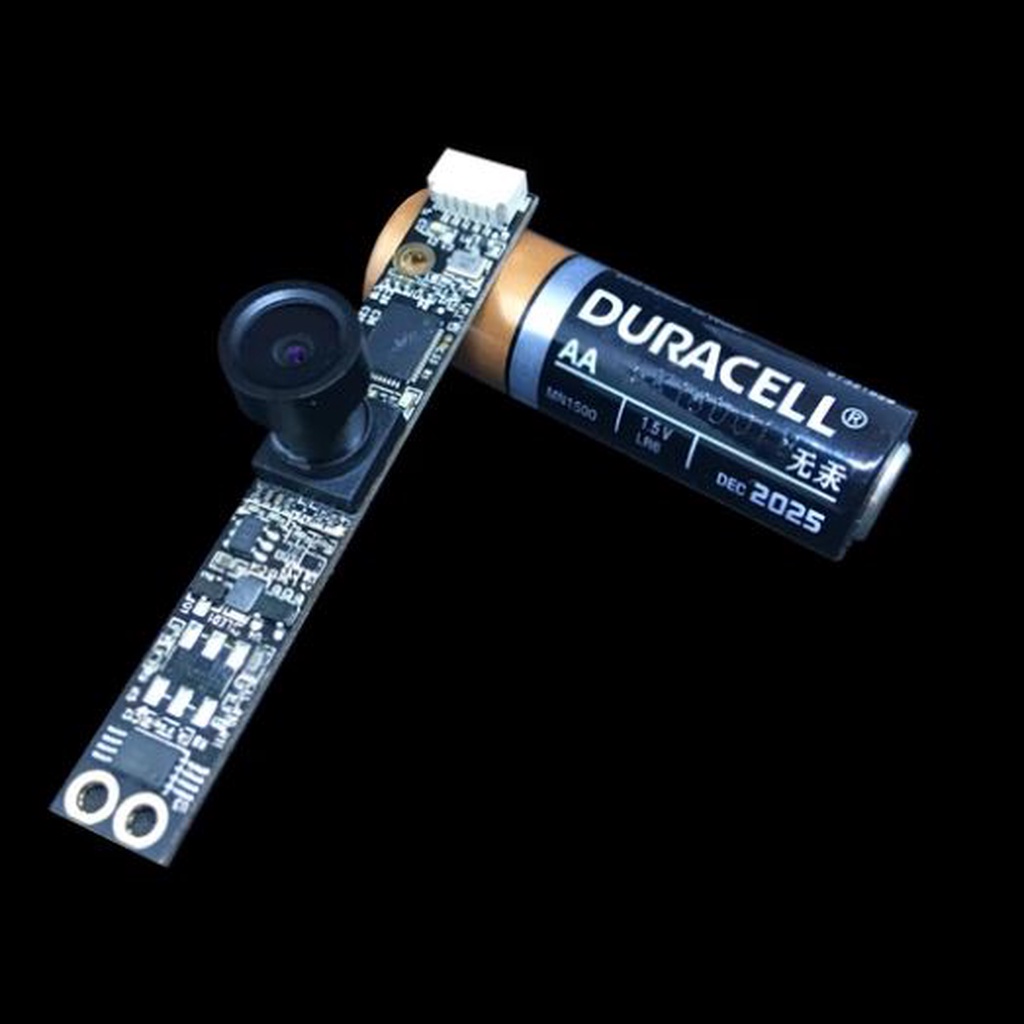

This is designed specifically for the camera that Lightburn sells for use in Laser Engravers/Cutters. It mounts to the underside of the lid, pointing down at the bed. The swivel allows the camera to be adjusted for angle and then locked.
M5 x 20mm Low Profile screws are best, but others can be substituted. The nuts are either locking or not. Captive nuts are used throughout. The Cover snaps into place.
The unit is open on one end to permit the wires to exit. The camera is mounted to the bracket with 3M VHB tape or equivalent, and the entire assembly is mounted to the Laser door also with the 3M tape.
CAD models available on request.
Print Settings
Printer Brand:
Creality
Printer:
CR10S PRO
Rafts:
No
Supports:
Yes
Resolution:
.15mm or thereabouts
Infill:
50% or higher
Category: Machine Tools
