Descrição
Based on a description in an old (1984) education magazine I build a virtual replica of a portable sun dial which was inspired by medieval portable sundial from Canterbury.

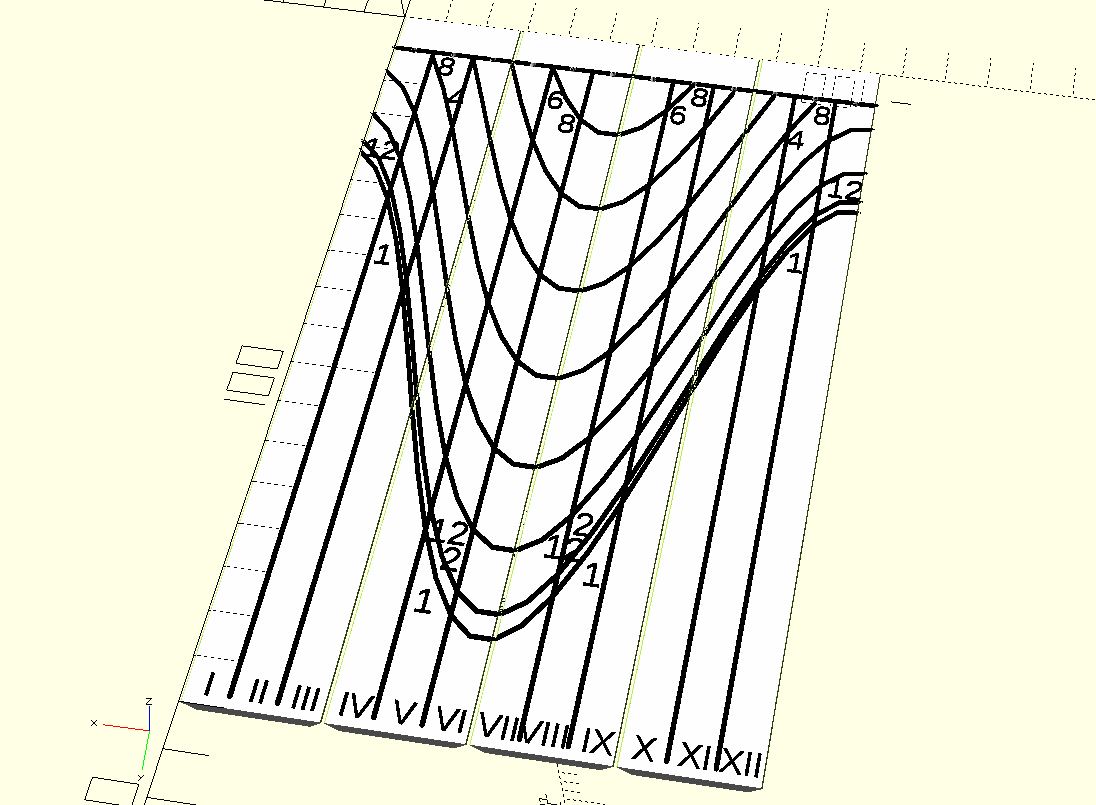

What I originally planned to do was make a temporal or 12-hour sun dail making it a decorative object only. This is a sun dial for modern equal hours, the example is for 52 degrees latitude, northern hemisphere. The OpenScad file is included and be set for different north-south positions.
I tried to base the dimensions on proper calculations, but couldn't get it right. It looks like the original, so I did something right :-). A smarter person than me may find the proper solution.
Usage:

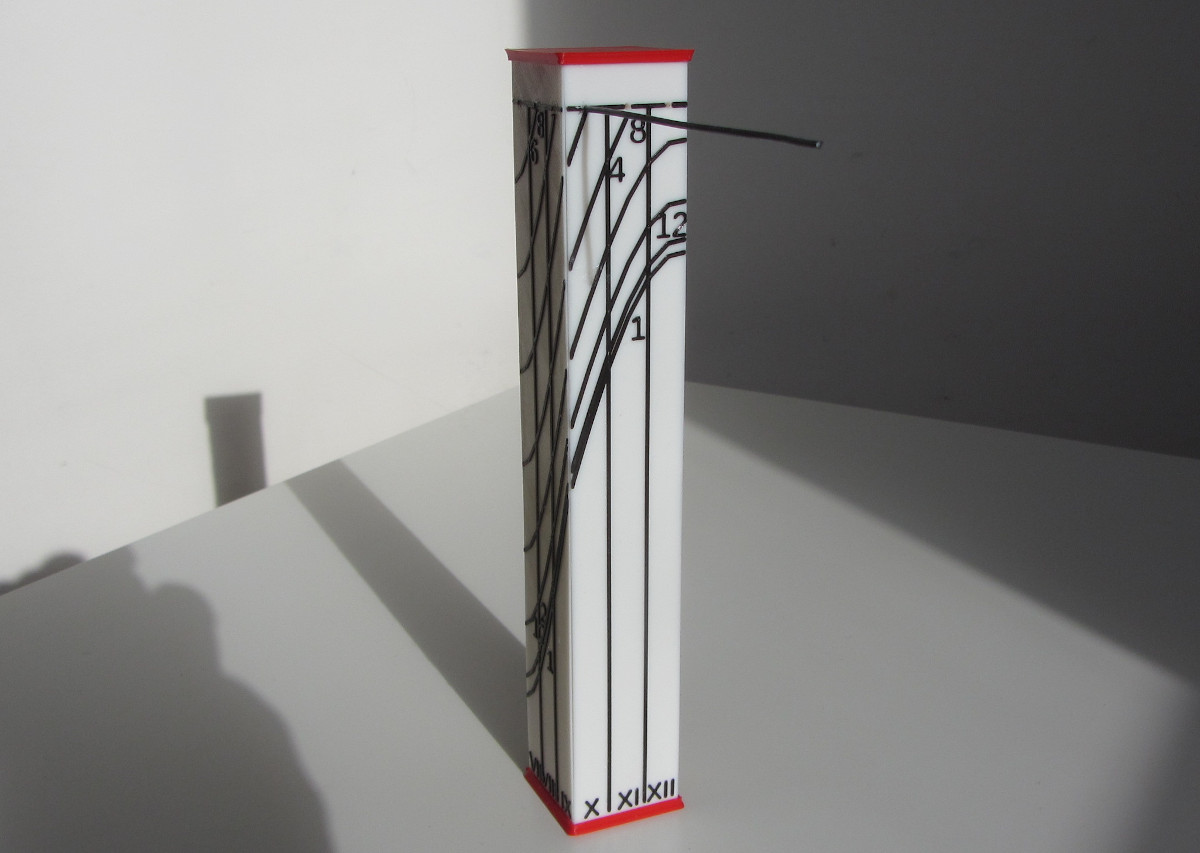

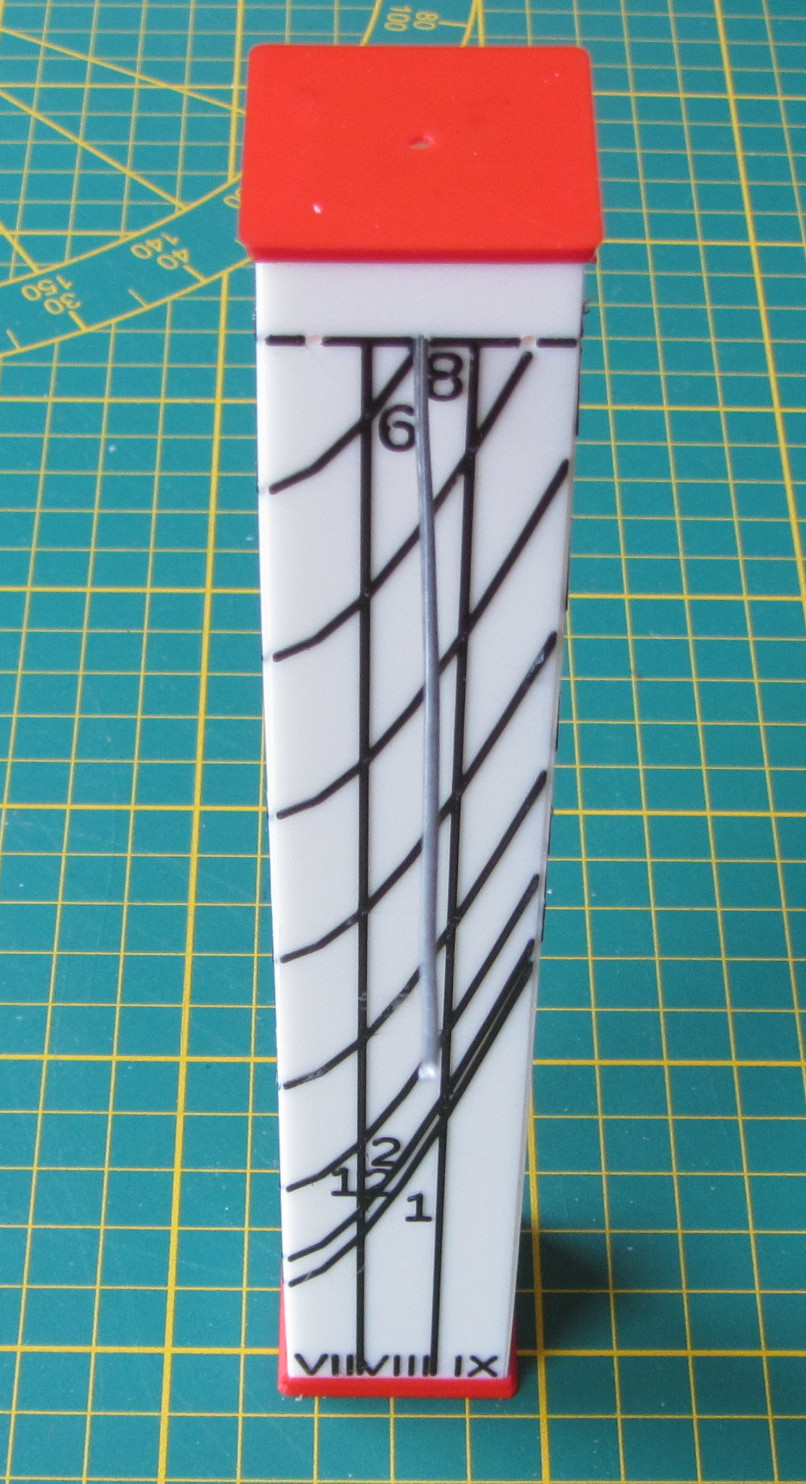

The object requires a thin pole stuck through the proper month hole (roman numerals) until it reaches the opposite hole. Then orient the pole to the direction of the sun, so a vertical shadow appears. The end of the pole shadow should indicate the natural hour.
If the weather improves, I'll add real live images :-).
Source:

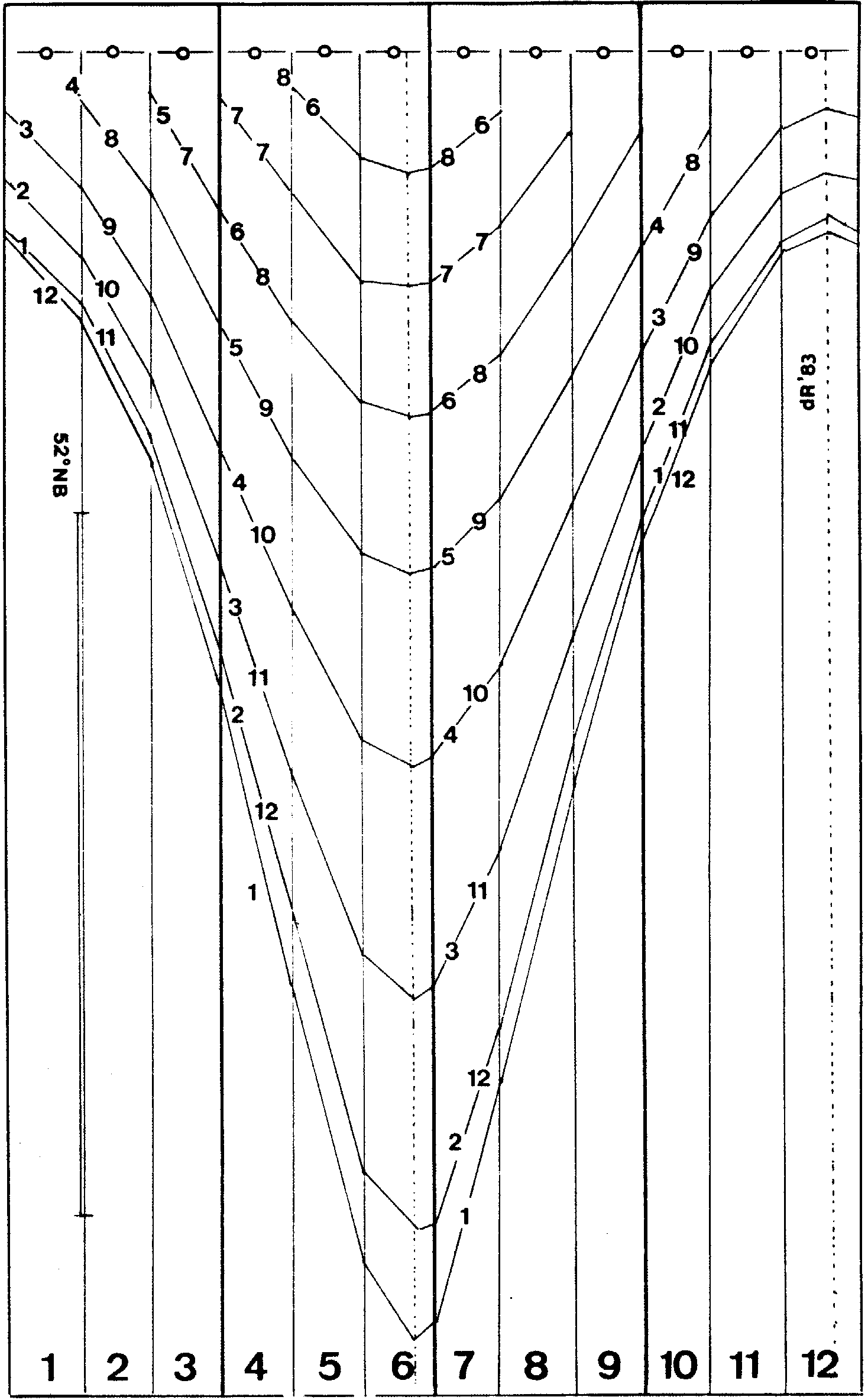

The original inspiring article appeared in "BulkBoek JAARGANG 13/NR 143 from 1984". It was a special on "School Subjects in Midieval Perspective". The drawing is from J.A.F. de Rijk. [https://www.bulkboek.nl/](https://www.bulkboek.nl/)
[https://en.wikipedia.org/wiki/Solar_zenith_angle](https://en.wikipedia.org/wiki/Solar_zenith_angle)
Print instructions

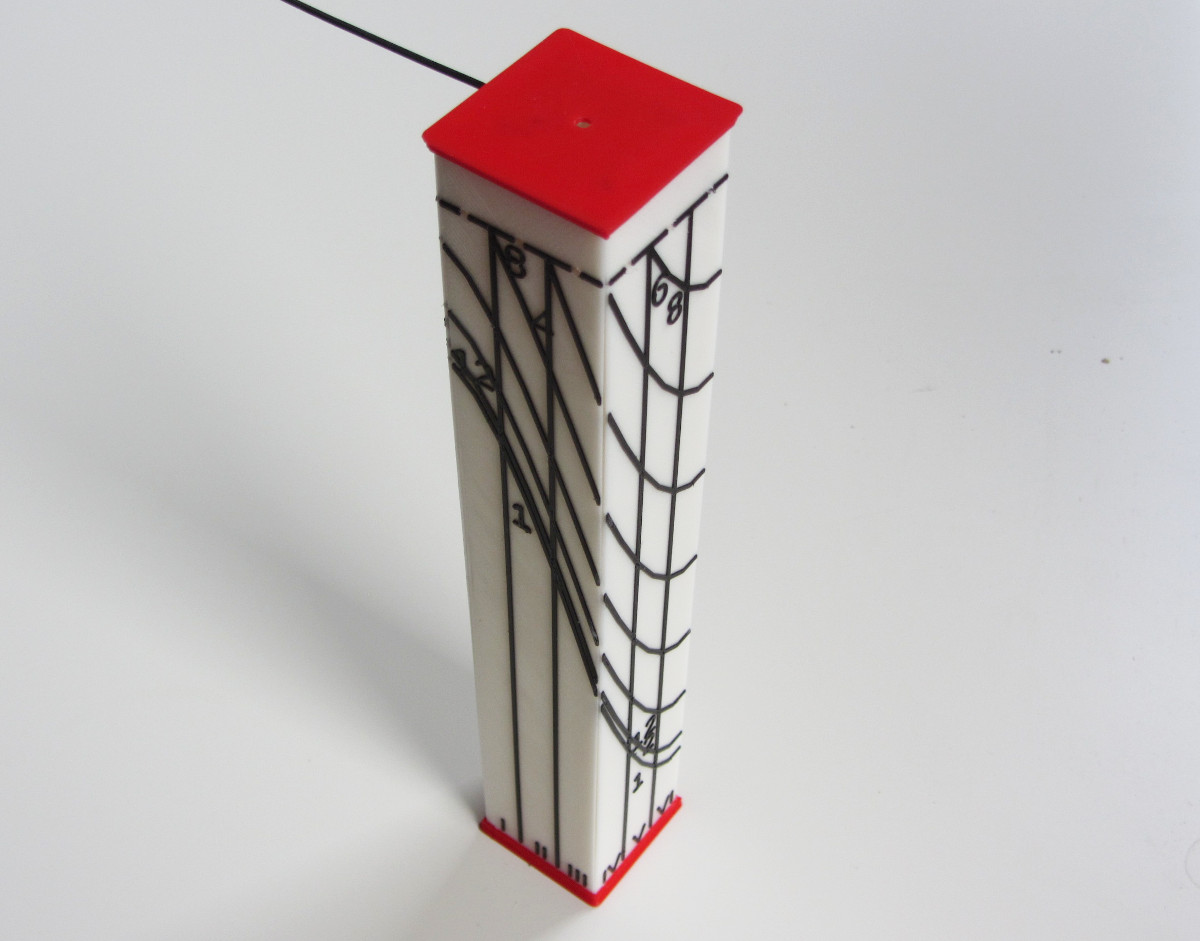

The four parts for the sides of a short pillar, and should be kept in place with the top and bottom (red).
The pole of 112 mm should be about 1.5 mm.
A "M600" filament change was inserted before the second last layer.
The panels tend to warp after printing, so I used some glue in the middle.
The original was intended with the MMU2 and printed upside down, but the results were less.
Resolution: 0.15 mm layer, 0.4 mm nozzle
Filament: PLA
