Modelo 3D Dice Storage System por Kerbabb no Printables

Descrição

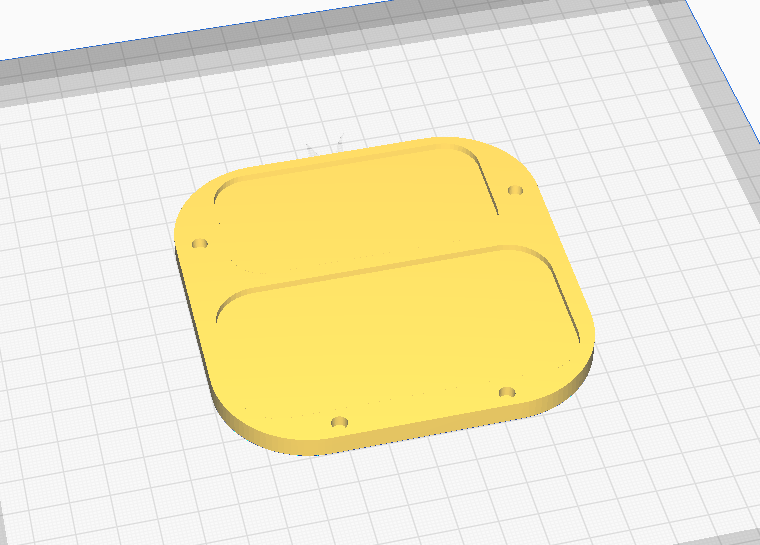

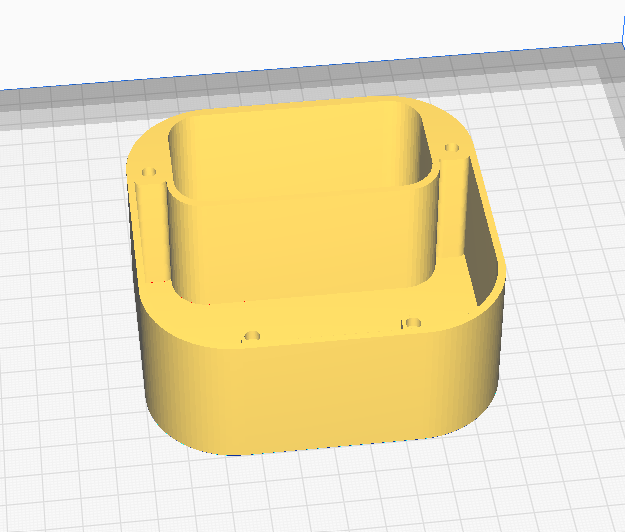

Print Settings

	Dice_Storage_Tower	Dice_Storage_Top	Dice_Storage_Bottom
Layer Height	0.2 mm	0.2 mm	0.2 mm
Wall Line Count	3	3	3
Infill	25%	25%	25%
Infill pattern	Triangles	Triangles	Triangles
Printing Temperature (Esun PLA+)	Nozzle: 215 Build plate: 60	Nozzle: 215 Build plate: 60	Nozzle: 215 Build plate: 60
Speed	50 mm/s	50 mm/s	50 mm/s
Supports	Yes/No	No	Yes
Build Plate Adhesion	Skirt	Skirt	Skirt

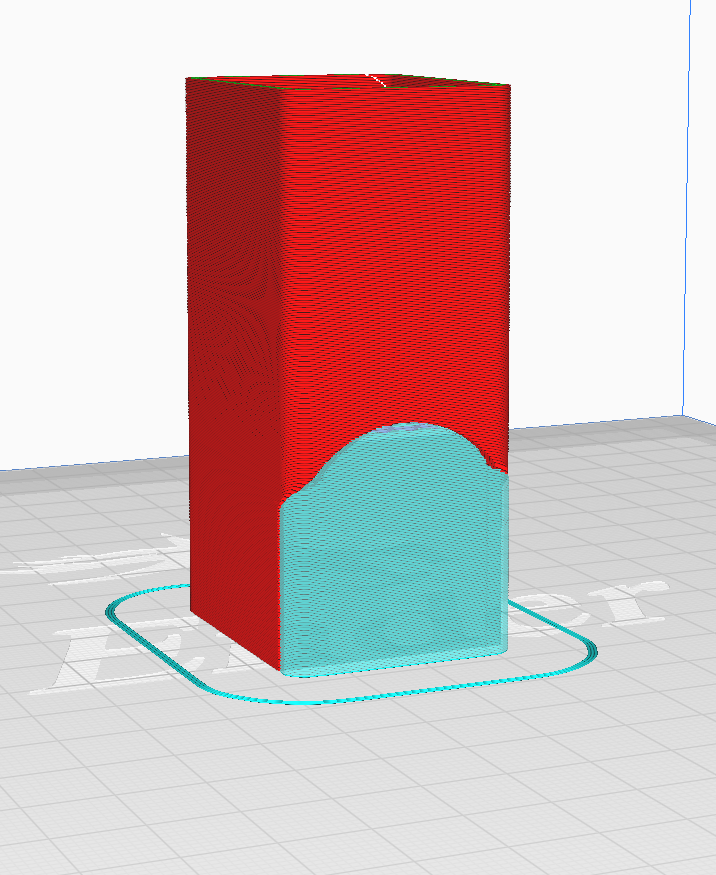

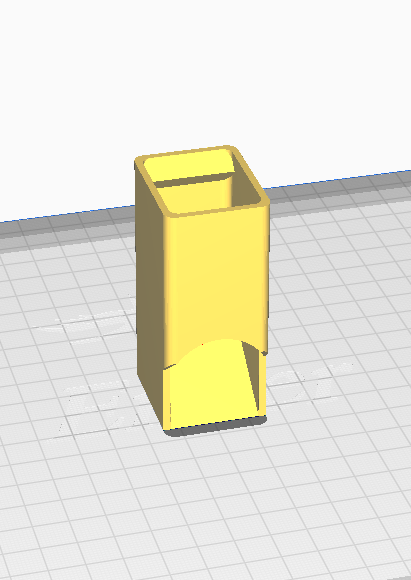

Supports Dice_Storage_Tower: I printed the front with supports, even though it should be fine without. You can block the supports for the magnet hole on the bottom of the tower. I printed the tower with and without supports. Both function the same and there isn't a loss in quality. However this can deviate from the material and/or the printer you use. Infill pattern: You can use any infill pattern you wish! Printing Temperature: The settings I gave are the temps I personally use with Esun PLA+. This can deviate from the material and/or the printer you use.
Used Printer: Creality Ender 3 v2

Measurements

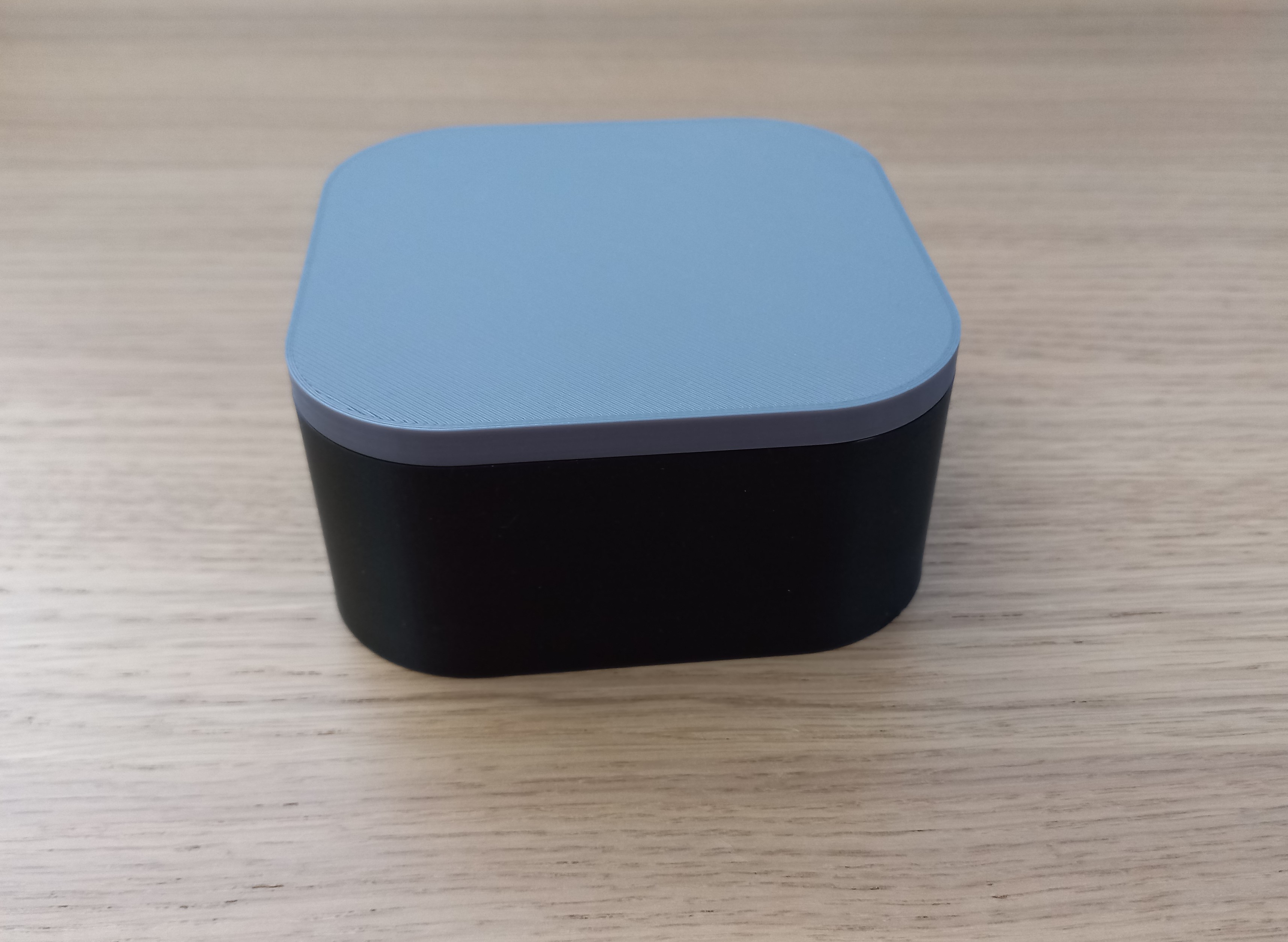

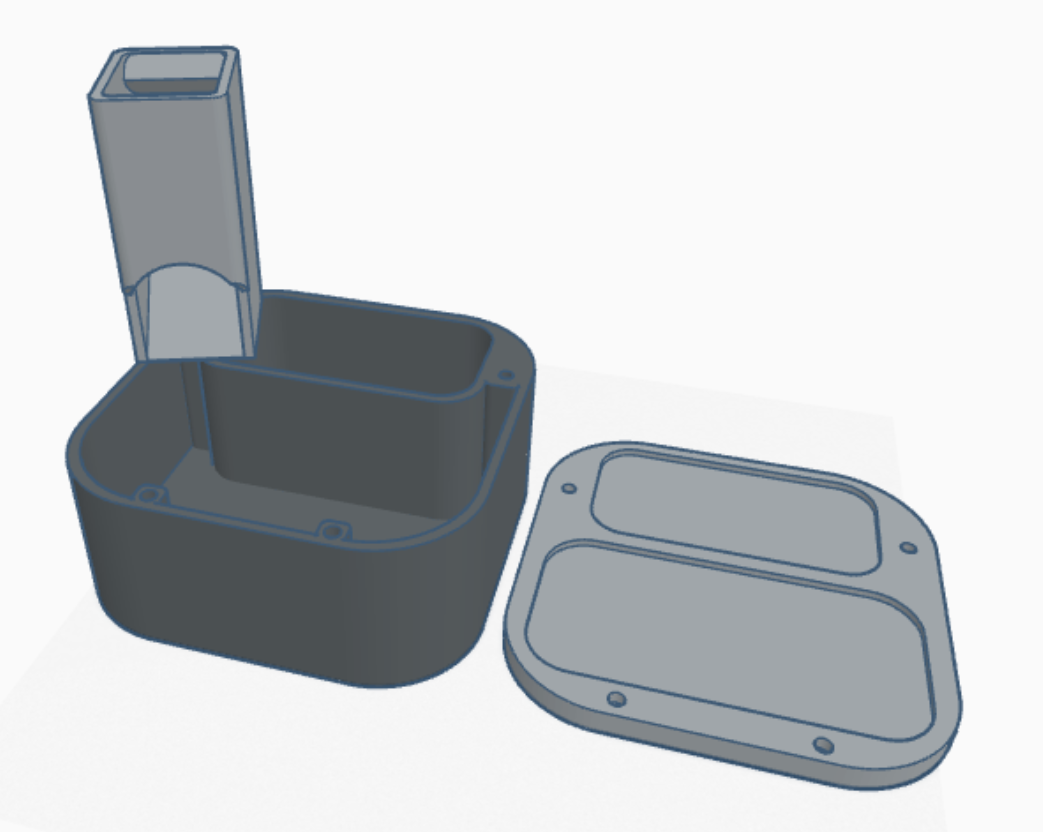

The measurements of the fully closed storage are 100*100*47.3 mm (length*width*height).

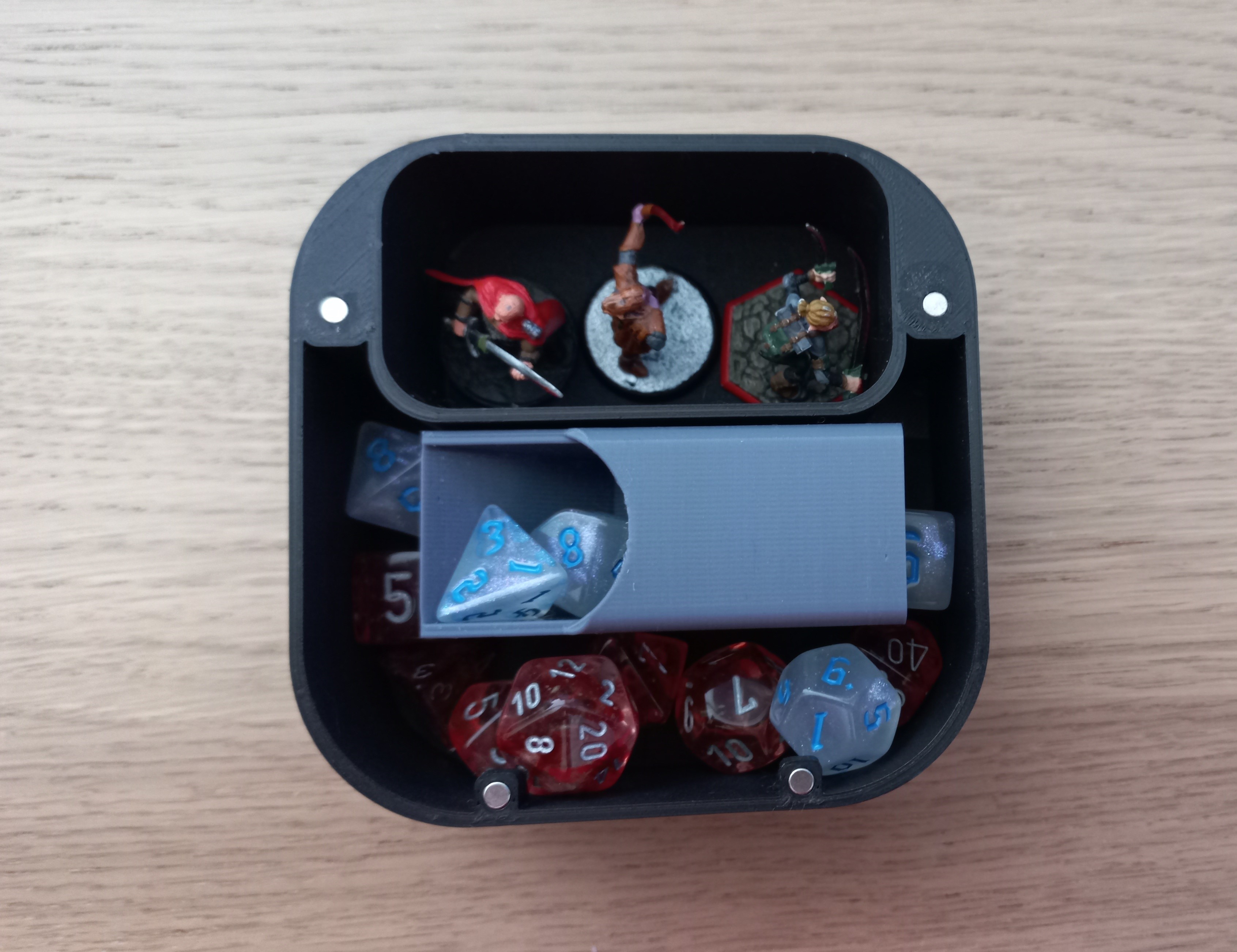

The measurements of the miniature compartment are 74*38*38 mm (length*width*height).

Magnets

You will need 9 magnets total that have a diameter of 4 mm and a thickness of 3 mm.

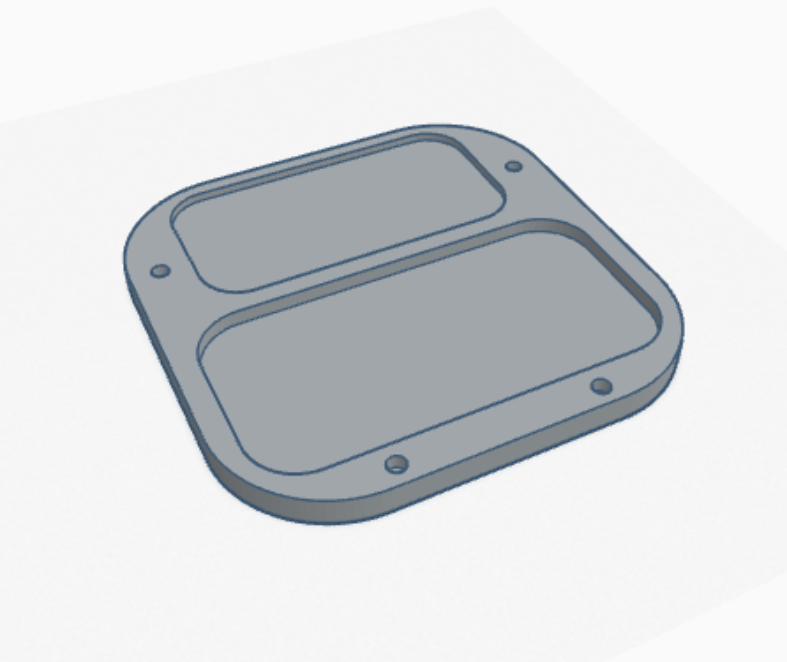

Dice_Storage_Top and Dice_Storage_Bottom each need 4 magnets.

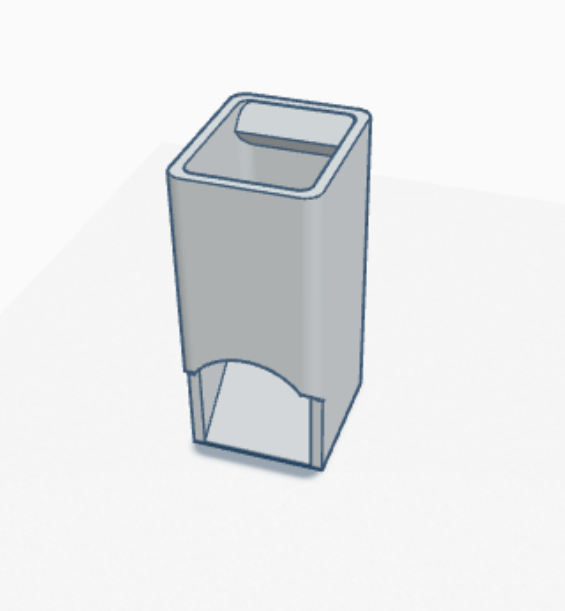

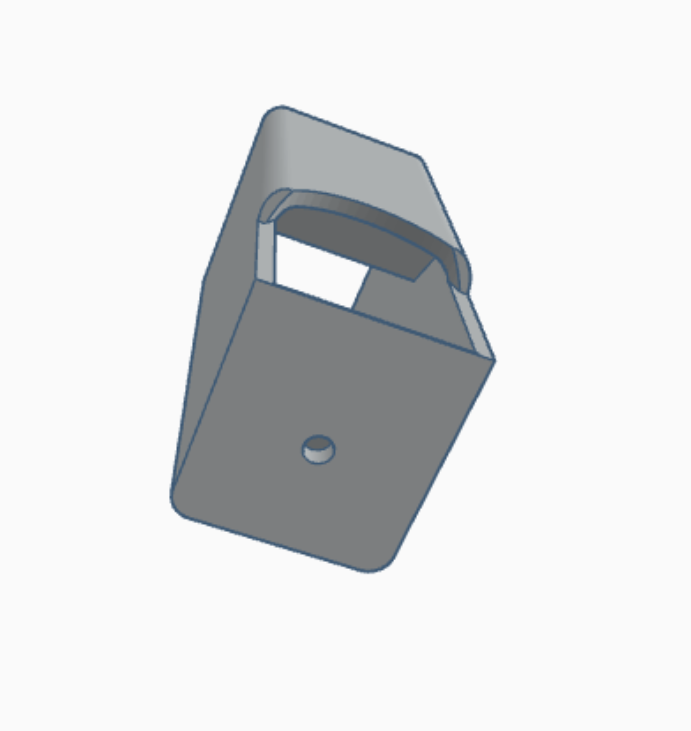

The underside of Dice_Storage_Tower has a hole for a magnet too. This way it won’t fall off Dice_Storage_Bottom when you roll a dice.
The holes for the magnets have a tight tolerance, you will need to push them hard to be able to fit. If you want you can also use superglue.

Optional

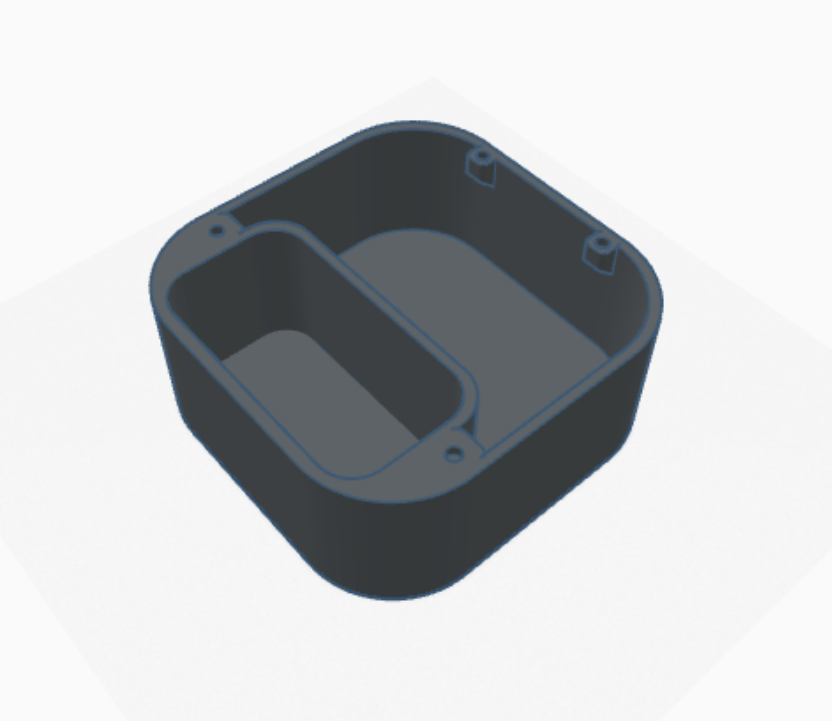

You can use a piece of foam (max 2 mm thickness) to protect the inside of the Dice_Storage_Bottom. Everything will fit as intended. The bottom part will also hold up without the foam, so it is a personal preference.
You can also use a piece of foam (max 2 mm thickness) to protect the top of the miniatures. You can place this piece in the section of the Dice_Storage_Top. This is also a personal preference and not necessary.

I hope you enjoy the Storage System and have a lot of fun playing your DnD sessions (or other tabletop games).

Printables

Dice Storage System

Kerbabb

Publicado em 7 de dez de 2024

48

Curtidas

102

Downloads

2

Impressões

Categoria Board Games

Tags

dnd miniature dicetower dice miniatures tabletopgaming dicebox dndminiature dicetray dicestorage

Licença Creative Commons — Attribution — Noncommercial

Arquivos (9)

Dice_Storage_Top.stl 90 KB

Dice_Storage_Bottom.stl 130.5 KB

Dice_Storage_Tower.stl 49.9 KB

Dice_Storage_Top.3mf 112.3 KB

Dice_storage_Bottom.3mf 166.3 KB

Dice_Storage_Tower.3mf 130.6 KB

Dice_Storage_Top.step 1.2 MB

Dice_Storage_Bottom.step 2.5 MB

Dice_Storage_Tower.step 796 KB
