Modelo 3D Flitetest FT Firewall por marcotheboy no Printables

Descrição

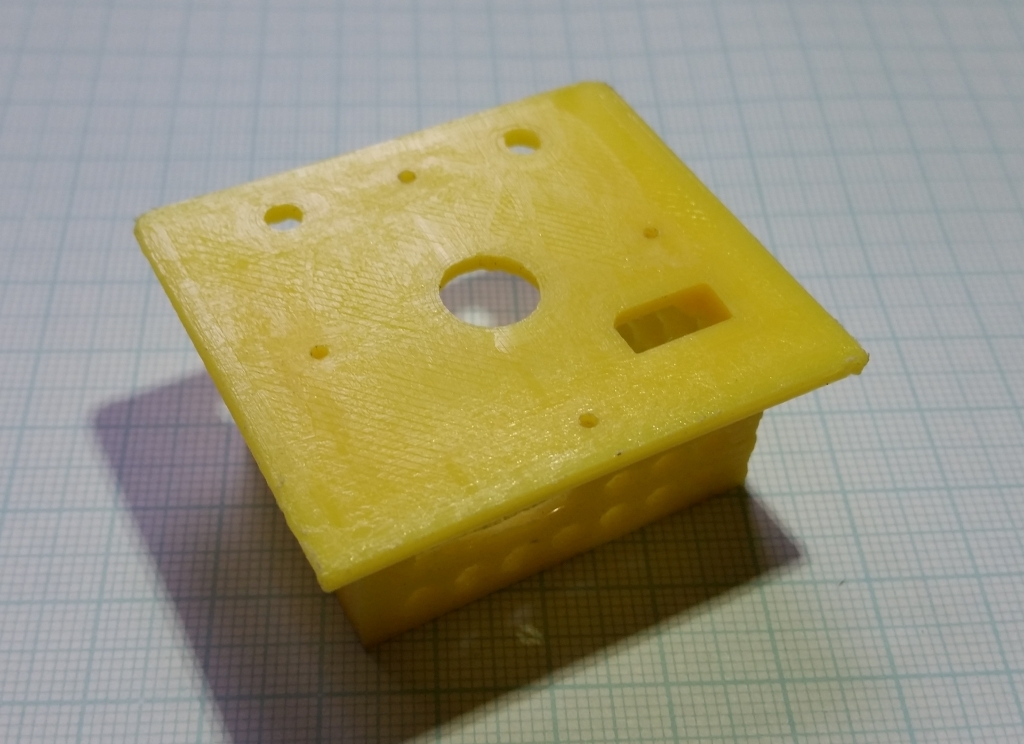

An improved firewall for the standard size Flitetest power pod (for Spitfire, Mustang, Simple Cub, Corsair, etc).

I have included motor mount holes (1.2mm diameter, 34mm PCD).
There is a hole at the bottom to feed your XT60 connector from the ESC back out of the power pod.
The front wall is 2.6mm thick.
It has side walls to give the power pod better crash resistance (and the holes give the hot-glue extra grip).



UPDATE:

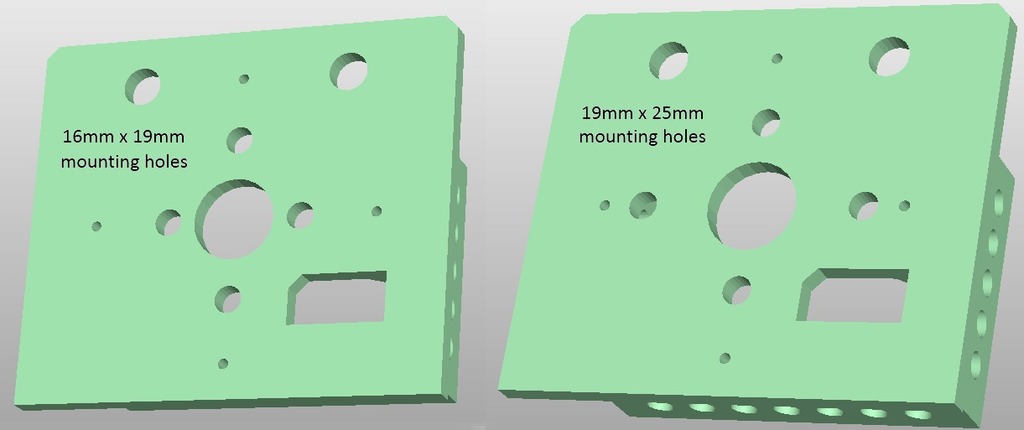

I have added two versions with [16mm x 19mm] and [19mm x 25mm] M3 mounting holes.
(If your motor wires are on the other side, then mirror the object in your slicer.)



You don't need supports if you have a part-cooling fan (PLA).

I used 0.2mm resolution, 4 top layers, 4 bottom layers, 5 shells, 15% infill and it weighs 9 grams.

Printables

Flitetest FT Firewall

Publicado em 28 de mar de 2023

7
Curtidas
55
Downloads
Categoria RC & Robotics
Tags
flitetest corsair mustang swappable flitetestpowerpod powerpod spitfire ft
Licença Creative Commons — Attribution — Noncommercial
Arquivos (3)
FT_Firewall_v2.stl 467.2 KB
FT_Firewall_v2_16x19.stl 486.7 KB
FT_Firewall_v2_19x25.stl 487 KB
