Descrição

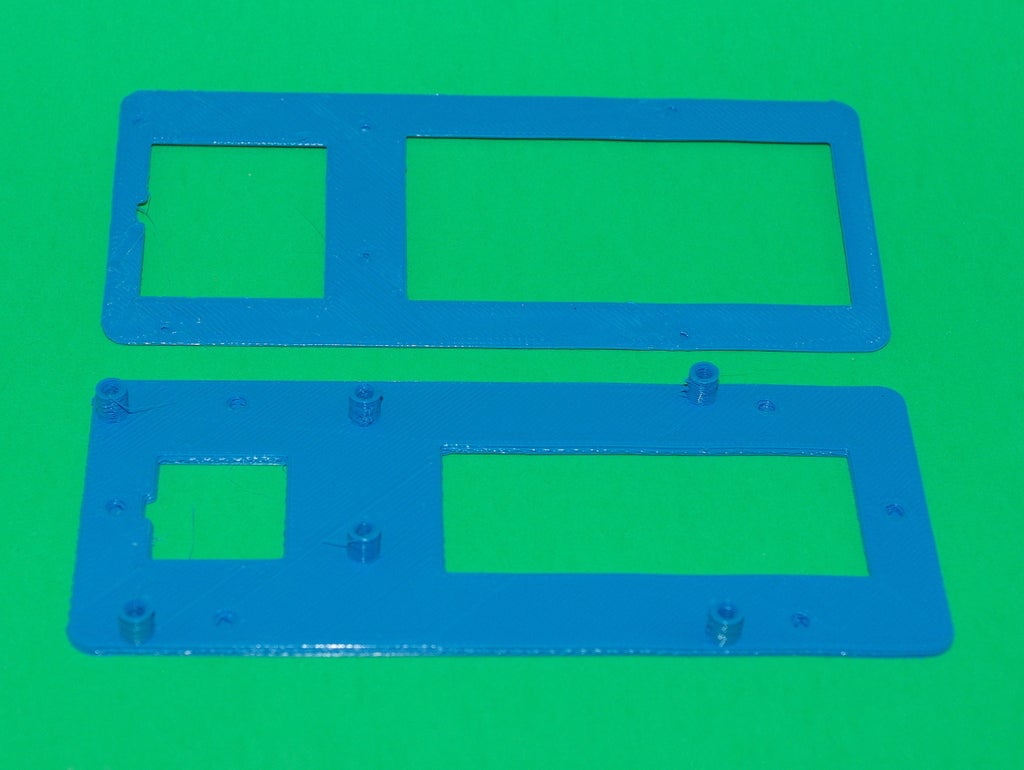

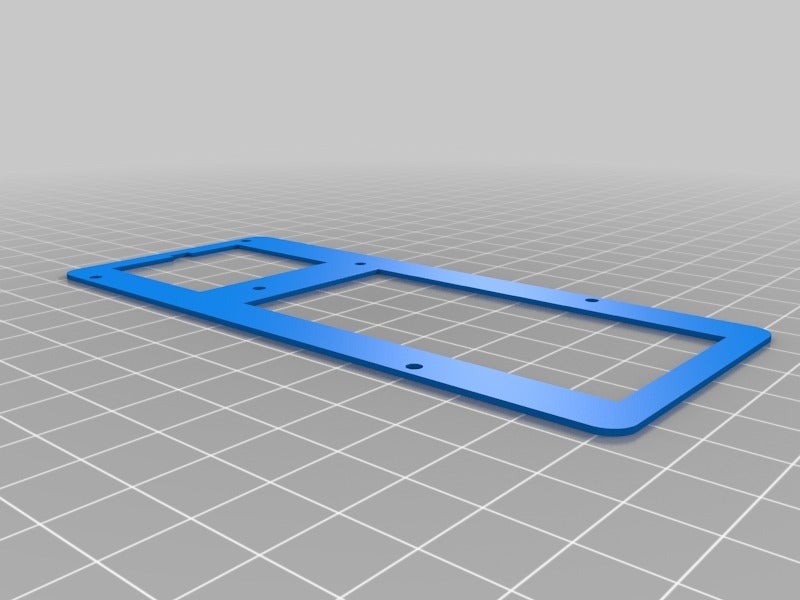

This thing contains a mounting plate and a drilling guide for the “pcDuino V2 Board”.

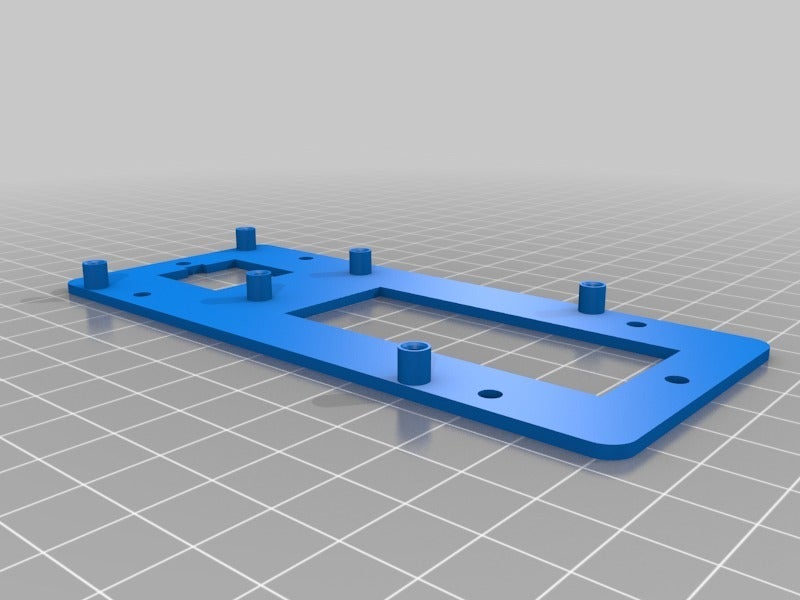

The plates are not symmetrical. The notch shall be on the USB connectors’ side. The base plate is 2 mm thick. M2 5 mm or 1/4″ 4-40 screws are needed to fasten the board to the mounting plate. The mounting holes are three mm in diameter.
The holes do not go through the lower layer to make it easier to print. You will have to drill them.
Printables
pcDuino V2 Board Drilling And Mounting Plates
Publicado em 18 de dez de 2021
0
Curtidas
8
Downloads
Categoria
Electronics
Tags
mountingplate
thingiverse
drillingguide
pcduino
pcduinov2
Licença
Creative Commons — Attribution — Noncommercial
Arquivos (2)
pcduino_v2_mounting_plate.stl
1.7 MB
pcduino_v2_drilling_guide.stl
410.4 KB
