Modelo 3D Spoon holder por mrdeeds no Printables

Descrição

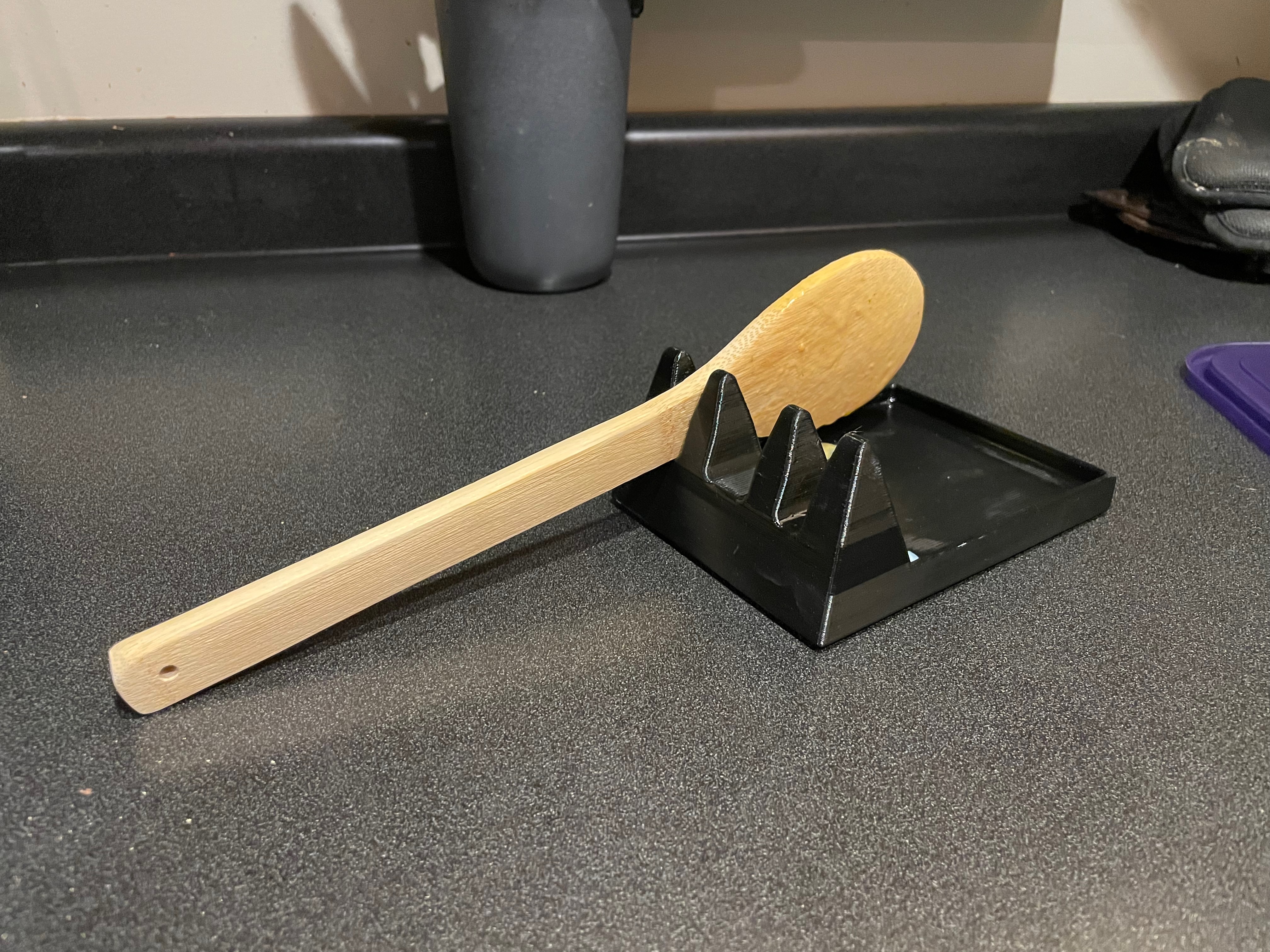

Just a simple spoon holder.  It has multiple sized slots to accommodate a variety of spoons and spatulas.



I printed this on and Ender 3 S1 using:

  • .6 nozzle (I'm sure a .4 would work fine)
  • .2 layer height
  • 20% infill using gyroid
    • By using gyroid, I can fill it with plaster after printing (see plaster details below)
  • I added rubber feet to the bottom when finished to help keep it from sliding on the counter



Plaster injection Process


First, the obligatory safety disclaimer:  In my opinion, this is not a difficult or unsafe process and it doesn't take much time.  I have found that it's an easy way to add some weight to my prints.  That being said, do this at your own risk - be careful and do your research about how plaster works.

I start by drilling two small holes (just a little bit bigger than the tip of the injector) into the bottom of the model, spaced apart and at a place on the model where the void is thickest.

I use this meat injector syringe:  [https://www.amazon.com/Meat-Injector-Syringe-Marinade-Seasoning/dp/B08R6ZRXCW](https://www.amazon.com/Meat-Injector-Syringe-Marinade-Seasoning/dp/B08R6ZRXCW)

I cut the tip with a hacksaw (and sanded it to remove sharp edges) so it's just basically an injector with a 1-2 mm metal tube for a point.

I use plaster of paris: [https://www.amazon.com/10308-4-Pound-Interior-Plaster-Paris/dp/B000BQLT0S](https://www.amazon.com/10308-4-Pound-Interior-Plaster-Paris/dp/B000BQLT0S)

I mix the plaster with water until it's a thick soup (more like a gravy).  Hint (lessons learned):

Using the syringe, I slowly inject the plaster into one of the holes (the other allows for the air to escape).  It helps to hold the model in a position where gravity can help encourage the plaster to flow into empty areas.  If needed, I'll shake/vibrate the model between injections to get the plaster to move inside the model.

I've sacrificed some rice that I keep in an old cool-whip bowl to set the model in (holes-side-up) to let the plaster dry (typically 7-8 hrs).  After dry, I'll either cover the holes with rubber or TPU-printed feet… or inject them with some hot glue just to seal them up.

Printables

Spoon holder

Publicado em 21 de mar de 2023

1,986
Curtidas
6,527
Downloads
63
Impressões
Categoria Kitchen
Tags
spoon
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (1)
Spoooon holder.stl 880.7 KB
