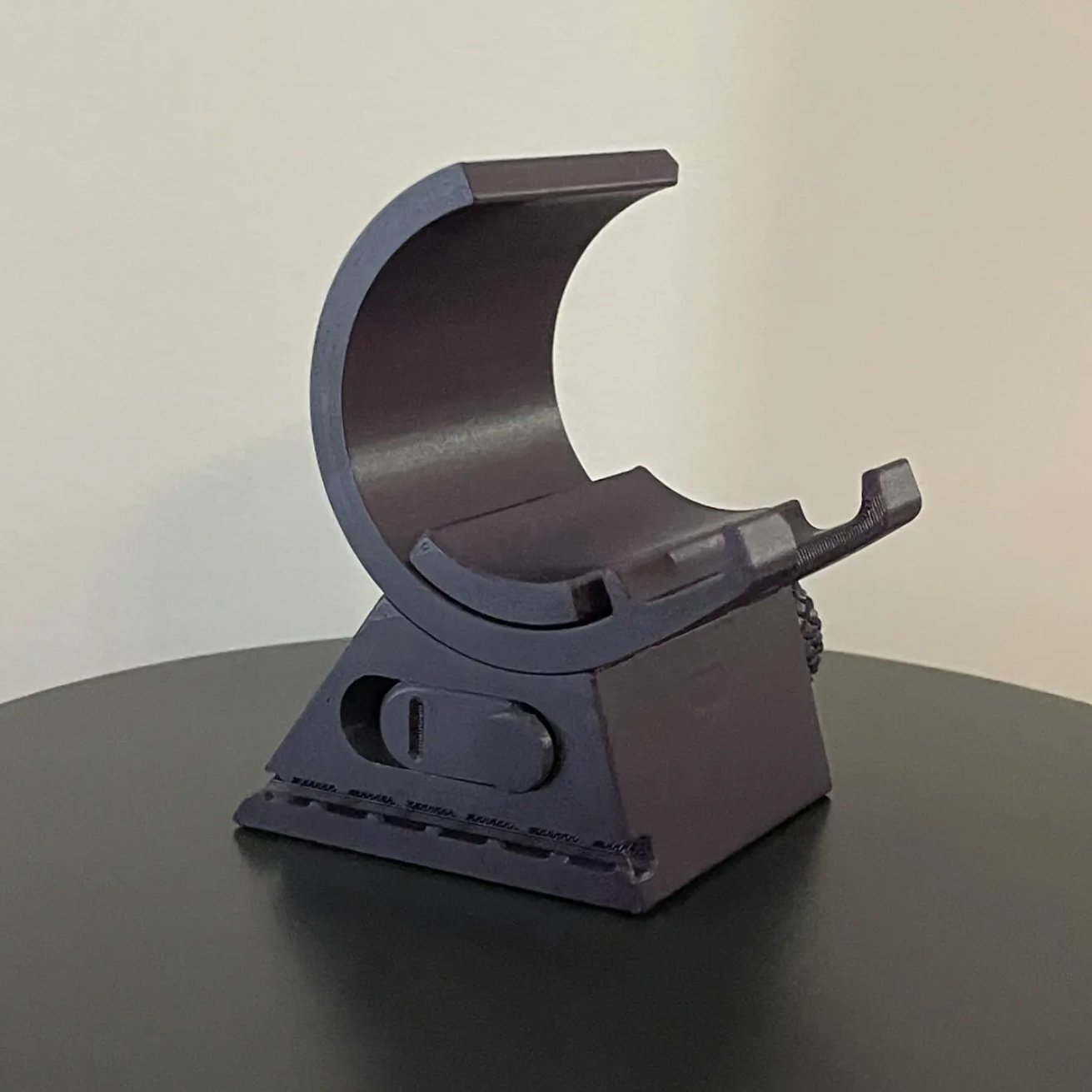

Ridiculously over-engineered printed-in-place no support no brim adjustable tilting phone stand.  I like to design things and i also like to challenge myself !  So one thing leads to another even if the design is complete madness ;-)

Be advised, this model is not easy to print

• Consider this model as a torture test for you printer, filament profile and your skills
  • Note that this model can be resized for easier printing, try 120% for example
• You may also consider trying this simpler and easier to print resizable Phone Stand

If you liked this model and want to help me by supporting my hobby

• Dont’t forget to post your make on Printables and/or Social Media
• You may also look into my store for my Improved Phone Stand

Features

• Stand is suitable for a 14mm thick phone
• Notch for a 2.6mm phone charger cable
• Inclination of the stand is adjustable
• Slide Out to adjust / Slide In to lock
• Integrated locking mechanism
• Resizable at least to 120%
• Print in place
• No Support
• No Brim

Print Instructions

• Print the model on it's side (already in the correct position)
• Use Default 0.20mm QUALITY Prusa Slicer Print Settings
  • Filament : PLA or PETG
  • Recommended custom settings
    • Paint-on Seam : Highly Recommended
    • Avoid crossing perimeter
    • Infill : Gyroid 15~20%
    • Perimeters : 2~3
    • Support : No
    • Brim : No
