Modelo 3D H4 style headlight plug adapter por krammer no Printables

Descrição

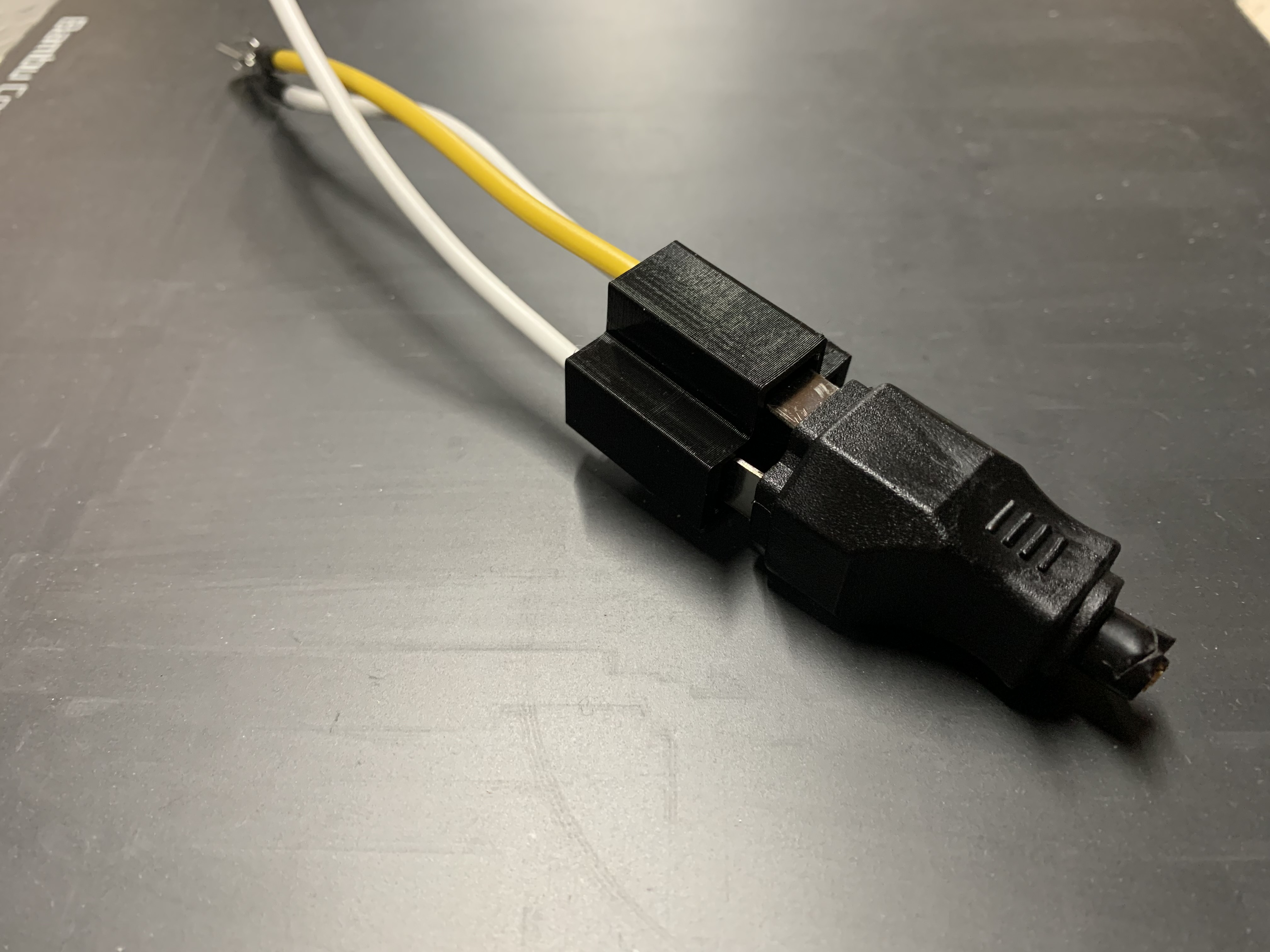

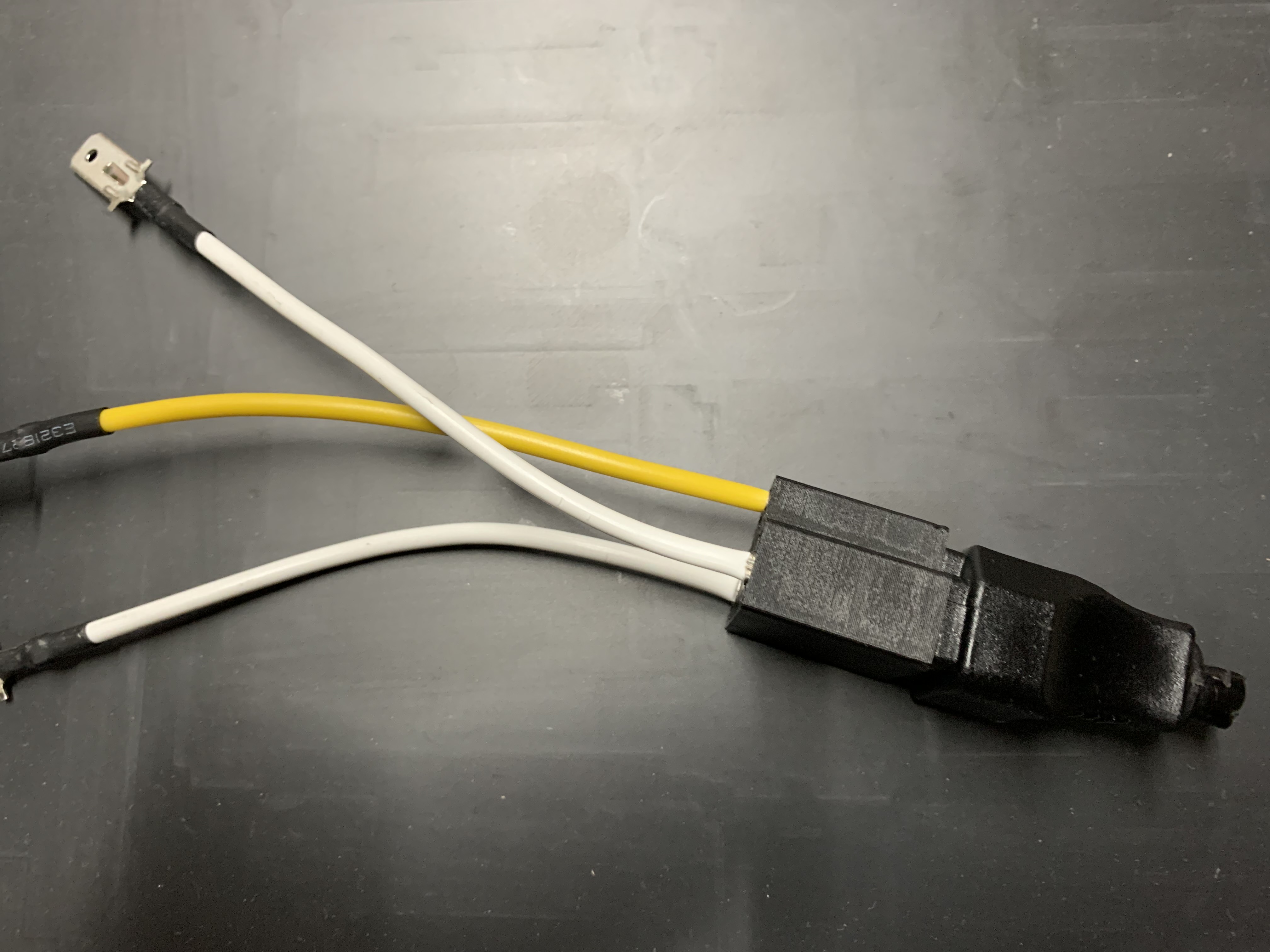

I used these to connect to 4x6" LED lights to the custom harness I make for customers.  Bend the locking tab on the 7.6mm connector to lock into the adapter.

Parts required:

7.6 mm female spade connector (some list as a 7.8)

wire and terminating ends as required for the other side



Printed 0.2mm, 15% gyroid infill but this won't really matter, 3 perimeters, PLA as the wiring shouldn't get too hot with LEDs. If it will be more exposed consider a material not as susceptible to moisture and heat.

Printables

H4 style headlight plug adapter

Publicado em 20 de mar de 2023

12
Curtidas
185
Downloads
Categoria Automotive
Tags
adapter headlight
Licença Creative Commons — Attribution
Arquivos (2)
adapter.3MF 9.9 KB
adapter.STEP 244 KB
