Modelo 3D 10 inch server rack por McBig no Printables

Descrição

This is printed 10 inch server rack designed for printer with plate 250 mm x 200 mm (Prusa MK3), but some parts (rails) need the bigger one (Prusa XL).

Rack has standard sizes, see [https://en.wikipedia.org/wiki/19-inch_rack](https://en.wikipedia.org/wiki/19-inch_rack)

Rails can be stacked on top of each other. You don't need lines or heads, but each rail starts and ends with half U.

Shelves can be oriented up or down, but filled shelves are perforated (reinforced) from one side, so be careful about that.

There are two groups of shelves:

with and without front-end panel
with and without supports, which you can do in slicer if you want

I use standard M6x16 screw with M6 nuts.

All parts are printed from PLA, instead of rack_joion which i print from PETG. All parts with default PrusaSlicer infill 15%.

Edit 26. Jan 2025

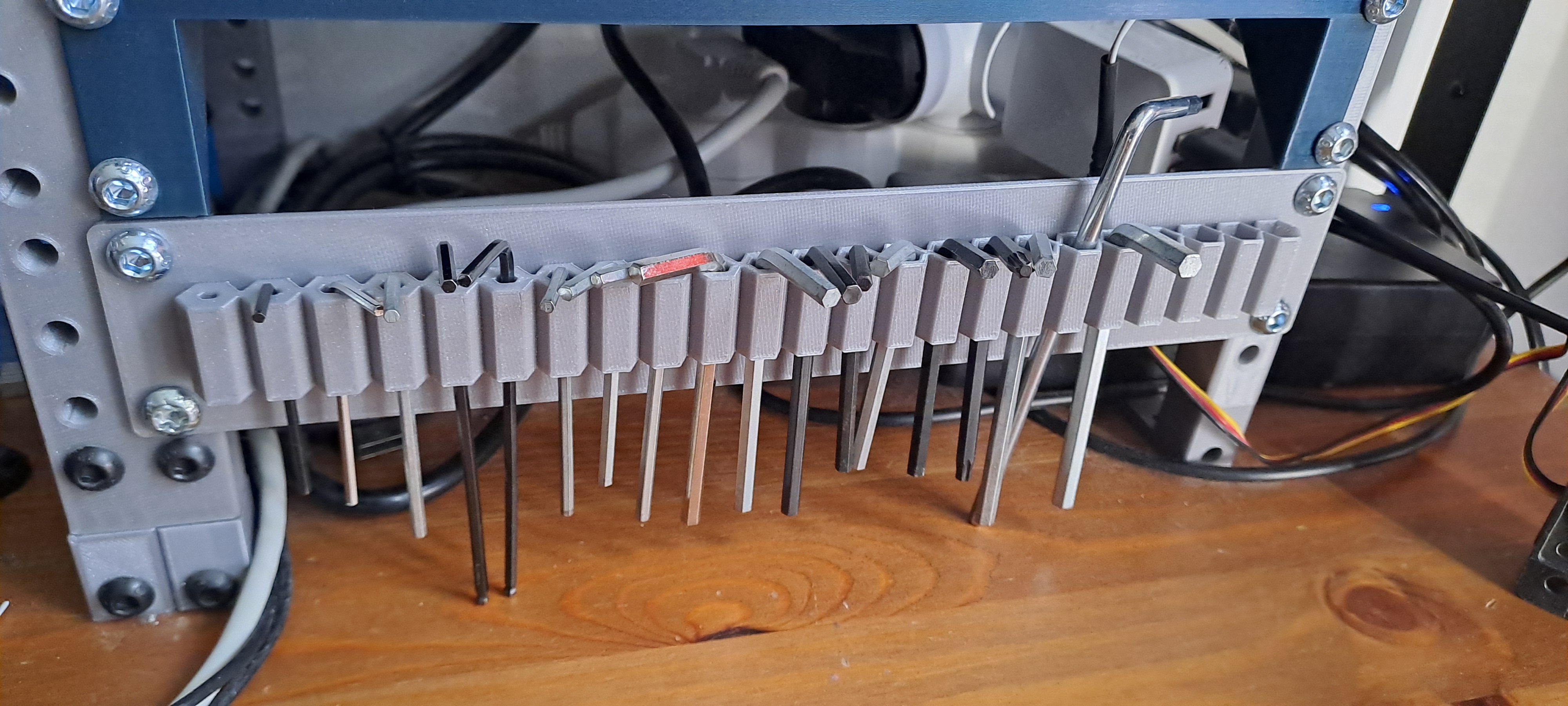

Added inbus panel

Edit 13. Aug 2024

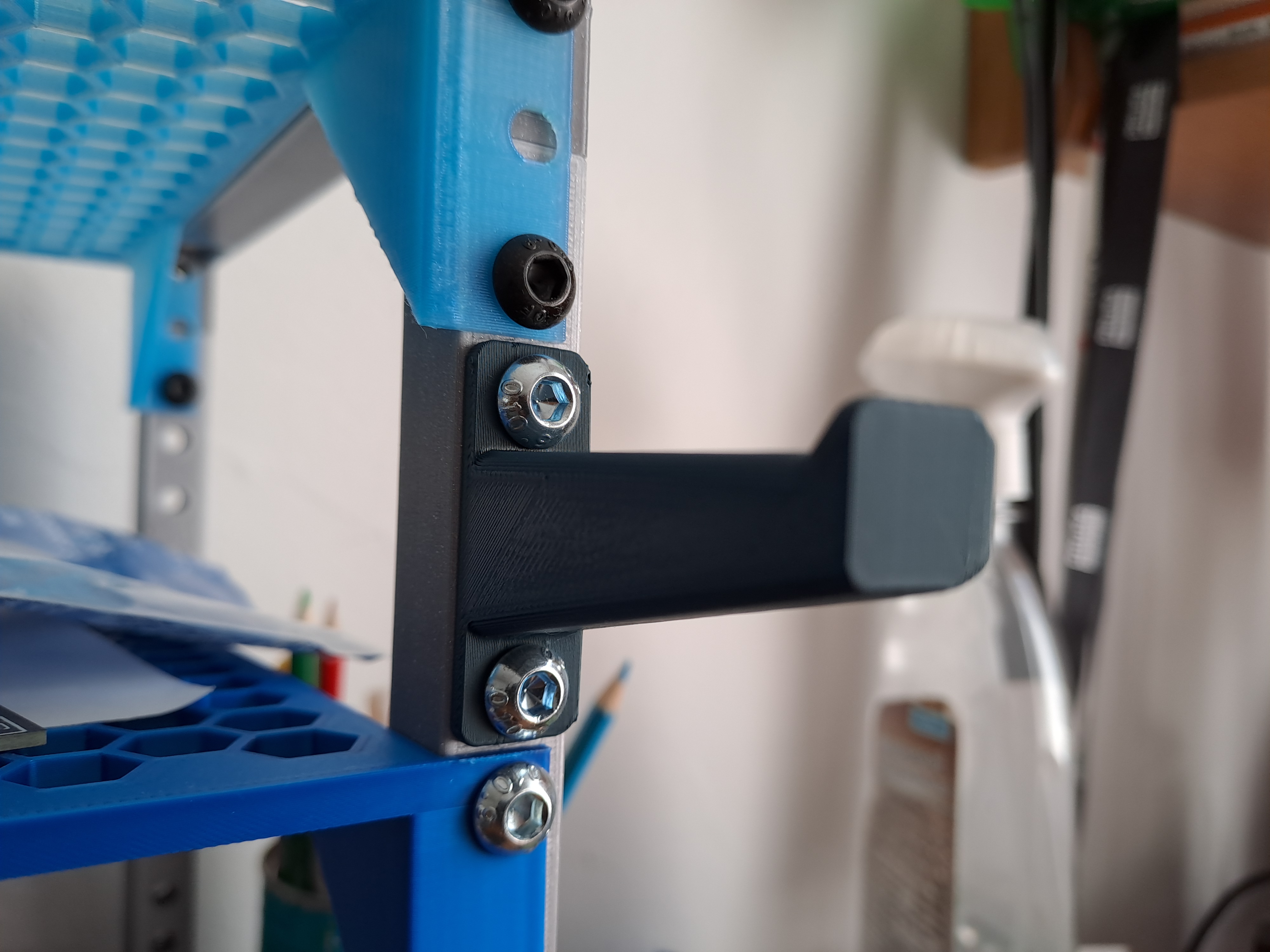

Added rack_hook

Edit 3. Nov 2024

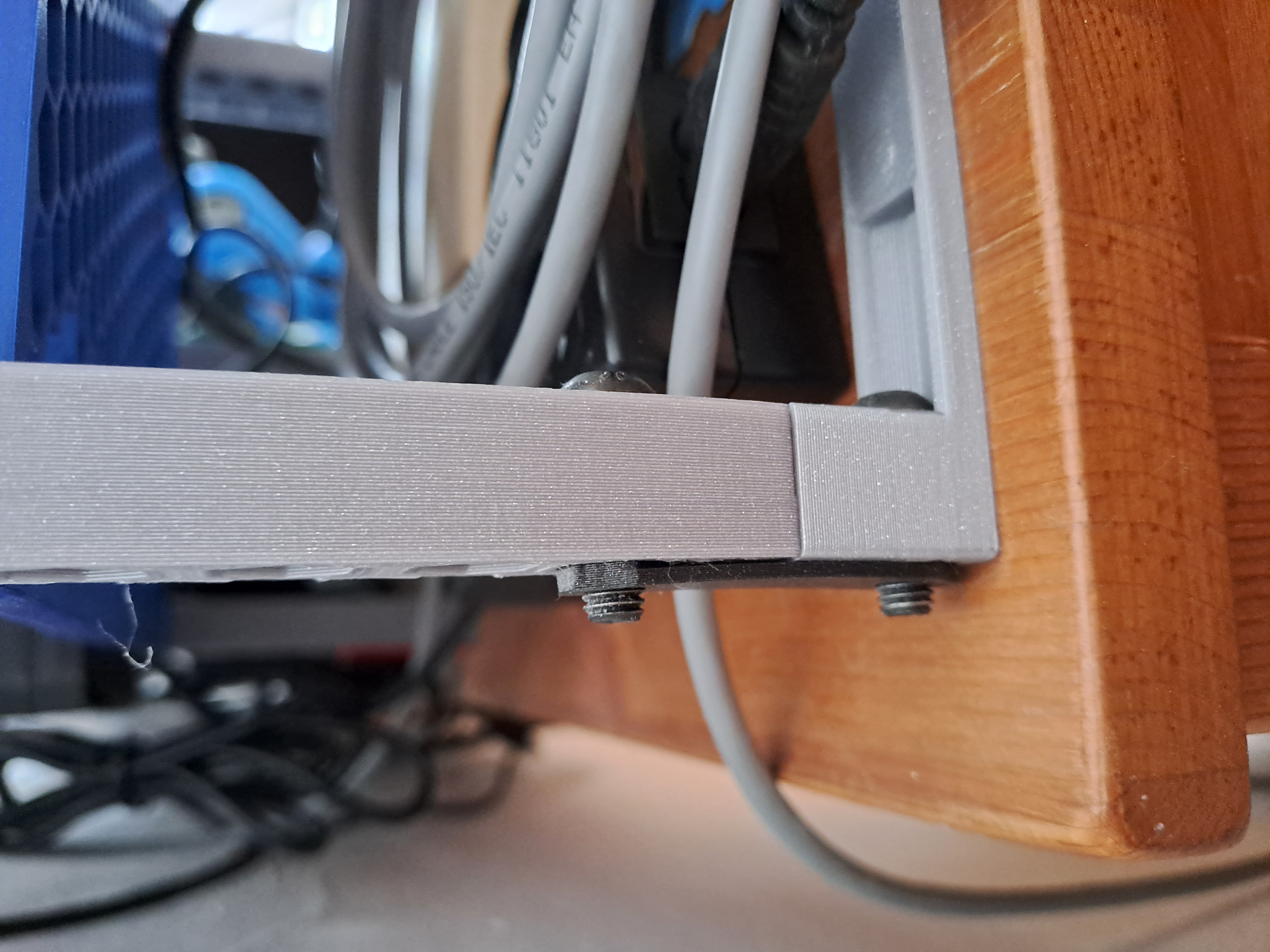

Added rack_rail_join to accessories
Added new folder strong shelves

Printables

10 inch server rack

McBig

Publicado em 26 de jan de 2025

869

Curtidas

5,754

Downloads

46

Impressões

Categoria Organizers

Tags

shelf rack serverrack

Licença Creative Commons — Attribution — Noncommercial — Share Alike

Arquivos (44)

rack_hook.stl 27.4 KB

rack_rail_join.stl 12.8 KB

rack_shelf.stl 402.4 KB

rack_shelf_panel.stl 402.2 KB

rack_shelf_up.stl 350.5 KB

rack_shelf_panel_up.stl 350.3 KB

rack_shelf_down.stl 350.5 KB

rack_shelf_panel_down.stl 350.3 KB

rack_shelf_support.stl 405.9 KB

rack_shelf_panel_support.stl 405.7 KB

rack_shelf_up_support.stl 354 KB

rack_shelf_panel_down_support.stl 353.8 KB

rack_shelf_down_support.stl 354 KB

rack_shelf_panel_up_support.stl 353.8 KB

rack_shelf_strong_support.stl 405.9 KB

rack_panel_honeycomb.stl 93.6 KB

rack_panel.stl 28.8 KB

rack_panel_inbus_holder.stl 89.1 KB

rack_legs_line.stl 21.8 KB

rack_head_line.stl 21.8 KB

rack_legs_line_2x.stl 40.1 KB

rack_head_line_2x.stl 40.1 KB

rack_leg_2x.stl 16.3 KB

rack_leg.stl 8.9 KB

rack_rail_1U.stl 16.3 KB

rack_rail_2U.stl 35 KB

rack_rail_3U.stl 53.8 KB

rack_rail_4U.stl 72.5 KB

rack_rail_5U.stl 91.3 KB

rack_rail_6U.stl 110 KB

rack_rail_7U.stl 128.8 KB

rack_rail_8U.stl 147.5 KB

rack_rail_9U.stl 166.3 KB

rack_rail_10U.stl 185 KB

rack_rail_2x1U.stl 31.1 KB

rack_rail_2x2U.stl 68.6 KB

rack_rail_2x3U.stl 106.1 KB

rack_rail_2x4U.stl 143.6 KB

rack_rail_2x5U.stl 181.1 KB

rack_rail_2x6U.stl 218.6 KB

rack_rail_2x7U.stl 256.1 KB

rack_rail_2x8U.stl 293.6 KB

rack_rail_2x9U.stl 331.1 KB

rack_rail_2x10U.stl 368.6 KB
