MDG Work bench Kit

Official Site: MAKERS DEVELOPMENT GROUP
Twitter: @MAKERS_DEV_GRP
Build Project Link: MDG 3D Printable Work Bench Kit

Introduction:

Hello, we are MAKERS DEVELOPMENT GROUP and this is our 3D print project #001 the MDG Work Bench Kit. This kit is designed specifically for creating an easy to build 3D printer workbench, print farm bench or 3D printer workstation. All you have to do is 3D print the brackets and source the lumber at your local store.

The concept is simple:

1. Print the brackets
2. Cut common wood 2X4 to the desired length
3. Add a ¾” thick MDF or Birch plywood top and bottom
4. Add an optional middle shelf
5. Add the peg board and top strip

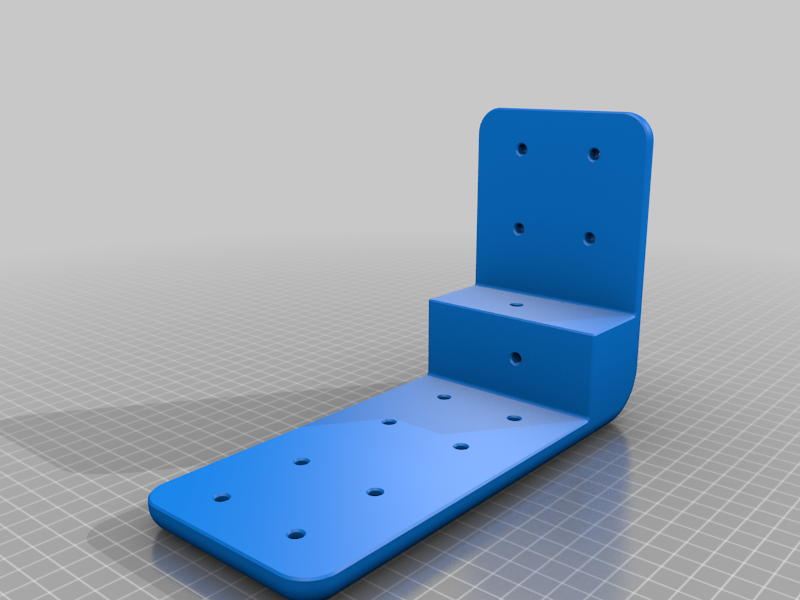

The 3D printed brackets make is easy to line up the 2X4’s and have countersink holes for assembly using #10 wood / construction screws. You can make any size workbench length, width or height you require. The only change necessary is to adjust the length of cut on the 2x4’s and top / bottom.
Recommended 3D Printer Filament Material

PETG

BILL OF MATERIAL

2X4 Stud – White Wood or Yellow Pine (as required)
¾” MDF or Birch Plywood (as required)
#10 X 3” Deck / Construction Screws
Pegboard
Pegboard Accessories
LED Workbench / Shop Light
Heavy Duty Power Strip, Surge Protected
Work Bench Vise

Tools Used

Cordless Drill
Miter Saw
Circular Saw

Notes:
