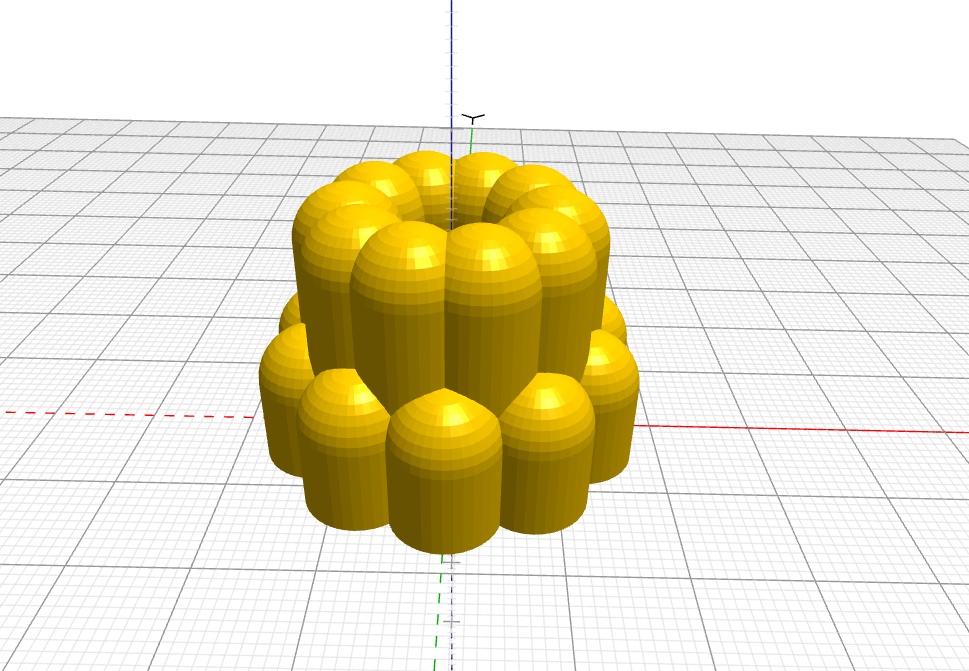

45 record adapter in the shape of a two tier jelly on a base in separate parts to enable a mixture of alternative colours to suit your tastes.

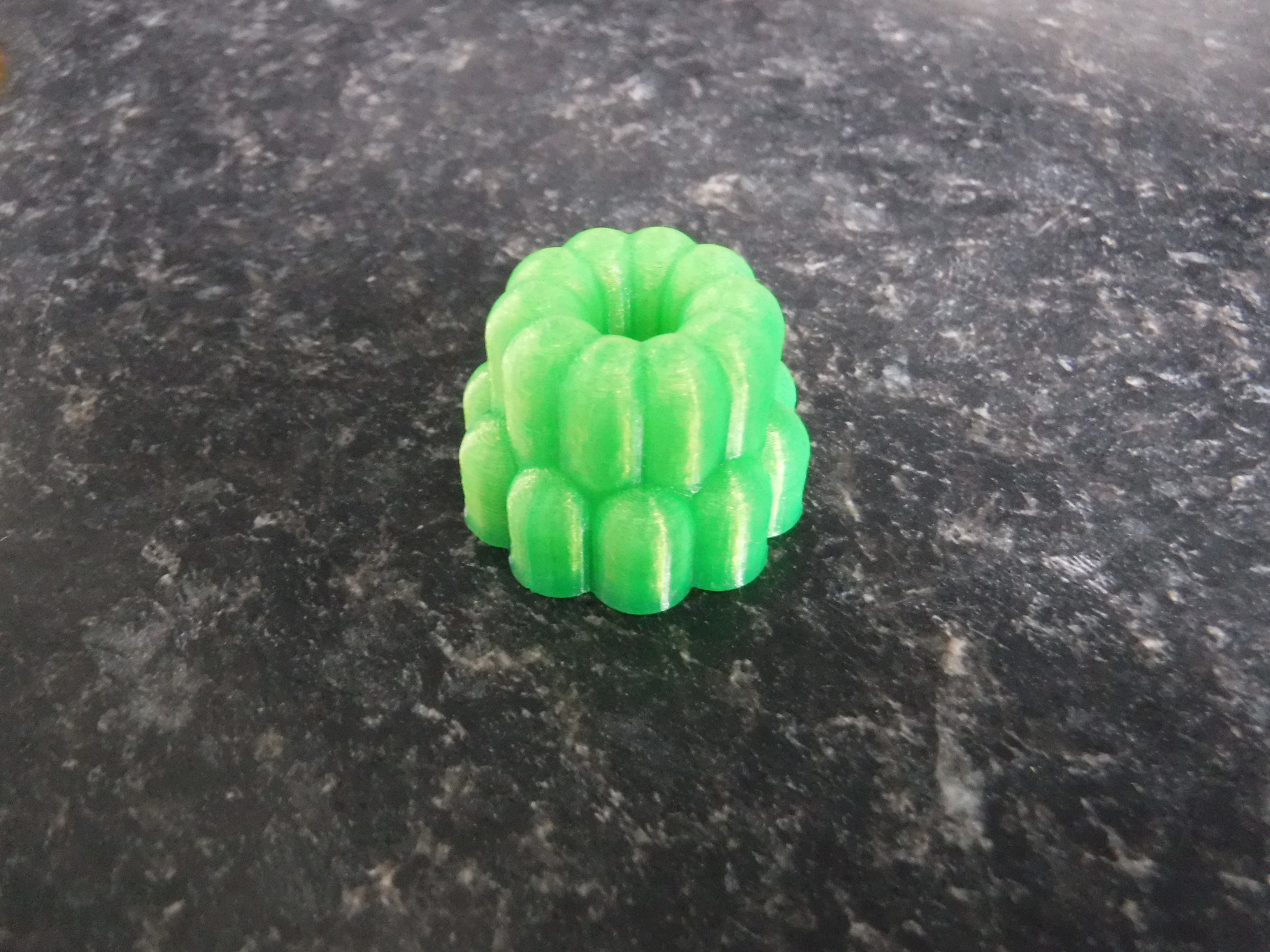

The jelly is printed with a transparent green filament.

Size: 36 (Dia) x 25 (H) mm

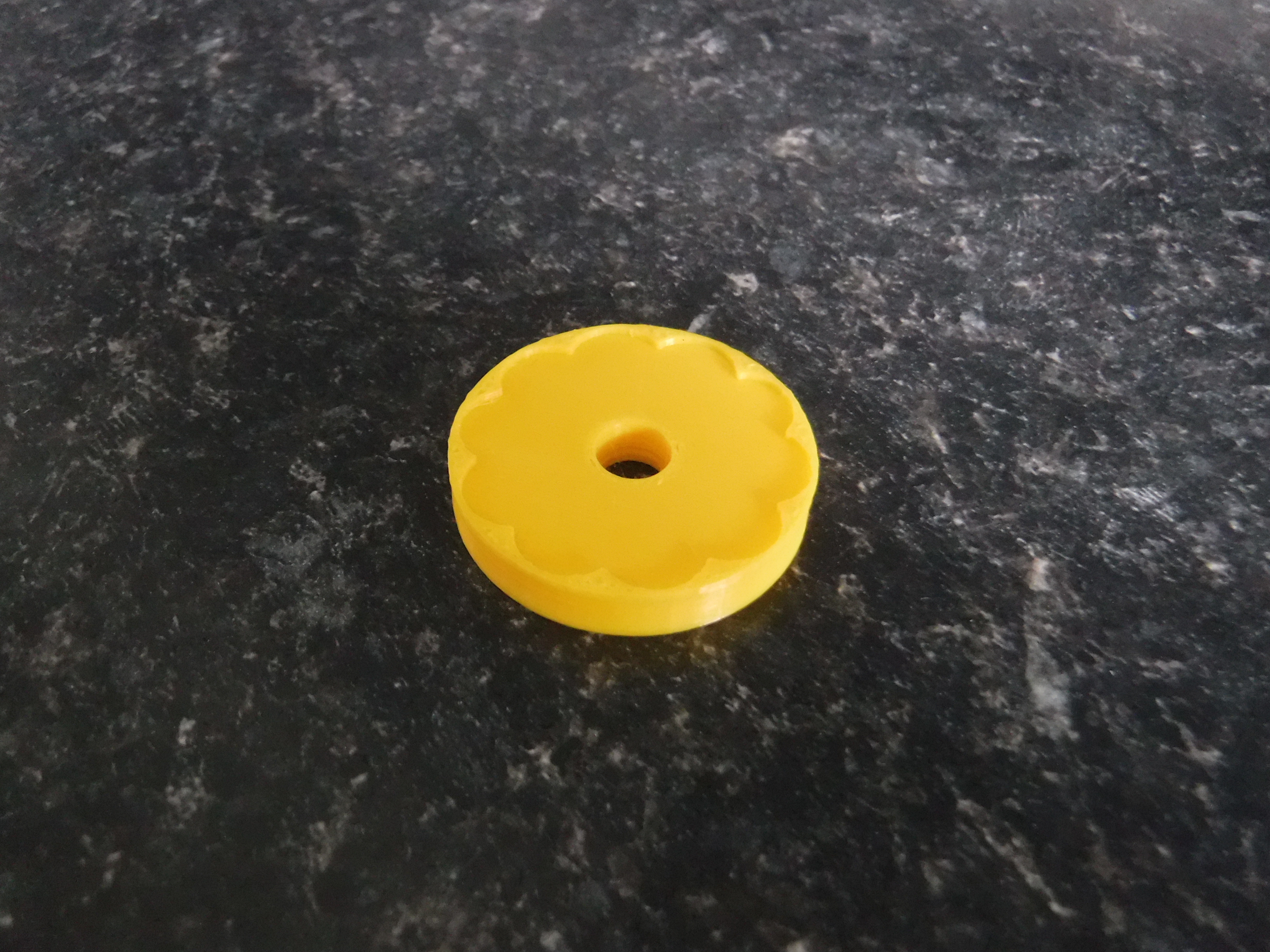

The base [1.5 inch (38.1 mm) dia. with 9/32 inch (~7.144 mm) hole], is the main element that centres the record on the platter.

The base is printed in opaque yellow with a depression that matches the bottom outline of the jelly, this ensures that the centre hole in the base and jelly self align.

Size 38 (Dia) x 7 (H) mm

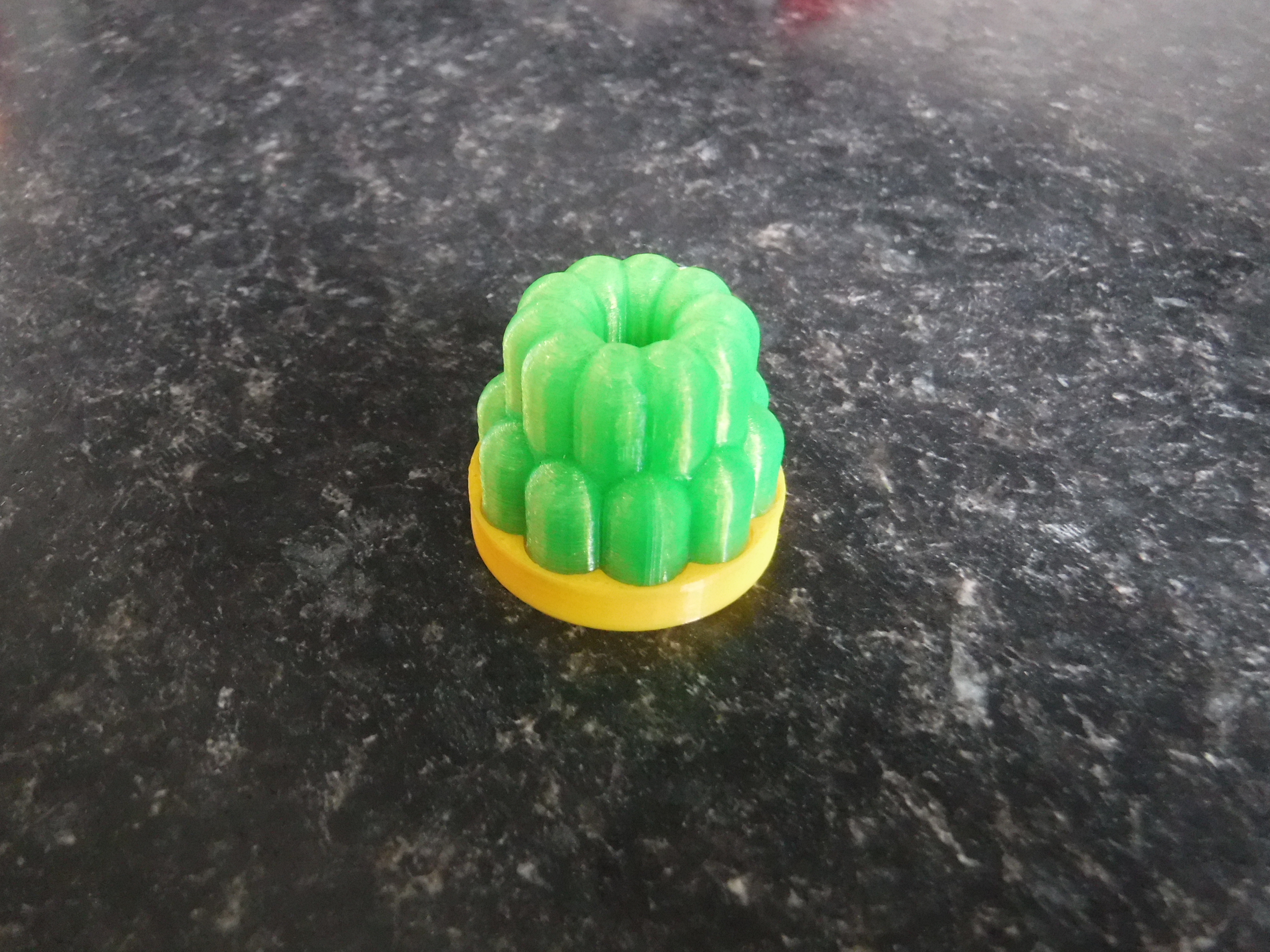

Once printed the two parts are stuck together.

Size: 38 (Dia) x 32 (H) mm

The final model was verified with a 45 rpm, 7 inch single on an Technics SL-D3 deck.

Print details for both parts.

Filament: PLA

Layer Height: 0.15mm

Infill Density: 50%

Infill Pattern: Tri-Hexagon

Base Adshesion: Skirt

No supports

Print time top: ~1hr 30min: Weight: ~13g

Print time base: ~30mins, Weight: ~6g
