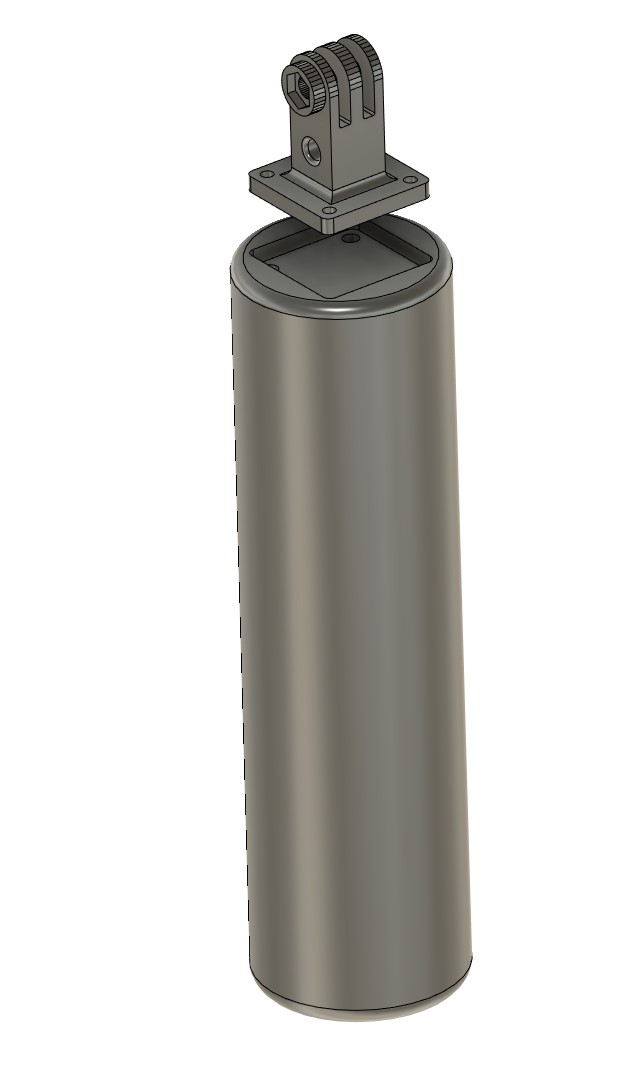

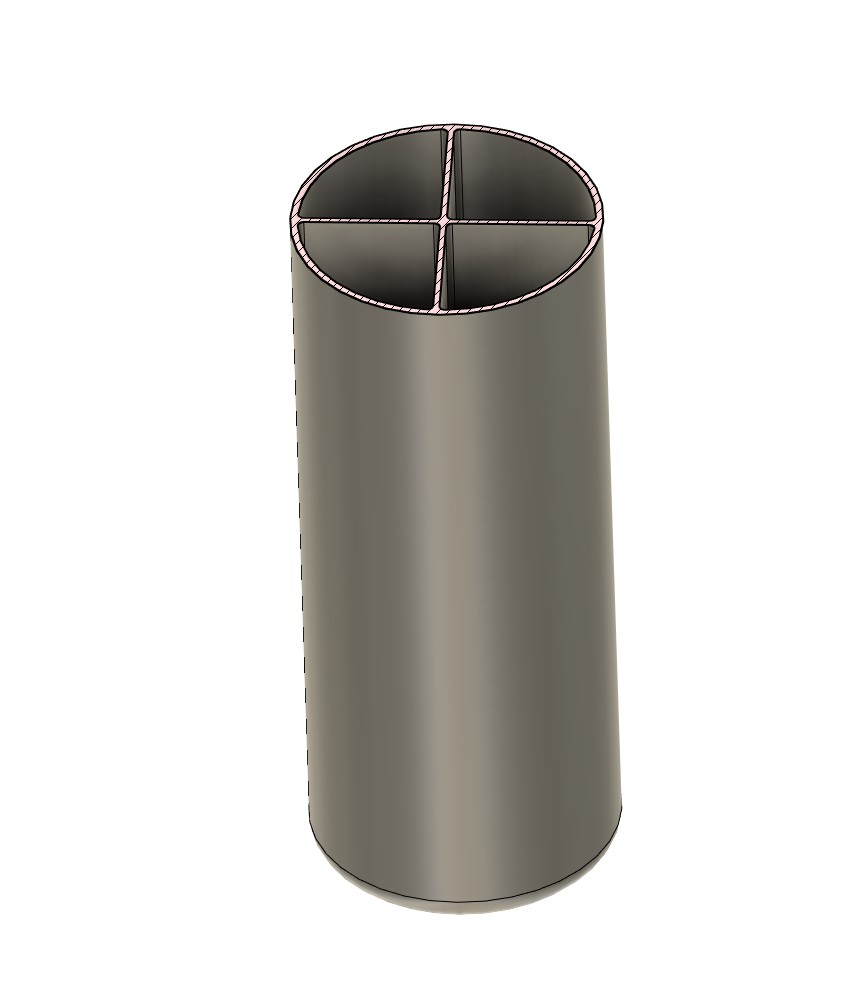

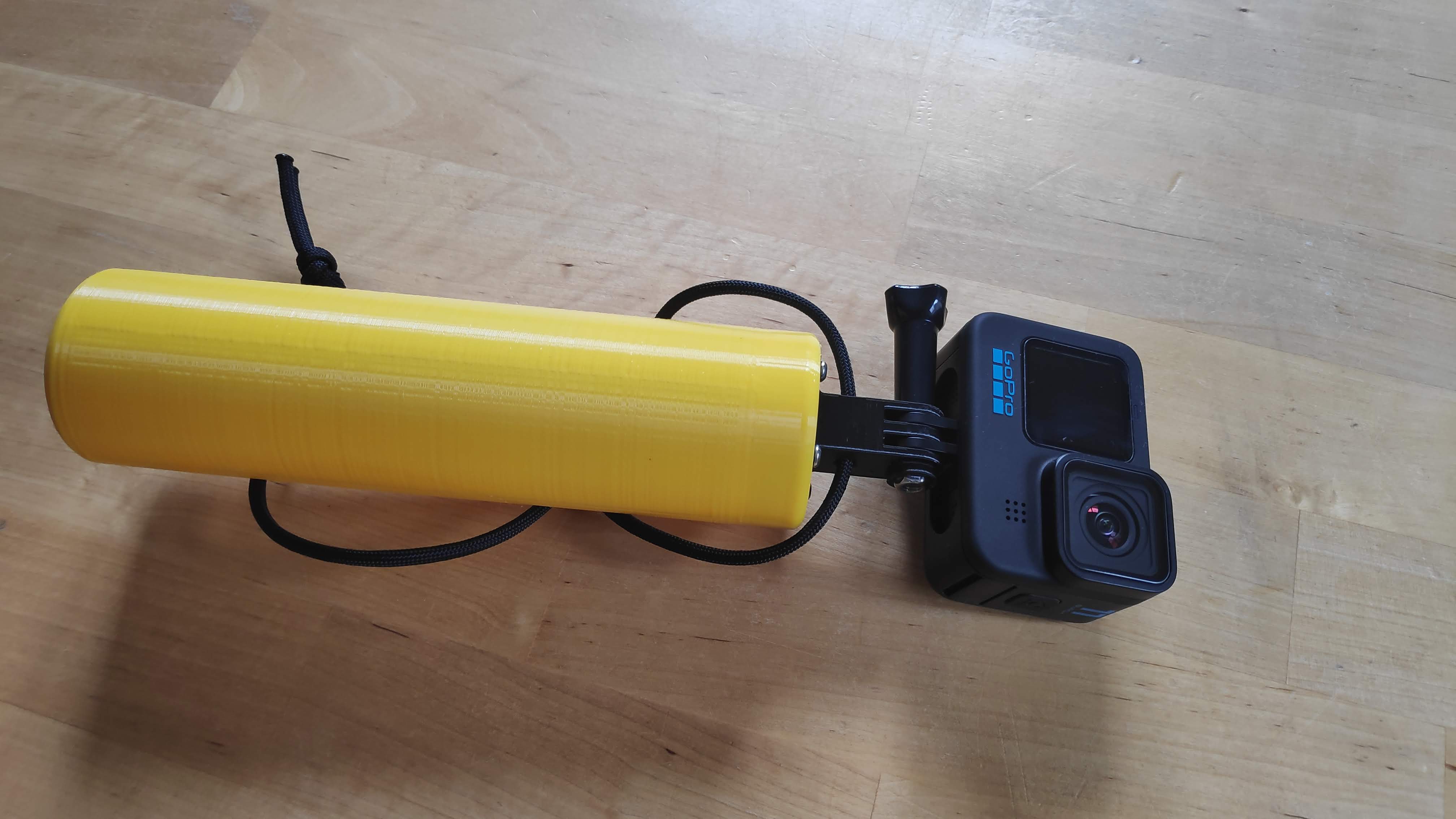

The model consists of two parts, the floating handle and the GoPro mount (I also included a file where the mount is fixed to the handle). The floating handle has 4 chambers which help with stability and redundancy, if one chamber gets damaged. it gets about 50% submerged when a gopro is attached.

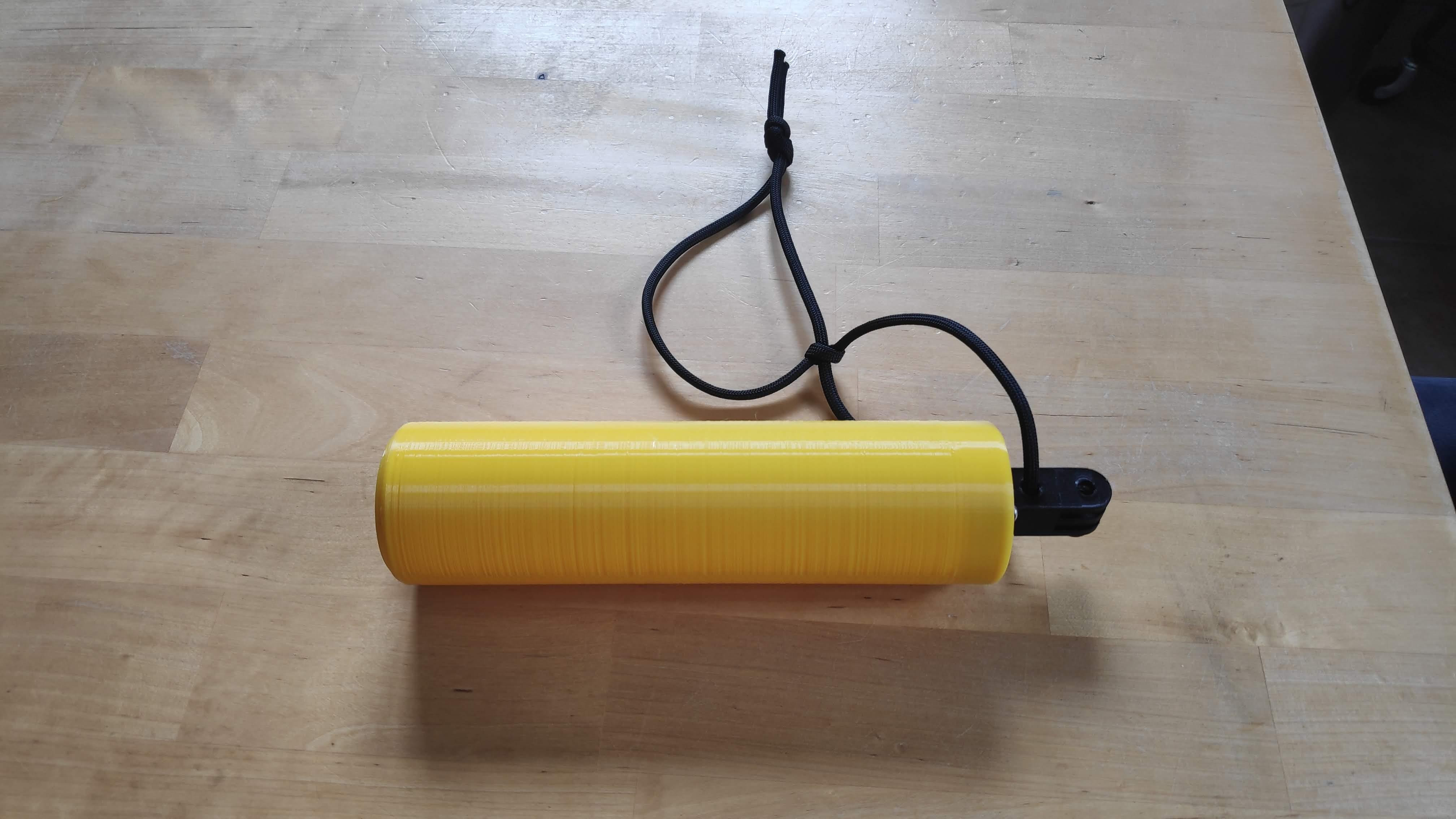

You might print the handle in a somewhat bright color for better visibility. You can glue the mount to the handle, but using threadet inserts and screws (M2) is highly recommended. Also you have to glue a hex-nut to the mount, so you can use standard GoPro screws to secure your camera. I used the two files so i can change the mount if it gets damaged without printing a new handle.

I printed both the handle and the mount in PLA. Print the handle standing upright without supports.

• Material: PLA
• Nozzzle: 0,4 mm
• Layer-Height: 0,2 mm
• Support: no
