Modelo 3D Corner Bracket v2 (optimized for 3D printing) por 3D_Workspace no Printables

Descrição

Normal 3d-printed brackets can easily break if you overtighten the screws.

These brackets are specially designed for FDM-3D-printing. Because of their wide surface areas on every layer they can withstand multiple times more force than other 3d-printed brackets.

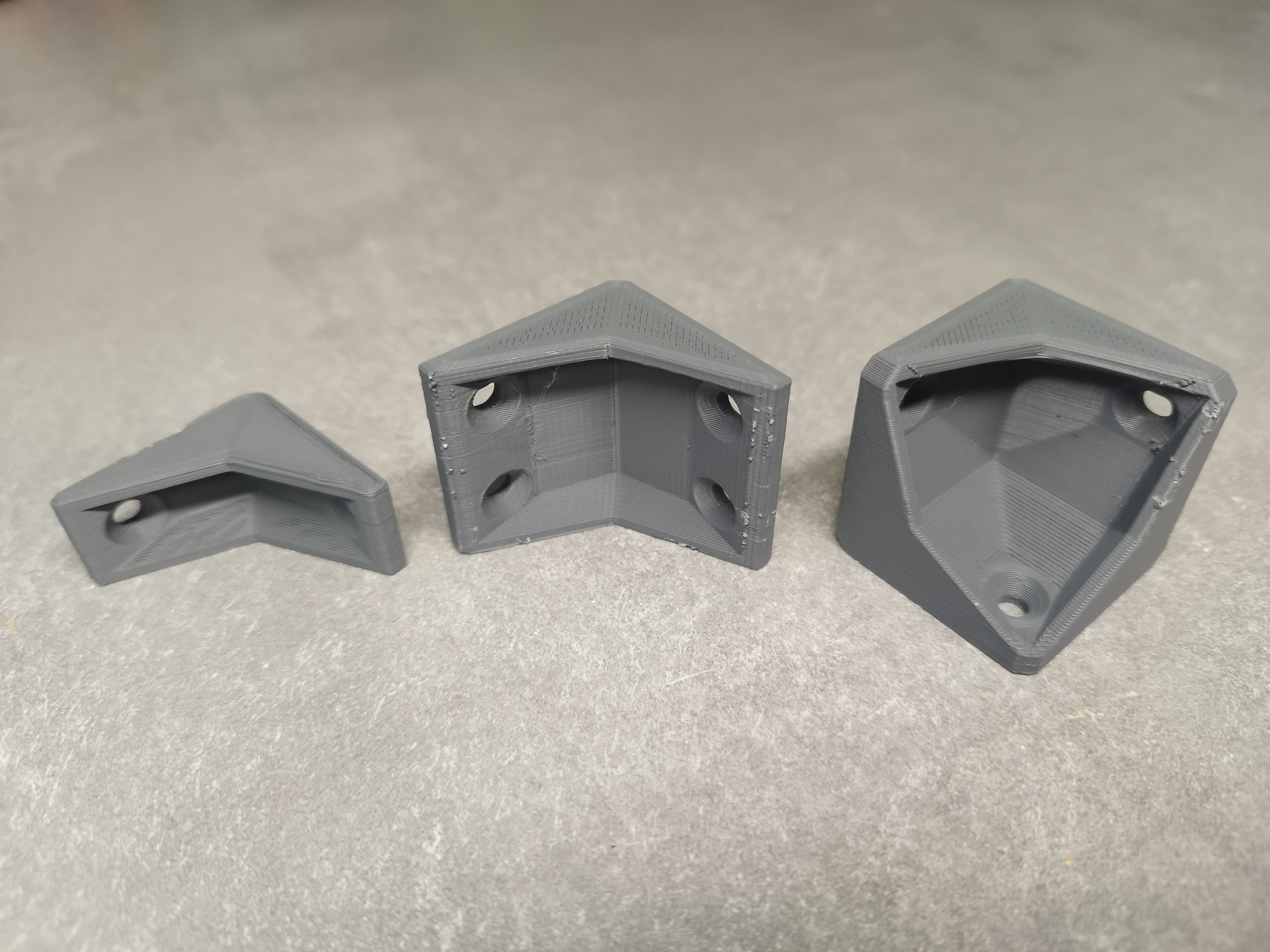

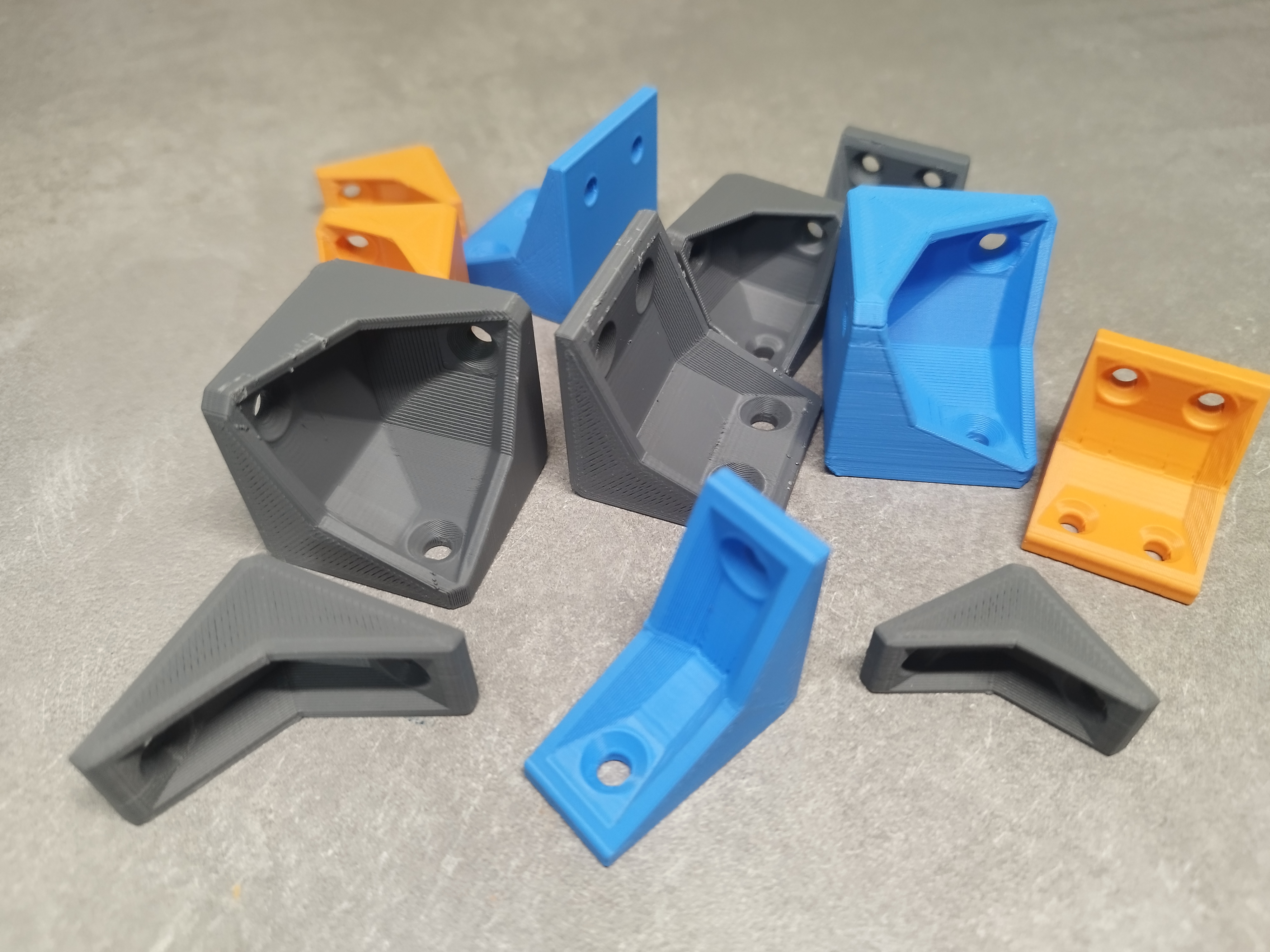

There are 3 brackets in 2 sizes:

  • 32x16
  • 32x32
  • 32_3-sides
  •
  • 24x12
  • 24x24
  • 24_3-sides

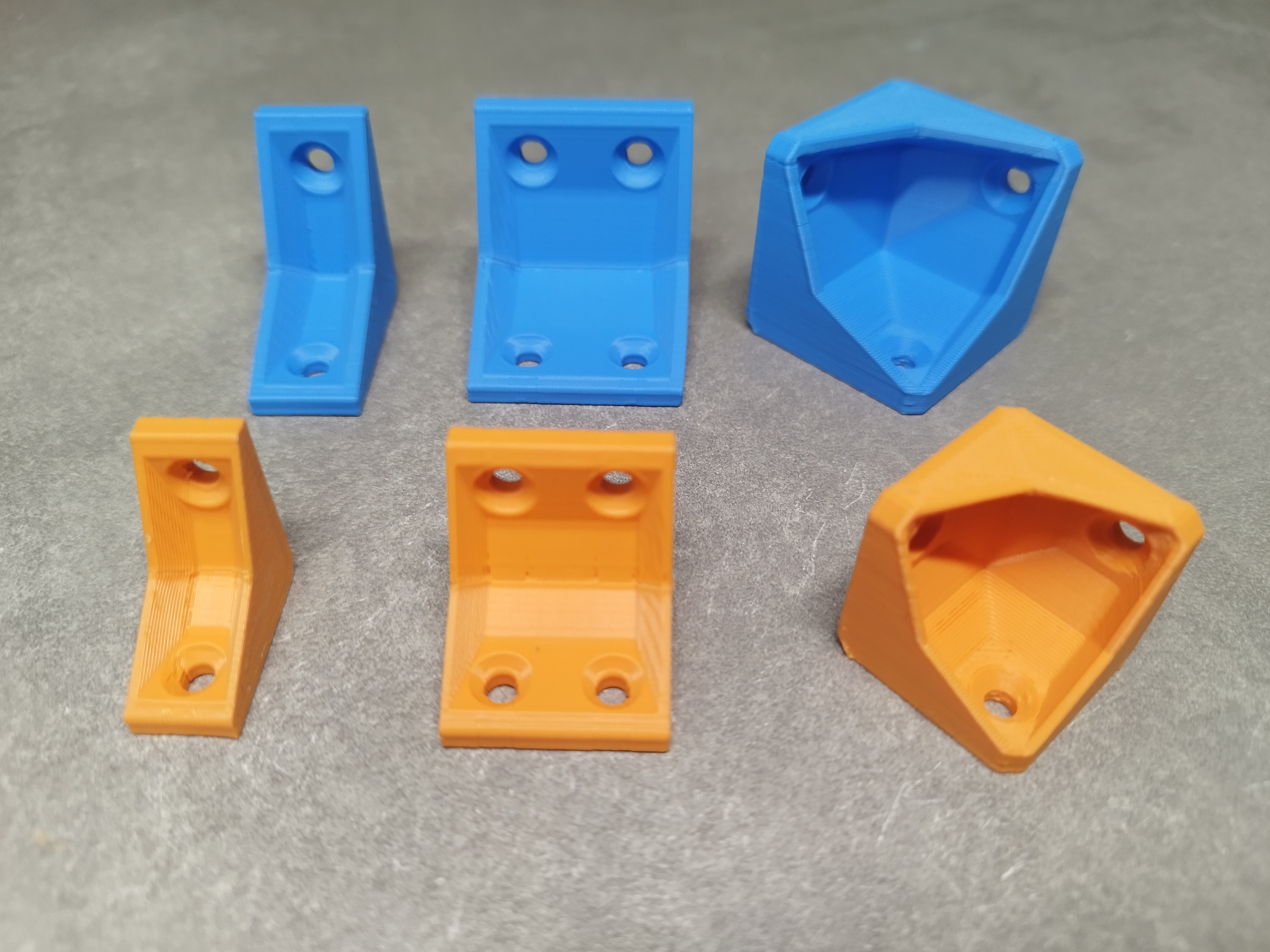

You can download 2 versions of every bracket. The normal versions are made for countersunk screws and the “_flat” versions are for truss, pan or round head screws.



You can find the drilling distances of every version in the pictures or as PDF download in scale 1:1.

Printables

Corner Bracket v2 (optimized for 3D printing)

3D_Workspace 3D_Workspace (abre em nova aba)

Publicado em 1 de ago de 2023

6,588
Curtidas
13,154
Downloads
153
Impressões
Categoria Mechanical Parts
Licença Creative Commons — Attribution — Noncommercial
Arquivos (12)
Bracket_32x16.stl 498.3 KB
Bracket_32x32.stl 992.1 KB
Bracket_32_3-sides.stl 752 KB
Bracket_32x16_flat.stl 569 KB
Bracket_32x32_flat.stl 1.1 MB
Bracket_32_3-sides_flat.stl 859 KB
Bracket_24x12.stl 497.5 KB
Bracket_24x24.stl 990.1 KB
Bracket_24_3-sides.stl 750.5 KB
Bracket_24x12_flat.stl 567.9 KB
Bracket_24x24_flat.stl 1.1 MB
Bracket_24_3-sides_flat.stl 855.9 KB
