Modelo 3D Stackable Wall Mount Storage Boxes por MrTeliP no Printables

Descrição

EDIT 03-02-2025: I have been too busy to do anything new and my CAD machine took a dump a while back. I was able to recover the files for this so I added the STEP files for it.

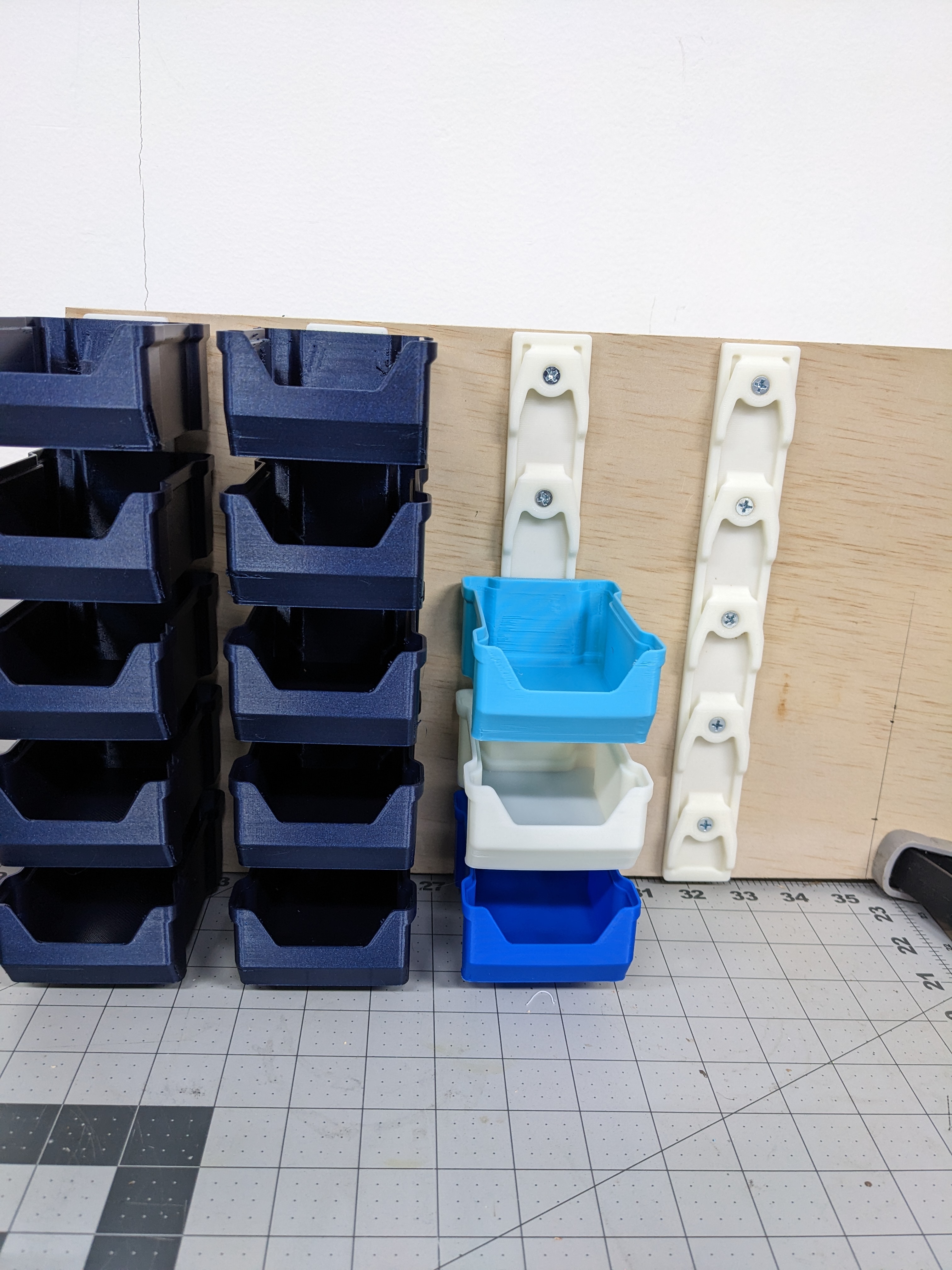

These little boxes can be stacked or mounted to a wall. Great for organizing hardware and other small, miscellaneous items around the house or shop. So far there I've only designed two container sizes, but I intend to design some more. I made these specifically for my needs in my workspace, but since I actually like how these turned out I figured I'd share them.

The dimensions for the box are the internal dimensions of the box with the 1.8mm wall thickness. The measured dimensions of the 1.2mm wall thickness boxes will be slightly larger. I'd recommend printing these in either PETG or ABS/ASA. I use a 0.6mm nozzle on my Voron for just about everything and it makes short work of both, but obviously the 1.2mm wall thickness boxes will print much faster.

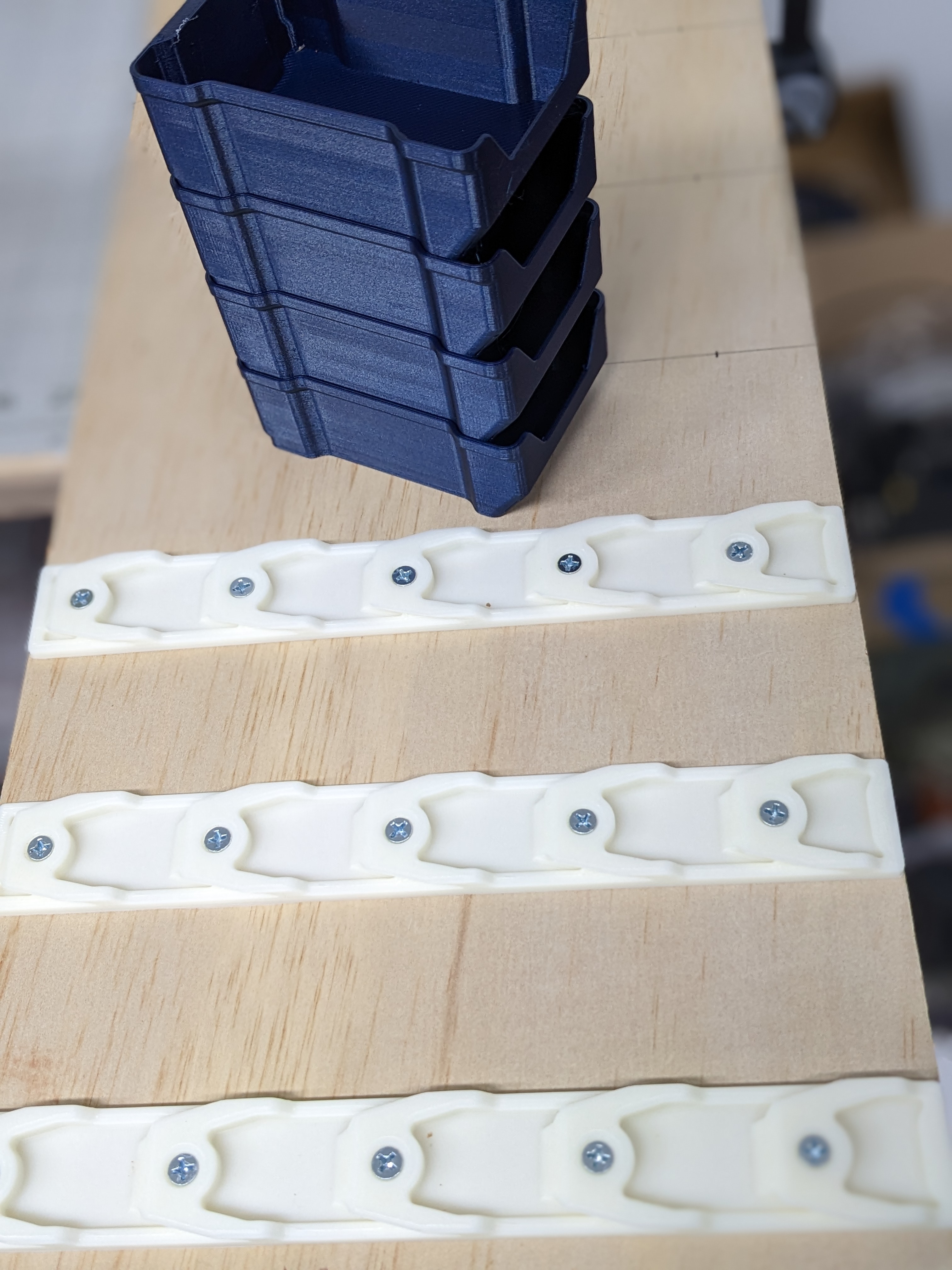

Make sure to print the clips with the appropriate box depth you intend to use - 35D, 40D. The mounting holes are designed for #8 wood screws with an 82deg head though you could get away with #6 instead.

Suggestions are welcome. I will do my best to meet reasonable requests, but I do have a full time job and kids, so whether or not I actually get around to doing it is totally up in the air.

Printables

Stackable Wall Mount Storage Boxes

Publicado em 3 de mar de 2025

789
Curtidas
2,070
Downloads
15
Impressões
Categoria Organizers
Tags
box organizer wall container clip mount wallmount storage storagebox organize
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (15)
BOX, 95L 55W 35D, 1.2MM, SWMS.stl 2.5 MB
BOX, 95L 55W 35D, 1.8MM, SWMS.stl 2.9 MB
BOX, 105L 65W 40D, 1.2MM, SWMS.stl 2.5 MB
BOX, 105L 65W 40D, 1.8MM, SWMS.stl 2.9 MB
CLIP, 1UP, 35D, SWMS.stl 1.1 MB
CLIP, 1UP, 40D, SWMS.stl 1.1 MB
CLIP, 2UP, 35D, SWMS.stl 2 MB
CLIP, 2UP, 40D, SWMS.stl 2 MB
CLIP, 3UP, 35D, SWMS.stl 2.7 MB
CLIP, 3UP, 40D, SWMS.stl 2.7 MB
CLIP, 4UP, 35D, SWMS.stl 3.3 MB
CLIP, 4UP, 40D, SWMS.stl 3.3 MB
CLIP, 5UP, 35D, SWMS.stl 4 MB
CLIP, 5UP, 40D, SWMS.stl 4 MB
Wall Storage Box All.stp 13.9 MB
