Modelo 3D Five33 Tiny Trainer Prop Guards por YAWESOME no Printables

Descrição

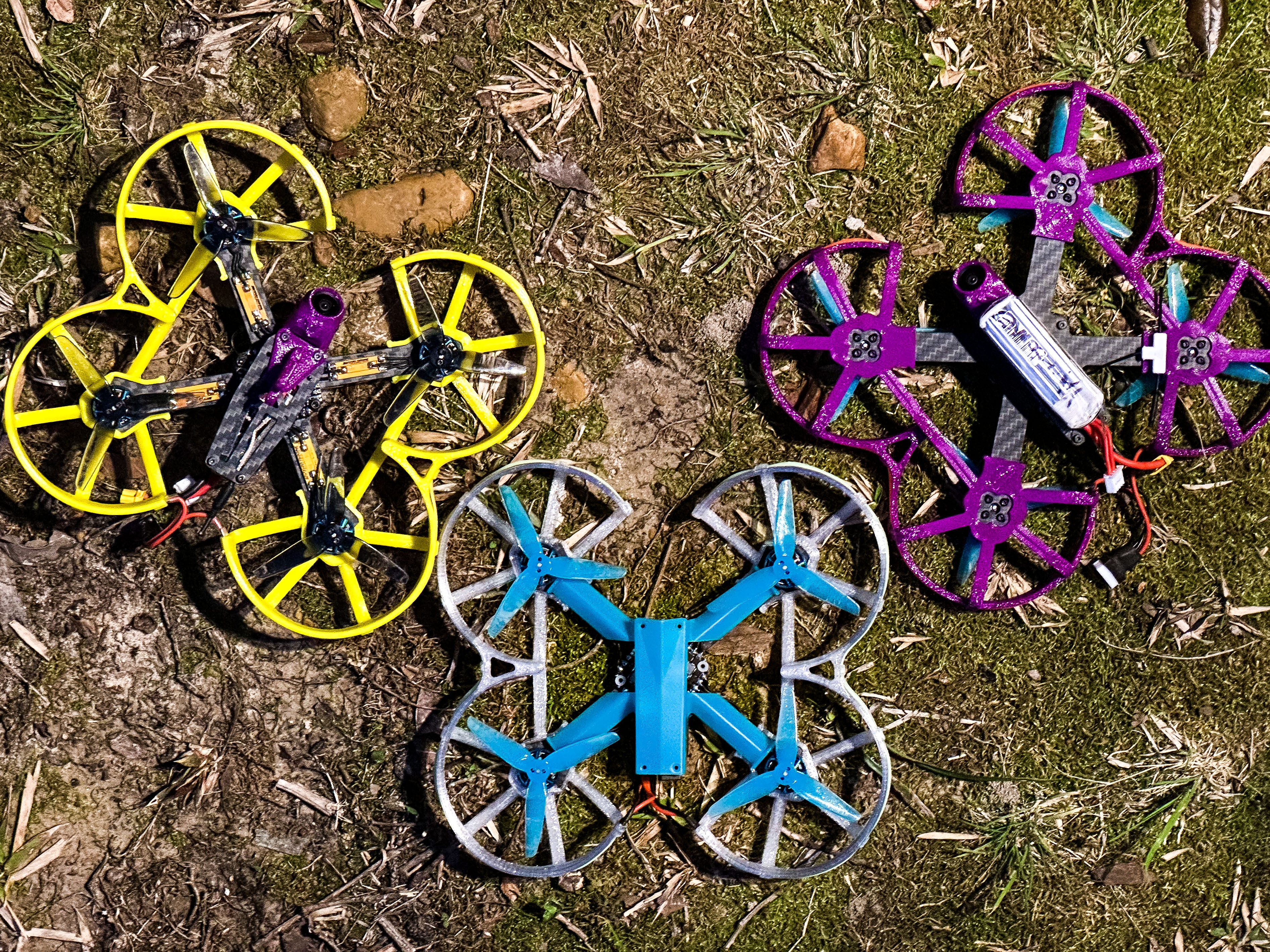

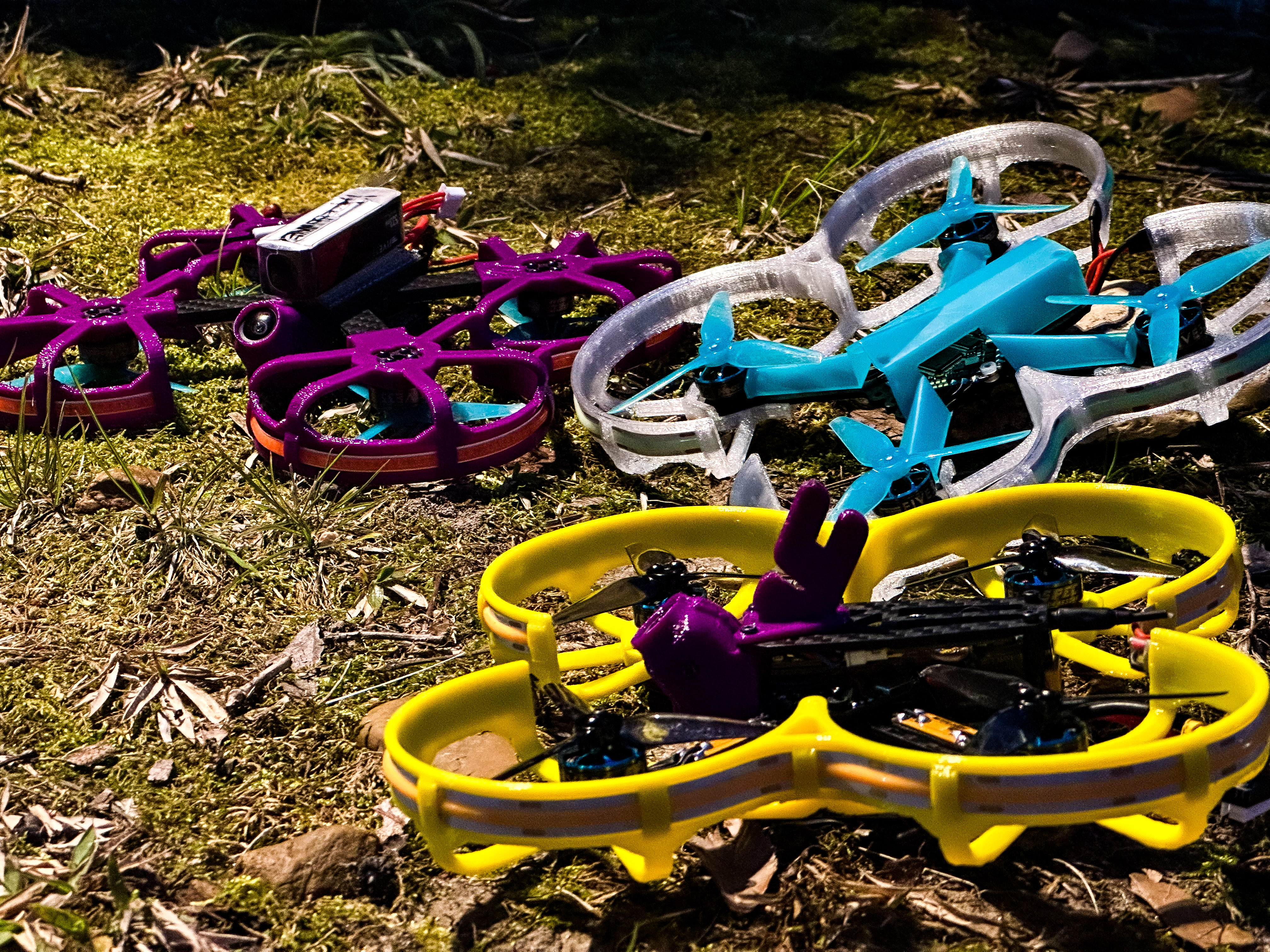

Prop guards for the Tiny Trainer that do not require extra modification or removal of props/motors to install.  They fit onto the ends of the arms by friction fit and a zip tie (not necessary but suggested if racing).  The model is designed to be printed with these settings but are not required for a great print:

  • 1.5mm TPU
  • 0.6 Nozzle
  • 0.3 Layer Height
  • 0.65 Extrusion Width
  • Supports needed for 90deg overhangs and bridges only

Versions are available for the standard 2mm bottom plate, upgraded 3mm bottom plate, and v2 Tiny Trainer with replaceable arms.

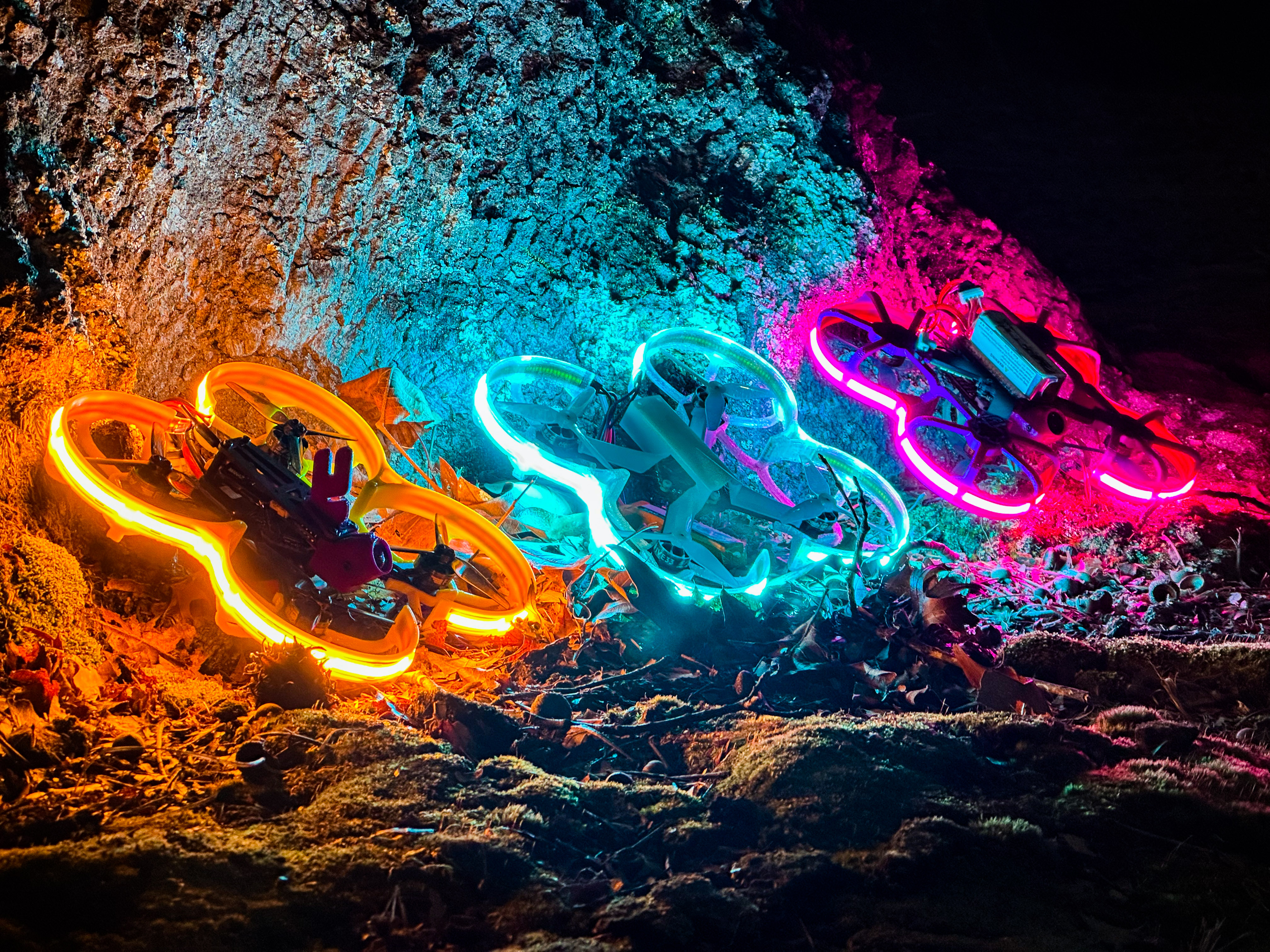

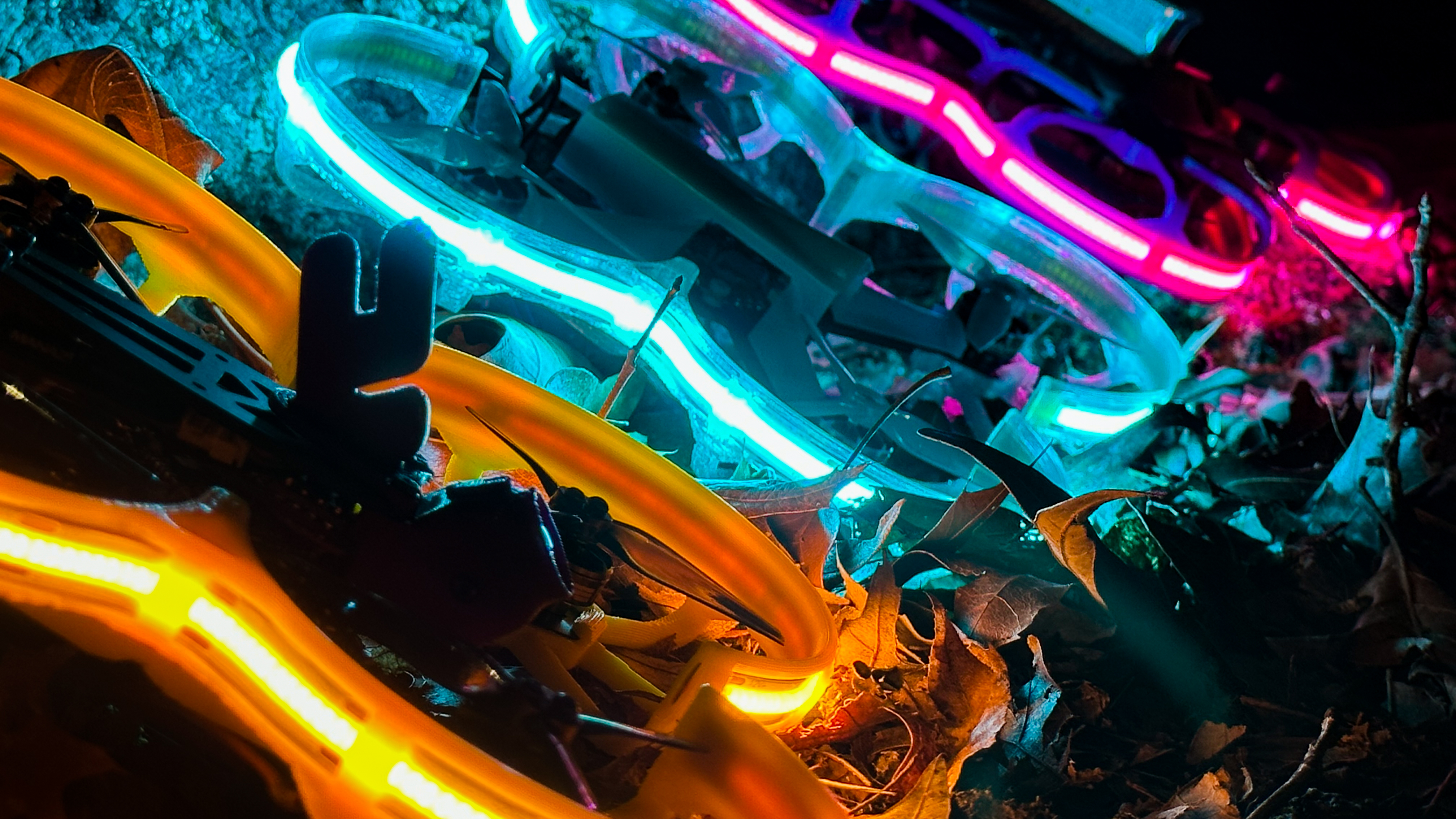

-LED Version fits 5mm and 8mm COB LED strips. Around 22g per side without LED strip.

-Standard Version is without the slot for LED strip.  Around 24g per side.

-Lite Version is a single arm prop guard with minimal material.  Around 8g per arm.

Printables

Five33 Tiny Trainer Prop Guards

Publicado em 6 de mar de 2023

18
Curtidas
147
Downloads
Categoria RC & Robotics
Tags
drone duct cinewhoop spec 3in 533
Licença Creative Commons — Public Domain
Arquivos (9)
3mm LED.stl 634 KB
2mm LED.stl 622.4 KB
v2arms LED.stl 673.2 KB
3mm Standard.stl 415.3 KB
2mm Standard.stl 403.8 KB
v2arms Standard.stl 454.8 KB
3mm Lite.stl 257.2 KB
2mm Lite.stl 263.4 KB
v2arms Lite.stl 317.9 KB
