Modelo 3D Universal remote controller por marigu no Printables

Descrição

Universal remote controller with ESP32 and NRF24L01 wireless module.
Ideal for testing robotics projects, wireless communication or portable gaming device projects.
You can program it as game console, remote controler, etc.
There is plenty buttons and two joystick what you can use.
It is powered by two 18650 battery hidden under display.

There is even neopixels (WS2812B) and small vibration motors as well!

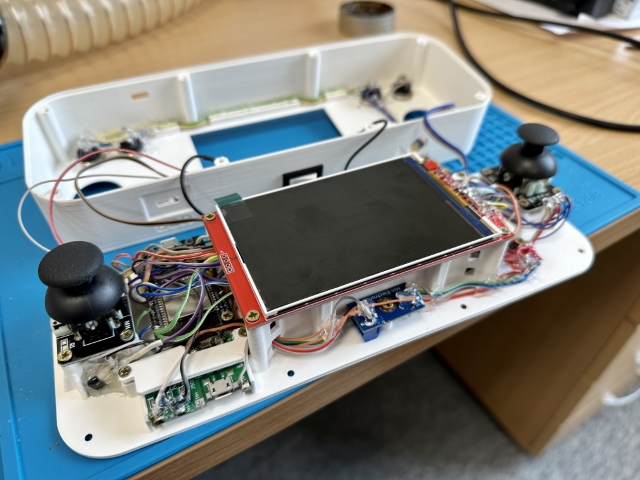

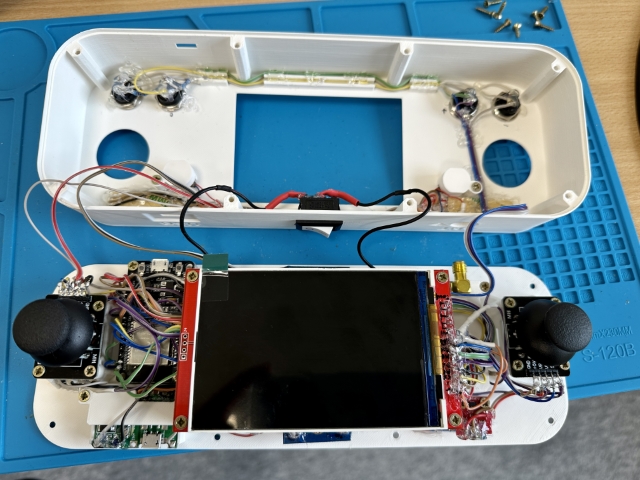

It is relatively small so be careful when you are putting all that inner parts and cables together.

************************** Edit 30.03.2023 **************************

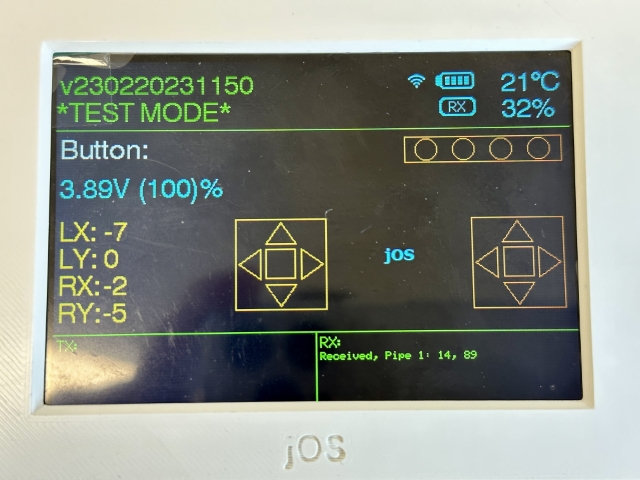

I have uploaded some test code, you can edit it for your needs.

You should be able to find how all those modules are connected from code (as there is PIN definition for all stuff there).
Some PINs are ESP32 common PINs as I2C, SPI, etc.



Prusa i3 MK3
0.2
20 infill
PLA+

Printables

Universal remote controller

Publicado em 30 de mar de 2023

31
Curtidas
111
Downloads
Categoria Electronics
Tags
display wifi wireless arduino joystick controller ws2812b esp32 button remote vibration neopixel universal nrf24l01 feedback
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (10)
PSU_holder_top.stl 23.3 KB
wireless_module_holder_top.stl 27.9 KB
vibration_motor_holder_right_top.stl 17.3 KB
universal_remote_controller_bottom.stl 867.6 KB
vibration_motor_holder_left_top.stl 17.3 KB
universal_remote_controller_22.f3d 4.2 MB
universal_remote_controller_top.stl 630.6 KB
battery_holder_top.stl 91.9 KB
universal_remote_controller_top.stl 630.6 KB
universal_remote_controller_22.f3d 4.2 MB
