Big lampshade with multipule parts and variation of assemblies

Print instructions

Filament -PETG

All the parts except the sepal (big and small) printed the same layers and perimetrs:
Layer height- 0.2mm ,3 up, 4 down
perimeter - 2
Infill - 0%

SEPAL
Layer height- 0.2mm ,4 up, 6 down.
perimeter - 2
Infill - 0%

ASSEMBLY INSTRUCTION: (for two versions)

PRINTING PARTS:
6 pcs petal L (only for large version)
6 pcs petal M
6 pcs petal S
1 pcs anther
1 pcs centralization ring
1 pcs L/S sepal

HARDWARE
12 pcs M4X20 and 12 T-nuts
Screwdriver or Allen key

Step 1:

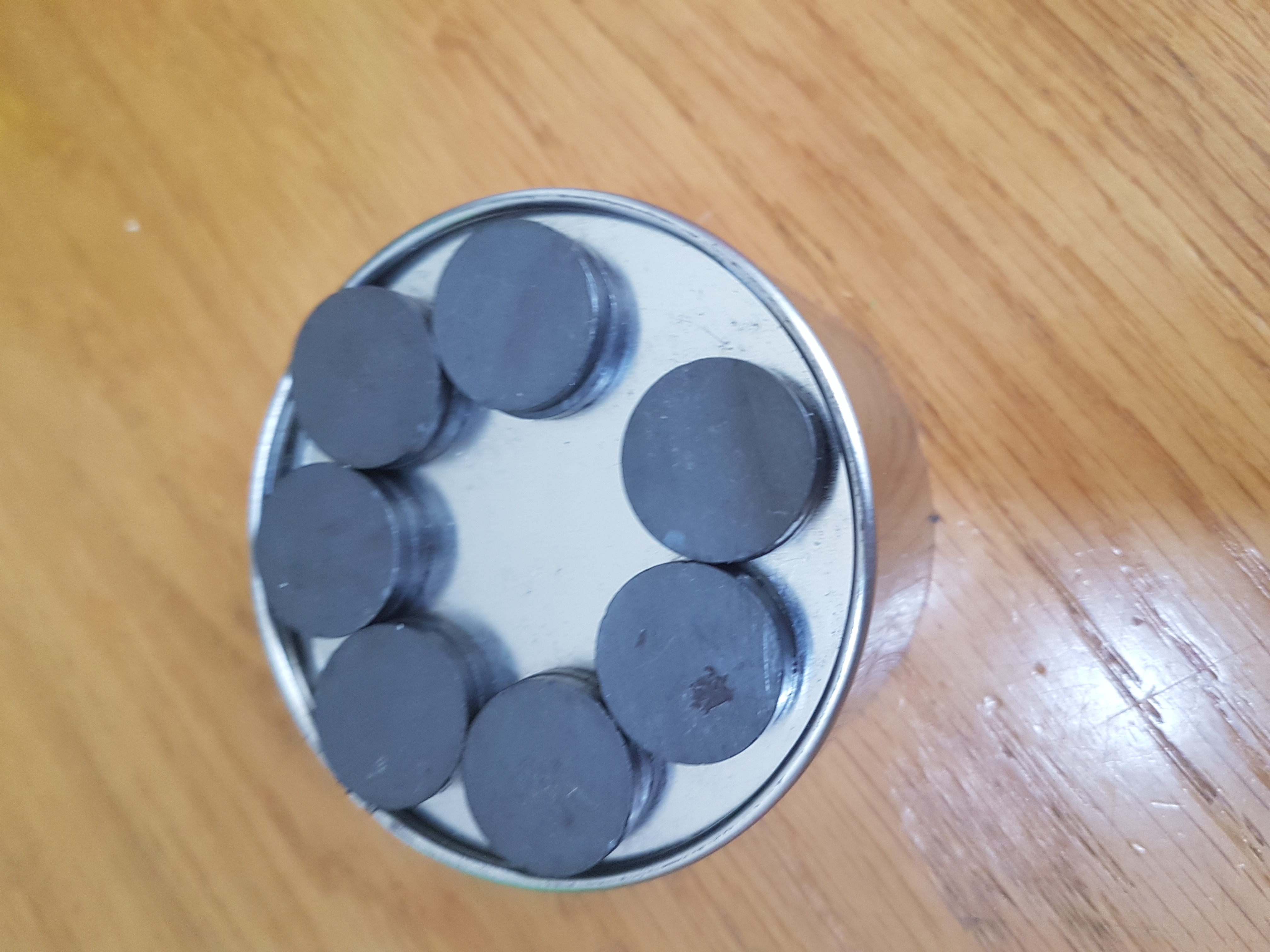

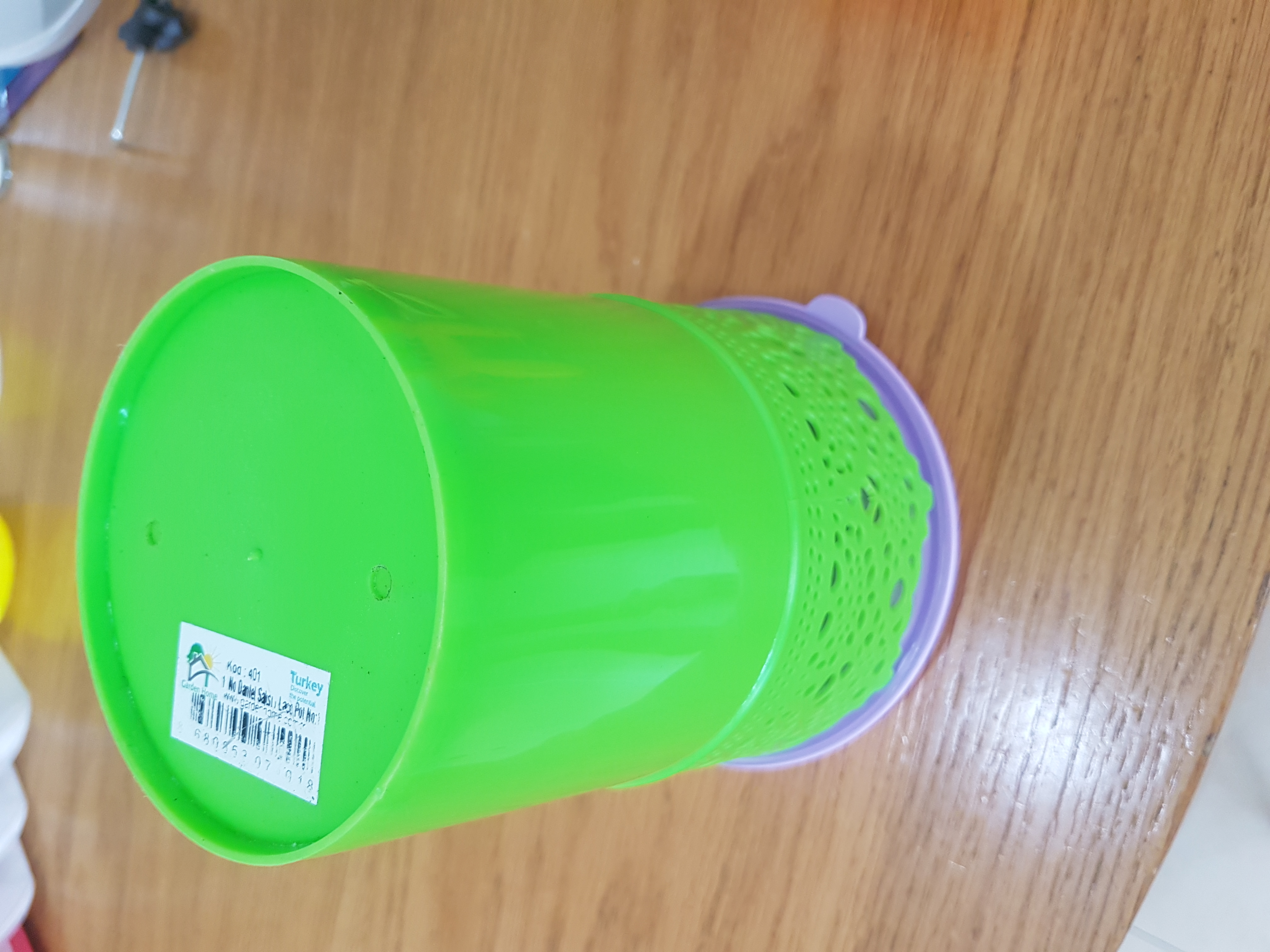

The easiest way to assemble is using magnets and some tall jar with a metal cup. (or random stuff that works like I did)
Step 2:

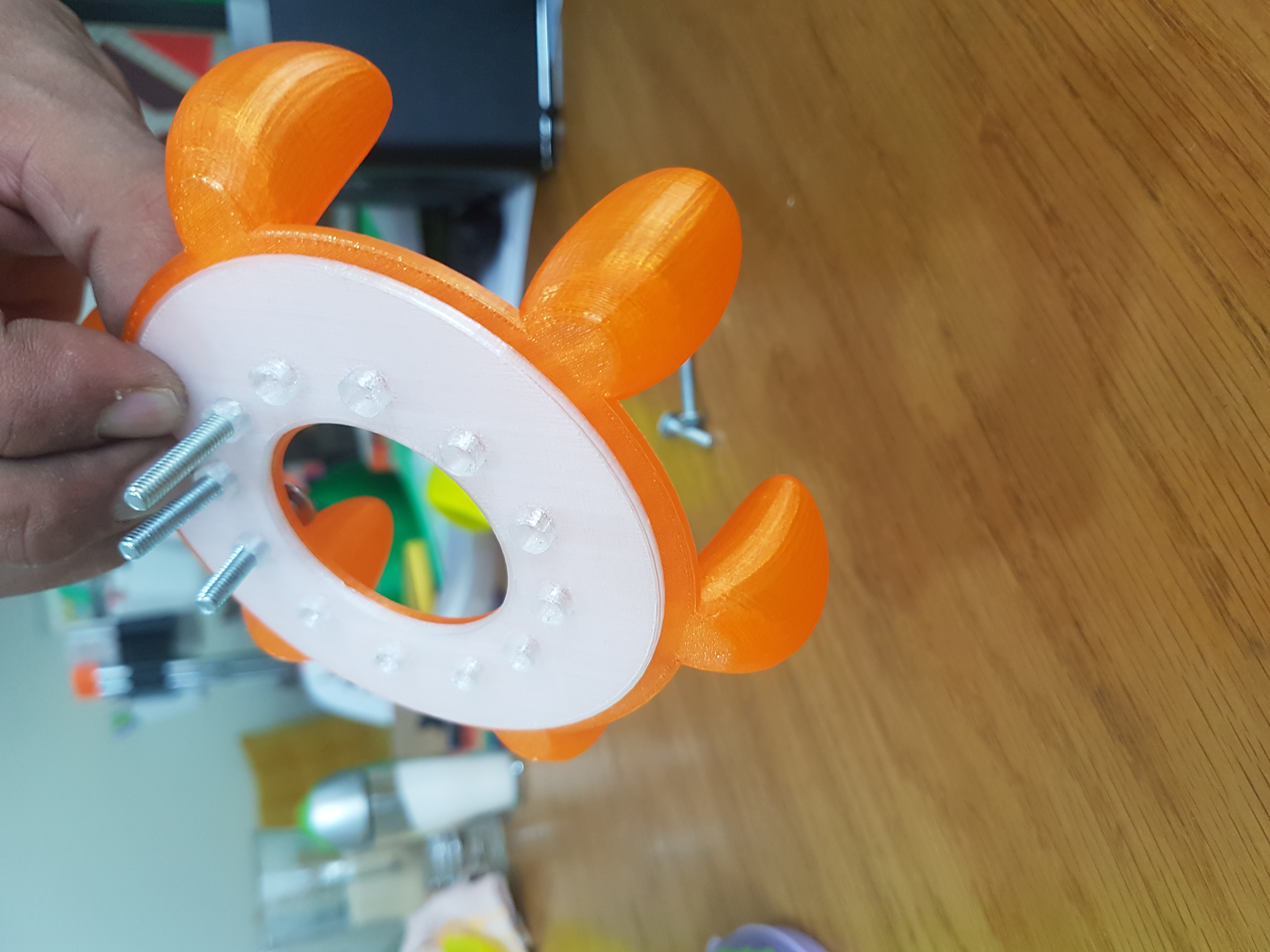

Take the anther and the ring, align them and insert all the screws inside the hole.

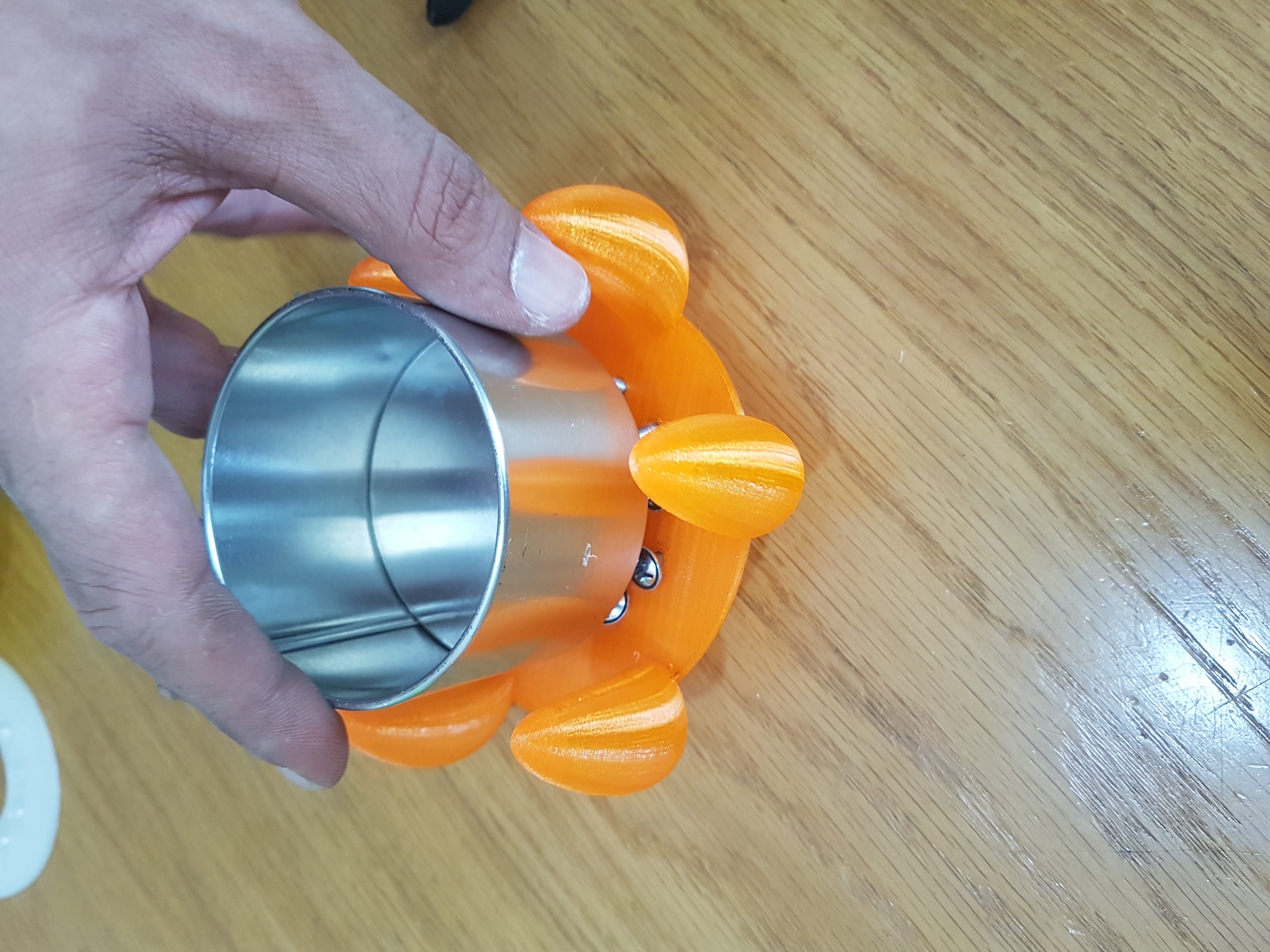

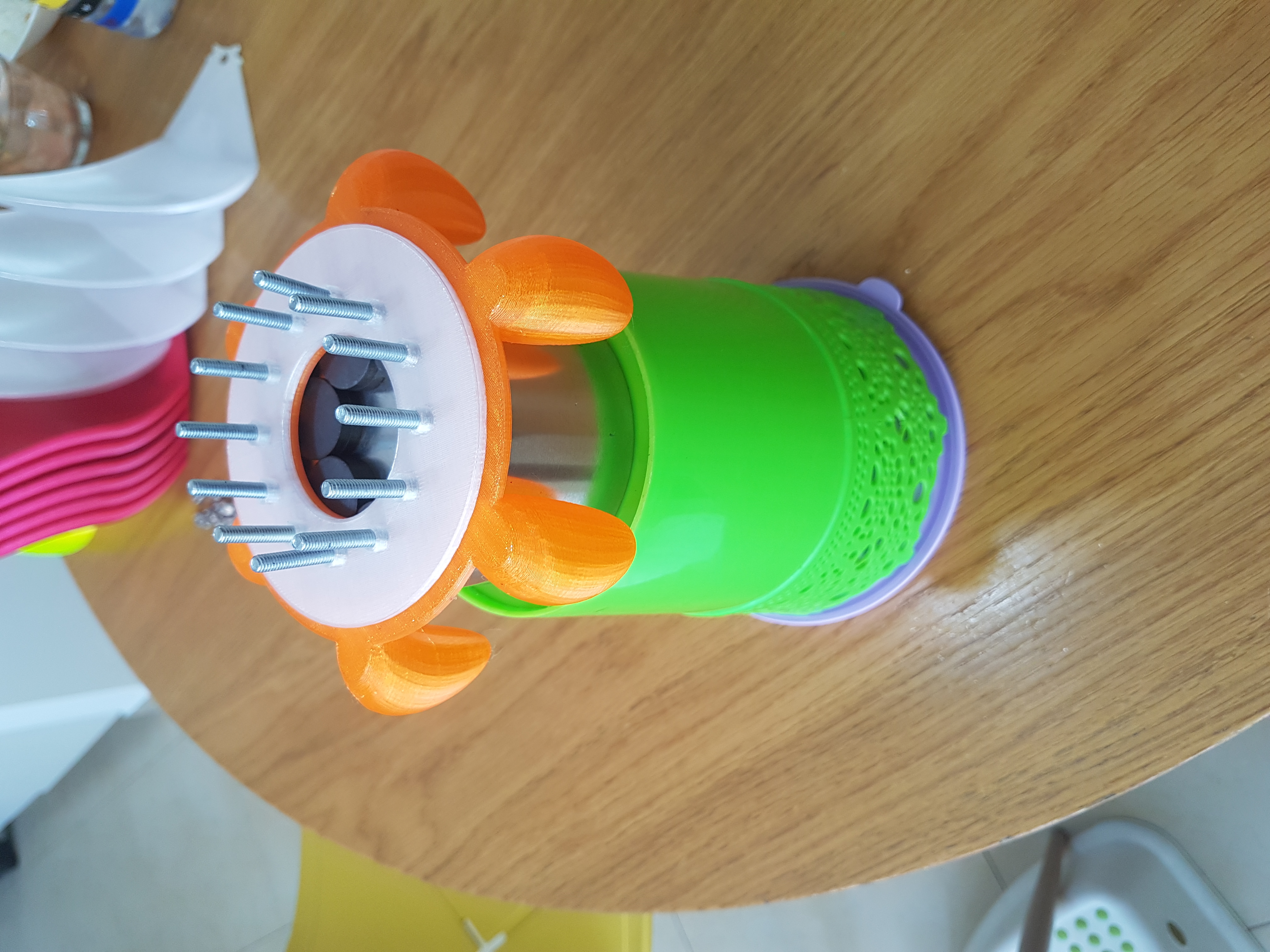

Put the cup with the magnets on the screws and flip it over
Step 3:

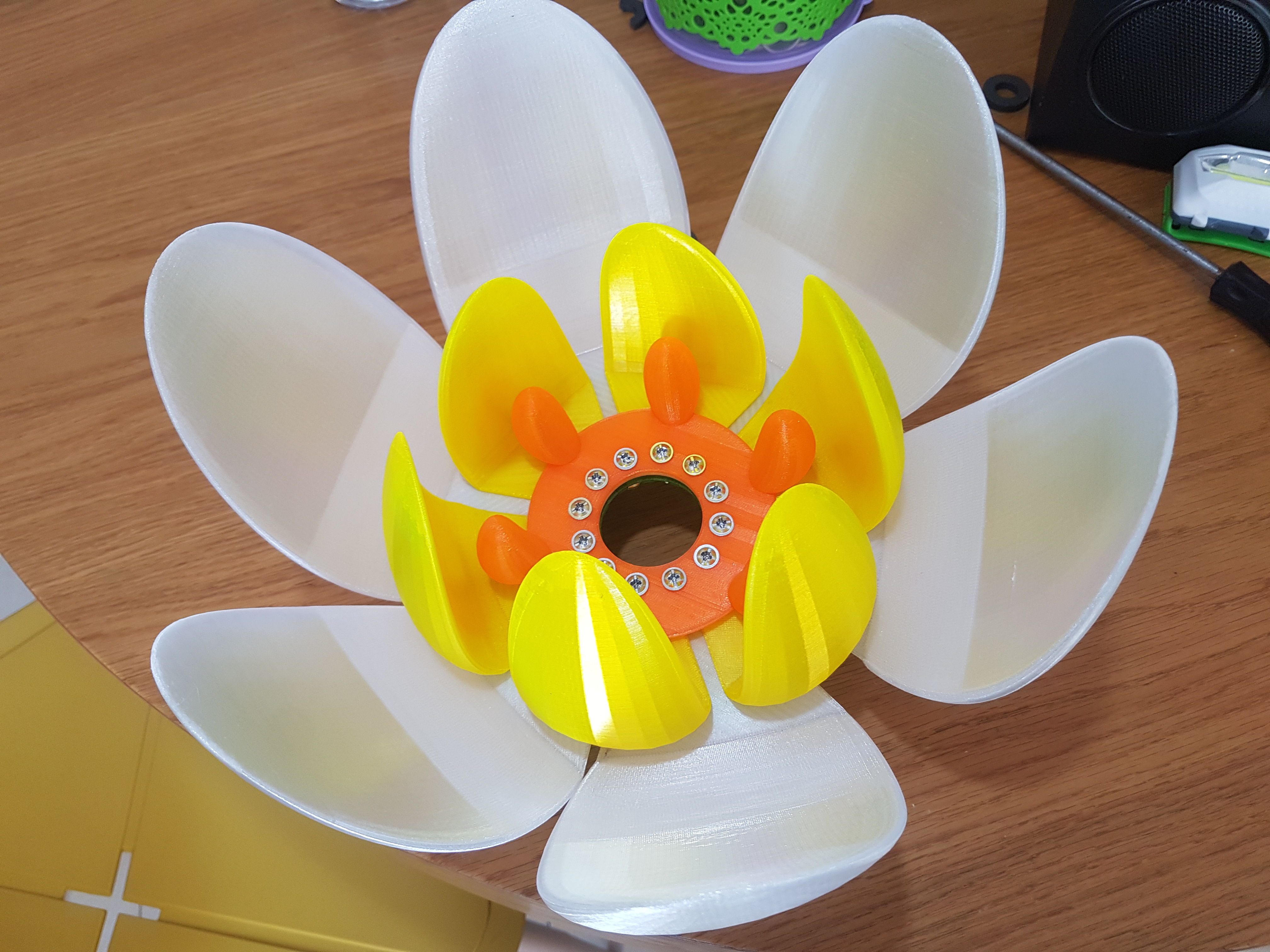

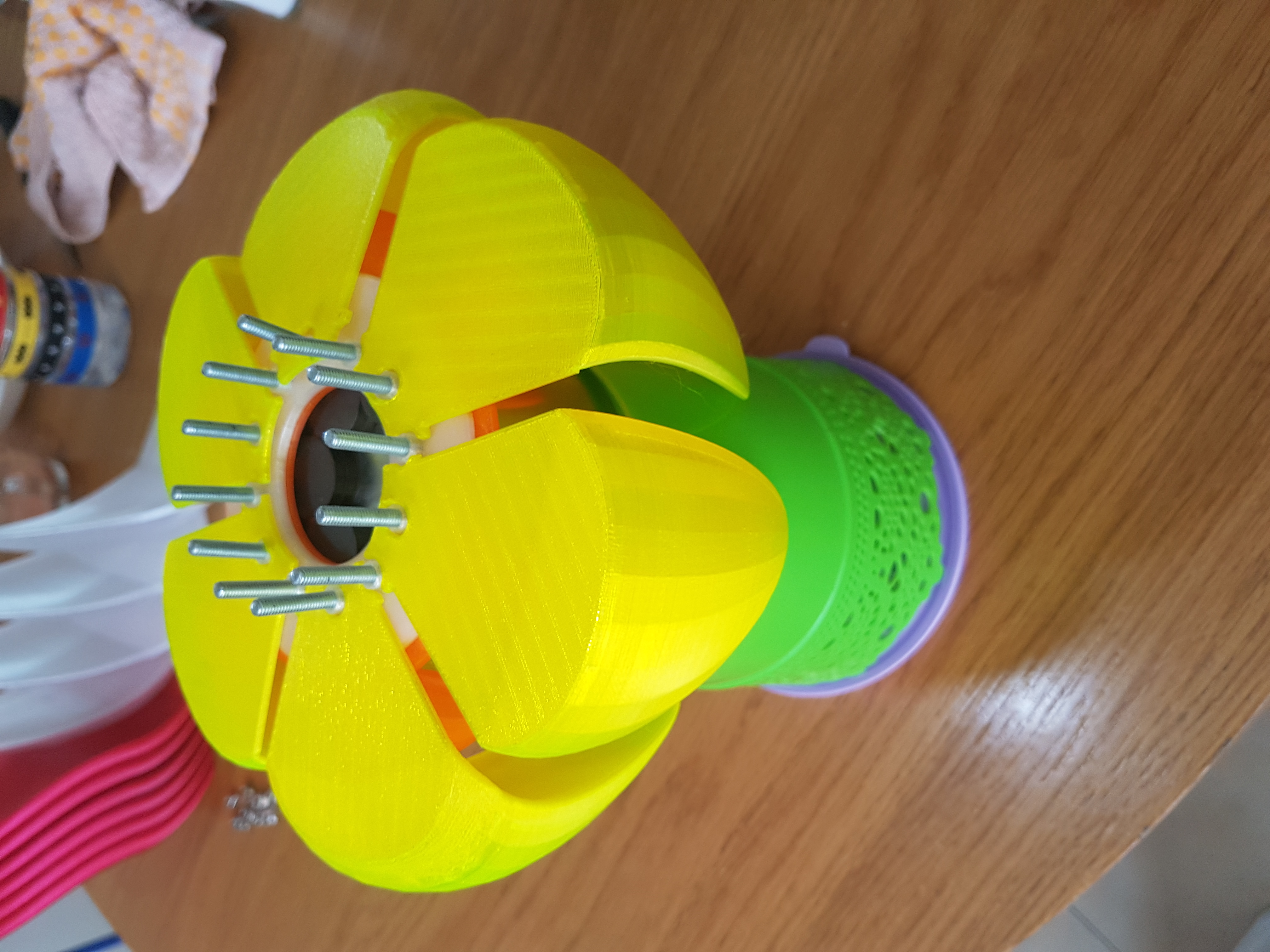

Assemble the S petal with only 6 screw
Step 4:
Assemble the sepal M to the other 6 screws. (I used magnets to secure the leaves)

ATTENTION

IF YOU BUILD THE SMALL VERSION YOU NEED TO SKIP THE NEXT PART
Step 5:

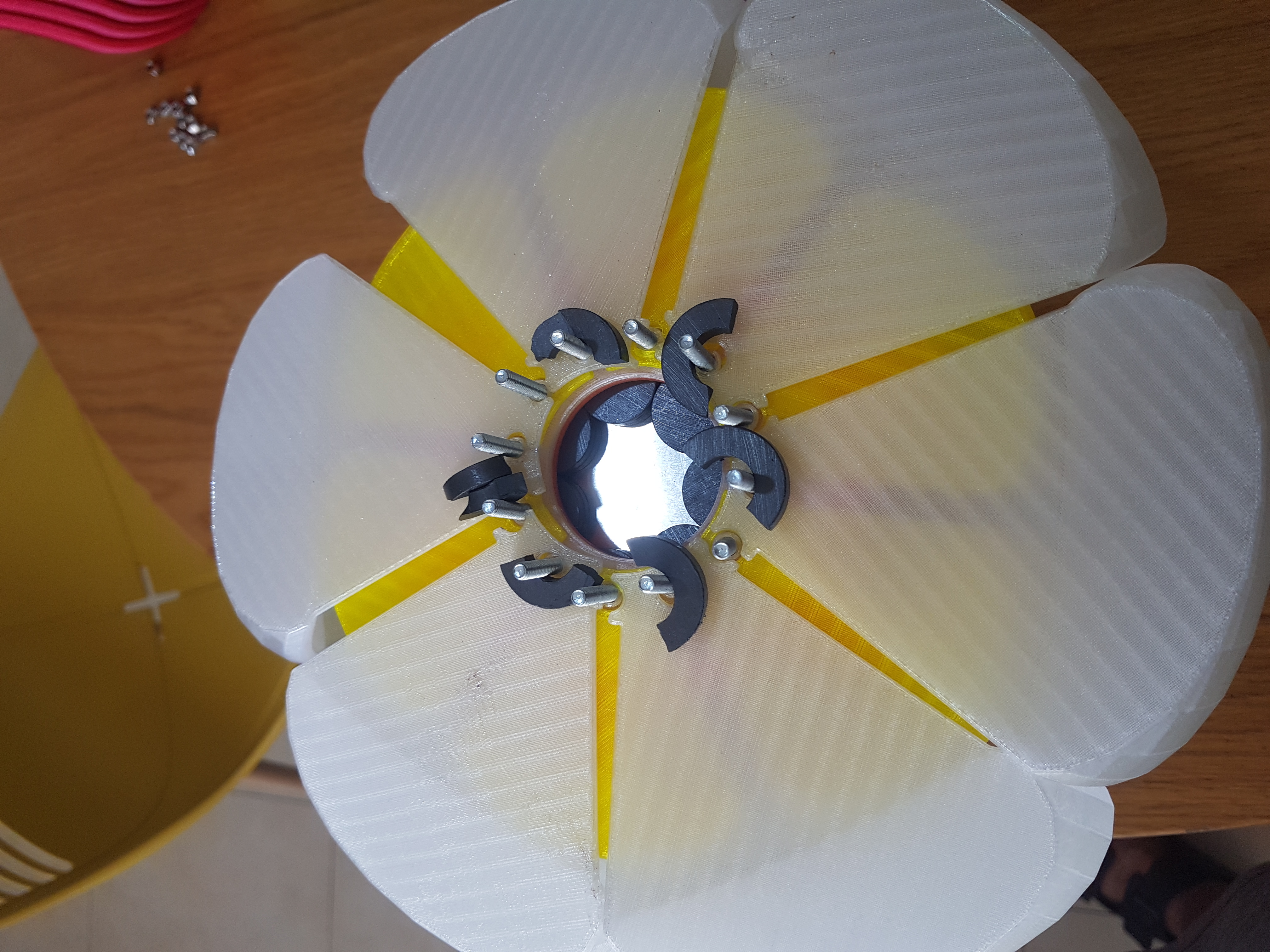

The L petal assembling will be on the 6 screws of the S petal. I used the same method with the magnets, it will be helpful next stage.
Step 6:

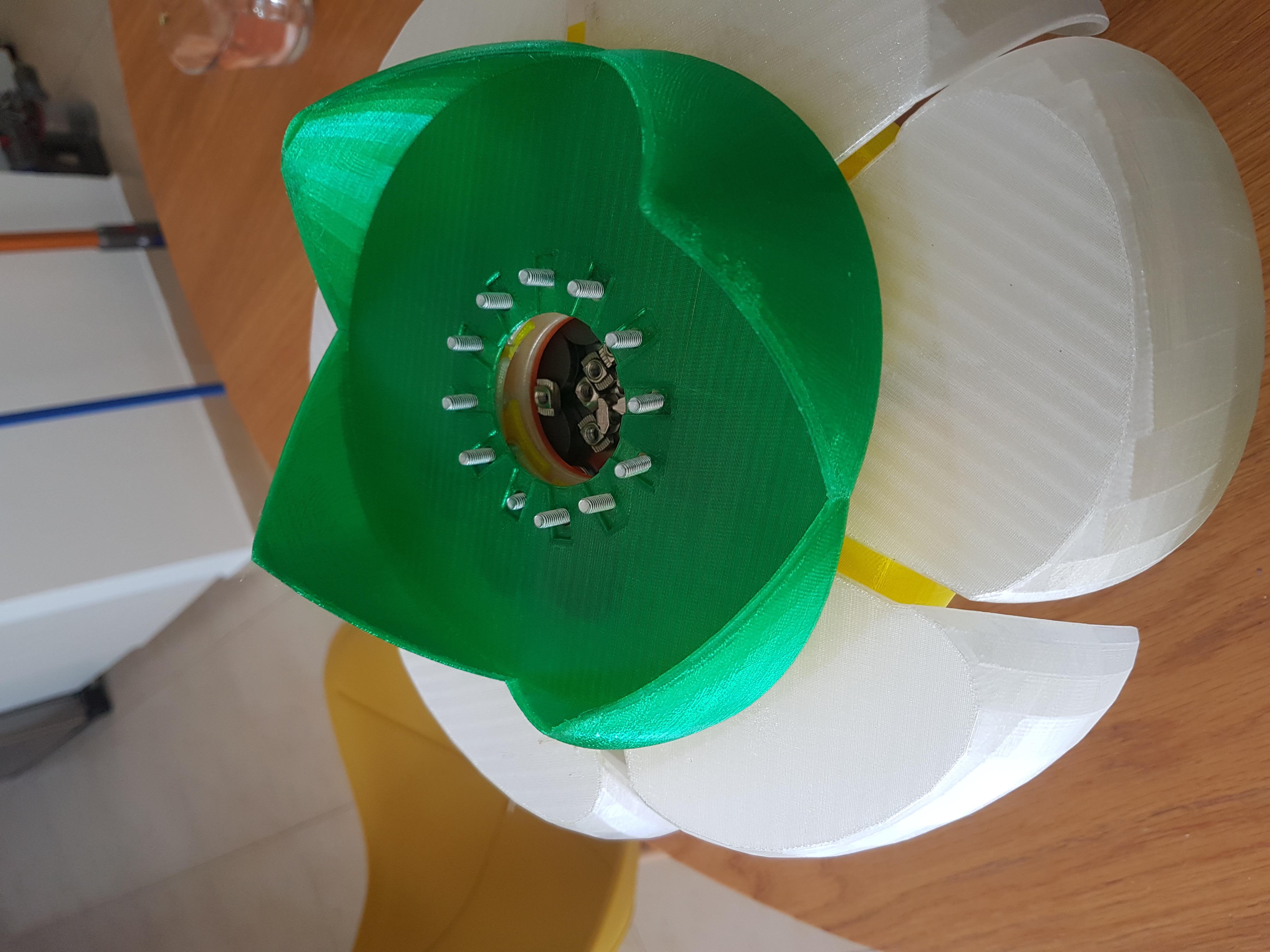

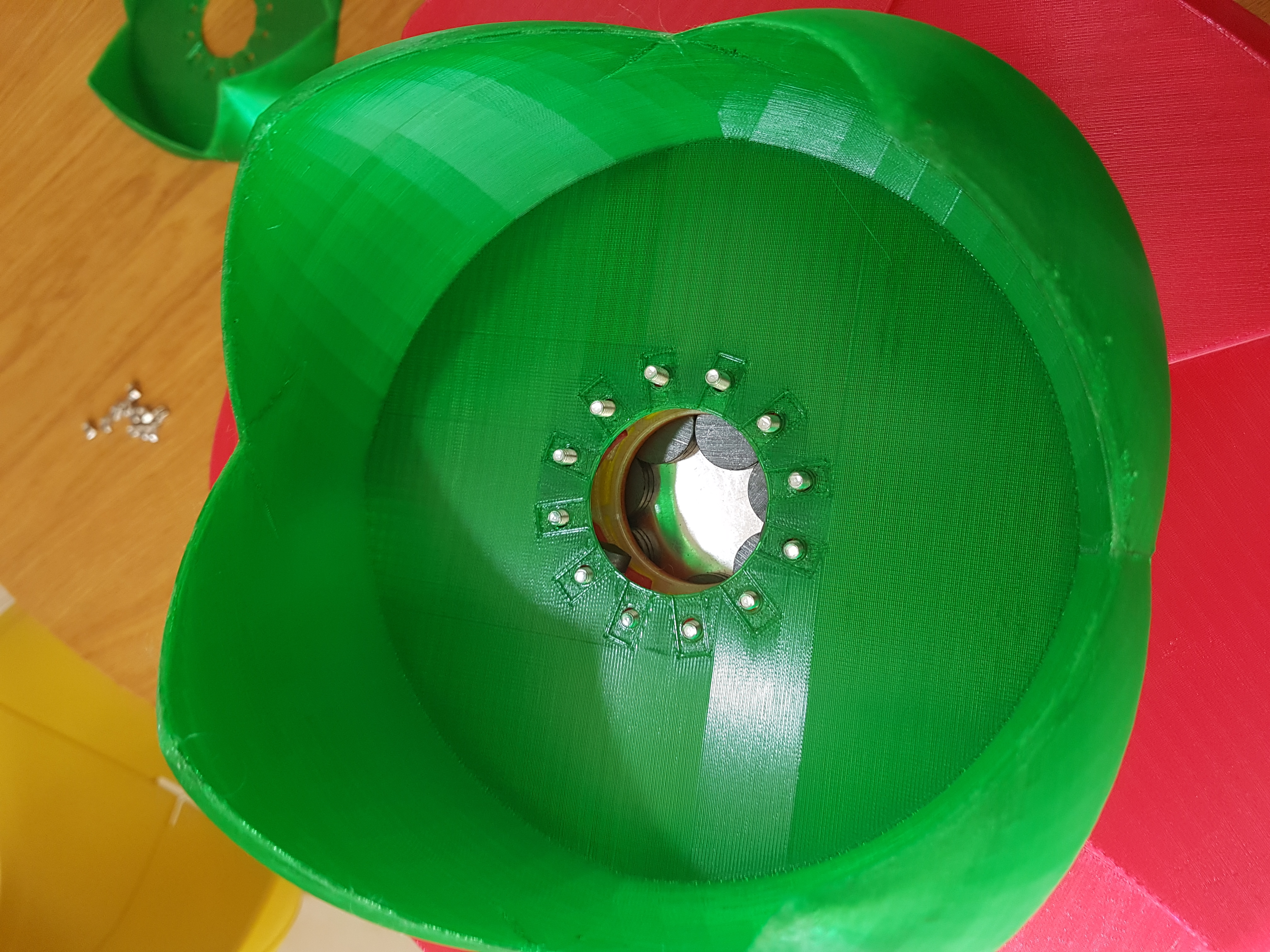

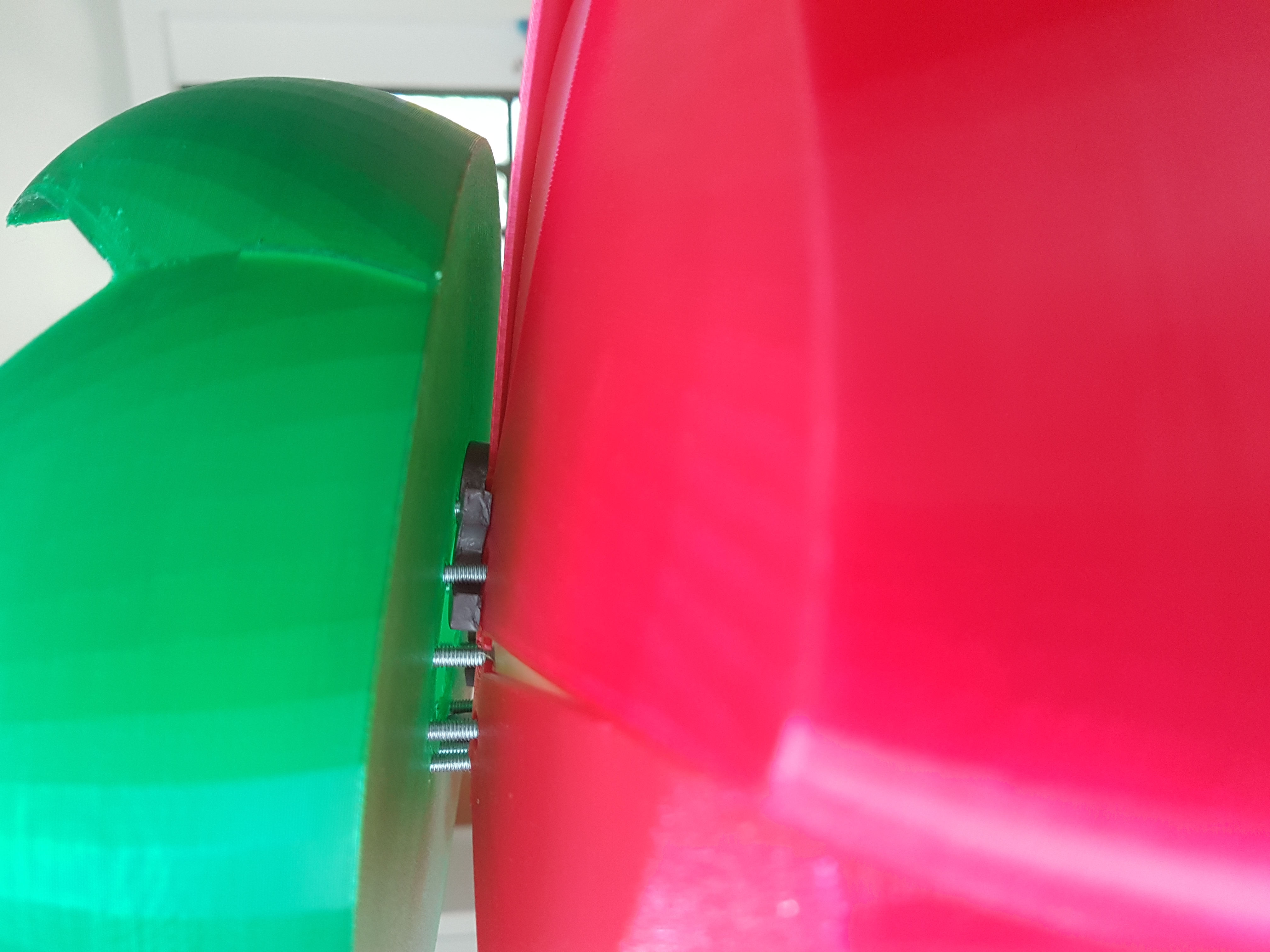

The sepal part: after you place it, take out the magnets and screw the nuts all the way.
For small version we do the same action with small sepal
Step 7:

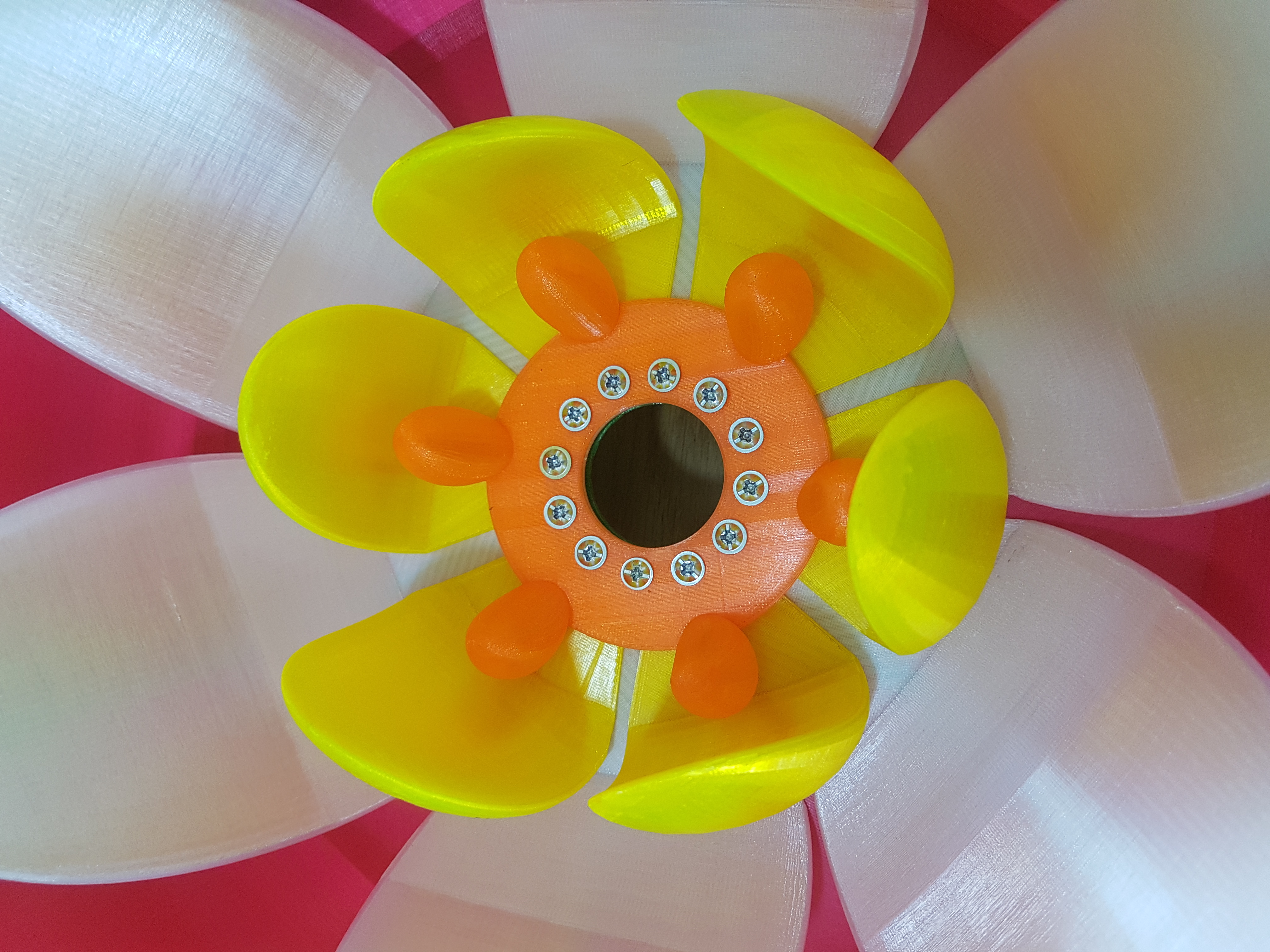

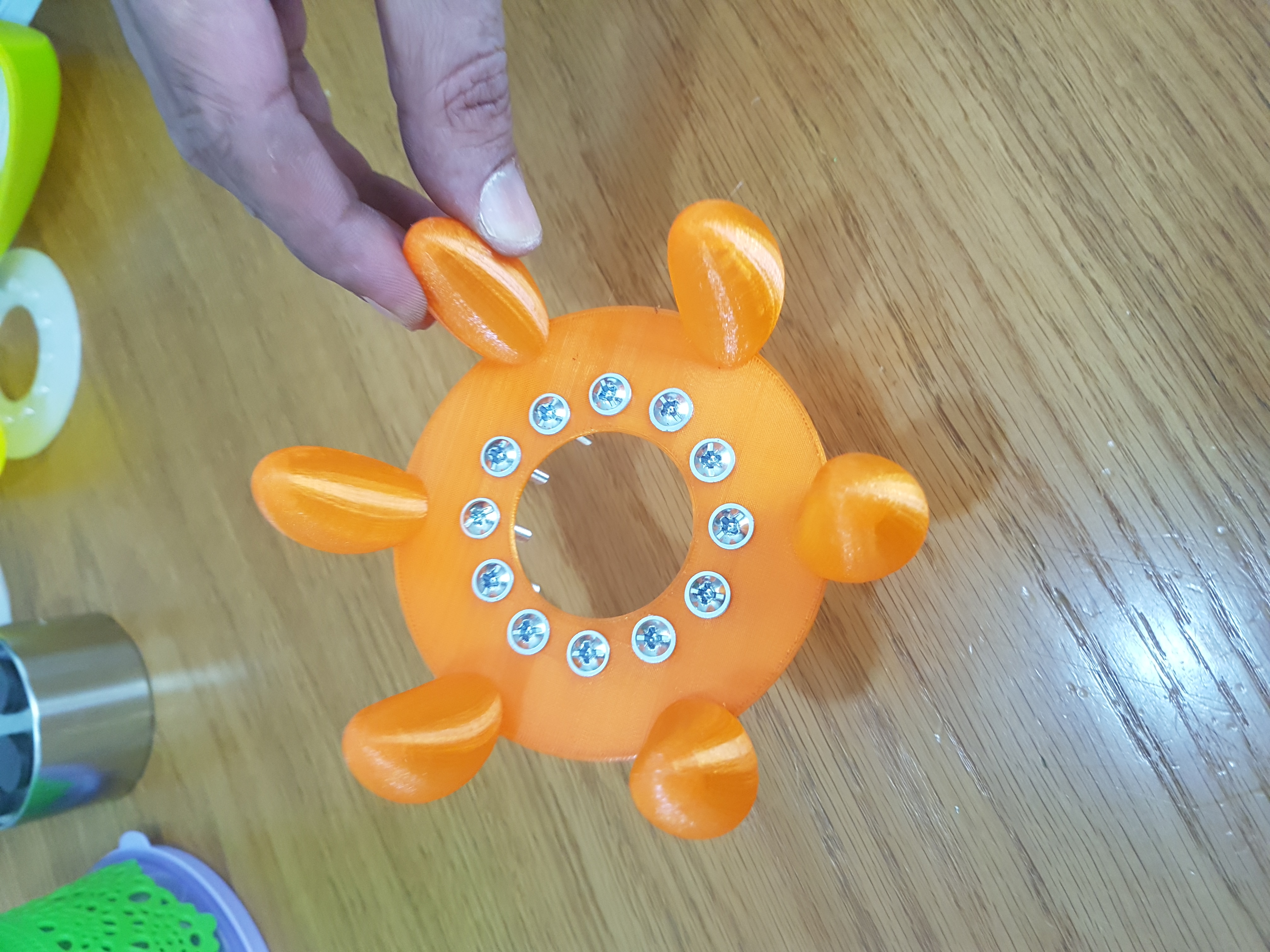

Flip over the lampshade, remove the cup with the magnets and tight the screws.
Step 8:

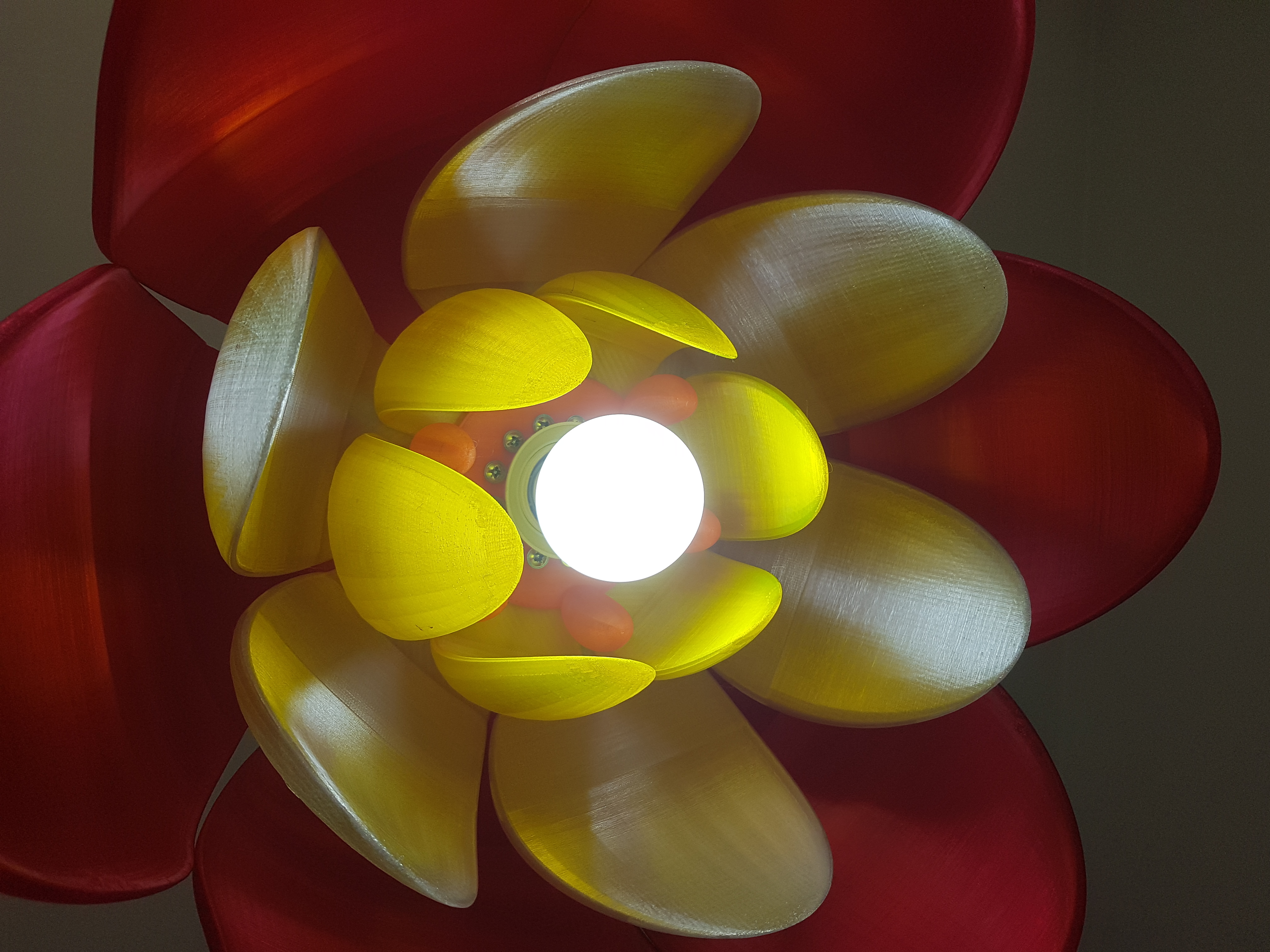

Connect the lamp shade to Ikea light "SEKOND" -for large version or "HEMMA" for the small version.
ENJOY!!!!
HAPPY PRINTING
