Modelo 3D Parametric Bed Level Test Generator por bobstro no Printables

Descrição

This is a parametric first layer test print generator inspired by Jeff Jordan's "Life Adjust" print. The generator is written in OpenSCAD and the source code is included. You can customize:

  • The number of rows and columns to be printed.
  • The size of shapes to be printed at each test point.
  • Selection of circular or square shapes to be printed at each test point.
  • The width of connecting lines to ease post-print removal.
  • Enabling and optional center test point.

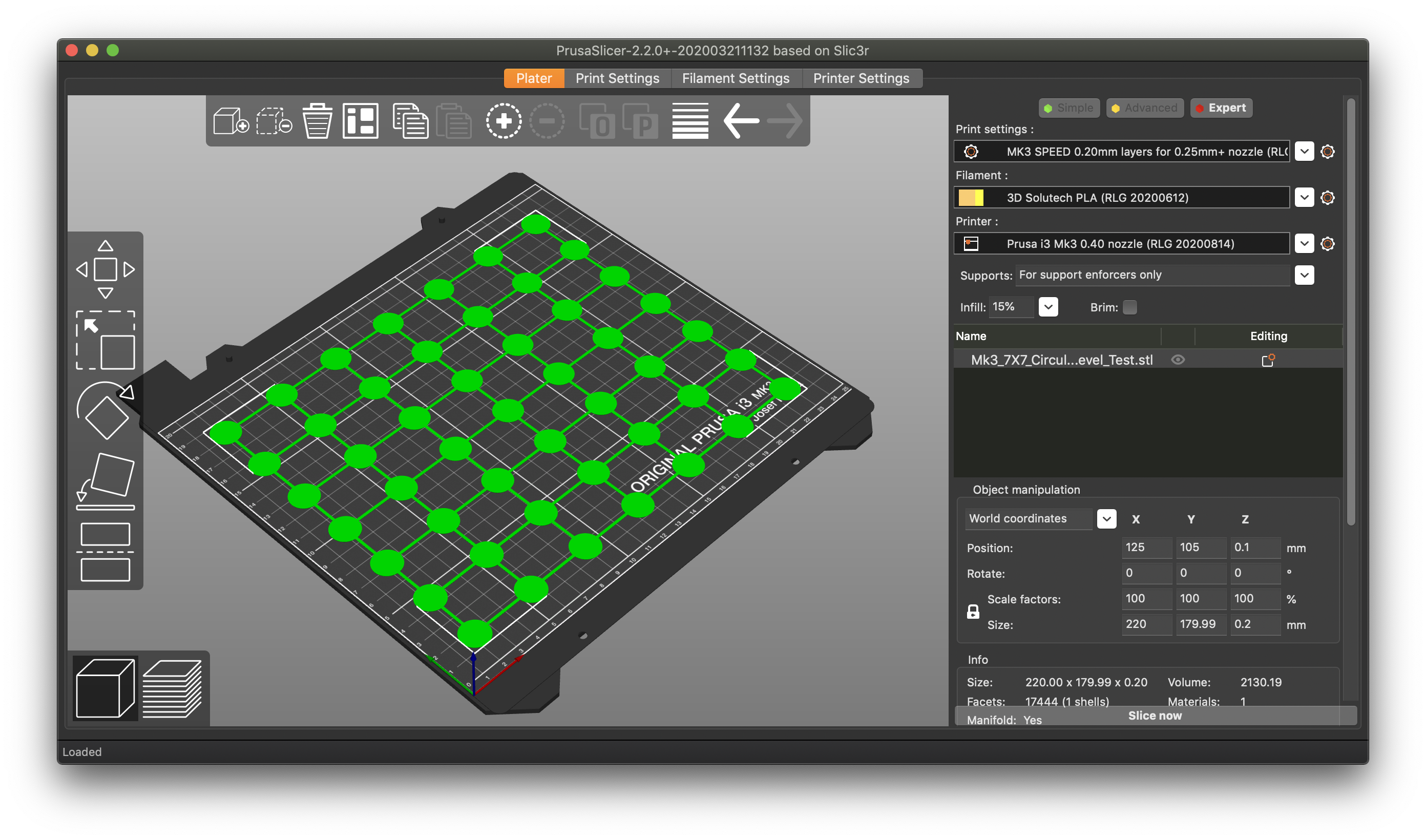

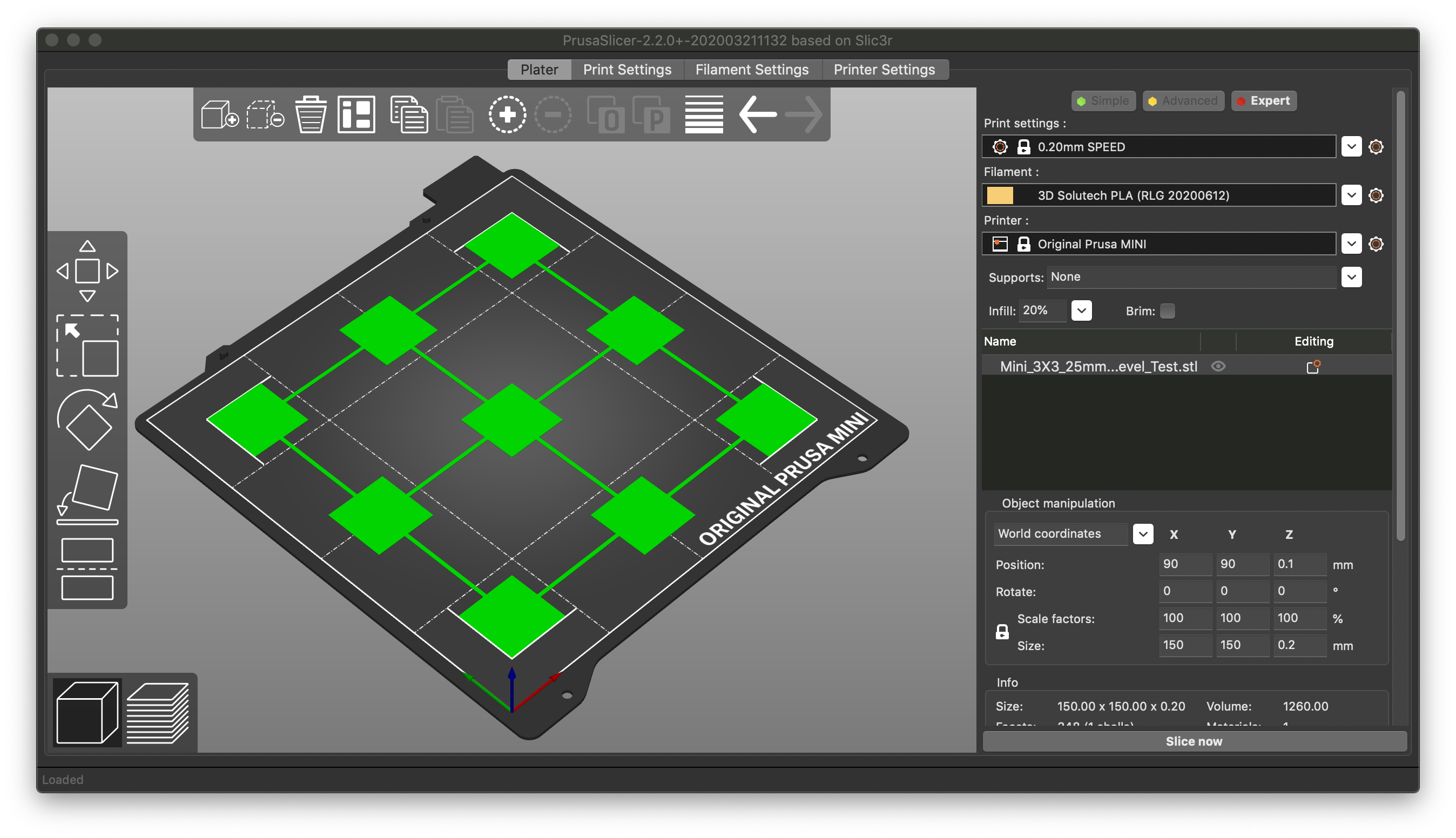

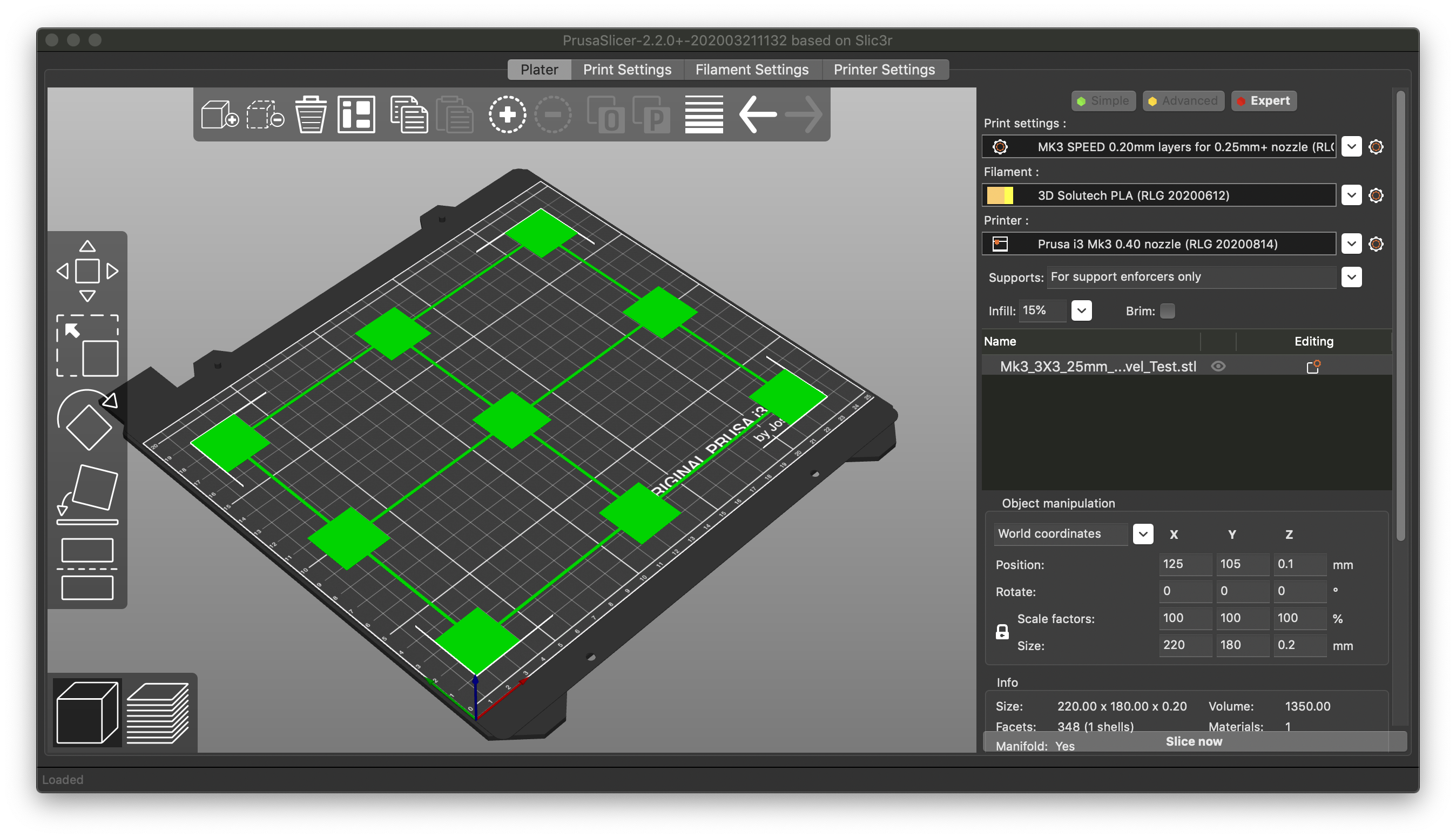

I've also included a sampling of test prints generated for the Prusa i3 Mk3 (250x210mm), Prusa Mini (180x180mm) and Artillery Sidewinder X1 (300x300mm) print beds.

Print instructions

Print with any nozzle size or material at 0.2mm 1st layer height.

More information

I have full notes on calibrating Live-Z with these prints here.

Printables

Parametric Bed Level Test Generator

bobstro bobstro (abre em nova aba)

Publicado em 13 de set de 2020

174
Curtidas
3,600
Downloads
10
Impressões
Categoria Test Models
Tags
calibration bedlevel
Licença Creative Commons — Attribution
Arquivos (27)
mk3_75x75mm_square_bed_level_test.stl 1.7 KB
mk3_5_point_50mm_square_bed_level_test.stl 29.6 KB
mk3_3x3_25mm_square_bed_level_test.stl 47.3 KB
swx1_3x3_25mm_square_bed_level_test.stl 47.5 KB
mk3_5x5_25mm_square_bed_level_test.stl 151.6 KB
mk3_7x7_15mm_square_bed_level_test.stl 320 KB
swx1_5_point_50mm_circular_bed_level_test.stl 300 KB
mk3_3x3_25mm_circular_bed_level_test.stl 517.7 KB
mk3_75x75mm_circular_bed_level_test.stl 56.3 KB
swx1_3x3_25mm_circular_bed_level_test.stl 517.4 KB
swx1_75x75mm_circle_bed_level_test.stl 56.3 KB
swx1_5x5_25mm_square_bed_level_test.stl 152.3 KB
mk3_5_point_50mm_circular_bed_level_test.stl 300.1 KB
swx1_5_point_50mm_square_bed_level_test.stl 29.7 KB
swx1_7x7_15mm_square_bed_level_test.stl 311.4 KB
swx1_75x75mm_square_bed_level_test.stl 1.7 KB
swx1_5x5_25mm_circular_bed_level_test.stl 1.4 MB
mk3_5x5_25mm_circular_bed_level_test.stl 1.4 MB
swx1_7x7_15mm_circular_bed_level_test.stl 2.7 MB
mk3_7x7_circular_15mm_bed_level_test.stl 2.7 MB
mini_75x75mm_square_bed_level_test.stl 1.7 KB
mini_3x3_25mm_square_bed_level_test.stl 47 KB
mini_75x75mm_circular_bed_level_test.stl 56.3 KB
mini_5x5_15mm_square_bed_level_test.stl 150.5 KB
mini_3x3_25mm_circular_bed_level_test.stl 517.3 KB
mini_5x5_15mm_circular_bed_level_test.stl 1.4 MB
parametric-bed-level-test-20200913.scad 4 KB
