Modelo 3D Oculus CV1 Sensor Wall + Ceiling Mount por AlexanderM_ no Printables

Descrição

This is a wall & ceiling mount for the Oculus Rift CV1 sensor.

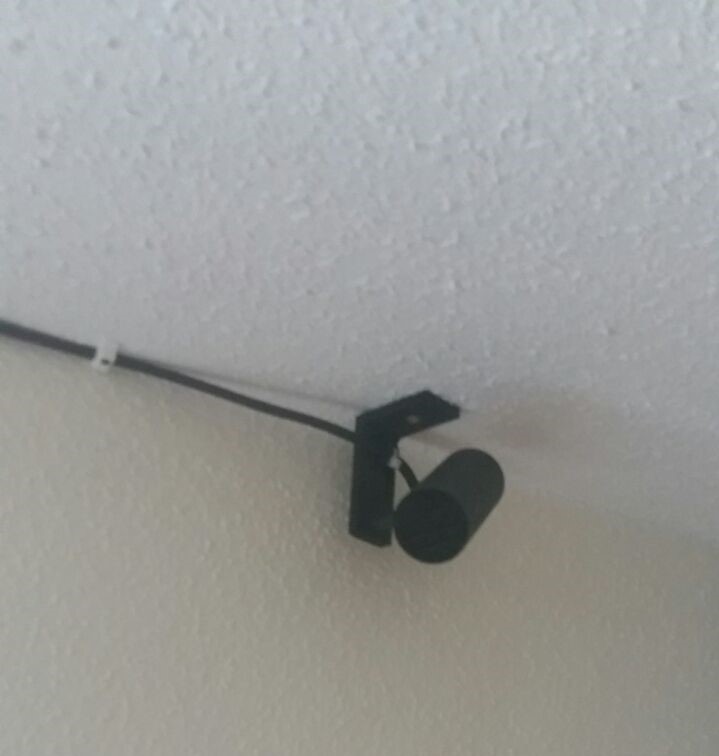

When you put it on a wall, the sensor sits upside down but it works fine.

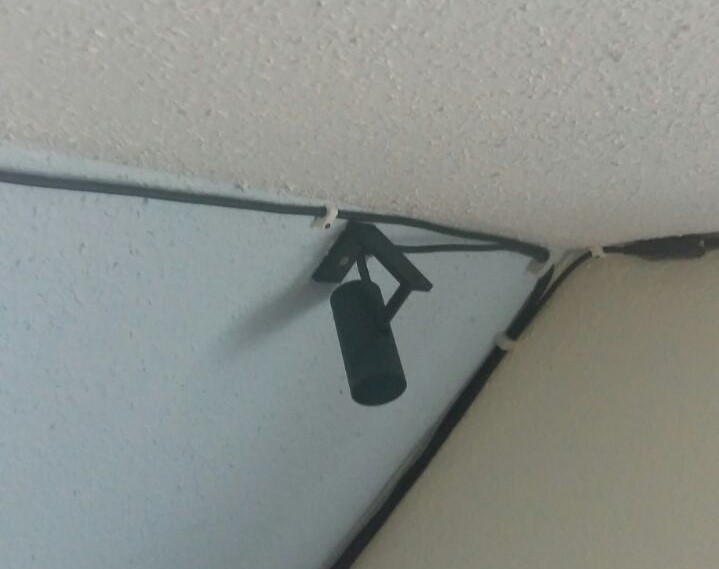

For the 3rd sensor I mounted it on the ceiling like in the 3rd photo, so you can adjust the angle a little bit better.

There are also little holes to use zip ties for the USB cable.

Print Settings

Use brim for better adhesion

Post-Printing

Screwing in the sensor

After printing both parts, you unscrew the sensor from the old stand and put the printed screw into the front hole. Then you put the sensor to the other side of the hole und screw the sensor with a screwdriver.

Screwing into the wall

You drill a hole into the wall and put a dowel in it.
After that you use a fitting screw and screw it into the hole.

Use zip ties to hold the USB cable

You can use the two "bridges" on the holder to zip tie your cable.
But don't tie them to much, otherwise the bridges can break.

Manual adjustments

When using the setup tool in Oculus App, you can adjust the angle, height, etc. by turning the sensor and screwing the screw to a tight fit.

Printables

Oculus CV1 Sensor Wall + Ceiling Mount

Publicado em 21 de fev de 2023

2
Curtidas
35
Downloads
Categoria Computers
Tags
wall mount sensor oculus cv1
Licença Creative Commons — Attribution
Arquivos (2)
Angle.stl 52.6 KB
Screw.stl 685 KB
