Introduction :

This is a replica of the “tactical M-lok / Keymod pocket panel” by WADSN to hold a momentary switch on a handguard.

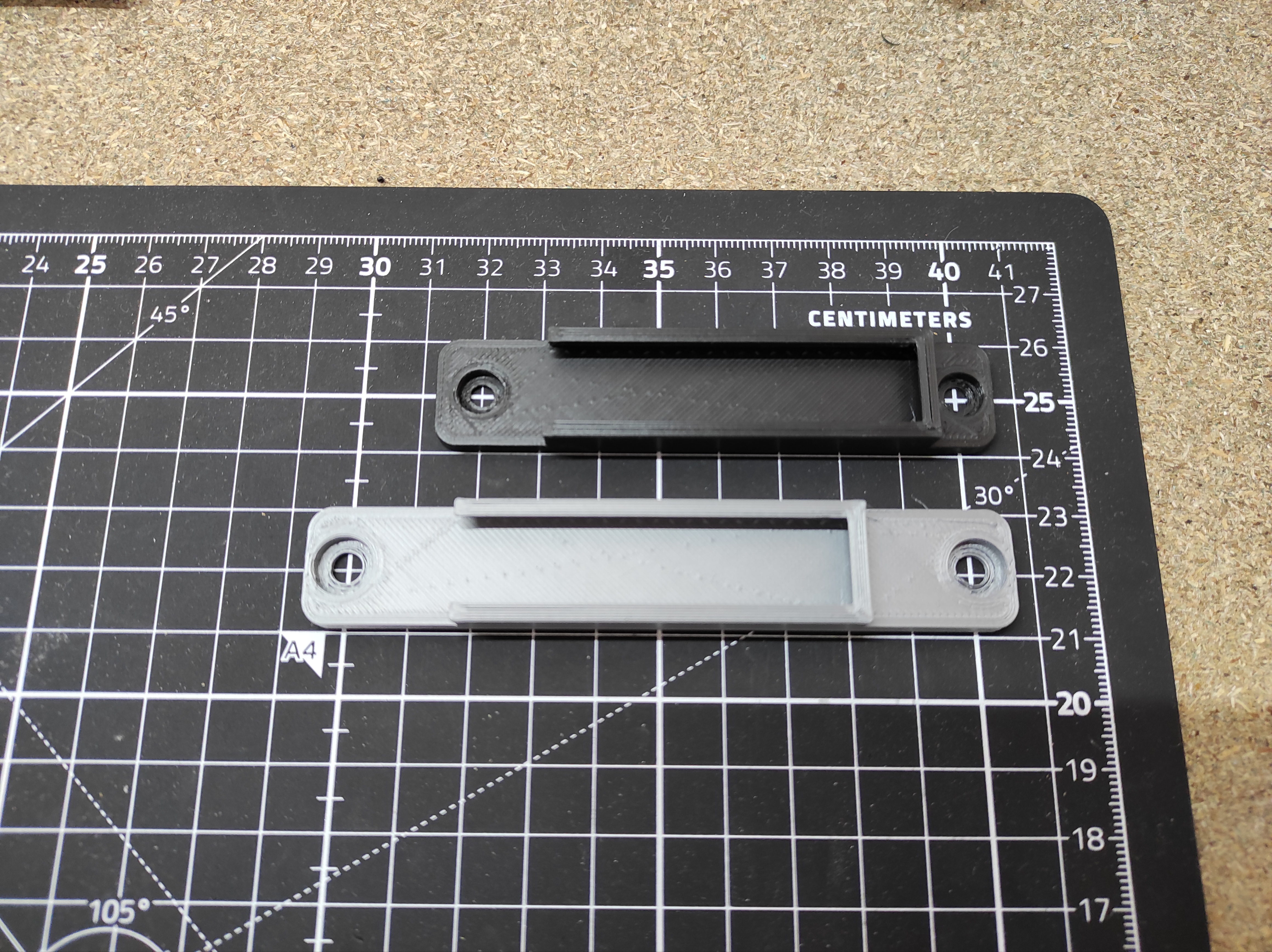

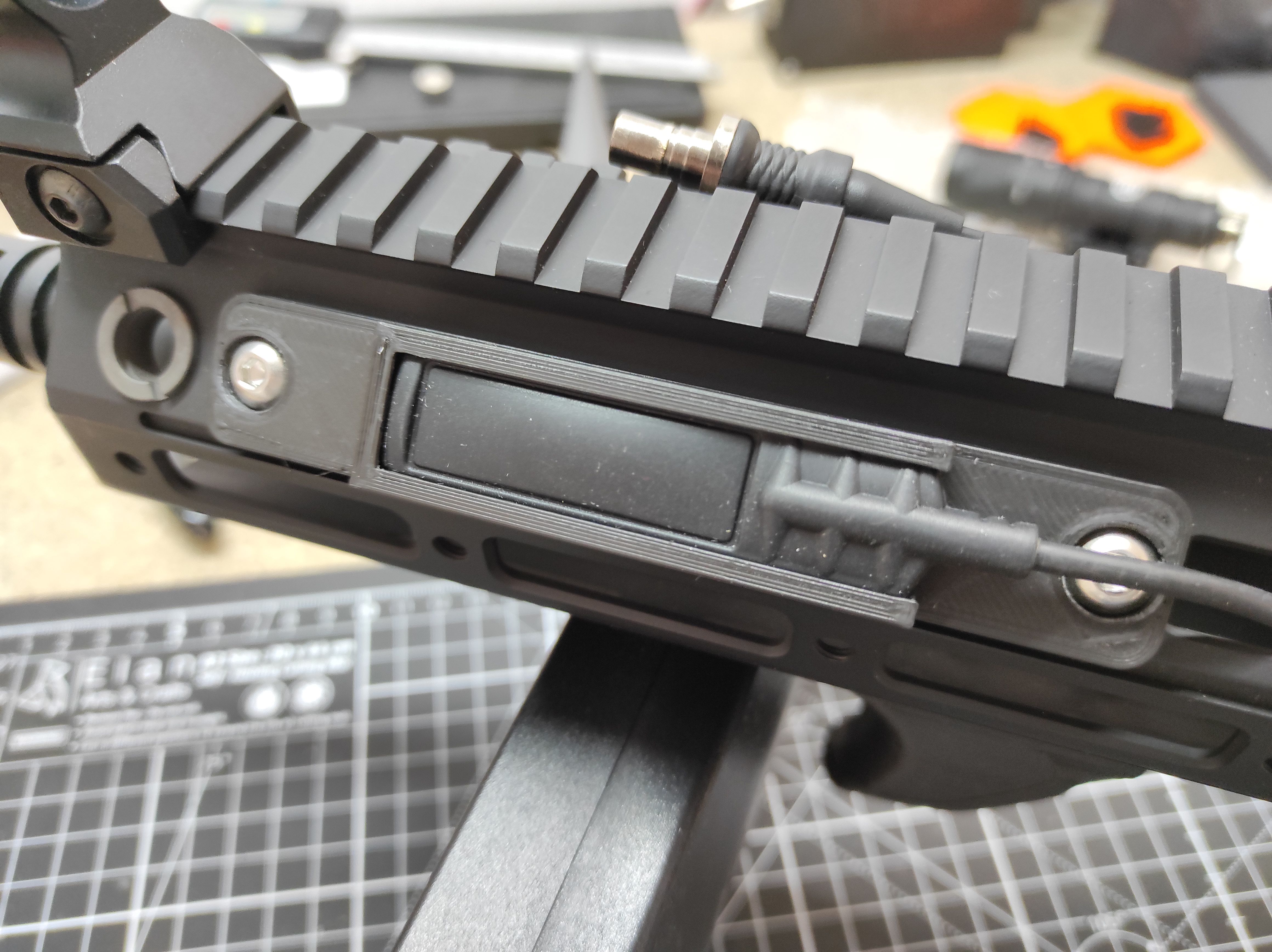

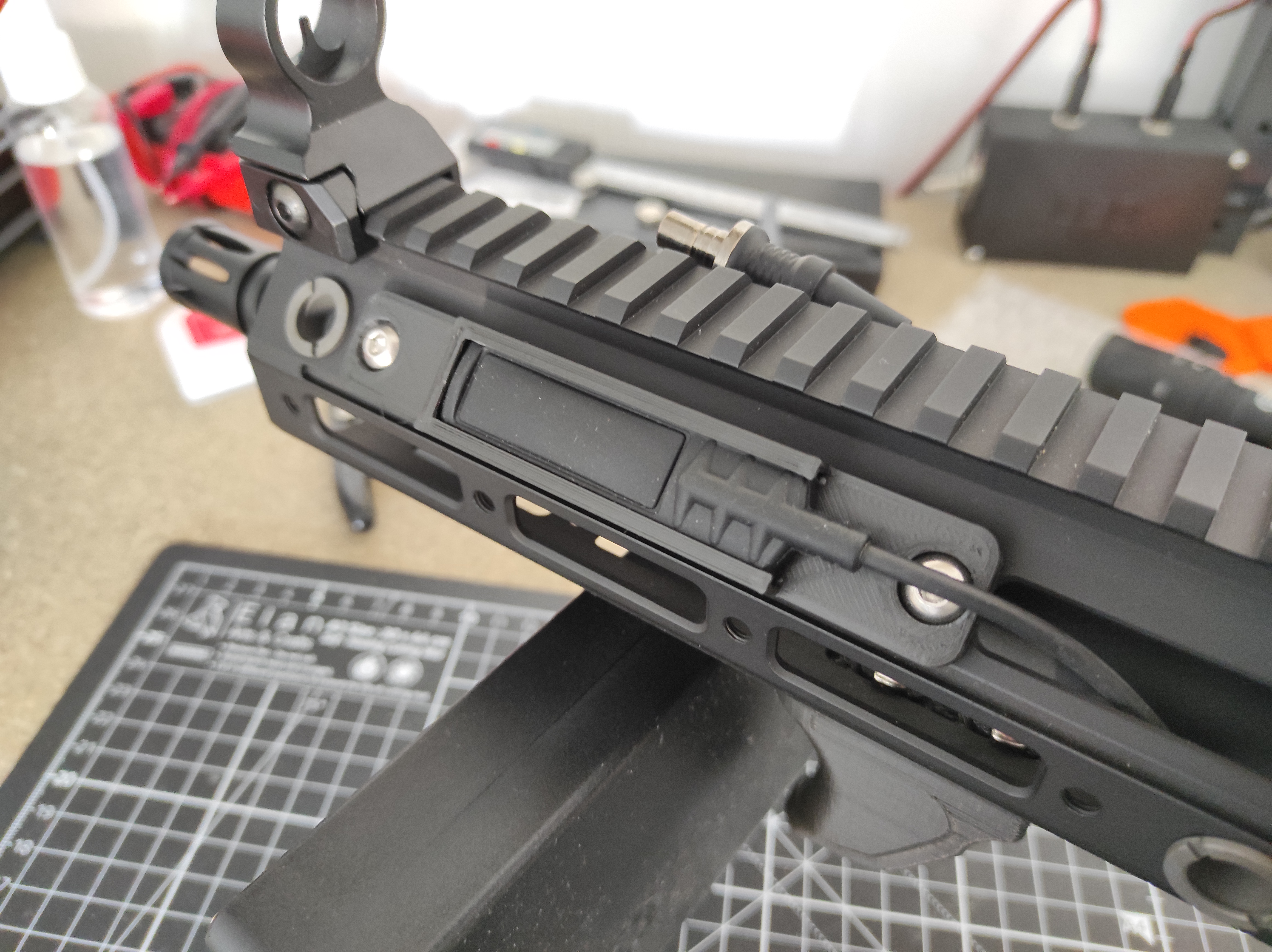

You will find two versions, one with the same length and hole placement than the original (in black in the pictures) and another one which is made for an M-lok handguard from Specna Arms (in gray). The second version uses M5 screws, 100 mm apart, and uses the holes already tapped on the handguard (example in the photos).

Hardware :

for the M-lok version :

• 2 * M4 by 12 mm screws
• 2 * M4 T-nuts / Magpul hardware

For the other version :

• 2 * M5 by 8 mm screws

Print instructions :

Prints as displayed

I used my Anycubic Kobra, and it took around 40 min with these settings :

Supports : yes

Rafts : if your bed isn't really sticky

Layer height : 0.20

Infill : 20%

Perimeters : 3

Bottom and top layer : 4

Print speed : 60 mm/s²
