Descrição

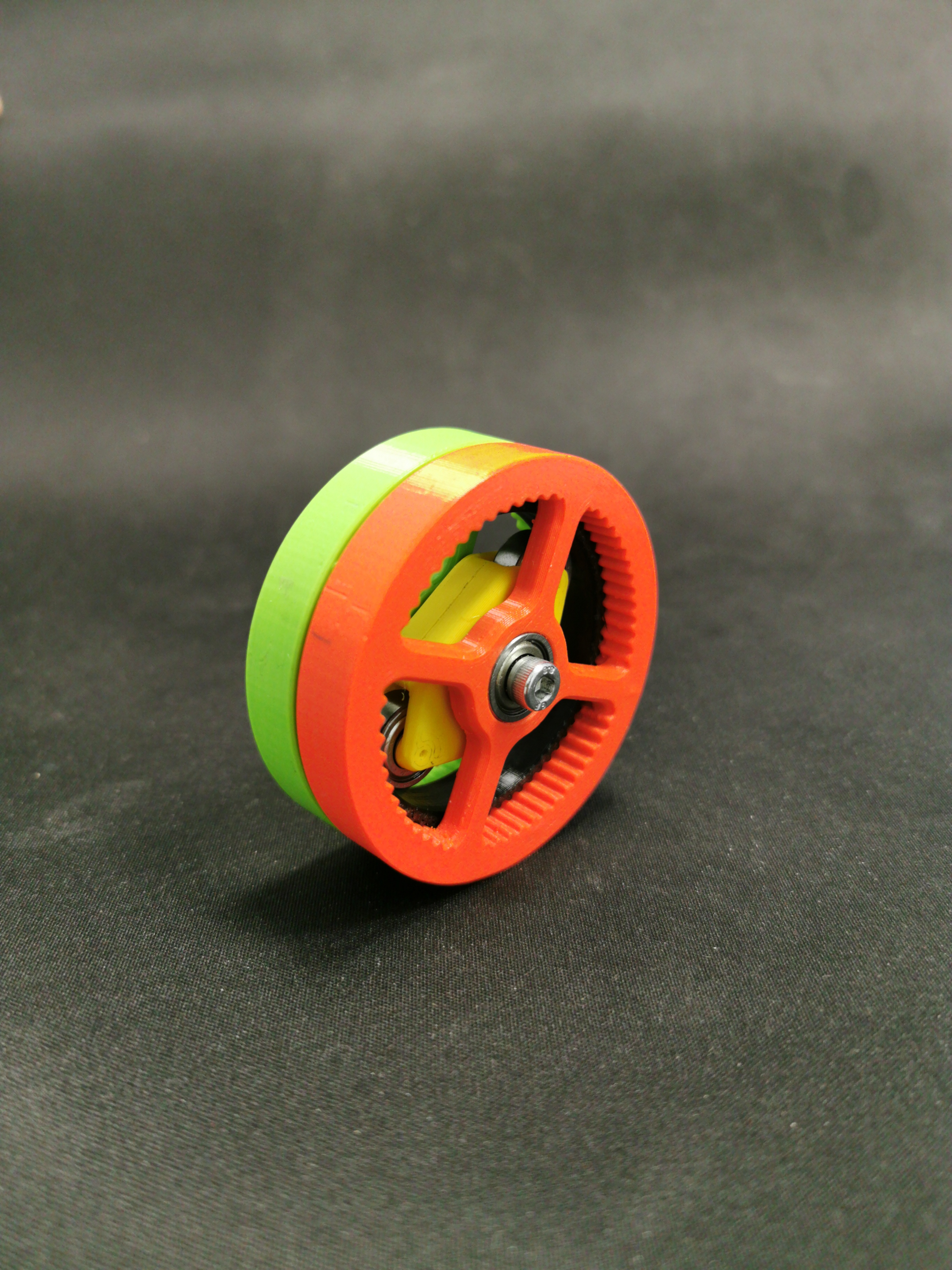

Just a small toy to waste time during long meetings.

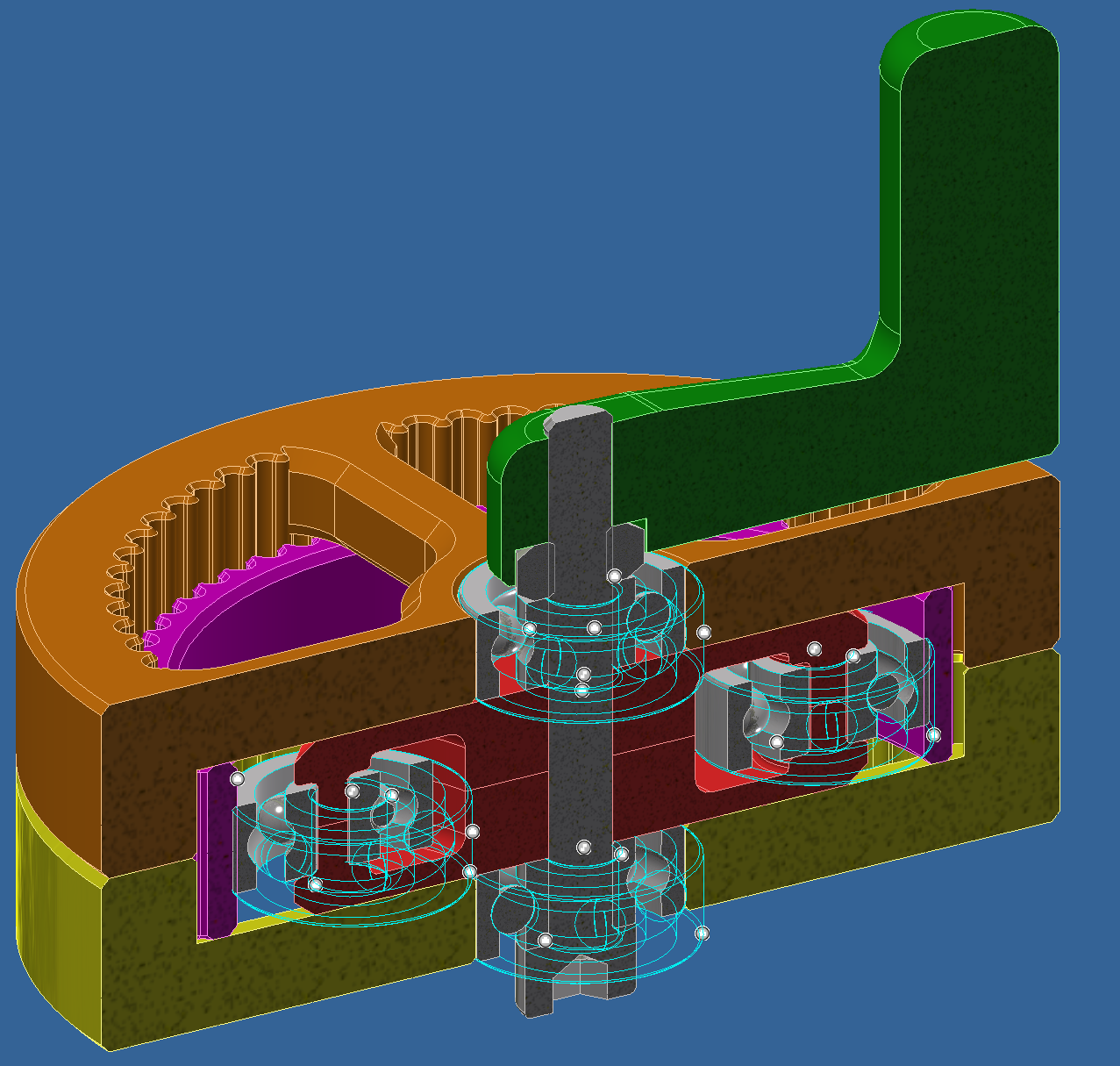

Also useful to illustrate how harmonic gearbox works.
For assembly you need:
4x bearing 624 (D 13; d 4; b 5)
bolt M4x30
M4 nut
Want to send a tip?
Paypal: [https://paypal.me/cubikspot](https://paypal.me/cubikspot)
BTC: bc1qp7c9nllsetqf73zu76wrwxcrrks4ctpp04rnpe
ETH: 0x1709A6042EAF5D36f9F4B3C3Fb4B9BC2dF9EEeaf
Print settings
User PLA and normal profile for most of the parts except the inner rotor.
For the inner rotor use PETG.
37
Curtidas
273
Downloads
Categoria
Mechanical Parts
Tags
harmonic
harmonicdrive
Licença
Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (5)
020_000007_- Harmonic drive - Leverage.stl
1 MB
020_000003_- Harmonic drive - Driver.stl
1.6 MB
020_000006_- Harmonic drive - Stator.stl
5 MB
020_000004_- Harmonic drive - Inner rotor.stl
5.4 MB
020_000005_- Harmonic drive - Rotor.stl
5.2 MB
