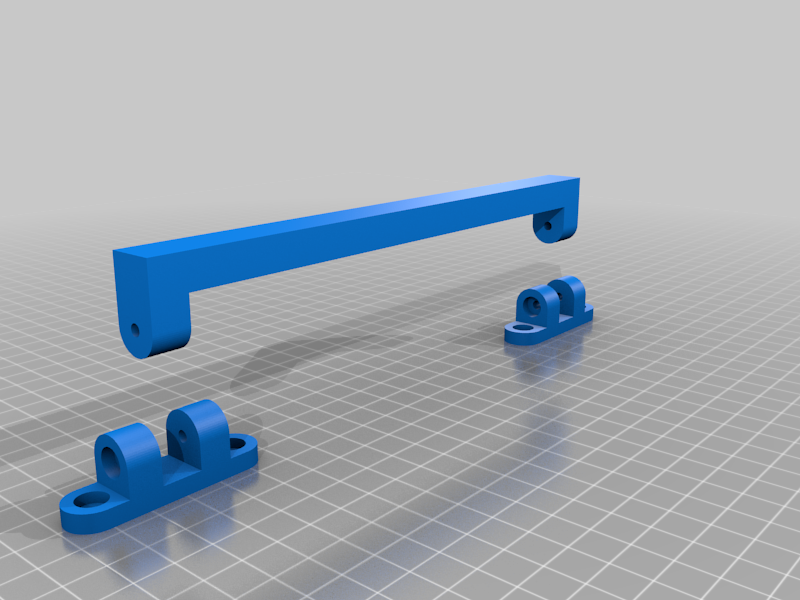

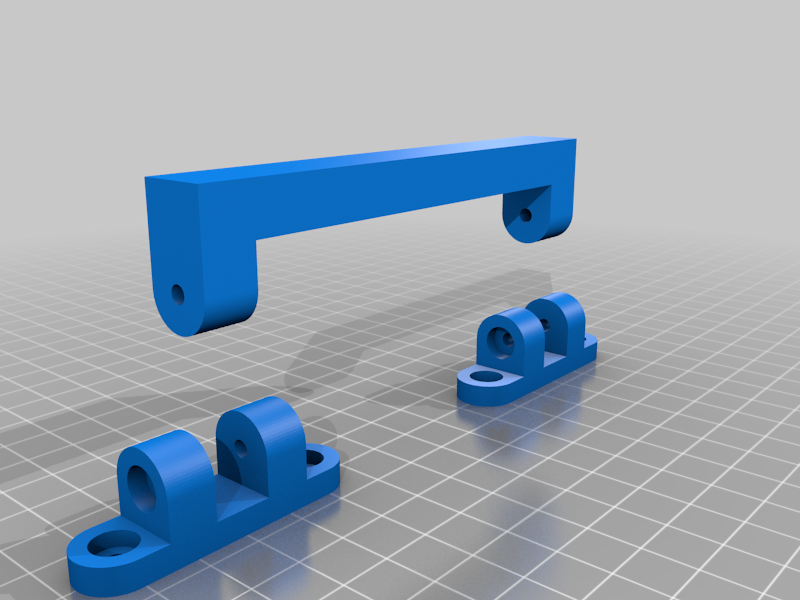

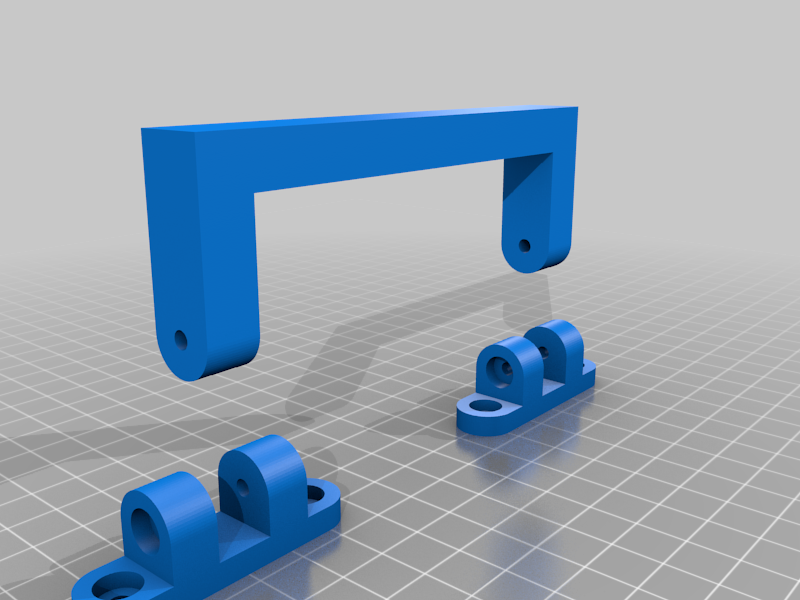

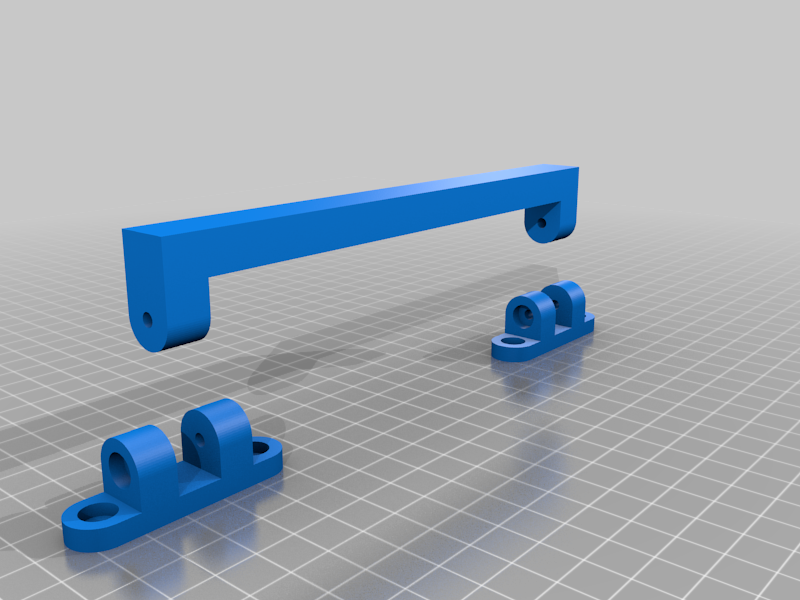

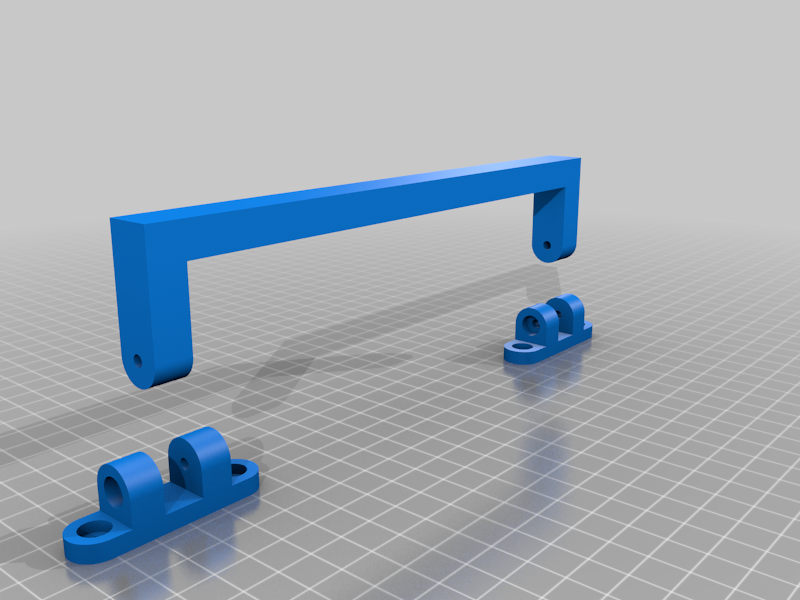

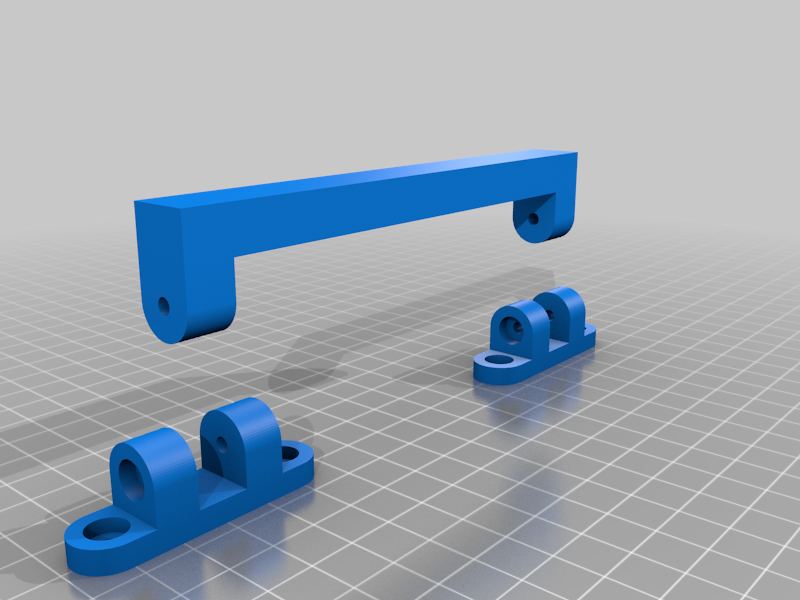

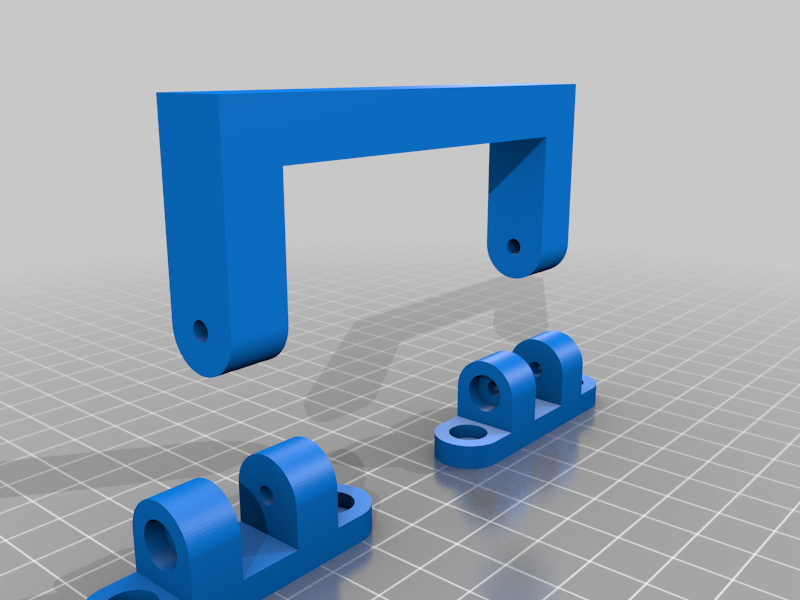

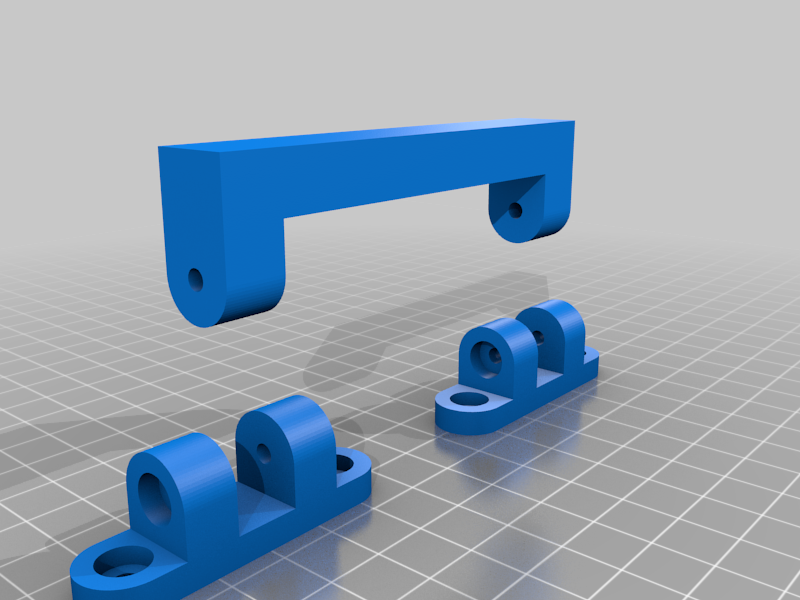

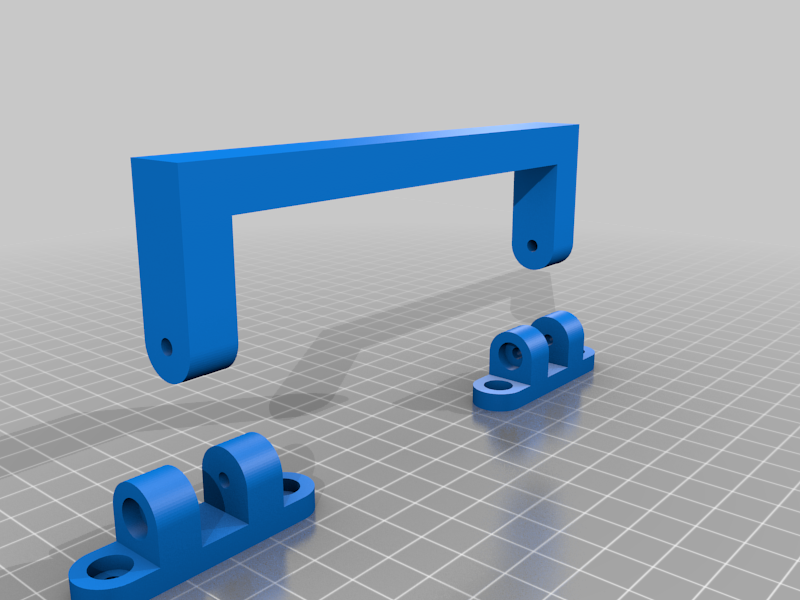

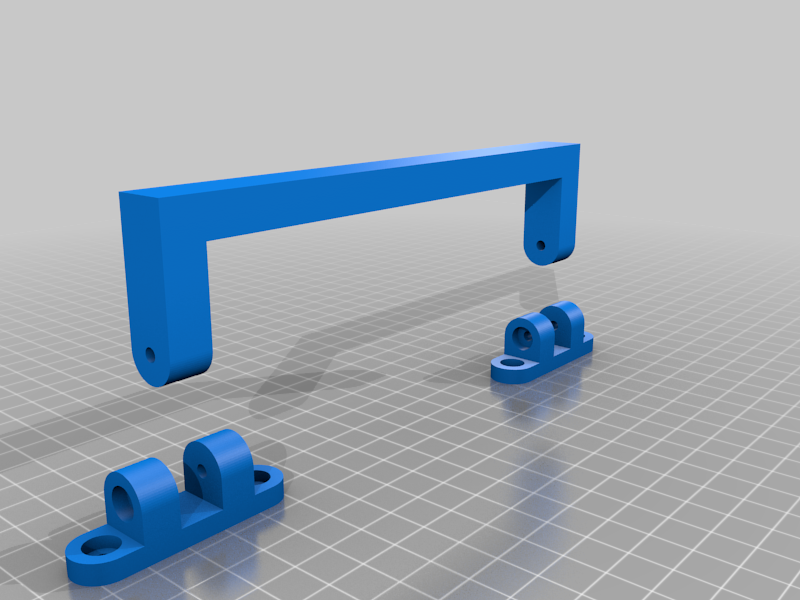

A customizable folding handle.

Made using Openscad, width and height can be customized.

I have uploaded a set of ready made handles as STL's.

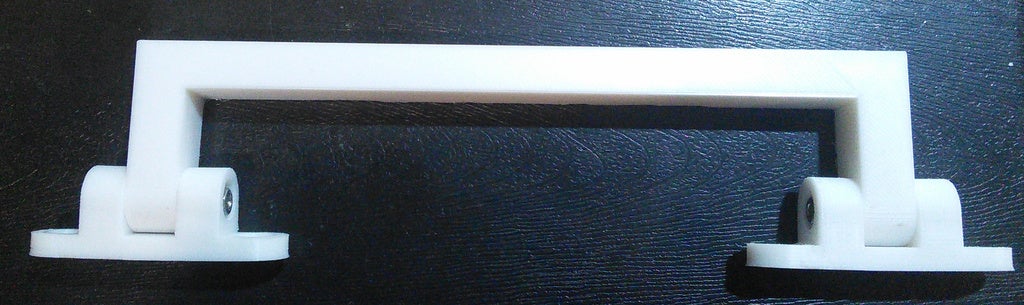

The handle is assembled using 2 X 25mm M3 bolts connecting the handle to the hinge mechanism.

The hinge itself is mounted using either M3 bolts or screws onto whatever item you are using with 4(2 on each side) needed.

The smallest the item can be in height is ~30mm. The minimum width is 55mm.

Handle should be printed with a high infill for strength.

This is a 3D printed part, you should determine that the handle is strong enough to hold the mass or pull whatever you are are connecting it to after printing, if not don't use it.

To make custom sizes you just need to change the two variables at the top, handlewidth and handleheight.
