Modelo 3D Corner Brackets - Designed for 3D Printing por KYZ Design no Printables

Descrição

I really liked the original concept but wanted shorter brackets that fit 6 gauge screws well so I modeled one from scratch.

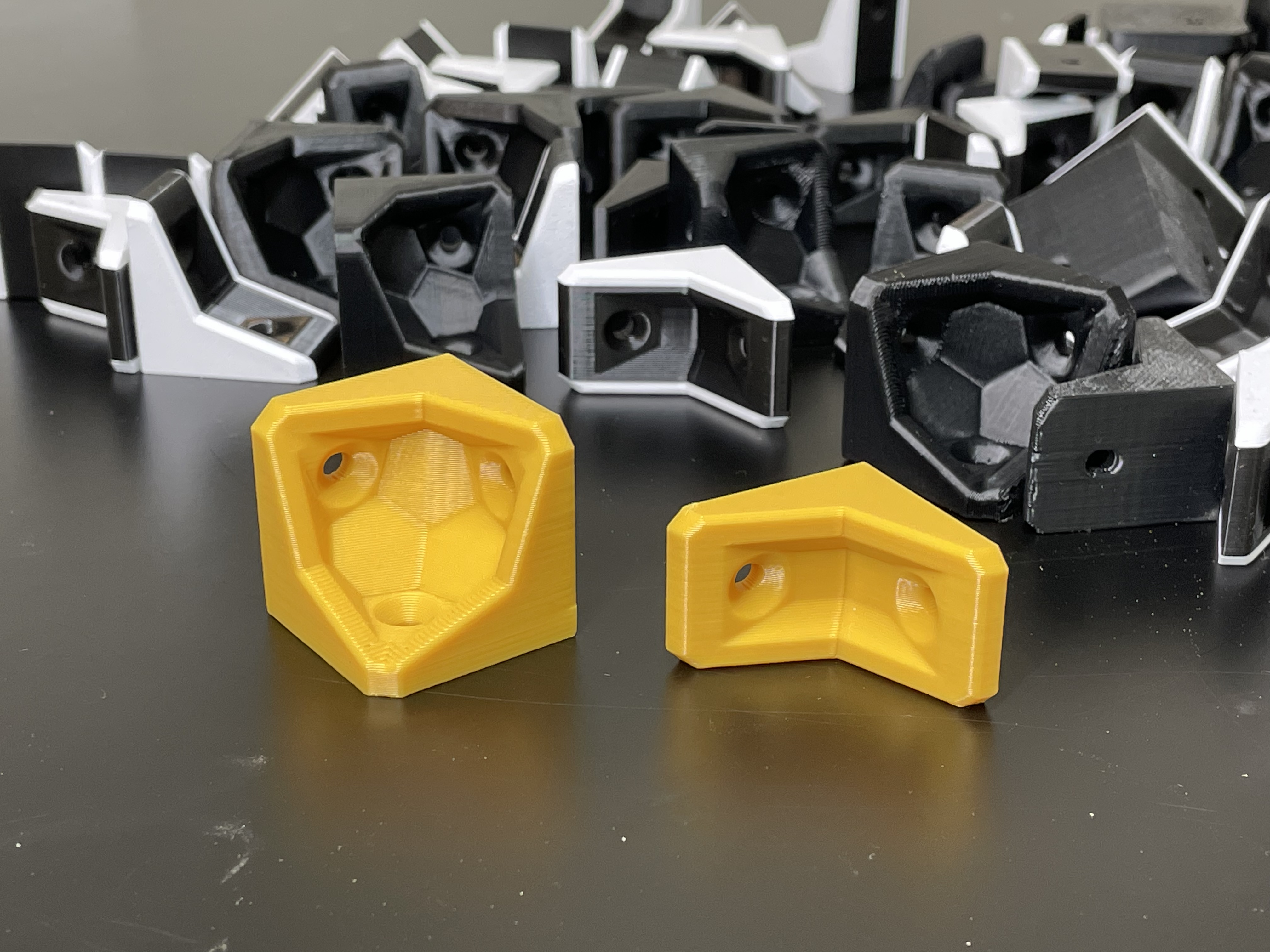

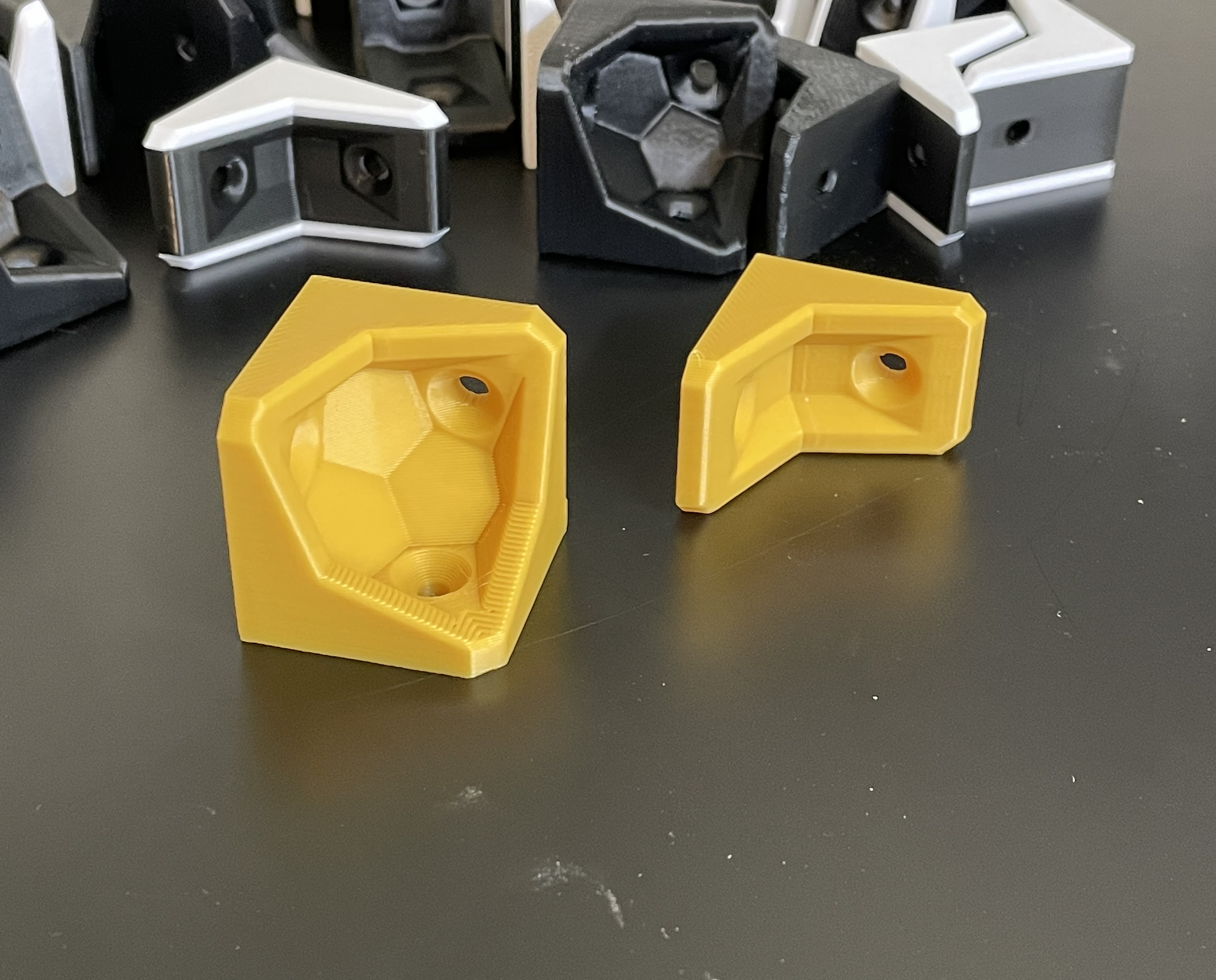

Also made a 3-panel corner bracket (otherwise you'd need 3 of the 2-panel brackets to achieve the same thing).

Print in the orientation it loads (rotate the overhangs towards your parts cooling fan if necessary), no supports.

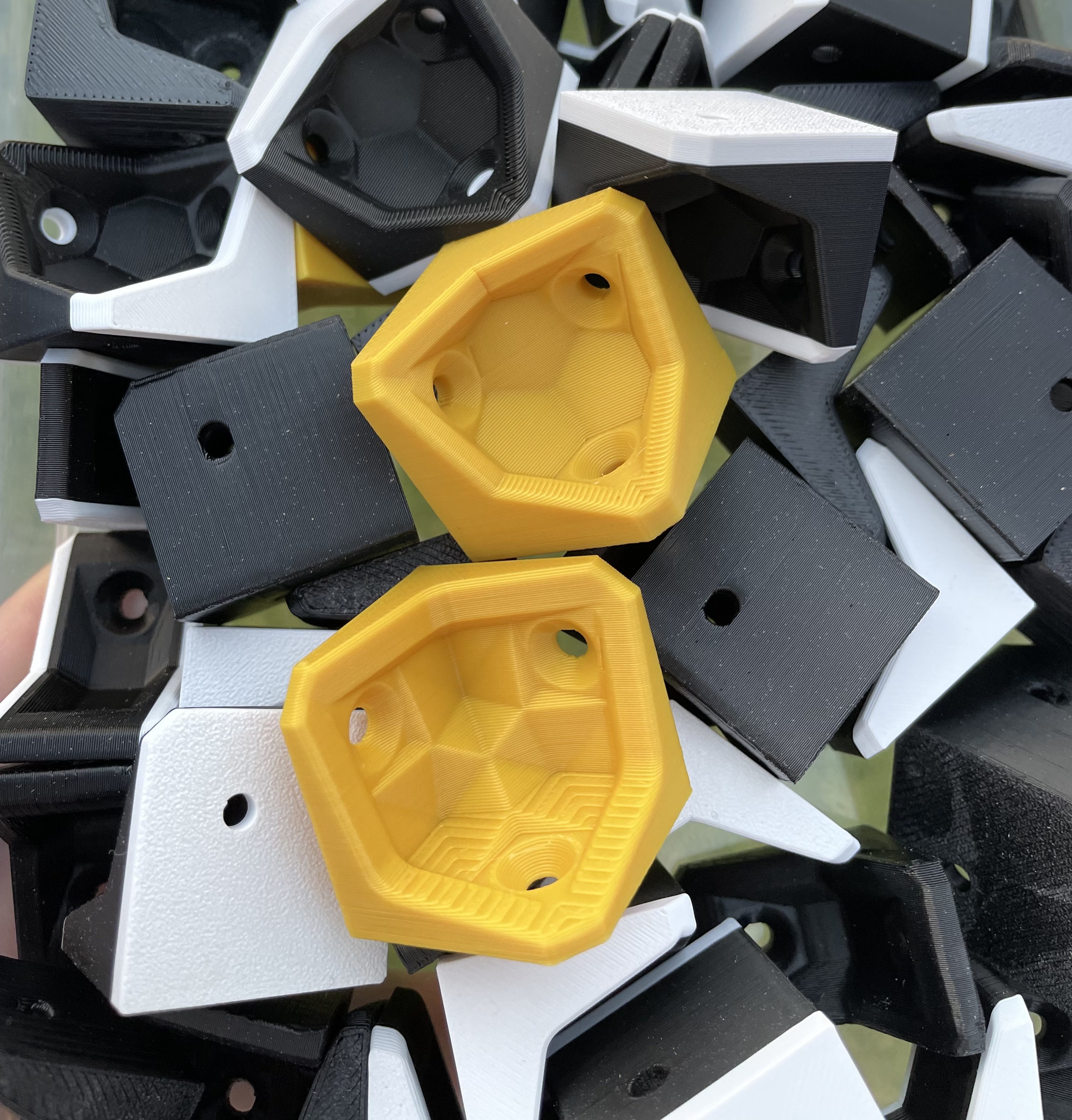

Update: small rounds at weak points added. Bambu Slicer likes to put seams at the weak point, even with a radius (Super Slicer does not), consider manually painting seams in your slicer if your slicer is putting seams on the stress concentration. The yellow brackets in my pictures are of the earlier version - you can see that the seams are at the worst place.

Printables

Corner Brackets - Designed for 3D Printing

KYZ Design KYZ Design (abre em nova aba)

Publicado em 19 de fev de 2023

124
Curtidas
425
Downloads
1
Impressões
Categoria Organizers
Tags
shelf enclosure bracket angle workshop woodworking panel wood organization corner plywood strong mdf l right
Licença Creative Commons — Attribution — Noncommercial
Arquivos (6)
Corner Bracket LD - 2-Panel.stl 67.2 KB
Corner Bracket LD - 2-Panel Double.stl 111.2 KB
Corner Bracket LD - 3-Panel.stl 92.4 KB
Corner Bracket MD - 2-Panel.stl 64.4 KB
Corner Bracket MD - 2-Panel Double.stl 109.1 KB
Corner Bracket MD - 3-Panel.stl 90.3 KB
