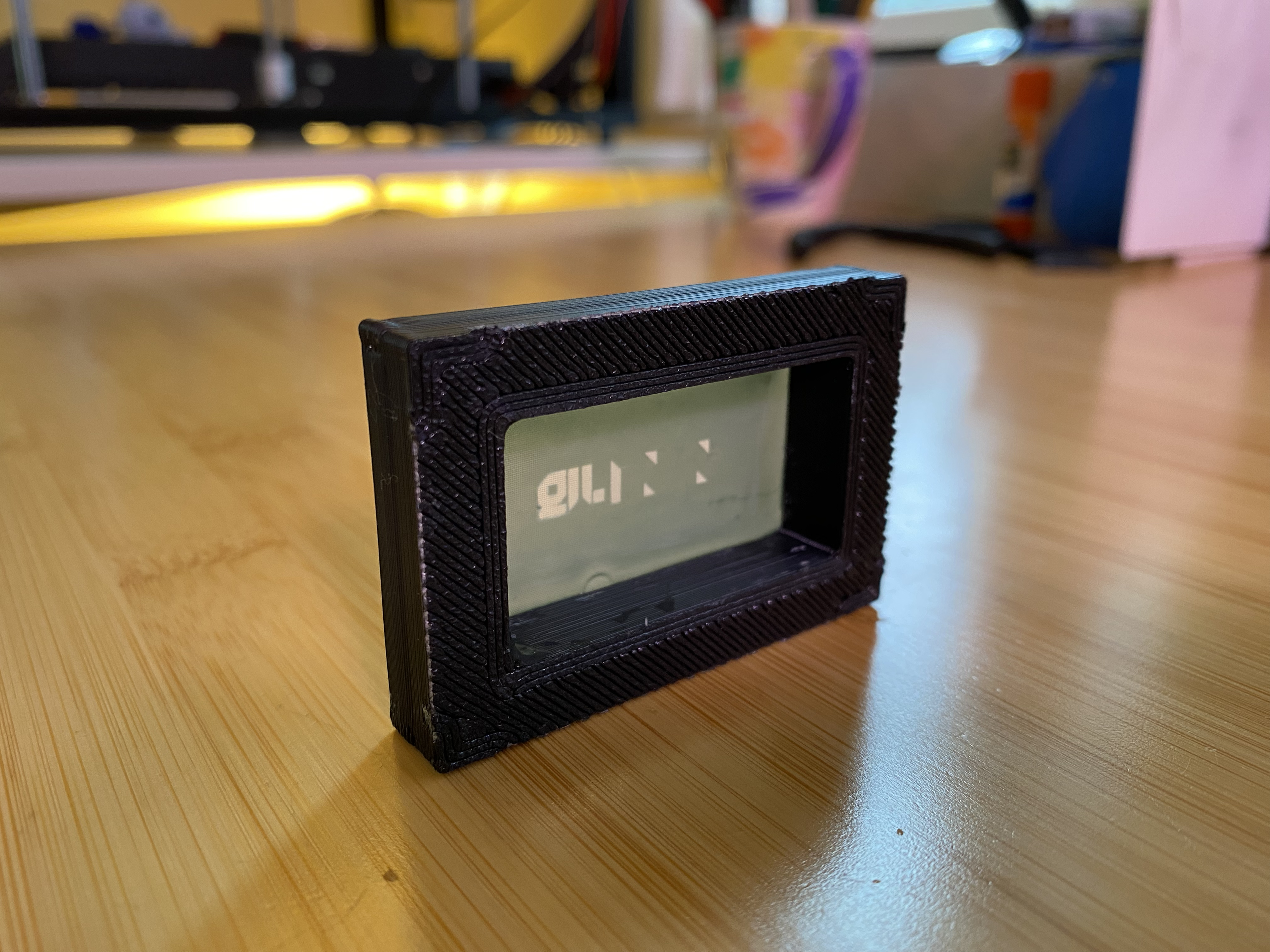

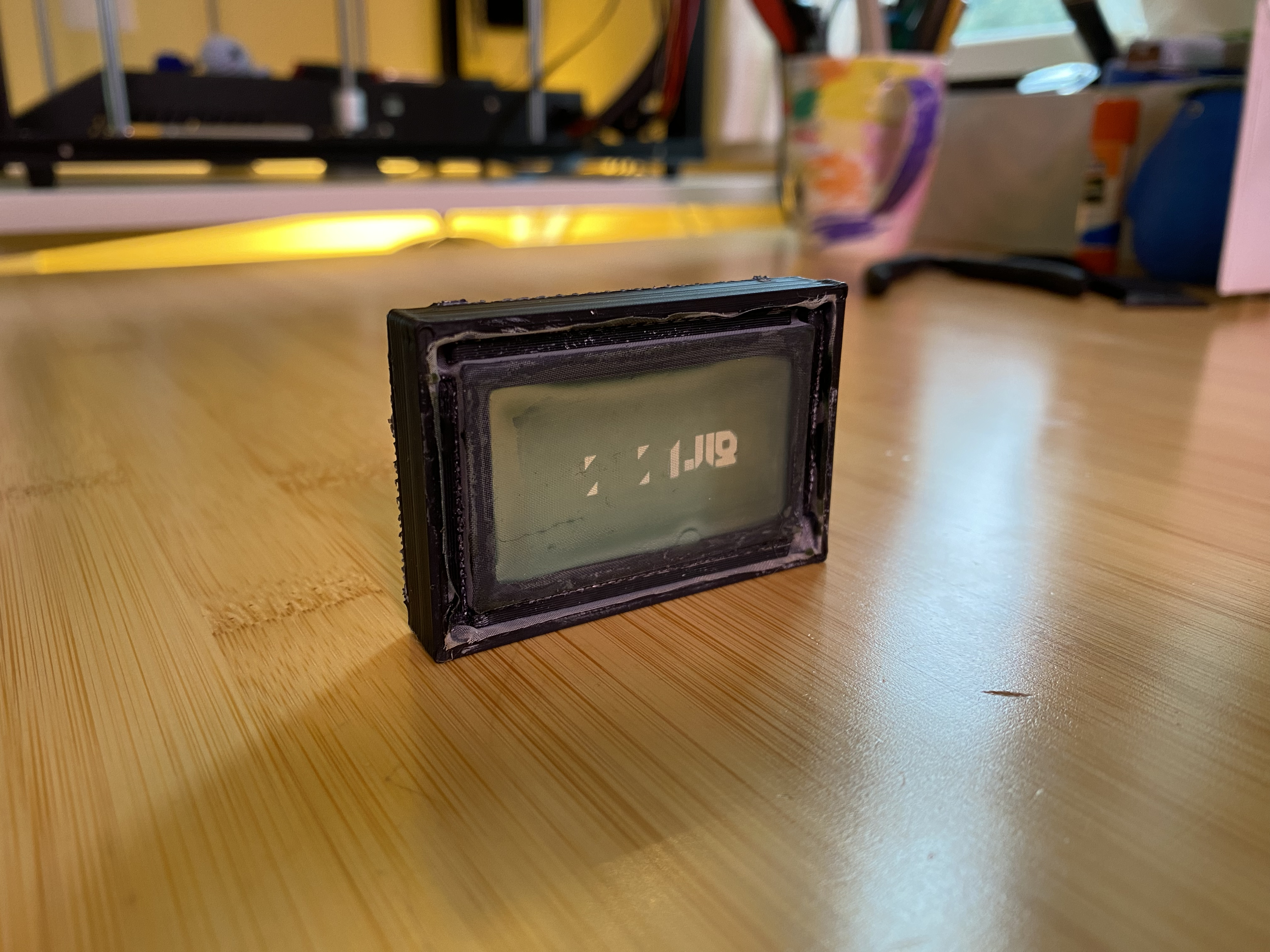

Modelo 3D Tiny Screen Printing Frame por jamesmjacoby no Printables

Descrição

I wanted a way to make screens for very small designs for cheap. Here is my initial design. Feedback, remixes welcome.

Additional materials needed:

  • Screen printing screen material of your choice
  • Other printmaking supplies: transparencies, emulsion

Instructions:

  • Print with the screen surface and cord channel facing up, tear off cords on build plate
  • Tear off the four cords from the sides
  • Cut screen material to overhang the sides by about 10-20 mm
  • Center screen material over channels on flat side
  • Press cords part way into channels to partially tension screen
  • Apply a small amount of super glue to four outer corners to hold outer edge of screen in place
  • Once glue dries, press cords to bottom of channels to fully tension screen
  • Optionally apply super glue to cords in channels to lock them in place
  • Continue with emulsion, exposure as usual
Printables

Tiny Screen Printing Frame

Publicado em 18 de fev de 2023

32
Curtidas
123
Downloads
1
Impressões
Categoria Other Ideas
Tags
silkscreen screenprinting printmaking
Licença Creative Commons — Public Domain
Arquivos (2)
Screen Printing Frame v8.stl 7.9 KB
Screen Printing Frame v8.f3d 107.2 KB
