Modelo 3D Ski and Pole Wall Mount por Limit no Printables

Descrição

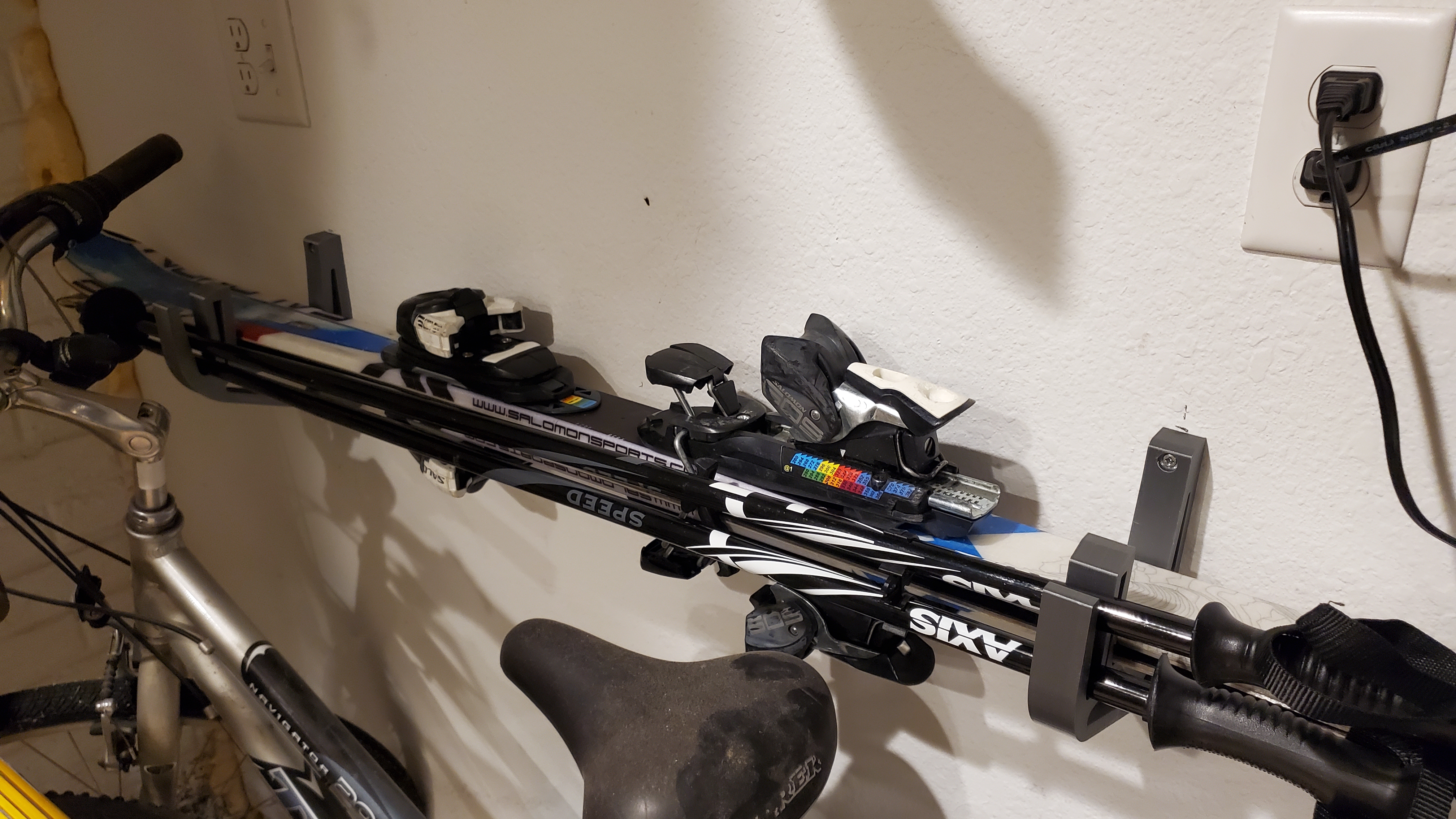

Ski and pole wall mount that allows you to store your skis with their bindings on and a set of poles. The skis are held with the binding vertical to keep the pair close to the wall and the poles slip right in front without taking up too much more distance.



This was designed for standard downhill all mountain skis that my wife uses. The mount can hold a 90mm wide ski pair comfortably, and a pole diameter of 17mm. If your skis are slightly wider feel free to comment with your required size and I can provide a quick update or I can post the Fusion file if you would like to edit it yourself.

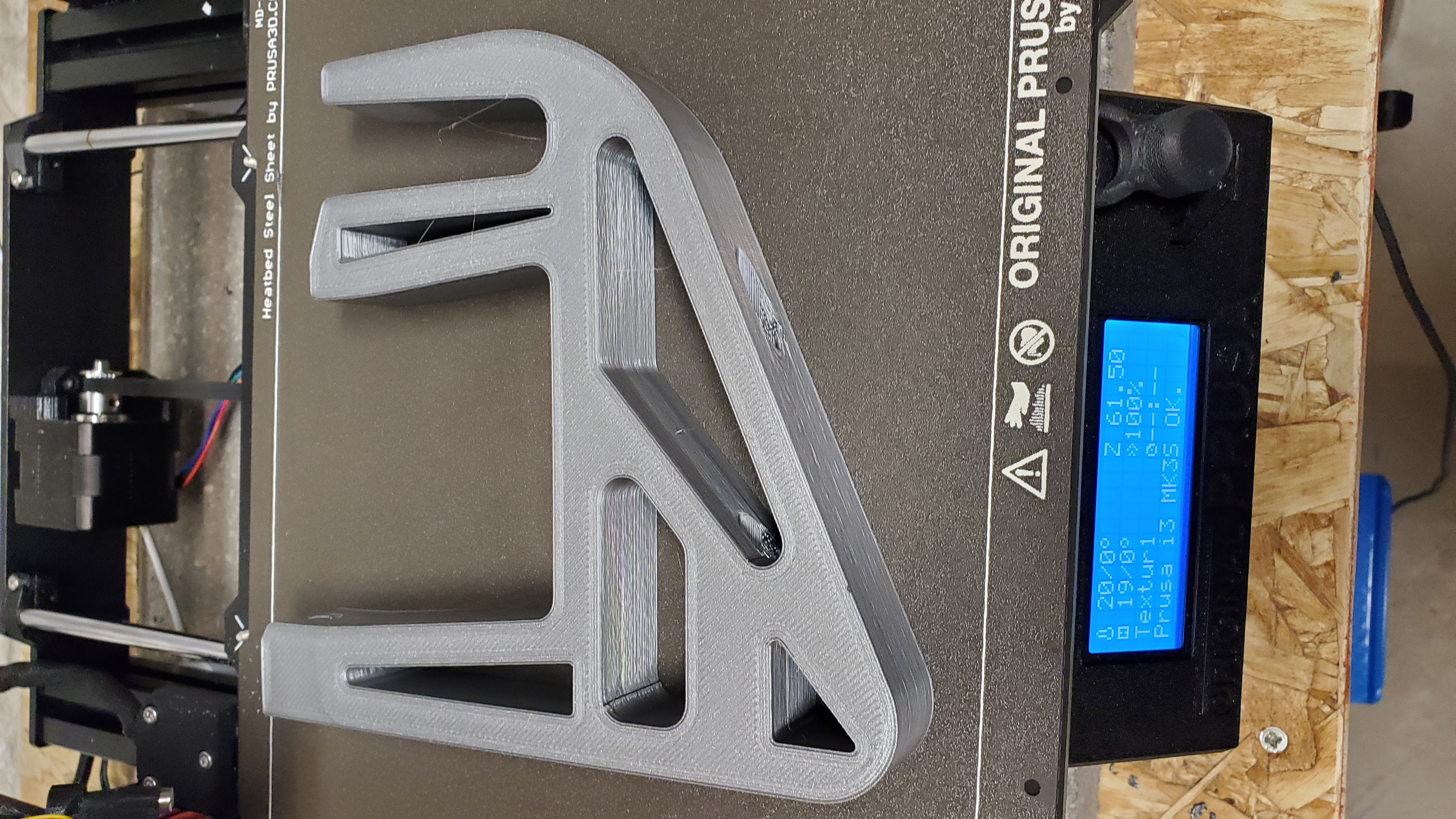

Holes are built for #9 standard wood screws. I used 3.0" long screws but your mounting needs may be different. Obviously you need to print 2, one fits nicely on a single print on my MK3S+. I printed mine out of PETG using a 0.6mm nozzle and 0.25mm layer height.

Check out my snowboard mount if you own a board as well. Designed in a similar style to match the ski mounts mounts.  [https://www.printables.com/model/401668-low-profile-snowboard-wall-mount](https://www.printables.com/model/401668-low-profile-snowboard-wall-mount)

Printables

Ski and Pole Wall Mount

Publicado em 18 de fev de 2023

27
Curtidas
157
Downloads
Categoria Winter Sports
Tags
wall mount hanging ski pole
Licença Creative Commons — Public Domain
Arquivos (1)
Ski and Pole Wall Mount.stl 230.3 KB
