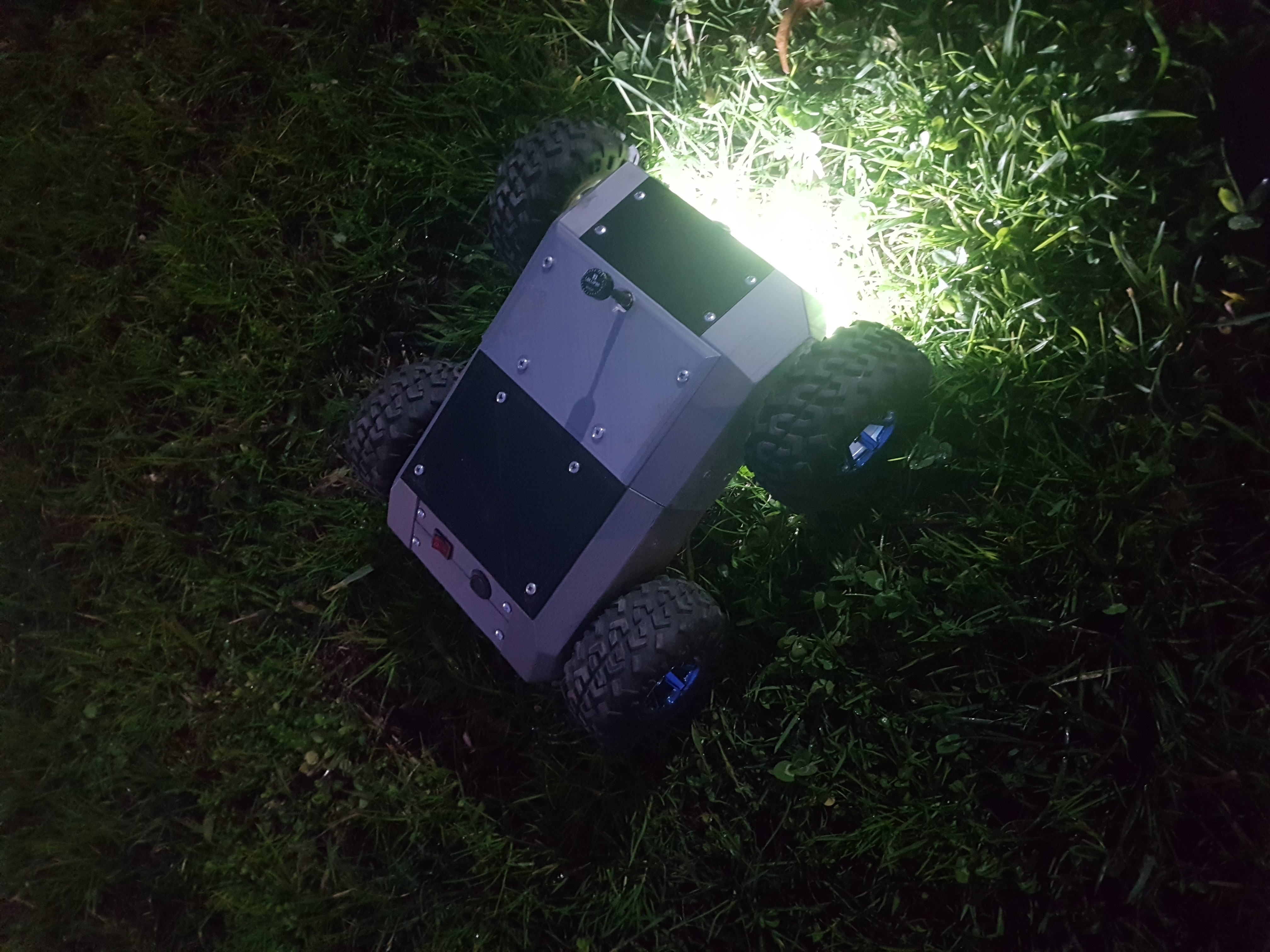

I decided to share the unmanned ground vehicle project I made to improve myself by publishing all the design files and material list.
The design process took 1 week, printing time 1 week (with 2 printers and 0.6mm nozzles). It is very pleasant to assemble and drive, powerful, durable, fast and enjoyable.
Effortless as the number of parts to be printed is low. You can redesign the vehicle for different purposes by making changes on the design files and
You can use it autonomously or by image processing with raspbery pi.

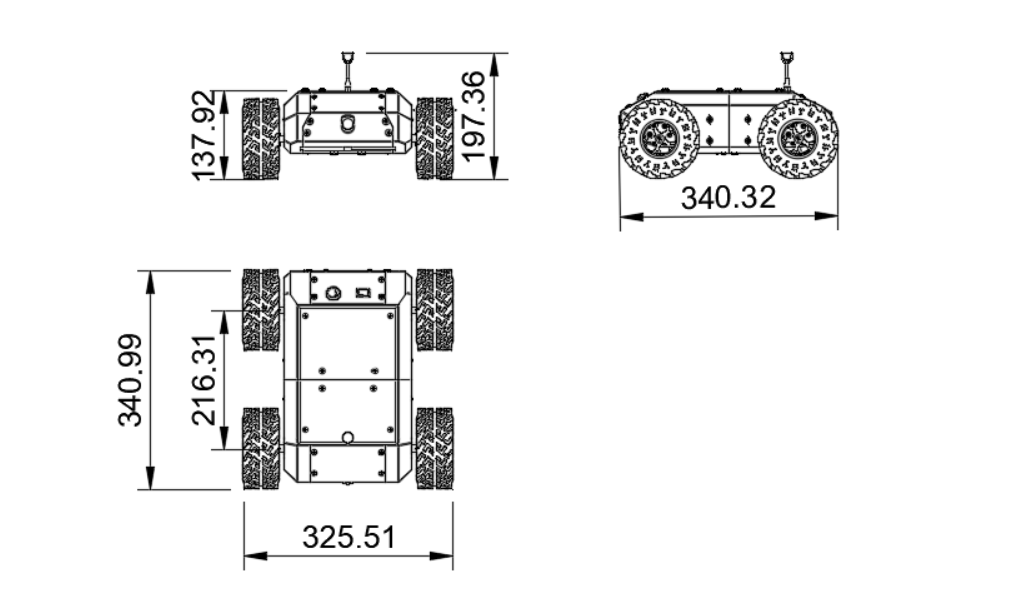

The vehicle has a total weight of 3.3kg. 330*340(with tires)

Electronics:
Motor Controller:
2X 320A brushed ESC
[https://www.amazon.com/Comimark-6-12V-Brushed-Speed-Controller/dp/B087NF55VD/ref=sr_1_8?crid=2A77C2TUYQV2P&keywords=brushed+esc&qid=1677701596&sprefix=brushed+es%2Caps%2C247&sr=8-8](https://www.amazon.com/Comimark-6-12V-Brushed-Speed-Controller/dp/B087NF55VD/ref=sr_1_8?crid=2A77C2TUYQV2P&keywords=brushed+esc&qid=1677701596&sprefix=brushed+es%2Caps%2C247&sr=8-8)

Motors:
4X 37mm reduced motor 1000rpm
Not:This motor provides low torque and high speed.If you want a vehicle with higher torque, you need to choose an engine with a lower rpm.
[https://a.co/d/aVXaxlS](https://a.co/d/aVXaxlS)
Battery
6 li-ion battery 3s2p
Or 3s lipo battery
Not:You need to choose the dimensions of the 3s lipo battery to fit the battery box.
Comunucation:
Flysky fs-i6 transmitter
Flysky fs-i6b receiver
[https://www.amazon.com/DTXMX-FS-i6X-Transmitter-Controller-Helicopter/dp/B0B3R1K9KC/ref=sr_1_2_sspa?keywords=flysky+transmitter+and+receiver&qid=1677702630&sprefix=flysky+%2Caps%2C204&sr=8-2-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUEyOUdOWVZHMDFIOEtUJmVuY3J5cHRlZElkPUEwMDkzMjQzUlRGTFRRQlA4Qk00JmVuY3J5cHRlZEFkSWQ9QTA1OTA0NjkzUTJSWjk2VEJSSzVMJndpZGdldE5hbWU9c3BfYXRmJmFjdGlvbj1jbGlja1JlZGlyZWN0JmRvTm90TG9nQ2xpY2s9dHJ1ZQ==](https://www.amazon.com/DTXMX-FS-i6X-Transmitter-Controller-Helicopter/dp/B0B3R1K9KC/ref=sr_1_2_sspa?keywords=flysky+transmitter+and+receiver&qid=1677702630&sprefix=flysky+%2Caps%2C204&sr=8-2-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUEyOUdOWVZHMDFIOEtUJmVuY3J5cHRlZElkPUEwMDkzMjQzUlRGTFRRQlA4Qk00JmVuY3J5cHRlZEFkSWQ9QTA1OTA0NjkzUTJSWjk2VEJSSzVMJndpZGdldE5hbWU9c3BfYXRmJmFjdGlvbj1jbGlja1JlZGlyZWN0JmRvTm90TG9nQ2xpY2s9dHJ1ZQ==)
Not: You can make elevon mix by connecting escs to channel 1 and channel 2
Regulator:
Filtered clean electricity for VTX LM2596
[https://www.amazon.com/DZS-Elec-Adjustable-Electronic-Stabilizer/dp/B06XRN7NFQ/ref=sr_1_3?crid=RAOGNPD6HVX6&keywords=VOLTAGE+REGULATOR+lm2596&qid=1677701793&sprefix=voltage+regulator+lm2596%2Caps%2C212&sr=8-3](https://www.amazon.com/DZS-Elec-Adjustable-Electronic-Stabilizer/dp/B06XRN7NFQ/ref=sr_1_3?crid=RAOGNPD6HVX6&keywords=VOLTAGE+REGULATOR+lm2596&qid=1677701793&sprefix=voltage+regulator+lm2596%2Caps%2C212&sr=8-3)
Not: The VTX operates in the 7-26V range. You should adjust the voltage regulator accordingly
VTX:akk fx2 ultimate
[https://www.amazon.com/Ultimate-International-5-8GHz-Switchable-Transmitter/dp/B081K341XP/ref=sr_1_34?crid=2QVKCTUGFG75B&keywords=akk+fx2&qid=1676628756&sprefix=akk+fx%2Caps%2C353&sr=8-34](https://www.amazon.com/Ultimate-International-5-8GHz-Switchable-Transmitter/dp/B081K341XP/ref=sr_1_34?crid=2QVKCTUGFG75B&keywords=akk+fx2&qid=1676628756&sprefix=akk+fx%2Caps%2C353&sr=8-34)
Camera: foxeer monster
Led:
Antenna: foxeer lolipop
[https://www.amazon.com/Foxeer-Antenna-Lollipop-Quadcopeter-Multicopter/dp/B07D12XS6K/ref=sr_1_1_sspa?crid=26E5CW3PPL60X&keywords=foxeer+lollipop&qid=1677702062&sprefix=foxeer+lolipop%2Caps%2C203&sr=8-1-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUFUSjI5WFU3QVRKSzgmZW5jcnlwdGVkSWQ9QTA3NjcxMTQ5QUxWVTQ2WEgwTTEmZW5jcnlwdGVkQWRJZD1BMDA5OTQ1NjE3NzZBVFlPQTZYRDcmd2lkZ2V0TmFtZT1zcF9hdGYmYWN0aW9uPWNsaWNrUmVkaXJlY3QmZG9Ob3RMb2dDbGljaz10cnVl](https://www.amazon.com/Foxeer-Antenna-Lollipop-Quadcopeter-Multicopter/dp/B07D12XS6K/ref=sr_1_1_sspa?crid=26E5CW3PPL60X&keywords=foxeer+lollipop&qid=1677702062&sprefix=foxeer+lolipop%2Caps%2C203&sr=8-1-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUFUSjI5WFU3QVRKSzgmZW5jcnlwdGVkSWQ9QTA3NjcxMTQ5QUxWVTQ2WEgwTTEmZW5jcnlwdGVkQWRJZD1BMDA5OTQ1NjE3NzZBVFlPQTZYRDcmd2lkZ2V0TmFtZT1zcF9hdGYmYWN0aW9uPWNsaWNrUmVkaXJlY3QmZG9Ob3RMb2dDbGljaz10cnVl)
ON/OFF Switch:

Electronic Schematic: [https://drive.google.com/file/d/1JFfA1b_0QNyIL2A8BwEtcY6eFCFOy5if/view?usp=sharing](https://drive.google.com/file/d/1JFfA1b_0QNyIL2A8BwEtcY6eFCFOy5if/view?usp=sharing)

Mechanical Parts
Total Screws and Nuts :

m4 12mm x40
m4 5mm: x4
m4 nut: x46
m3 6mm: x34
m3 10mm: x8
m3 nut: x4

coupling 6mm x4
tire 125x58mm x4

Print:
All parts printed with Pla
Need 2 packs of filament.

Other Parts:

MMCX connector
[https://www.amazon.com/RP-SMA-Female-Connector-MMCX-Male/dp/B07FHYKXS6/ref=sr_1_5?crid=396THIK5F5QMU&keywords=MMCX+connector&qid=1677702104&sprefix=mmcx+connector%2Caps%2C232&sr=8-5](https://www.amazon.com/RP-SMA-Female-Connector-MMCX-Male/dp/B07FHYKXS6/ref=sr_1_5?crid=396THIK5F5QMU&keywords=MMCX+connector&qid=1677702104&sprefix=mmcx+connector%2Caps%2C232&sr=8-5)
Camera screws
some electrical cable
XT60 connector female:
[https://www.amazon.com/dp/B07C3R5W31?pd_rd_i=B07C3R5W31&pf_rd_p=b000e0a0-9e93-480f-bf78-a83c8136dfcb&pf_rd_r=QHMVCRX5JBSSNQ2ZNVKW&pd_rd_wg=N4f6p&pd_rd_w=LIj70&pd_rd_r=cc04e80a-99fc-40cb-9682-f617b4b1a829](https://www.amazon.com/dp/B07C3R5W31?pd_rd_i=B07C3R5W31&pf_rd_p=b000e0a0-9e93-480f-bf78-a83c8136dfcb&pf_rd_r=QHMVCRX5JBSSNQ2ZNVKW&pd_rd_wg=N4f6p&pd_rd_w=LIj70&pd_rd_r=cc04e80a-99fc-40cb-9682-f617b4b1a829)
XT30 female x4:
XT30 male x4:
[https://www.amazon.com/Connectors-Female-Pieces-Shrink-Battery/dp/B0875MBLNH/ref=sr_1_2?crid=16UVPEZUPTJLM&keywords=xt30&qid=1677702132&sprefix=xt30+%2Caps%2C203&sr=8-2](https://www.amazon.com/Connectors-Female-Pieces-Shrink-Battery/dp/B0875MBLNH/ref=sr_1_2?crid=16UVPEZUPTJLM&keywords=xt30&qid=1677702132&sprefix=xt30+%2Caps%2C203&sr=8-2)
Print Parts:
1x back part
1x battery box bottom
1x battery box top
2x battery connection pin
1x bottom back part
1x bottom connection part
1x bottom front part
1x electronics box cover
1x electronics box
1x front part
1x left back part
1x left front part
lx rigt back part
1x right front part
2x side surface joint
1x upper back part
1x upper front part
1x upper part joint
